SMTS-102 ON-ON Mini Toggle Switch
SMTS-102 ON-ON Mini Toggle Switch SPDT with 3 terminals
Category :
Sub-mini Toggle Switch
SMTS-102 ON-ON Mini Toggle Switch:
The SMTS micro toggle switch is offered in both SPDT and DPDT. What’s more, these switches come with a variety of switching functions and bushing options. Eight different termination options are available.
Applications include telecommunications, instrumentation, networking, and medical equipment devices.
We can’t talk out their advantage in a few words, but they are more and more popular in the world. We provide our product at Factory Price. Contact Directly & Get Live Quotes Now!
SMTS-102 ON-ON Mini Toggle Switch Related Product

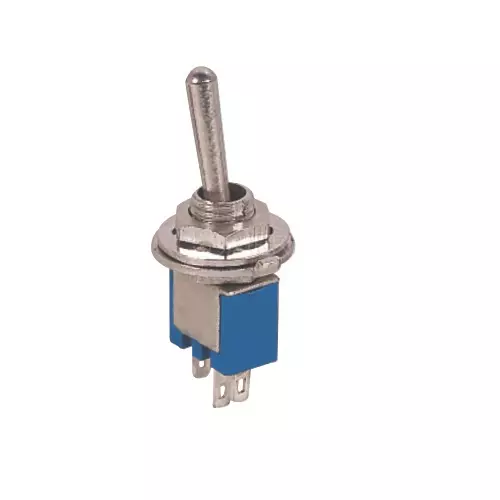

| SMTS-102 | 3Pin, ON-ON, solder terminal |

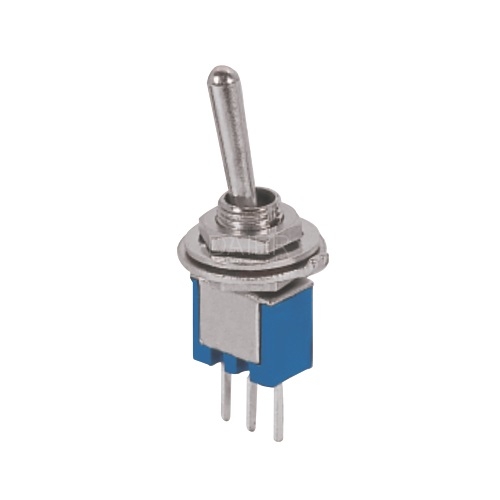

| SMTS-102-A2 | 3Pin, ON-ON, PCB terminal |
Toggle Switch datasheet below
| Housing: | PA66 | Lever: | Brass with Nickel plated |
| Terminal: | Brass with sliver plated | Torque: | Max. 5kg·cm (70 ounce·inch) |
| Rating: | 3A 125VAC/1.5A 250VAC | Contact Resistance: | 20mΩ max |
| Electrical Life: | ≥ 10,000 Cycles | Mechanical Life: | ≥ 100,000 Cycles |
| Dielectric strength: | 1000VAC 1 minute | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 1000mΩ min (500VDC) | OEM or ODM: | Available |
