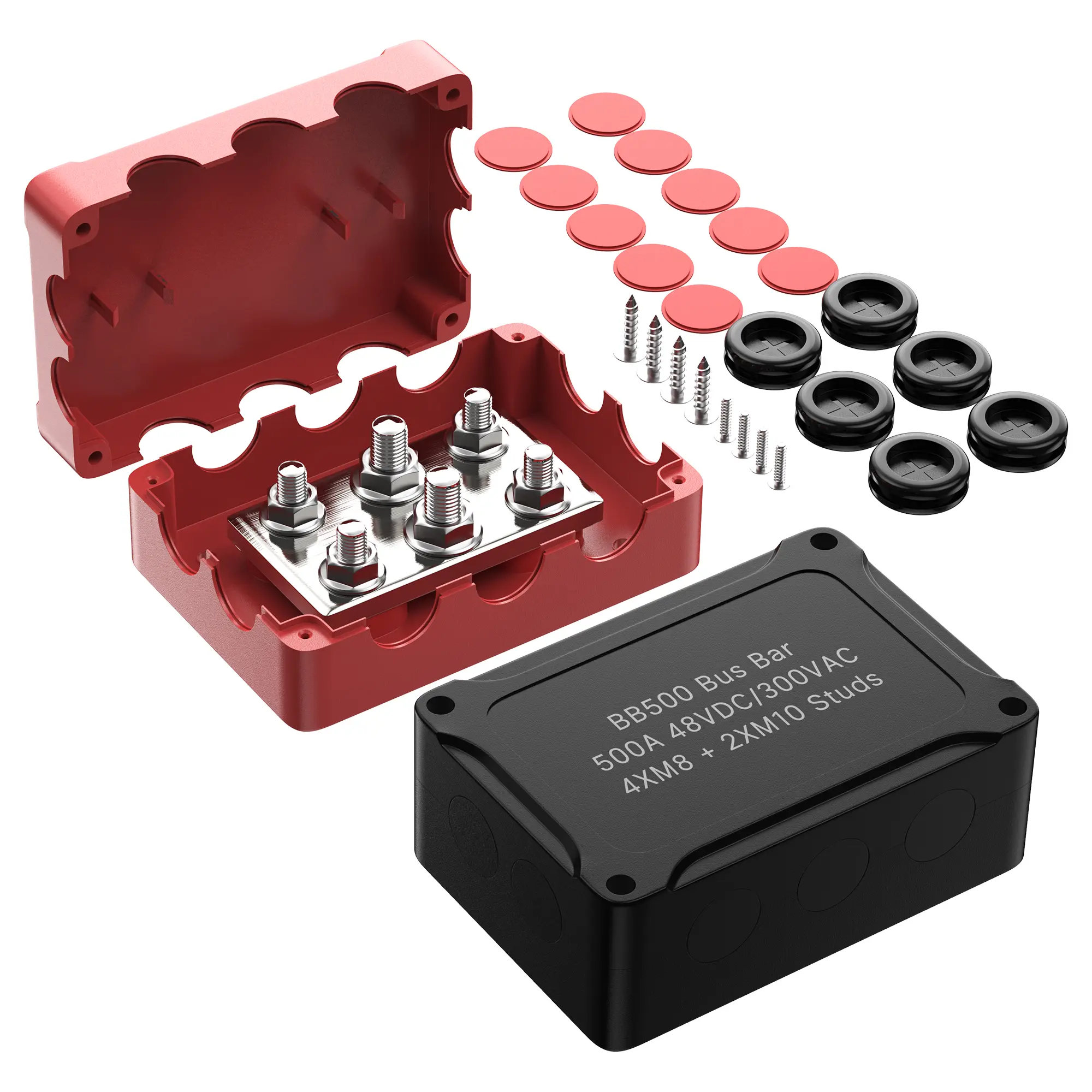

BB500-T6M8X4M10X2 Heavy Duty 48VDC 500A Busbar Box with 4×M8 and 2×M10 Studs
Part#BB500-T6M8X4M10X2
The 48VDC 500A busbar has 6 terminal studs, including 4×M8 terminal studs and 2×M10 terminal studs.
The thickness of the pure copper plate is 6mm, which is strong to protect the safety of the equipment.
Category :
Busbar
BB500-T6M8X4M10X2 Heavy Duty 48VDC 500A Busbar Details
-
Easy Installation
It is installed on the panel surface with screw mounting holes for installation in any direction.
-
Stable Performance
Nickel-plated brass contact plate has low resistance and good conductivity to ensure the flow and stability of current.
-
Sturdy Construction
All power distribution connection blocks are manufactured with high-quality materials, ensuring mechanical strength and durability.
-
Safety Protection
The base is made of flame-retardant plastic to protect the safety of equipment and people.
-
Wide Application
It is suitable for cars, RVs, trucks, boats, solar energy, other electrical equipment, etc.
BB500-T6M8X4M10X2 Datasheet
| Part NO | BB500-T6M8X4M10X2 |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 2 x M10 (3/8”) + 4 x M8 (5/16″) |
| Max Voltage | 48V DC/300V AC |
| Max Continuous Amperage | 500 AMP 12V DC |
| Base & Cover Material | Nylon |
| Bus Material | Copper (Nickel-plated) |
| Terminals Material | Stainless Steel |
| Overall Dimension | 124mm x 86mmx48mm (LxWxH) |
| Features | Bus Bar Box Design & Removable Rubber Gaskets |
