BB400-T6M8-C 400 Amp Solid Copper Busbar with 6×5/16″ (M8) Stud Terminals
Part#BB400-T6M8-C
This 400 amp solid copper busbar features six 5/16″ (M8) stud terminals, ensuring versatile connectivity for high-current applications in demanding environments.
Crafted with an 8mm thick solid copper bar and corrosion-resistant stainless steel terminals, it guarantees maximum conductivity and lasting performance.
Category :
Busbar
BB400-T6M8-C 400 Amp Solid Copper Busbar Features
-
High Current Capacity
This busbar distribution block is designed to handle demanding electrical systems. It boasts a 400A rating, making it ideal for high-current applications up to 48V DC and 300V AC. This makes it a robust solution for power distribution in various vehicles and applications.
-
Durable and Reliable Construction

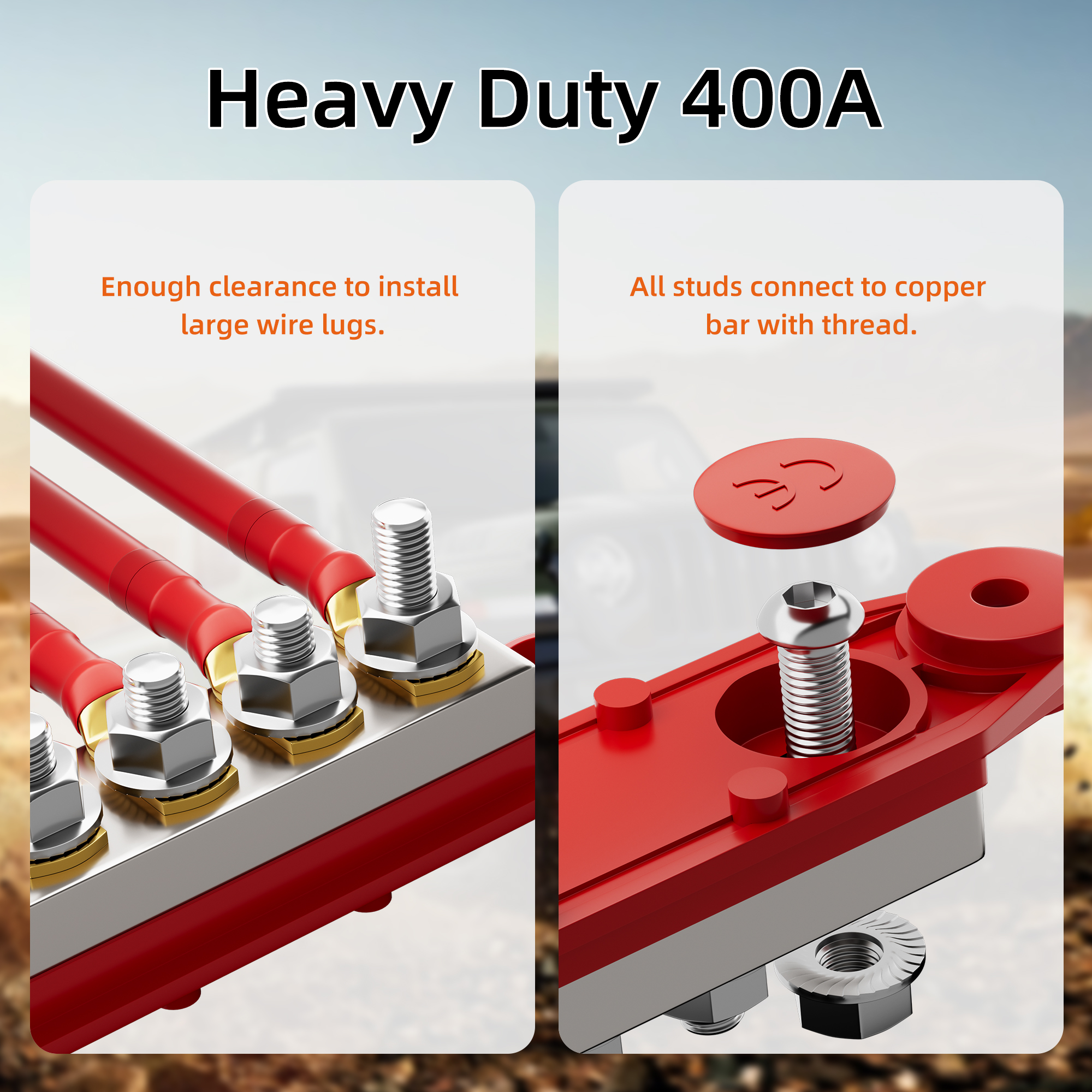

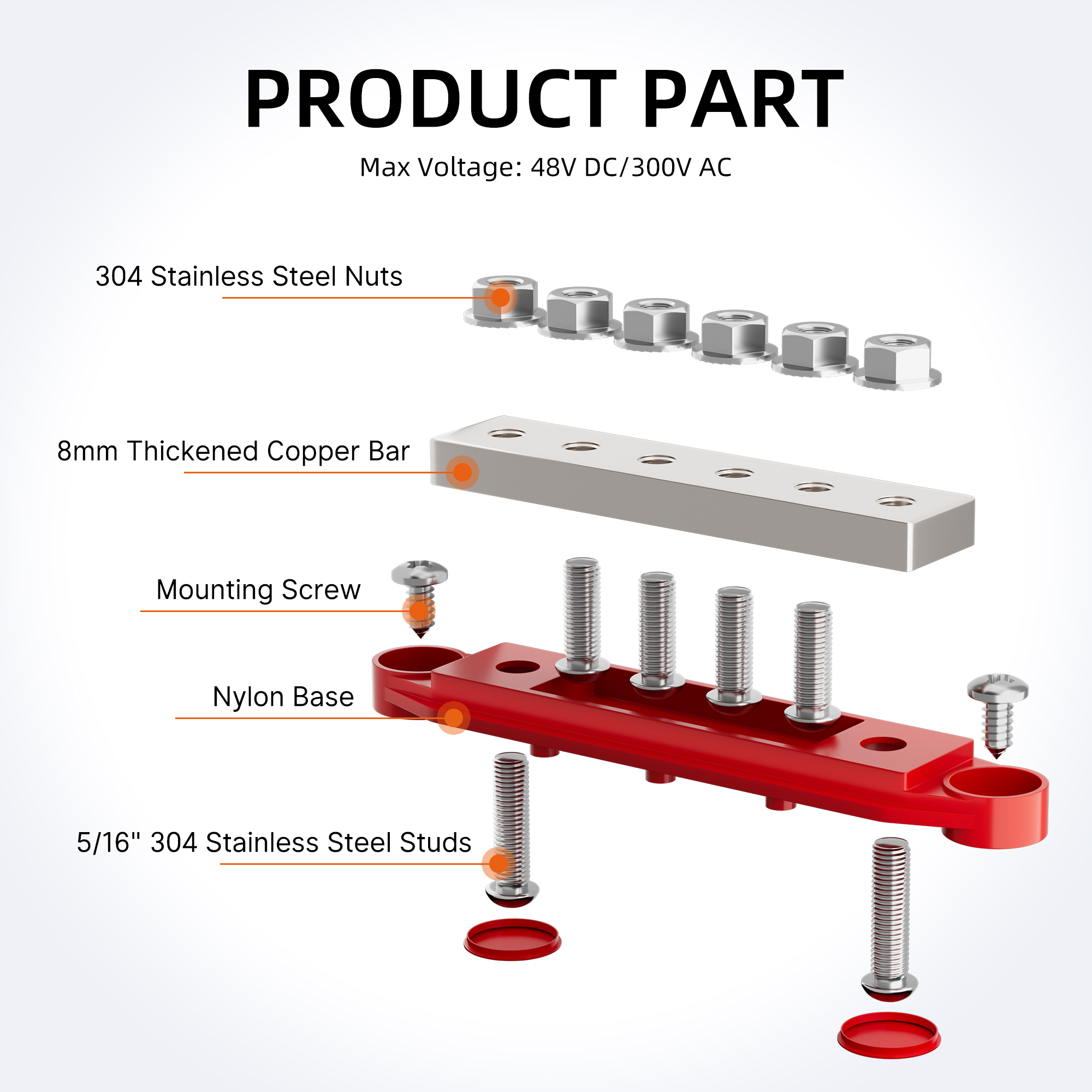

The 400A busbar is built with an 8mm (0.32″) thick copper bus bar plate, ensuring exceptional conductivity and efficient power distribution. Durable stainless steel studs and nuts provide secure connections and lasting corrosion resistance, ensuring long-lasting performance.
-
Versatile Connection Options
This copper busbar offers multiple connection points to accommodate various wiring needs. It includes four 5/16″ (M8) / 3/8″ (M10) stud terminals and six #8(M4) screw terminals. This versatility allows for a wider range of cable sizes and terminal connector types, simplifying complex installations.
-
Enhanced Safety Features

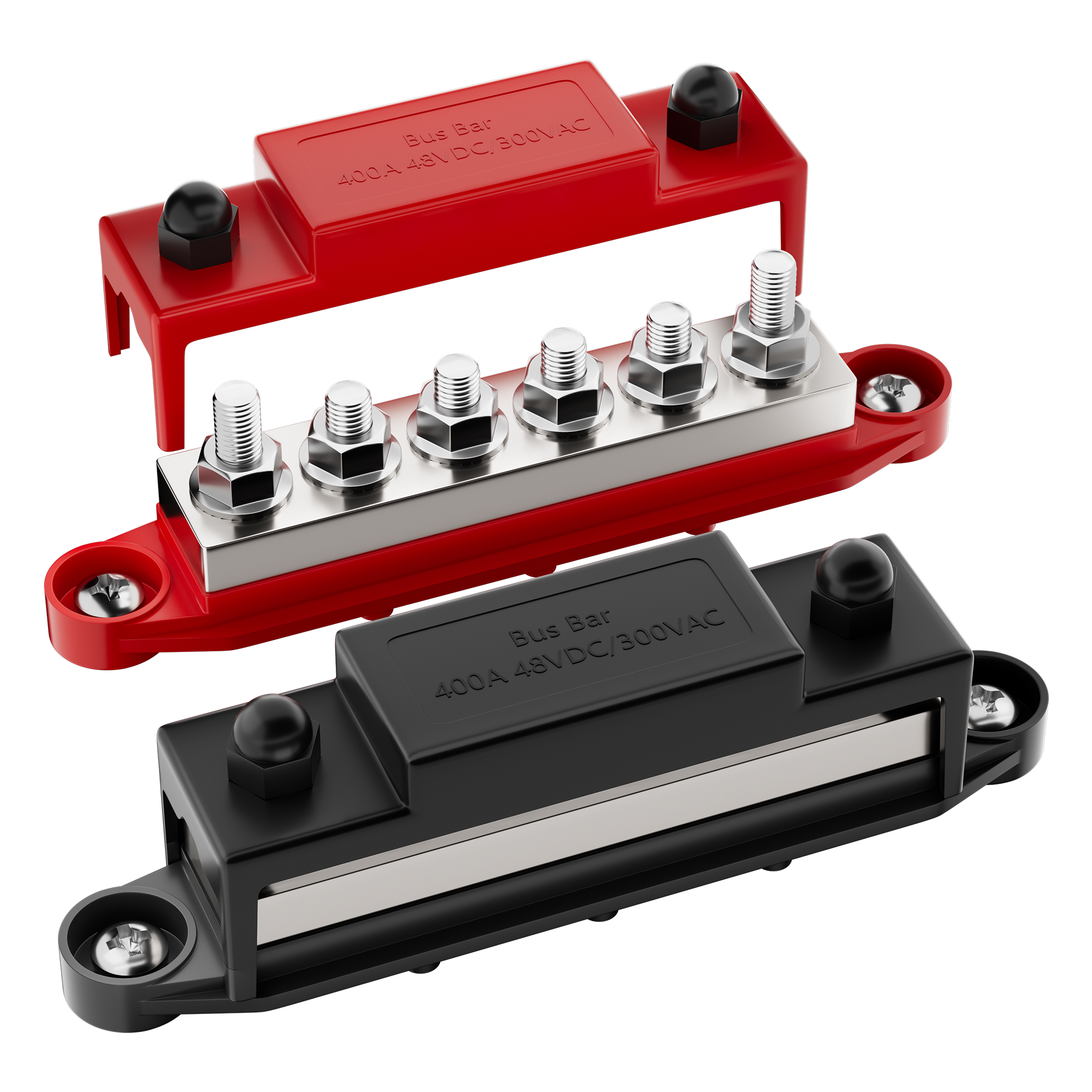

The included protective cover minimizes the risk of accidental contact and short circuits, enhancing safety during installation and operation. The cover shields exposed areas while providing convenient access for wiring and connections.
-
Wide Applications

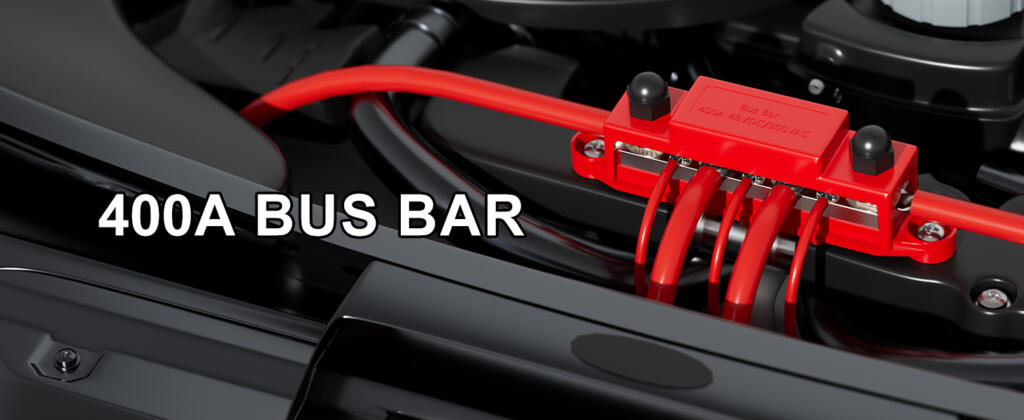

This 400A distribution block is designed to streamline and secure wiring in automotive, marine, and solar power systems. Its rugged construction and high current capacity make it an ideal solution for cars, trucks, boats, RVs, and other demanding applications.
BB400-T4M8/M10S6-C 400A Busbar Distribution Block Datasheet
| Part NO | BB400-T4M8/M10S6-C |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 4x 3/8″(M10) / 4×5/16″(M8) |
| Base & Cover Material | Nylon |
| Bus Material | Copper |
| Bus Thickness | 8mm |
| Terminals Material | Stainless Steel |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 400 AMP 48VDC/300V AC |

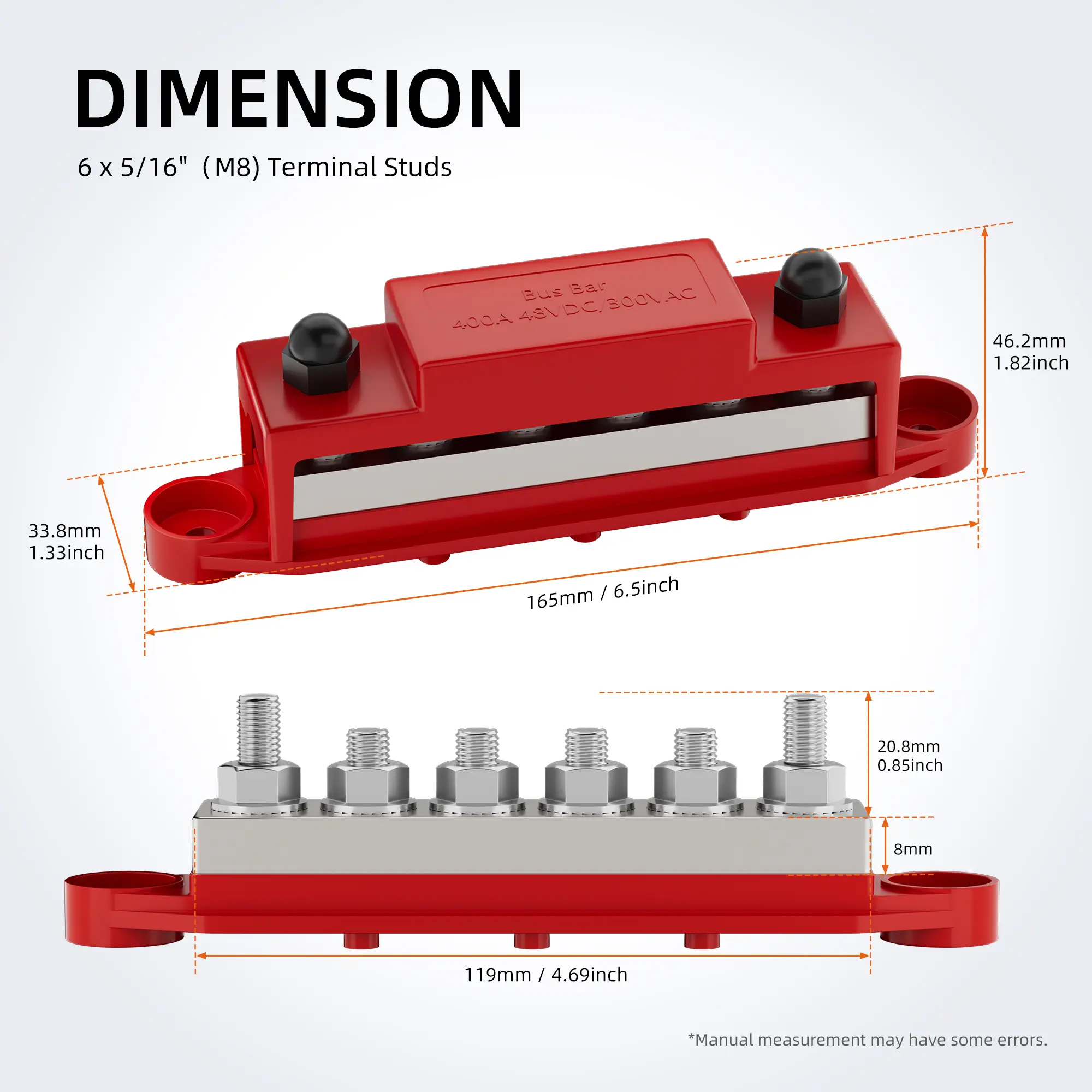

| Overall Dimension | 165mm x 34mm x 42mm (LxWxH) |
