BB400-T3M8S10-C-2 400A Bus Bar Power Distribution Block with 3xM8 Studs & 10x#8 Screws
Part#BB400-T3M8S10-C-2
This 400A busbar features 3×M8 stud terminals and 10×#8 screw terminals for versatile high-current applications in demanding environments.
With its robust construction and 8mm thickness, this busbar ensures maximum conductivity and minimal voltage drop for optimal power distribution.
Category :
Busbar

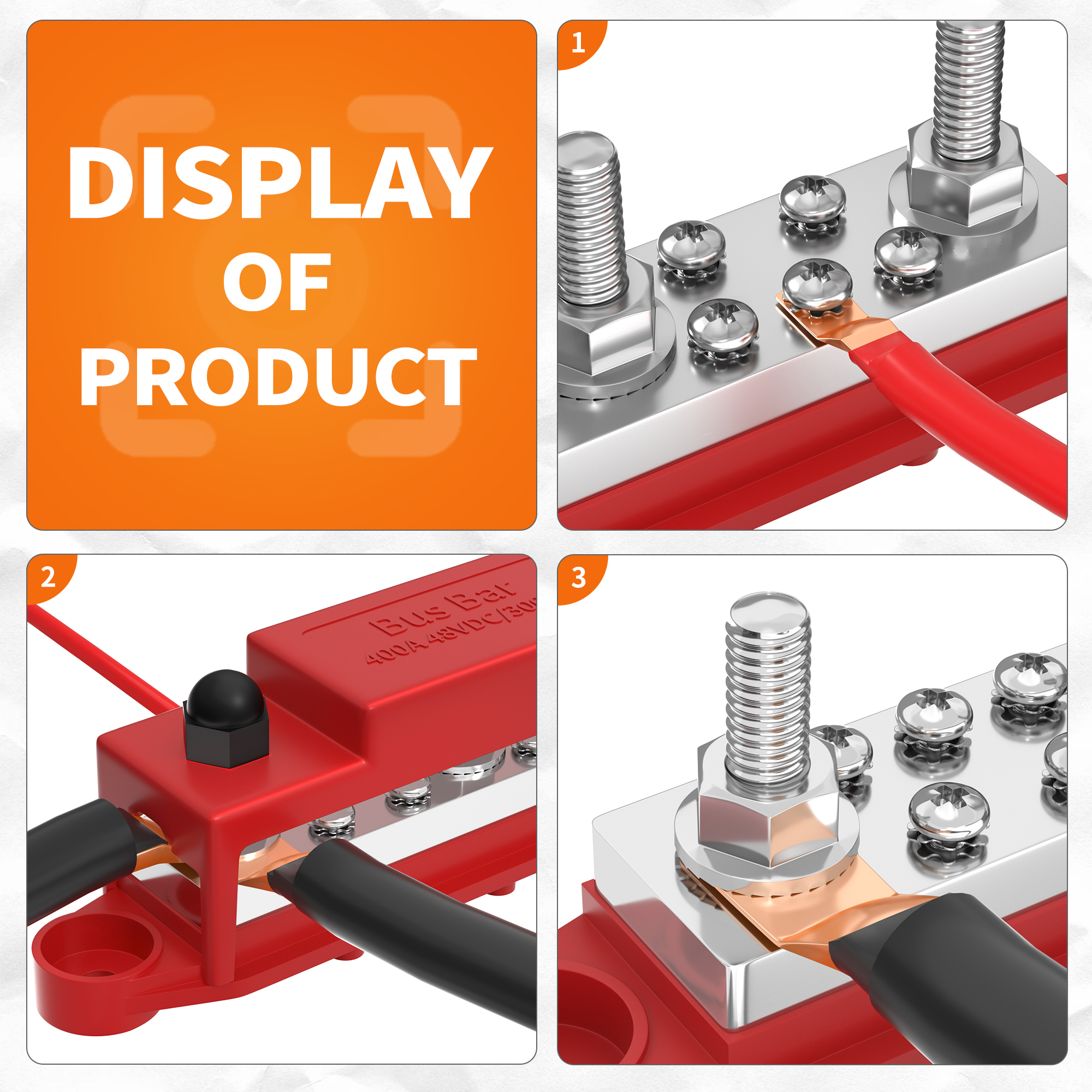

BB400-T3M8S10-C-2 400A Bus Bar with 3xM8 Studs & 10x#8 Screws Details
-
High-Capacity Power Distribution
This solid copper bus bar is designed for high-current applications, offering a 400A capacity for efficient power distribution. It provides a central hub for connecting and distributing power to multiple circuits in automotive, marine, and other demanding electrical systems.
-
Versatile Connection Options

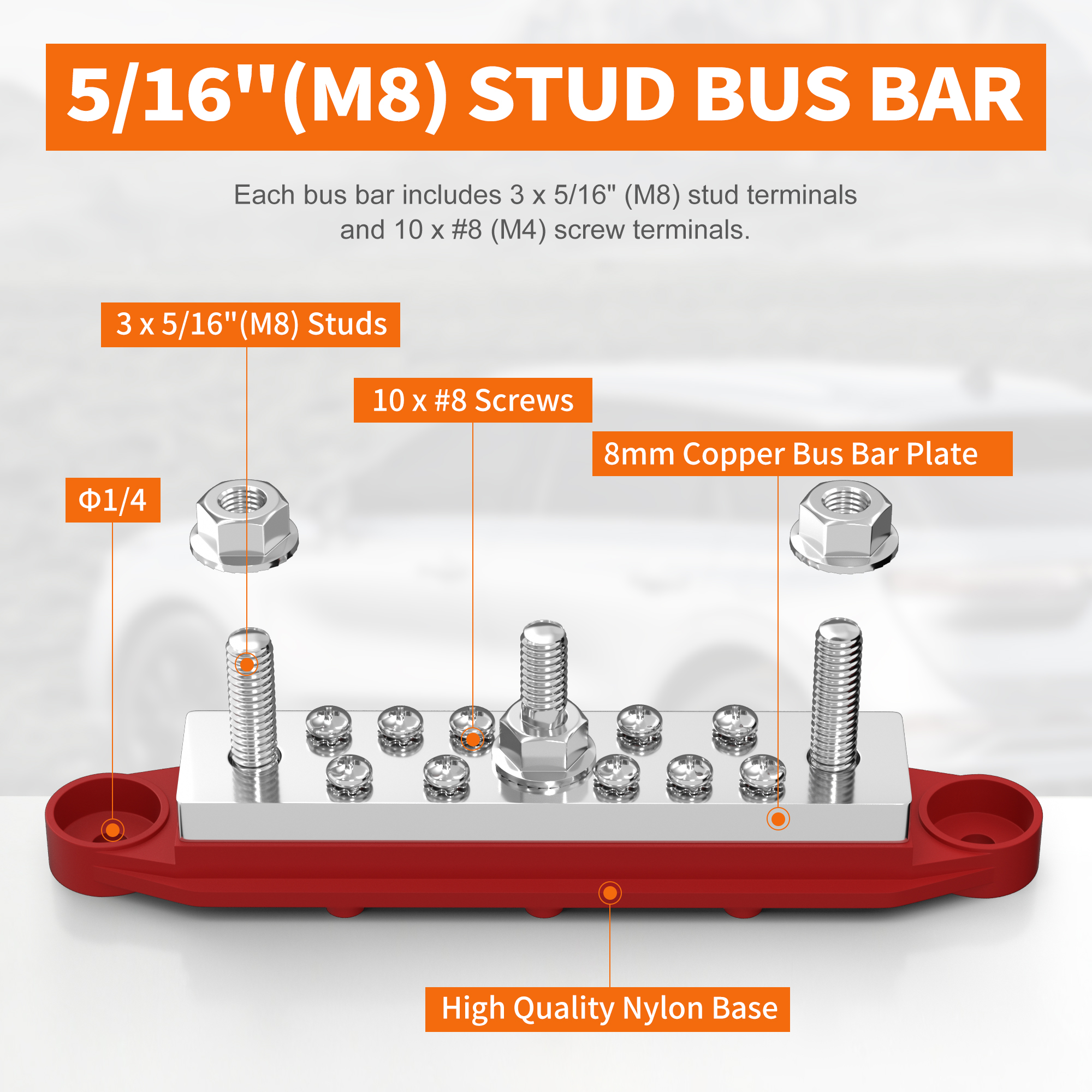

The 400A bus bar features 3×M8 studs and 10×#8 screw terminals, providing a variety of connection options for different wire gauges and terminal types. This versatility makes it easy to integrate the bus bar into a wide range of electrical setups.
-
Durable and Reliable Construction
This 400A bus bar is crafted from solid copper, known for its excellent electrical conductivity, and is nickel-plated for enhanced corrosion resistance. This robust combination ensures long-lasting performance, reliable power distribution, and protection against environmental factors, even in challenging applications.
-
Simplified Wiring and Organization
This power distribution block with 3×M8 studs and 10×#8 screw streamlines your wiring and improves circuit organization. It provides a central point for connecting multiple wires, reducing clutter and making it easier to troubleshoot or modify your electrical system.
-

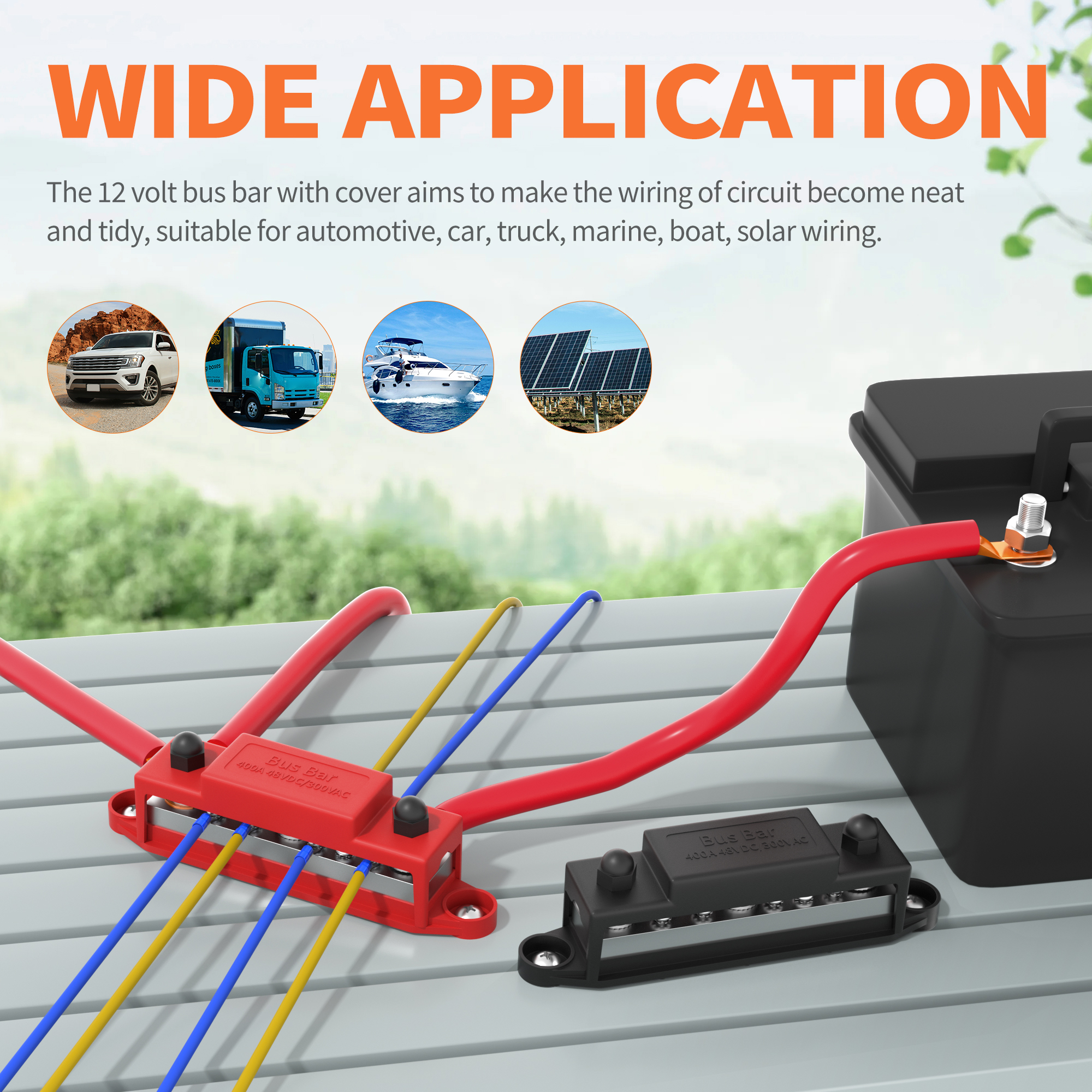

Wide Range of Applications

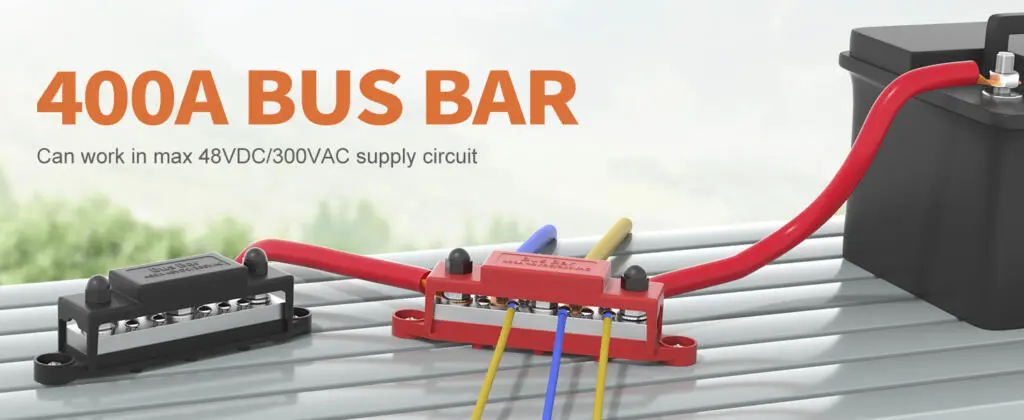

This 400A 48V DC bus bar is suitable for a variety of applications that require high-current power distribution. It is commonly used in automotive, marine, RV, solar power, and industrial settings for efficiently and safely managing power connections.
BB400-T3M8S10-C-2 400A Bus Bar with 3xM8 Studs & 10x#8 Screws Datasheet
| Part NO | BB400-T3M8S10-C-2 |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 6×5/16″(M8) |
| Terminal Screws | 10x#8 |
| Base & Cover Material | Nylon |
| Bus Material | Copper (Nickel-Plated) |
| Bus Thickness | 8mm |
| Terminals Material | Stainless Steel |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 400 AMP 48VDC/300V AC |

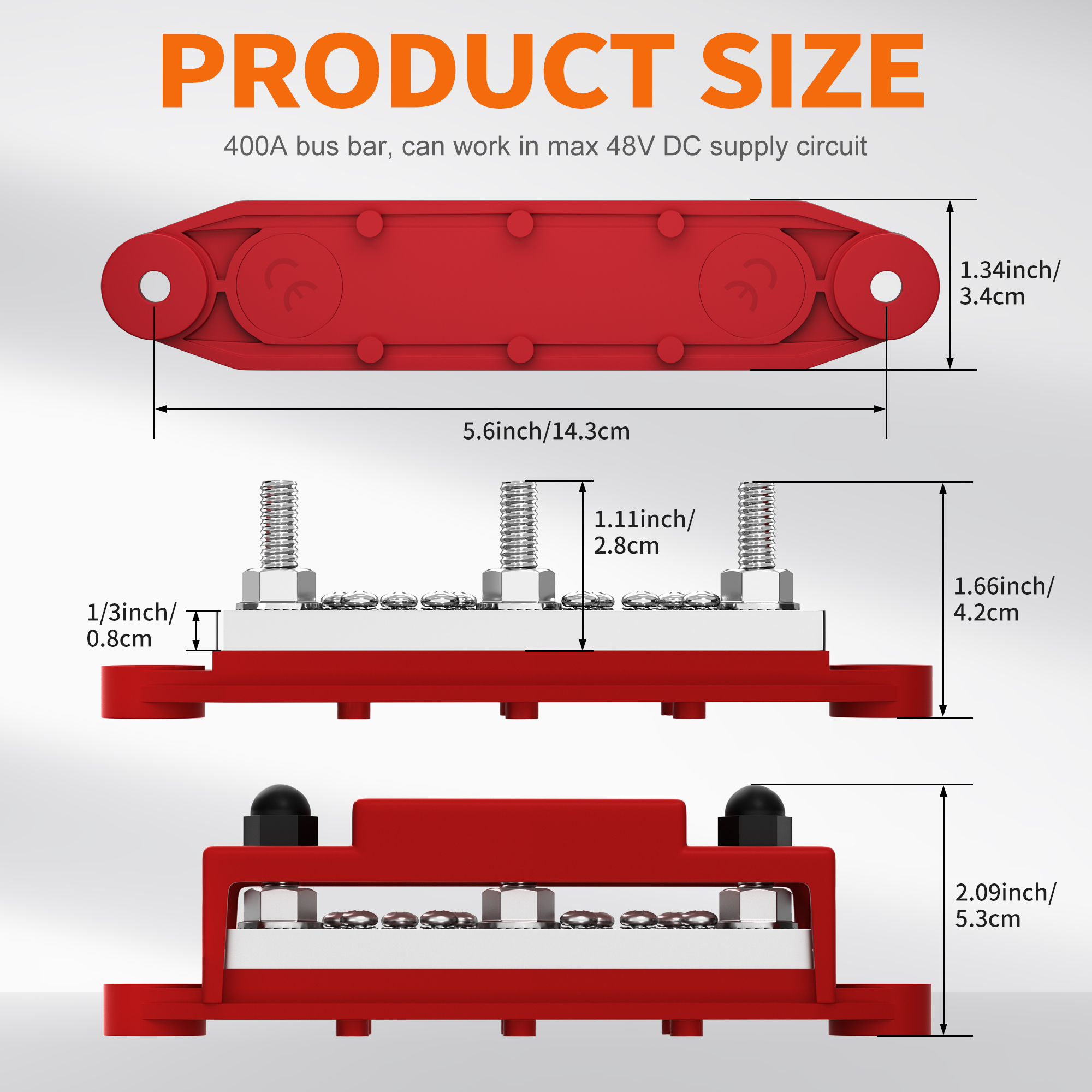

| Overall Dimension | 165mm x 34mm x 42mm (LxWxH) |
