BB400-T3M10S8-C-2 12-48VDC 400A Power Distribution Block with 3xM10 Studs & 8xM5 Screws
Part#BB400-T3M10S8-C-2
This 400A power distribution block features three M10 studs and eight M5 screw terminals for versatile wiring, a durable 8mm copper bus bar plate, and a protective cover for safety.
Designed for 12-48V DC systems, it simplifies wiring and provides reliable power distribution in automotive, marine, and solar applications.
Category :
Busbar
BB400-T3M10S8-C-2 400A 12-48VDC Power Distribution Block Details
-

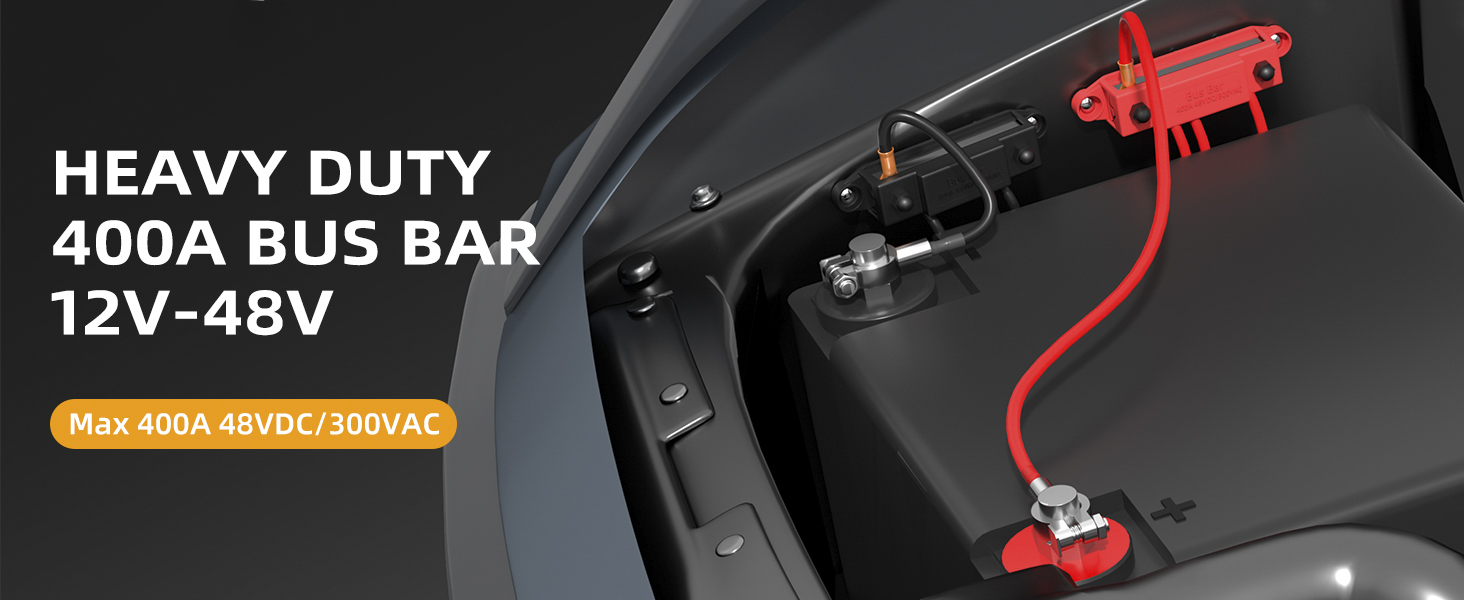

High-Capacity Power Distribution
This 400A power distribution block is designed for high-current applications, capable of handling up to 400A in a 12V DC circuit and supporting a maximum of 48V DC or 300V AC. This heavy-duty capacity makes it suitable for demanding electrical systems in various vehicles and applications.
-
Versatile Connection Options
The distribution block provides multiple connection points for flexible wiring configurations. It includes three 3/8″ (M10) studs for larger gauge wires and eight #10 (M5) screw terminals for smaller wires, accommodating various terminal connectors and wire sizes.
-
Durable and Reliable Construction
This bus bar terminal block features an 8mm (0.32″) thick copper bus bar plate for superior conductivity and corrosion resistance. Stainless steel studs, nuts, and a high-quality nylon base provide long-lasting durability and reliable performance. The included red positive and black negative bus bars provide clear visual identification for safe wiring.
-

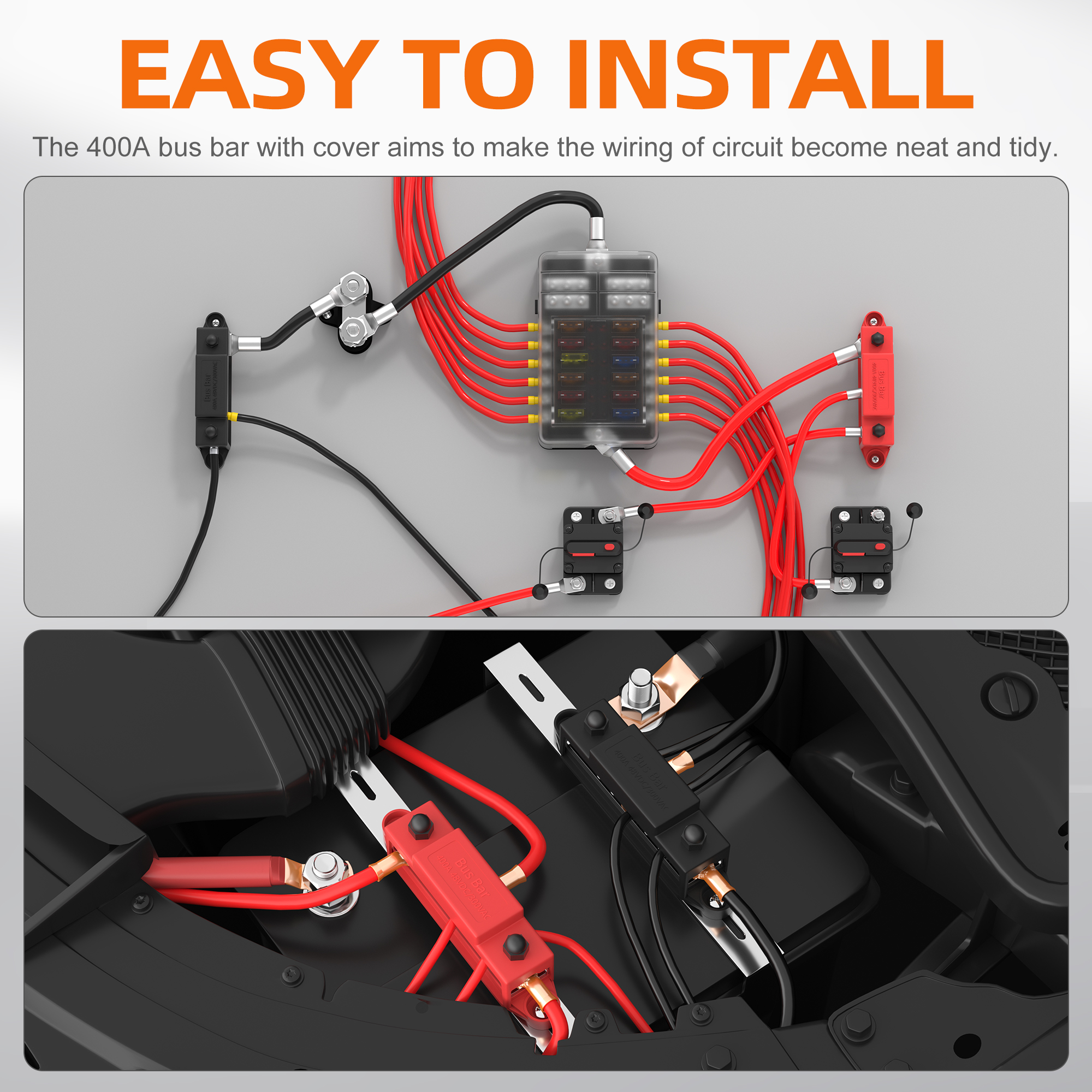

Easy Installation and Enhanced Safety
This 400A bus bar is designed for easy installation, featuring a unique nut design with a dasher for convenient wiring. A protective cover with two nuts helps to shield exposed areas, reducing the risk of accidental contact and preventing short circuits for enhanced safety.
-
Wide Range of Applications
This power distribution block helps organize and simplify complex wiring systems, preventing messy harnesses and potential short circuits. It is suitable for various applications, including automotive, car, truck, marine, boat, and solar wiring projects. The compact dimensions of the block (5.6 x 2.1 x 1.34 inches or 14.3 x 5.3 x 3.4 cm) further aid in neat installations.

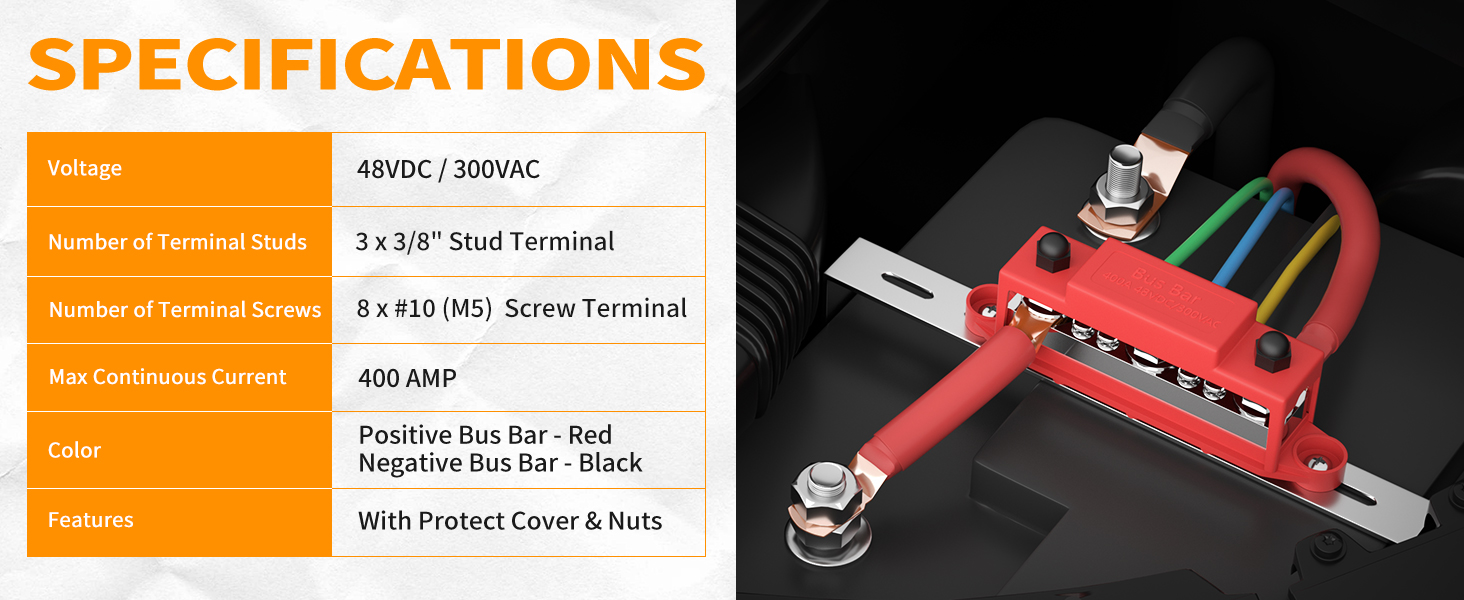

BB400-T3M10S8-C-2 400A 12-48VDC Power Distribution Block Datasheet
| Part NO | BB400-T3M10S8-C-2 |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 3×3/8″(M10) |
| Terminal Screws | 8x#10(M5) |
| Base & Cover Material | Nylon |
| Bus Material | Copper (Nickel-Plated) |
| Bus Thickness | 8mm |
| Terminals Material | Stainless Steel |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 400 AMP 48VDC/300V AC |
| Overall Dimension | 165mm x 34mm x 42mm (LxWxH) |
