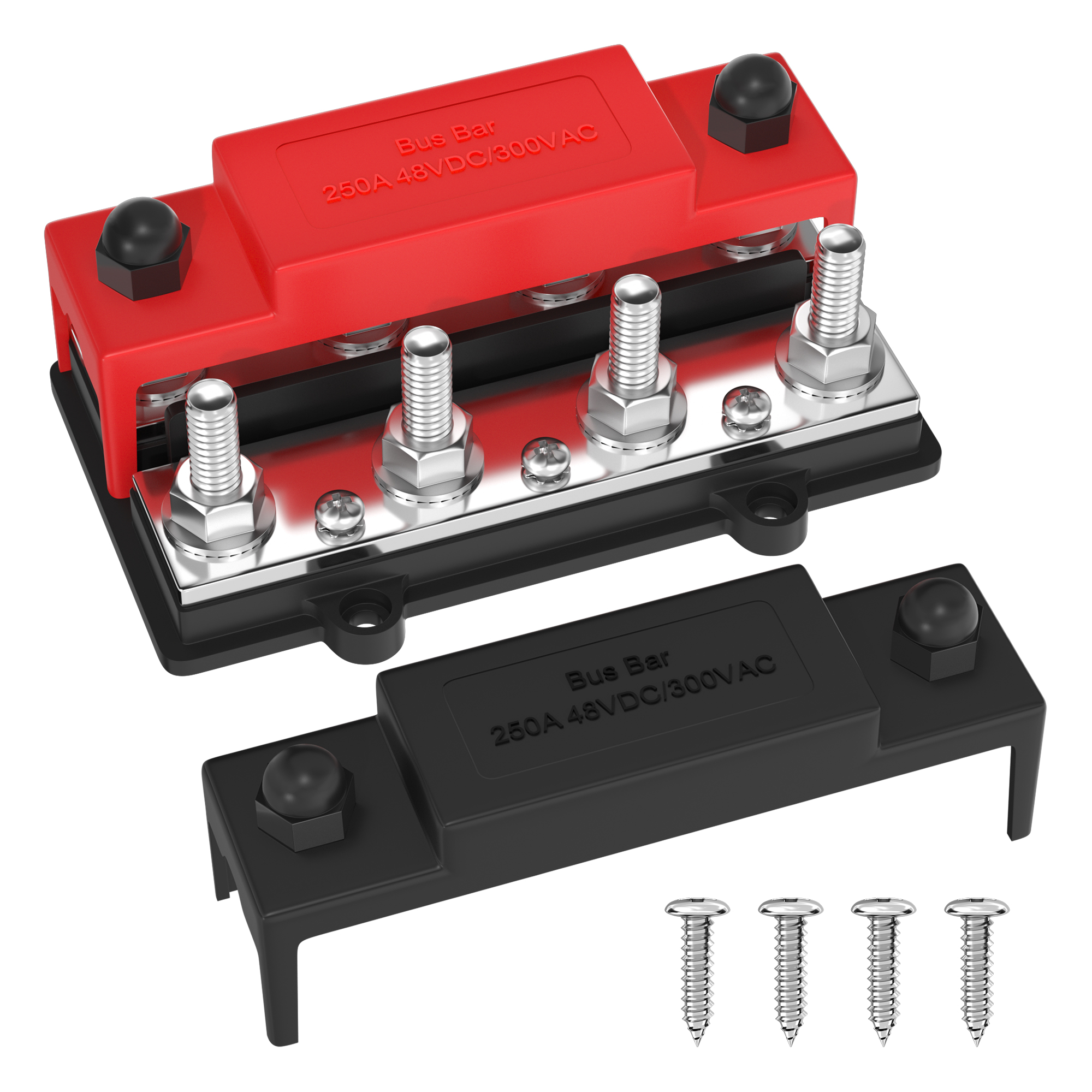

BB250X2-T4M10S3-C 4xM10 250A Dual Row Busbar Power Distribution Block with Positive and Negative

BB250X2-T4M10S3-C 4xM10 250A Dual Row Busbar with Positive and Negative Features

• High Capacity

The 250A double row busbar serves as a reliable positive and negative power distribution block, providing robust performance for a variety of electrical applications.

• Voltage Rating

This 12V battery distribution block is rated up to 250A and can safely handle a maximum source voltage of 48V, ensuring efficient power distribution in a variety of setups.

• Versatile Terminals

This busbar terminal block has 8 x 3/8″ stud terminals and 6 x #8 screw terminals. It accepts large size connectors and wires, providing flexibility and compatibility with different electrical setups.

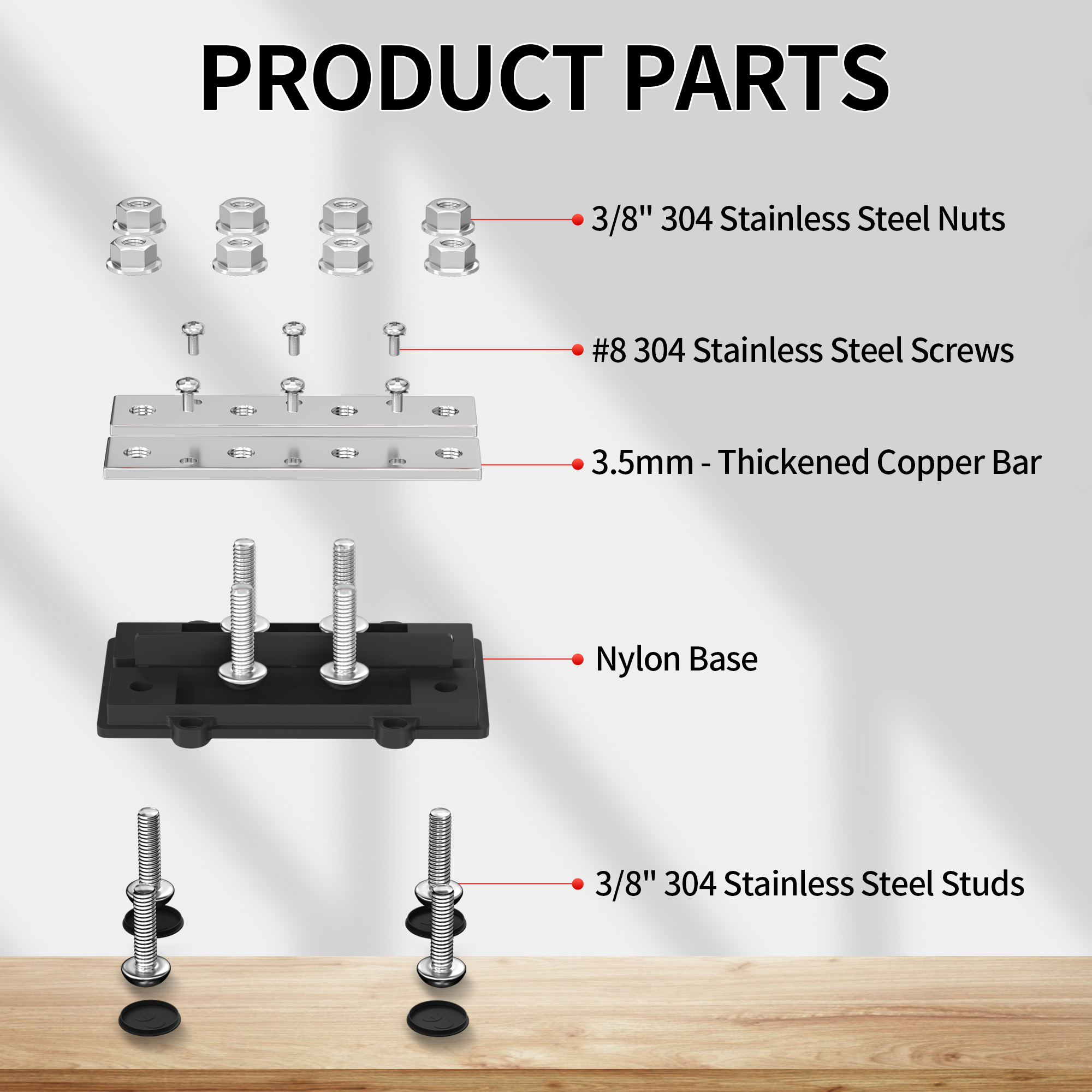

• Protective Accessories

Each busbar is supplied with a protective cover and two nuts, providing enhanced safety by shielding exposed areas to reduce the risk of accidental contact and prevent short circuits, ensuring a safer circuit.

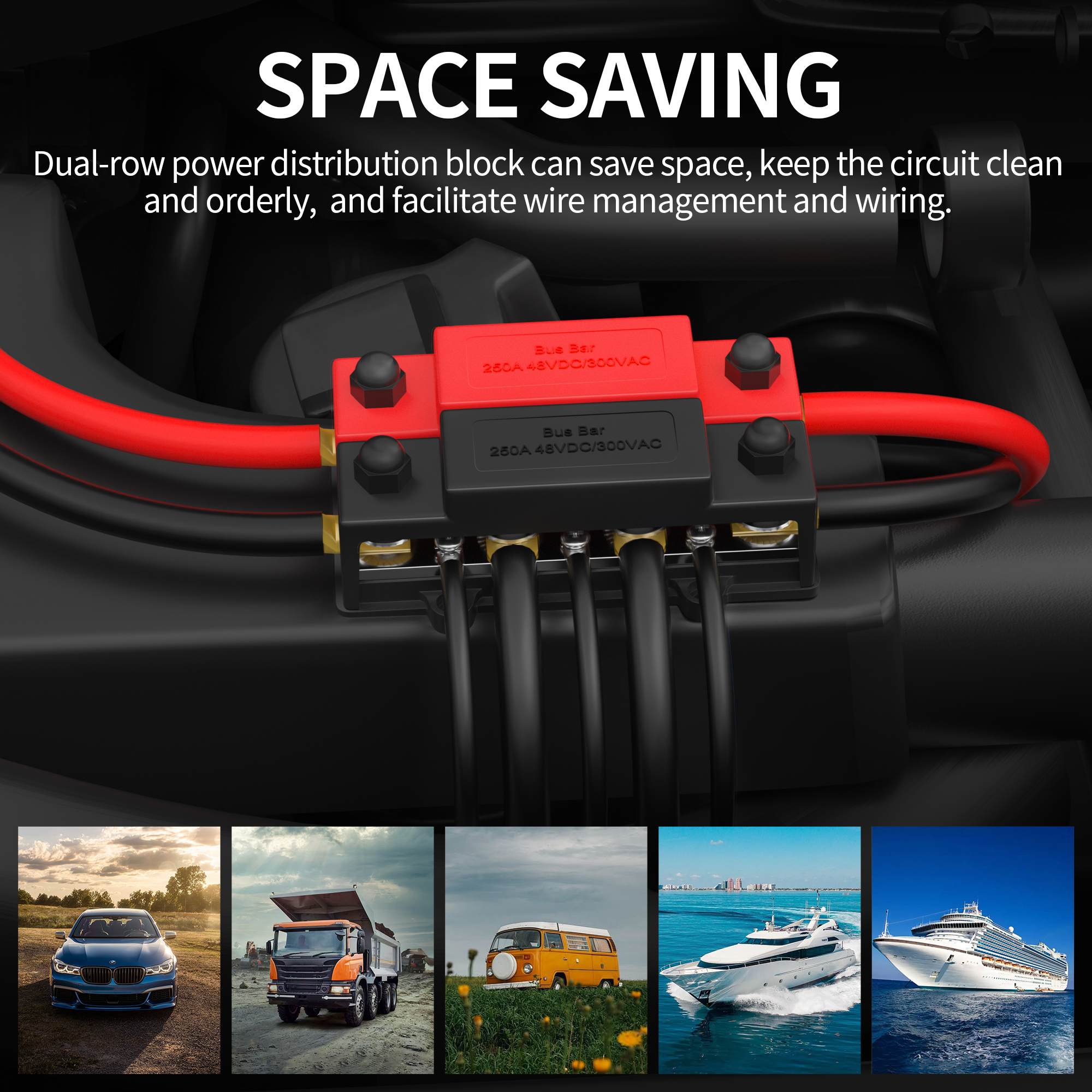

• Wide Application

The 48 V bus bar with cover is designed to promote tidy wiring and prevent electrical shorts and is suitable for a wide range of applications including cars, RVs, trucks, marine vessels, boats, solar power systems and more.

BB250X2-T4M10S3-C 4xM10 250A Dual Row Busbar Datasheet
