BB250-T3M10S8-C-2 48VDC 250A Bus Bar Distribution Power with 3×M10 Studs and 8×M5 Screws
Part#BB250-T3M10S8-C-2
The 250A bus bar power distribution block designed for use in a 12-48V DC systems, 3×M10(3/8″) terminal studs and 8×M5(#10) terminal screws.

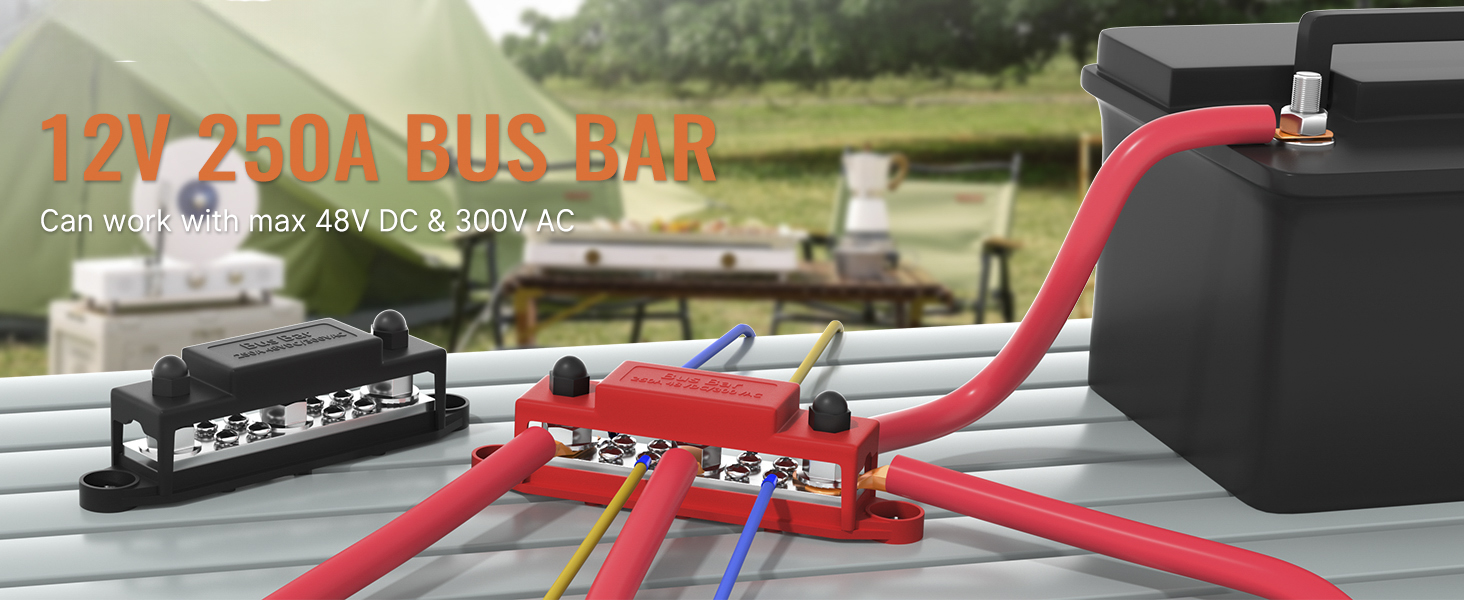

The 48V DC busbar is suitable for a variety of automotive and marine applications, including cars, RVs, trucks, boats, and solar energy systems.
Category :
Busbar
BB250-T3M10S8-C-2 48VDC 250A Bus Bar with 3×M10 Studs and 8×M5 Screws Details
- Superior Current Handling Capacity
This 250A busbar boasts a high-current capacity, making it ideal for demanding electrical applications. It can handle up to 250A of continuous current in a 12V supply circuit, and can even handle a maximum source power of 48V.
- Versatile Connectivity

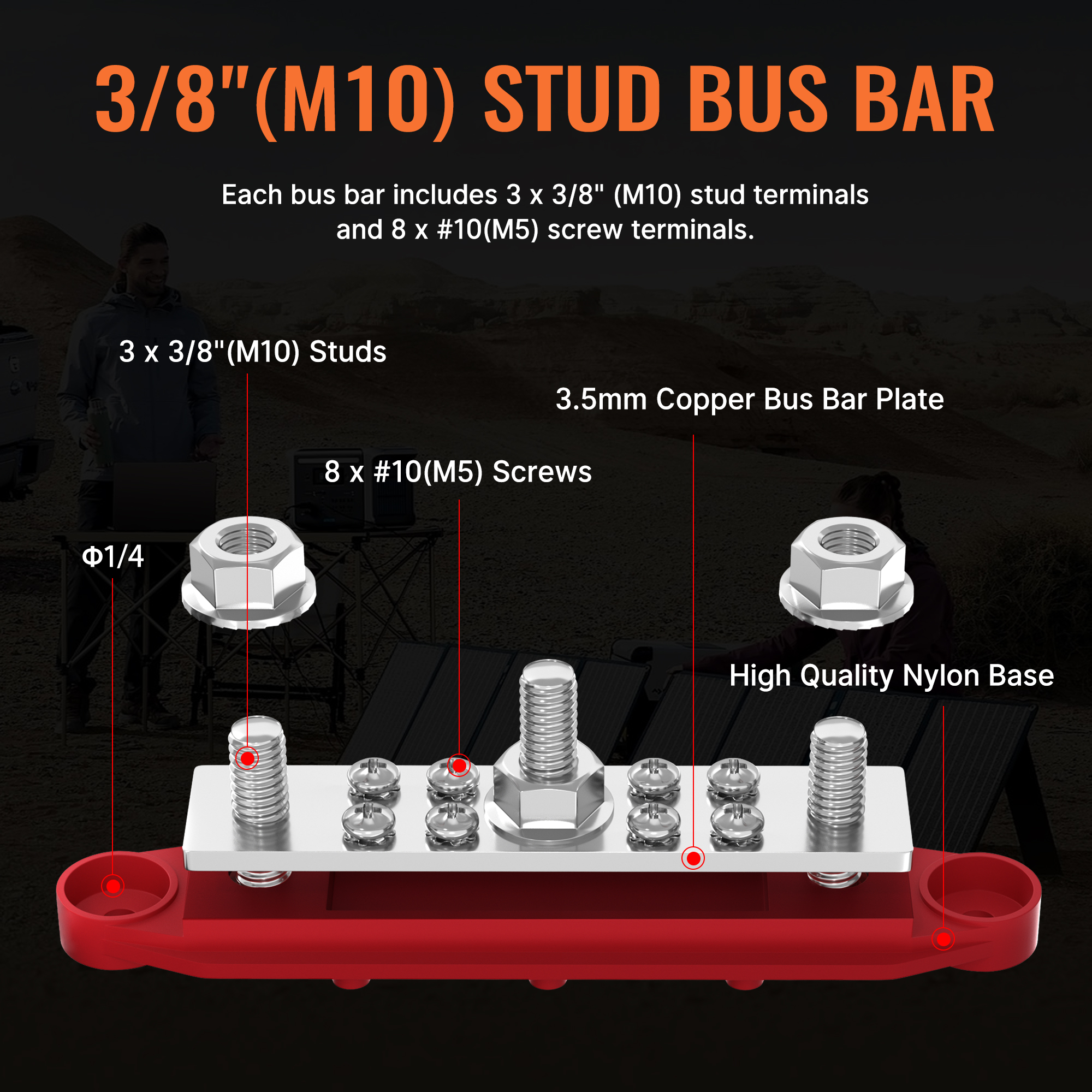

The 250A busbar features 3×3/8″(M10) stud terminals and 8×#10(M5) screw terminals, providing a wide range of connection options for different types of cables and connectors. This allows for a flexible and adaptable electrical system.
- Robust Construction
The brass busbar is made of high quality materials for durability. It features a durable copper busbar with a protective cover, ensuring long-term performance and reliability in harsh environments.
- Enhanced Safety

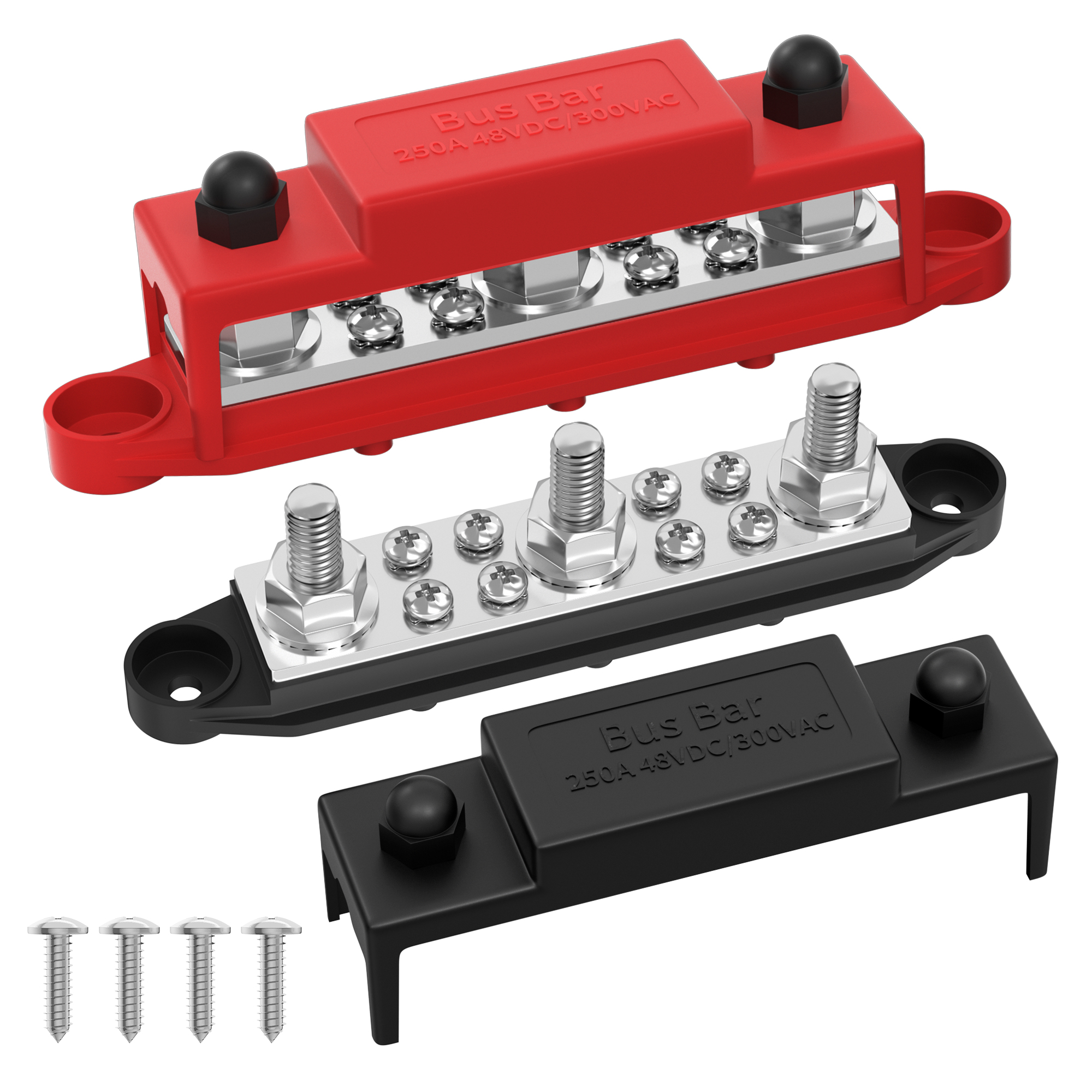

The included protective cover and nuts help to prevent accidental contact with the live busbar, reducing the risk of electrical shock and short circuits. This makes the busbar safer to use and maintain.
- Wide Application

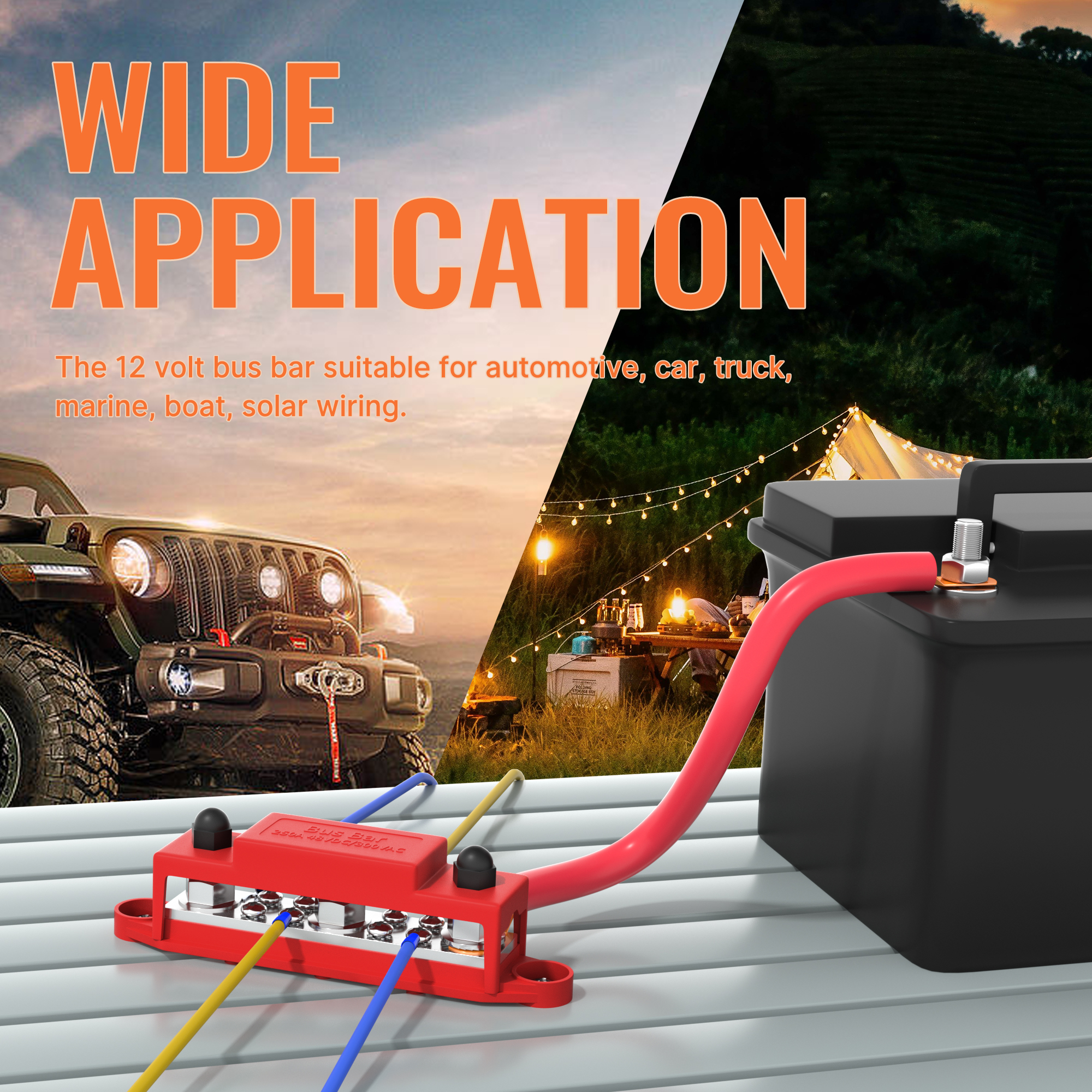

The 48V DC busbar is suitable for a variety of automotive and marine applications, including cars, RVs, trucks, boats, and solar energy systems. It can be used to distribute power to multiple devices and components, simplifying wiring and improving overall efficiency.
BB250-T3M10S8-C-2 48VDC 250A Bus Bar with 3×M10 Studs and 8×M5 Screws Datasheet
| Part NO | BB250-T3M10S8-C-2 |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 3×M10 (3/8″) |
| Terminal Screws | 8×M5 (#10) |
| Base & Cover Material | Nylon |
| Bus Material | Brass |
| Terminals Material | Stainless Steel |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 250 AMP @ 12V |

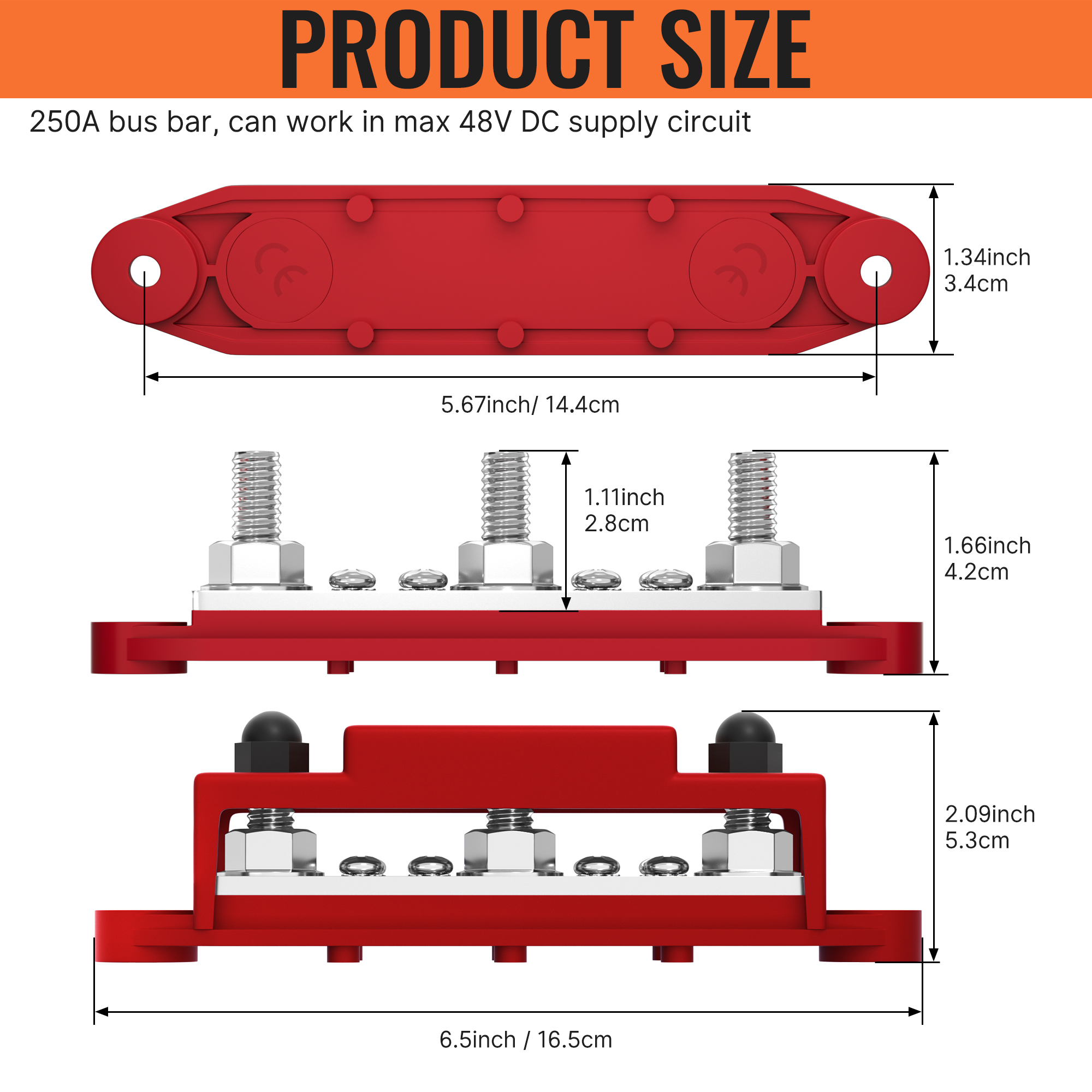

| Overall Dimension | 168mm x 33.5mm x 53mm (LxWxH) |
