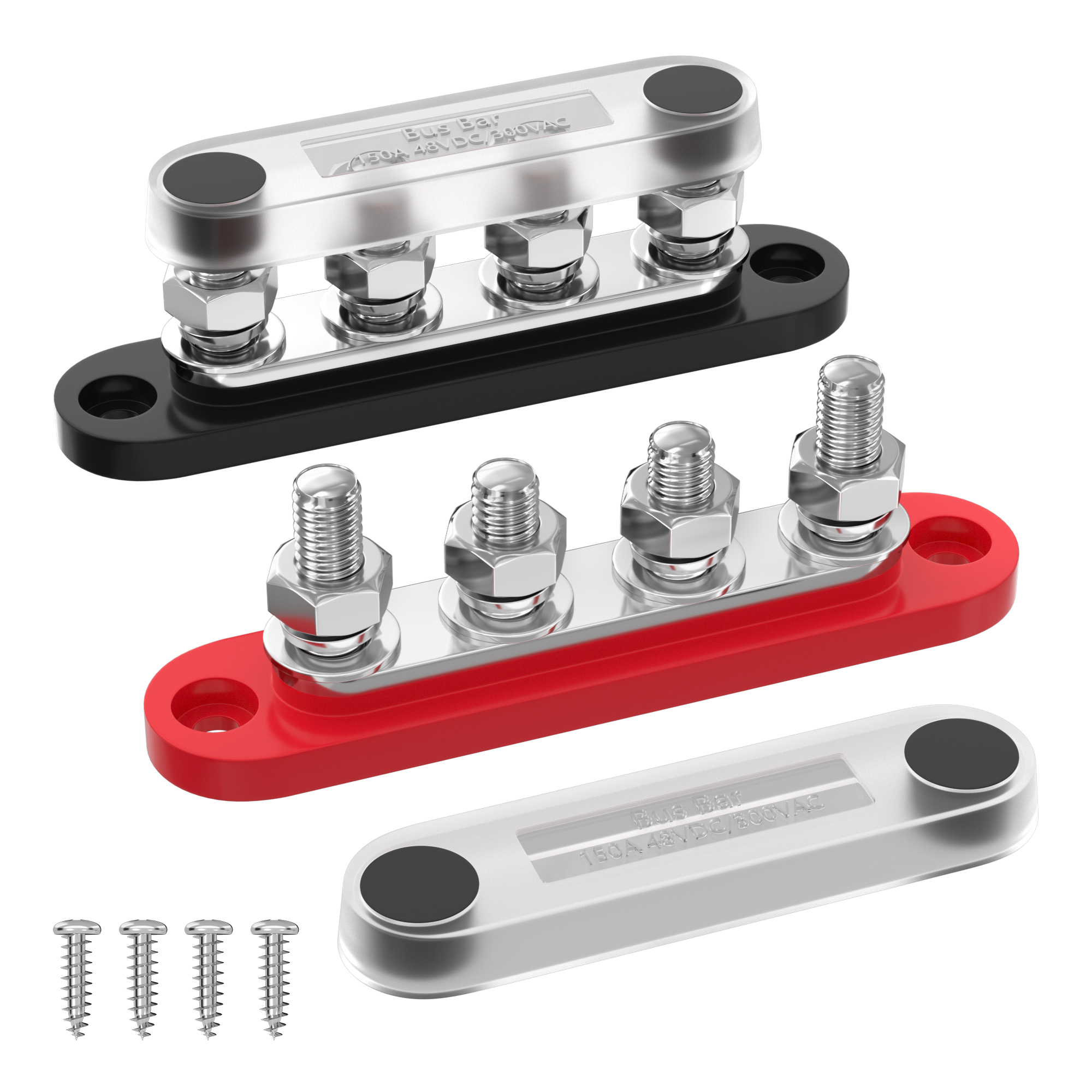

BB100-T4M8-C 4×M8 Stud Terminals 150A BusBar with Spring Washers and Cover

BB100-T4M8 4×M8 Stud Terminals 150A BusBar Features

• Compact Design and Versatility

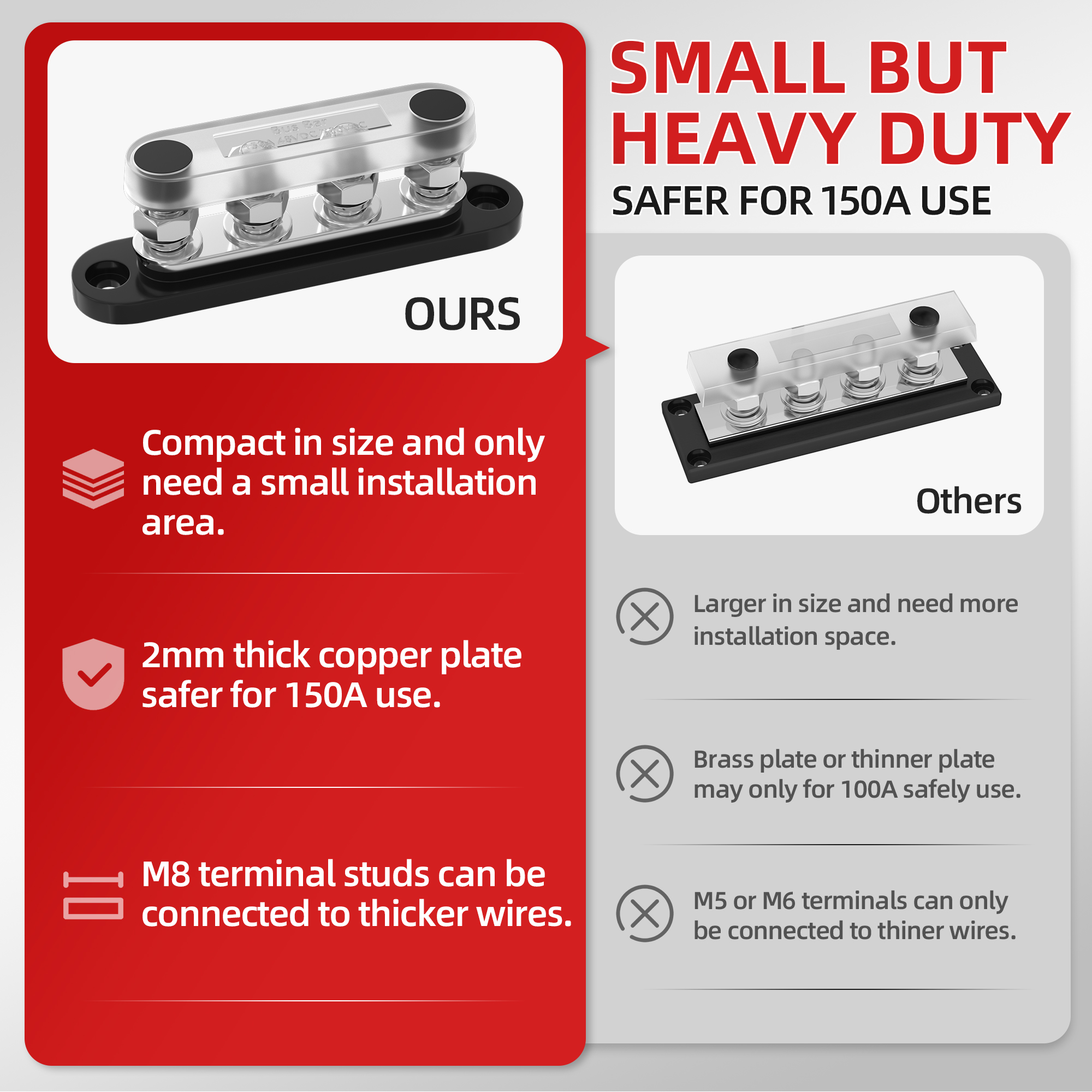

This 150A busbar features a compact and robust design, ideal for space-constrained applications. The reinforced polycarbonate base provides structural integrity, while the clear polycarbonate cover allows for easy visibility of the connections. The 2mm thick copper plate construction (superior to brass) and inclusion of spring washers enhance its capacity and reliability for 150A current applications. Four M8 terminal studs provide convenient connections for a variety of applications.

• Reliable Connections and Efficient Power Flow

This busbar utilizes one-piece serrated flange nuts for secure and reliable electrical connections. These nuts ensure consistent contact with the terminal studs, preventing resistance and promoting efficient power flow. The inclusion of spring washers further enhances the connection’s stability, minimizing potential looseness and ensuring long-lasting performance.

• Enhanced Safety and Flame Retardancy

The busbar’s base is constructed from UL 94-V0 rated flame-retardant materials, enhancing safety and minimizing fire risks. The self-extinguishing properties of these materials ensure that a fire will not spread if the ignition source is removed, promoting a secure electrical environment.

• High-Performance Conductivity

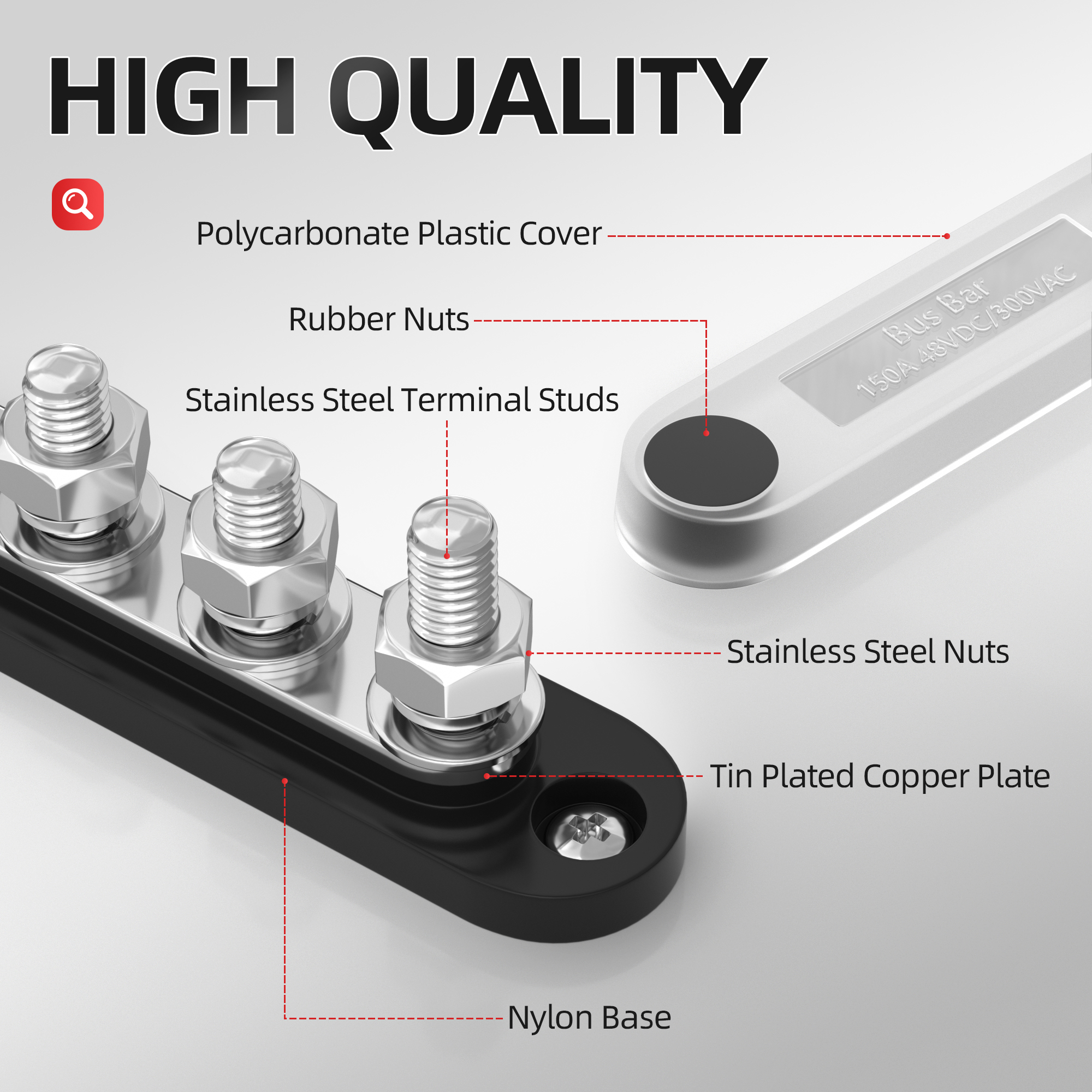

This 150A busbar features tin-plated copper buses for maximum conductivity and corrosion resistance. These high-quality materials ensure efficient power distribution, minimizing voltage drops and maximizing electrical performance. The busbar is engineered for reliable and long-lasting operation in demanding environments.

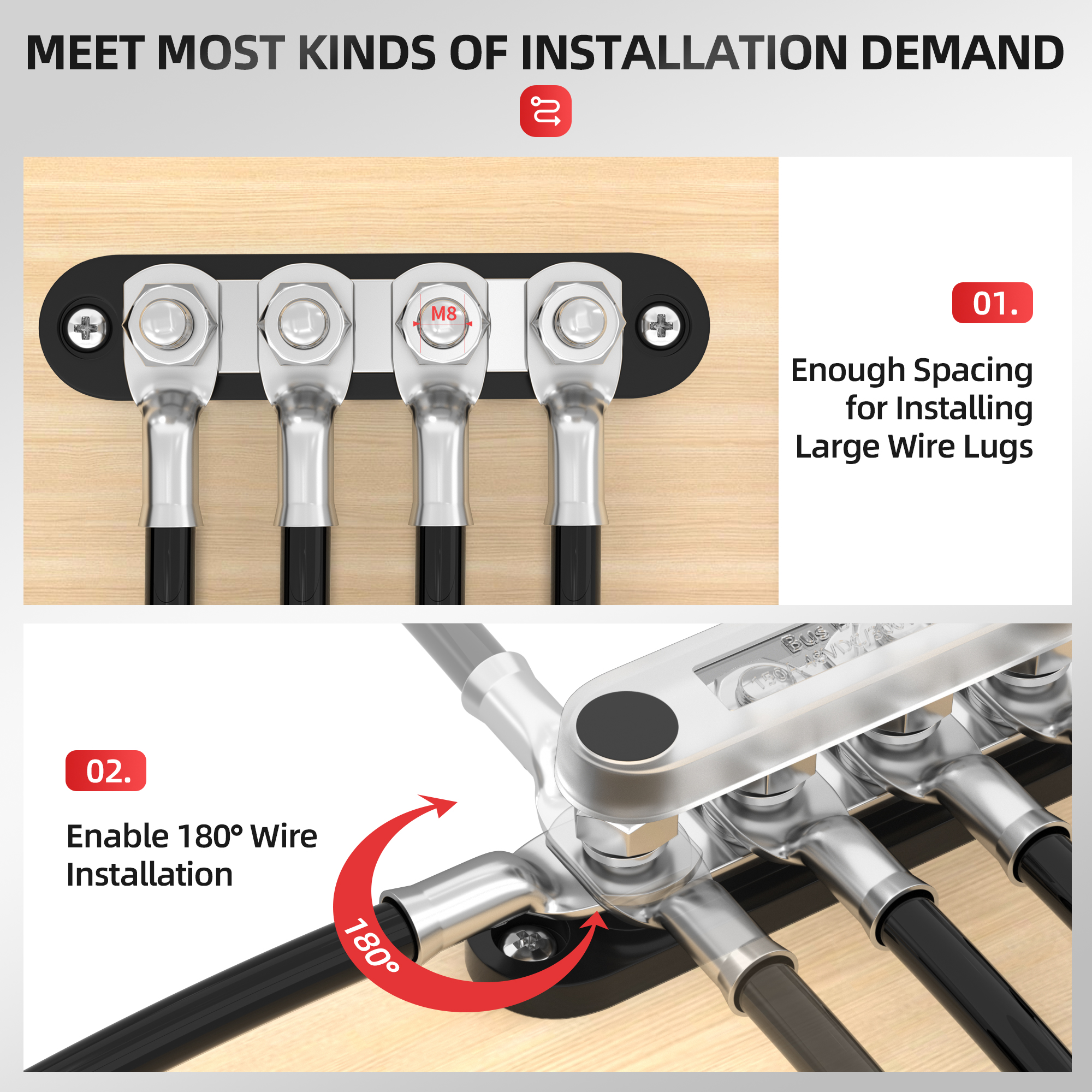

• Secure and Efficient Installation

This busbar offers a convenient and secure installation process. Its insert-molded stainless steel studs eliminate the need for separate nuts, simplifying assembly and ensuring a tight connection. The terminal screws include stainless steel split ring lock washers and captive star-type lock washers, providing superior locking force to withstand vibration and maintain secure connections.

BB100-T4M8 4×M8 Stud Terminals 150A BusBar Datasheet
