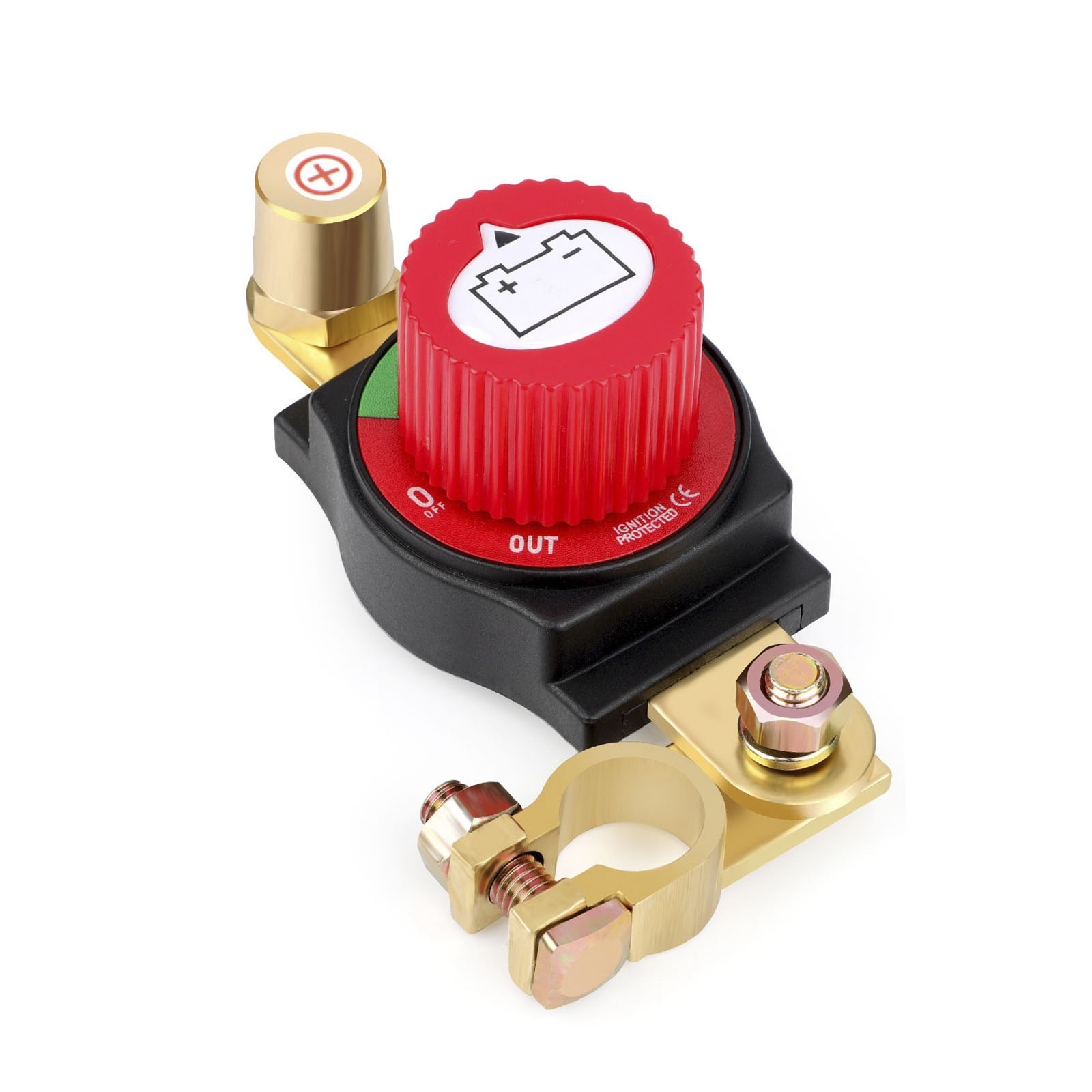

ASW-C71002 300A 12-48V DC Positive Top Post Battery Disconnect Switch Master Power Cutoff for Car, Marine, RV with Adjustable Clamp
Part#ASW-C71002
This positive top post battery disconnect switch is for positive top-post batteries measuring 17-19mm, with a 300A capacity suitable for 12V to 48V systems and features an adjustable clamp for flexible installation.
The simple On/Off rotary knob allows for easy operation, making this heavy-duty master cutoff switch a reliable solution for isolating power, preventing battery drain, and enhancing safety in cars, boats, and RVs.
Category :
Battery Switch
ASW-C71002 300A 12-48V DC Positive Top Post Battery Disconnect Switch Features
- High-Current Electrical Rating
This battery disconnect switch is engineered for high-power circuits, rated for 300A and compatible with 12V-48V DC systems. The heavy-duty master cutoff features solid brass construction for its terminal components, ensuring maximum electrical conductivity. This design provides a reliable and efficient power isolation solution for any vehicle.
- Positive Top-Post Application

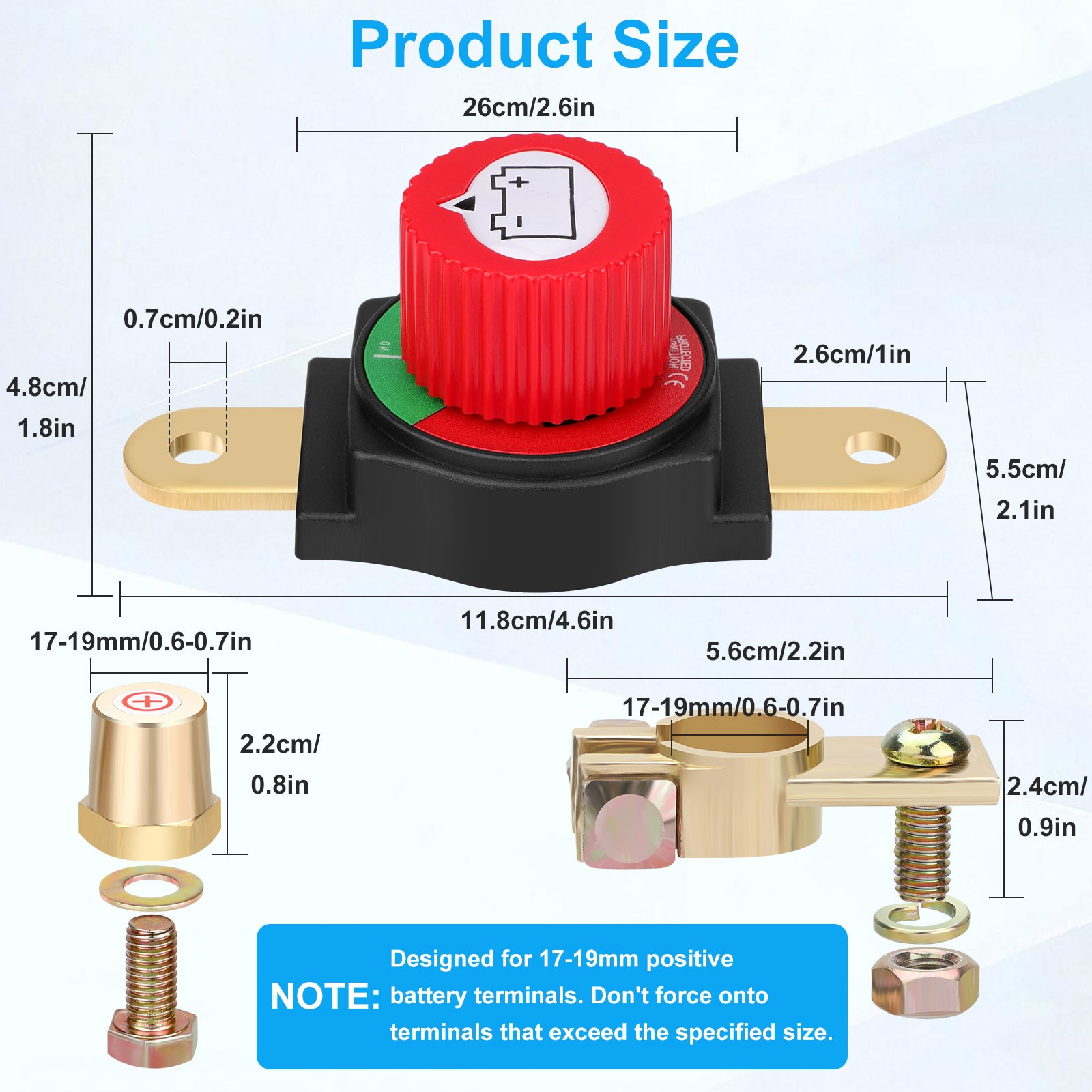

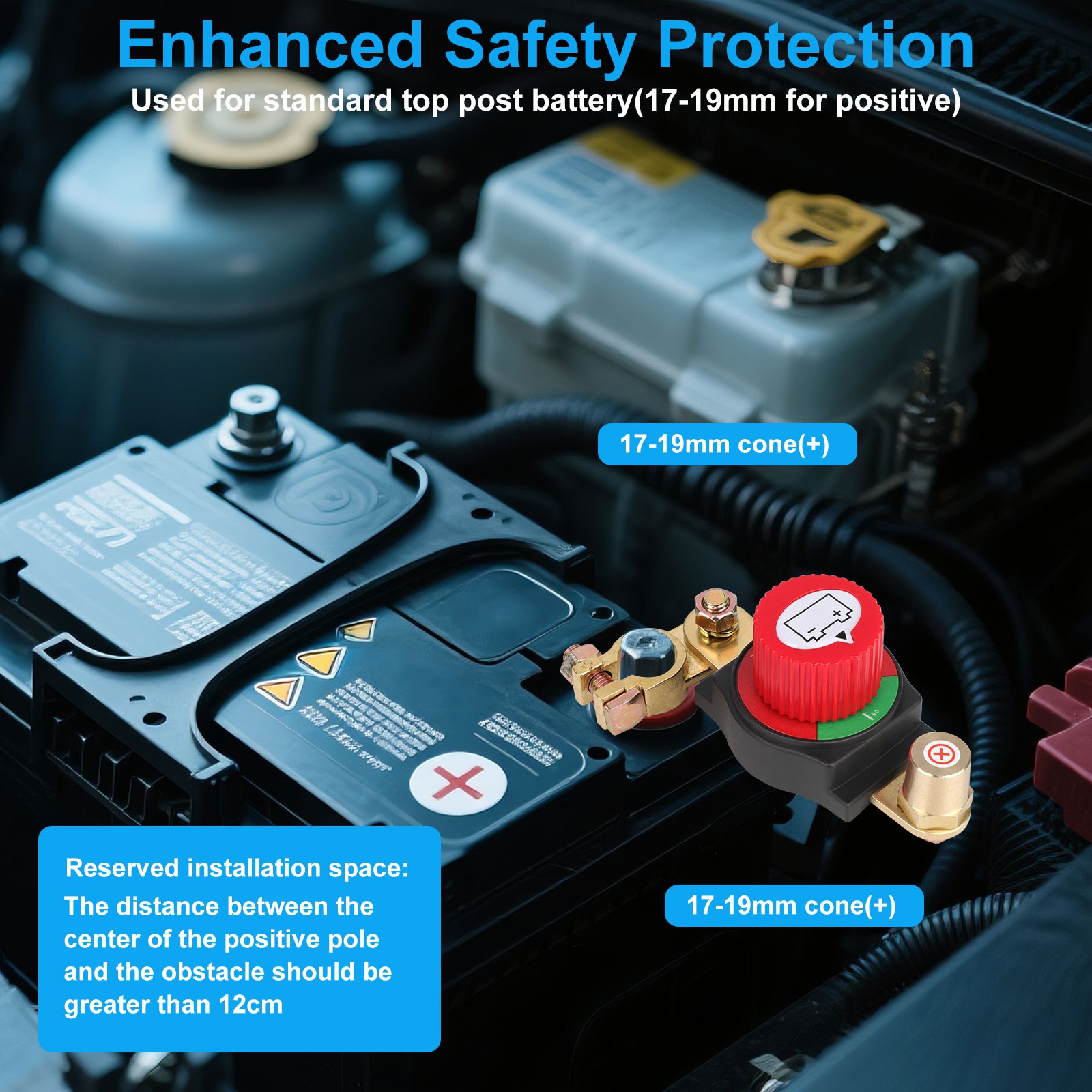

Specifically designed for standard automotive top-post batteries, this battery isolator switch fits securely on positive terminals with a 17-19mm diameter. The top-post kill switch integrates directly onto the battery post for a clean and professional installation. For proper fitment, ensure a clearance of at least 12cm from the center of the positive post to any surrounding obstacles.
- Adaptable Connection Design

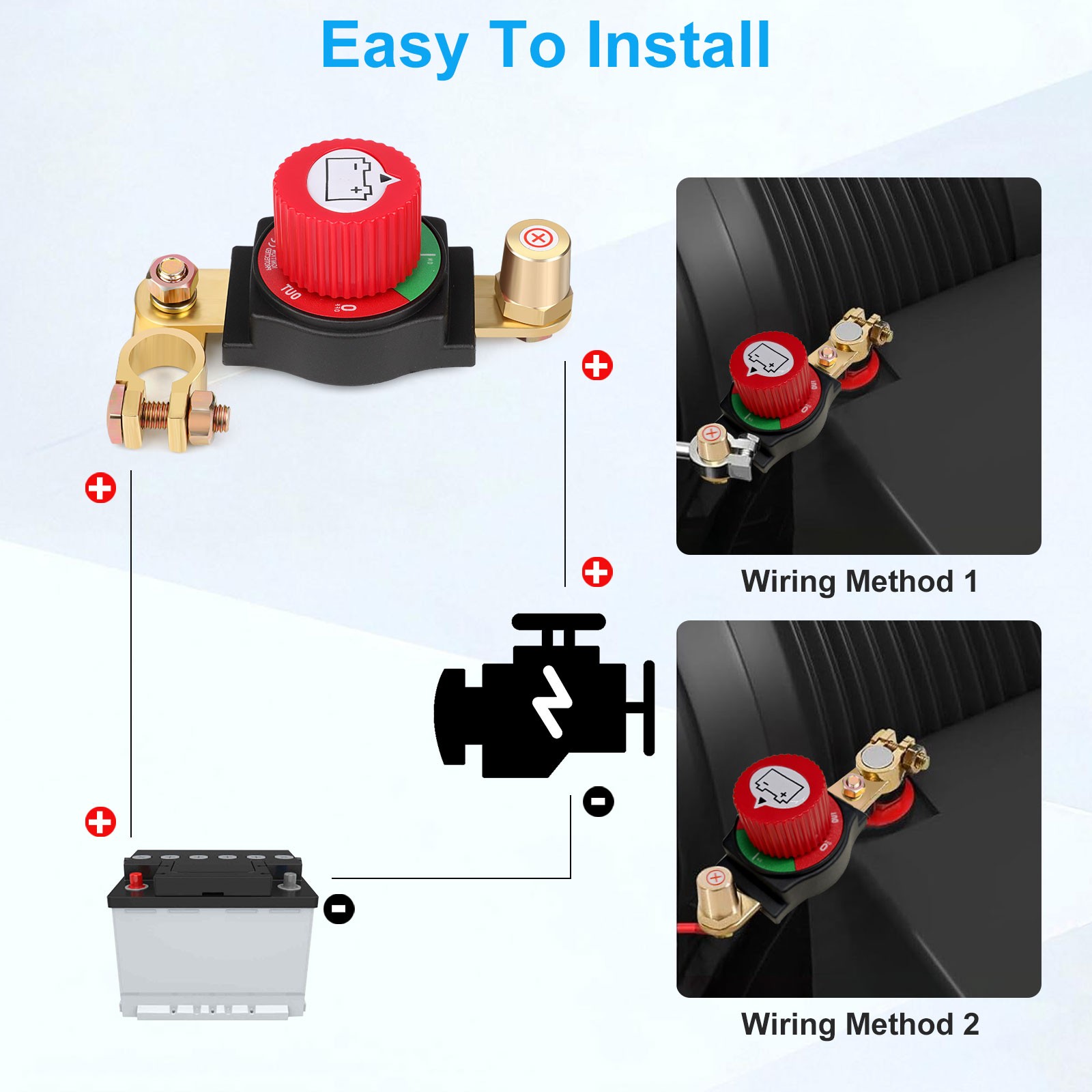

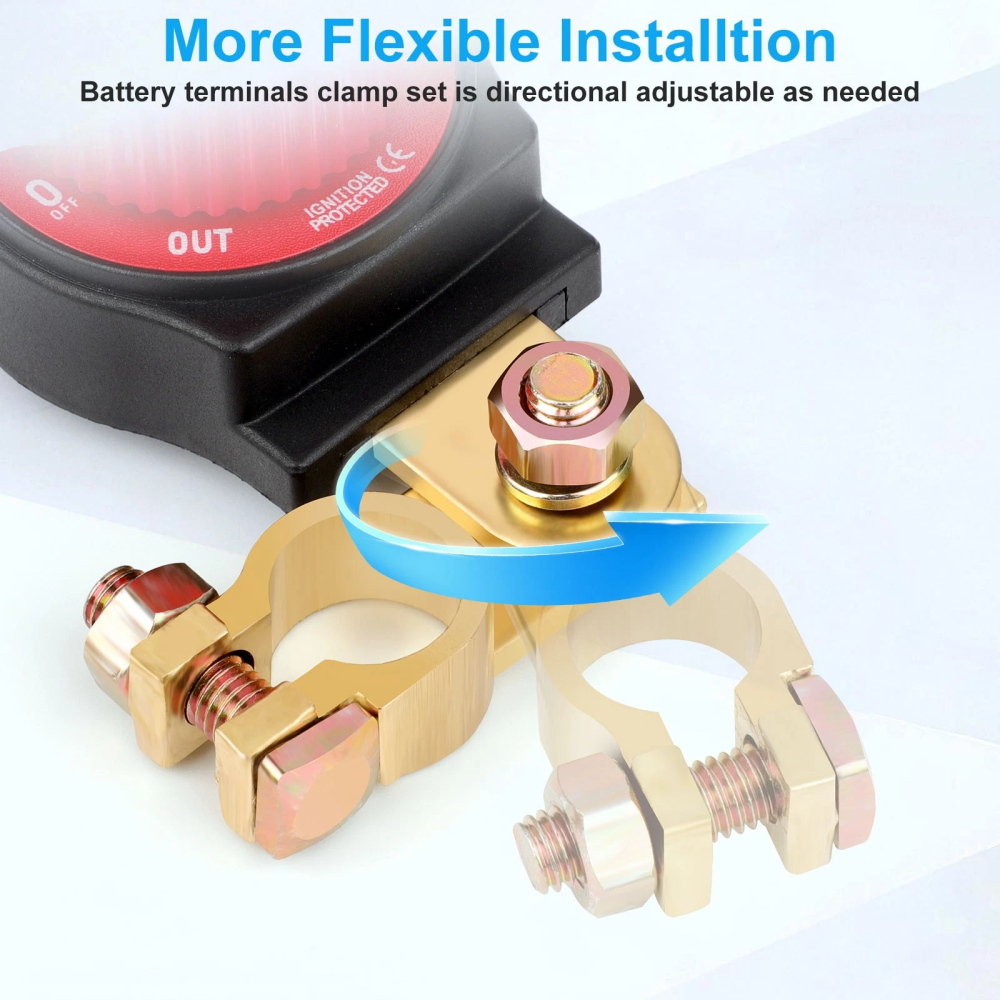

This battery terminal switch provides enhanced installation flexibility with two different connection methods. The multi-directional battery clamp can be adjusted to accommodate various cable angles. An additional M8 terminal stud is also included, offering a secondary connection point for auxiliary power cables.
- User-Friendly Rotary Control

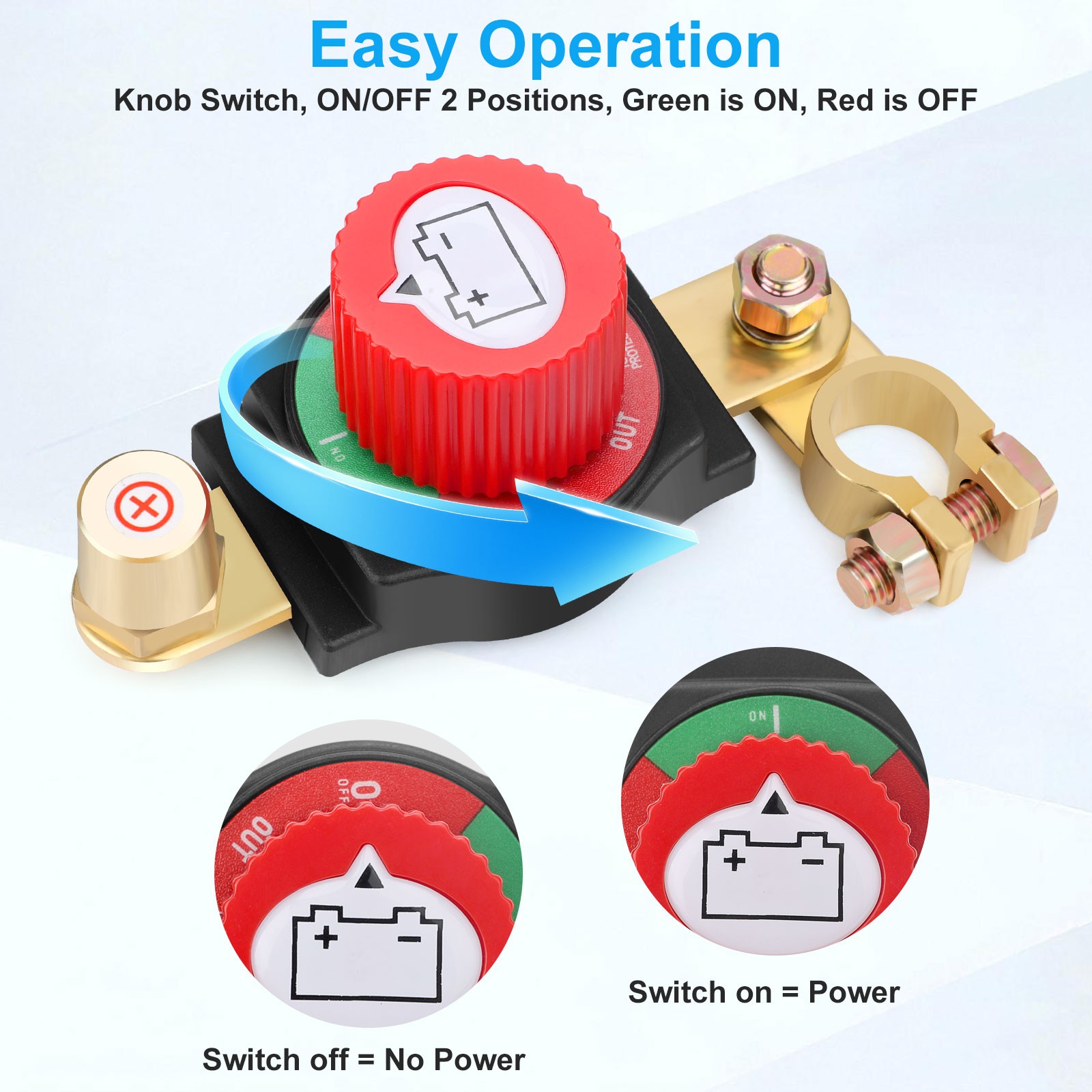

This manual disconnect switch utilizes a large, red rotary knob for straightforward On/Off 2-position control. The rotary knob features clear green (ON) and red (OUT/OFF) indicators for at-a-glance confirmation of the power status. A simple twist of the knob is all that’s needed to safely connect or disconnect the battery circuit.
- Universal System Compatibility
This positive top post battery disconnect switch is a versatile solution for a wide range of vehicles, including cars, boats, RVs, campers, trucks, and tractors. The power cutoff switch is ideal for preventing battery drain during storage, performing maintenance, or as an added layer of safety. It serves as an essential component for managing vehicle power.
ASW-C71002 300A 12-48V DC Positive Top Post Battery Disconnect Switch Datasheet
| Part NO | ASW-C71002 |
| Function | ON-OFF |
| Operating Voltage | 12-48V DC |
| Rated Current | 300A DC (Continuous) |
| Stud Size | M8 (5/16″) |
| Stud Material | Tinned Copper |
| Housing Material | ABS Plastic (Flame Resistant) |
| Mounting Style | Top Post Battery Terminal |
| Circuit Type | 2 Way / SPST |
