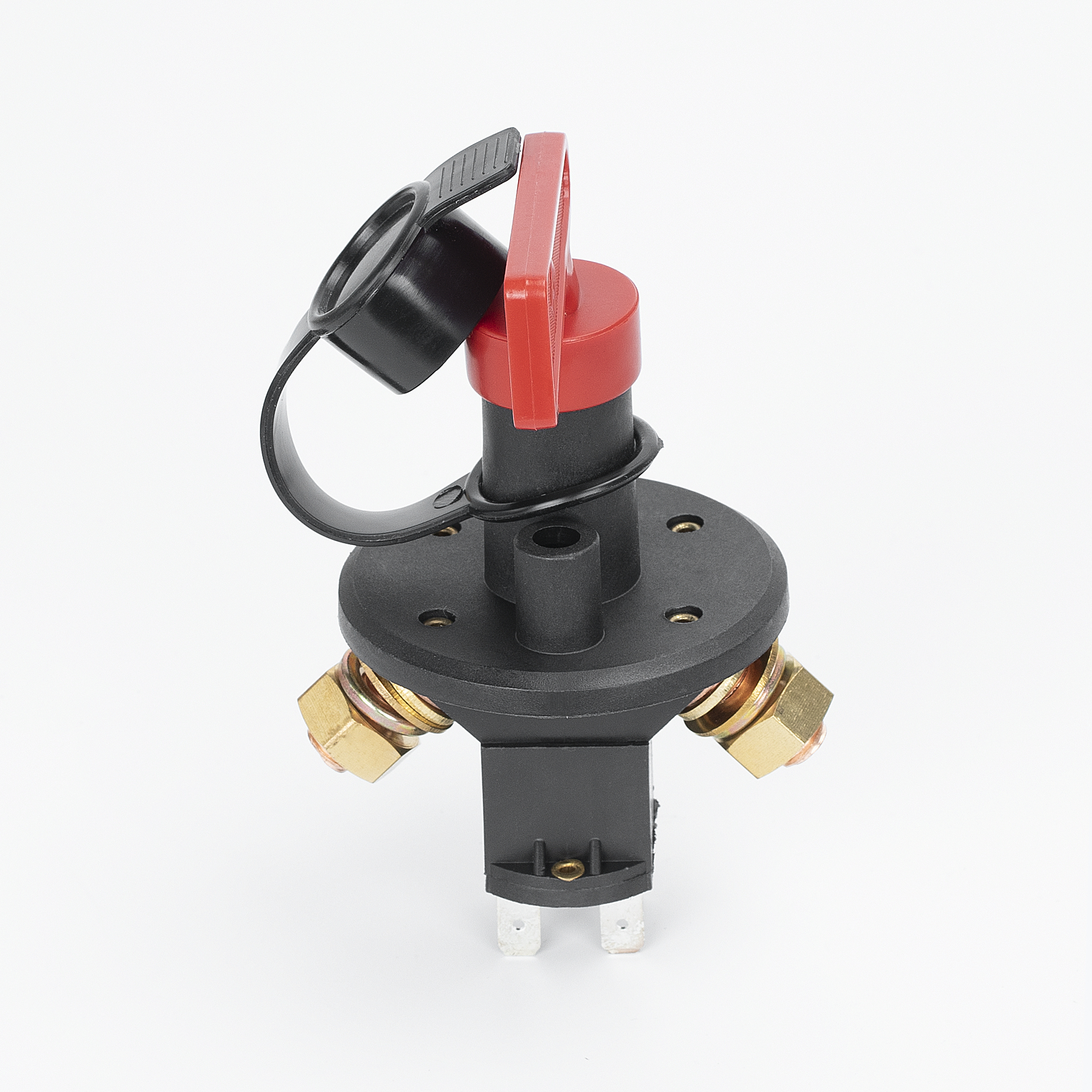

ASW-A803 200A 12-24V DC Dual Pole Battery Disconnect Switch 4 Stud Master Cutoff with Removable Key
Part # ASW-A803
This dual pole battery disconnect switch is rated for 200A in 12-24V DC systems, provides simultaneous On/Off control for two separate circuits via a single removable key.
This main switch uses four M10 bolts and a compact panel mounting design, and is suitable for safely isolating dual battery systems in applications such as ships, motorhomes, and heavy-duty vehicles.
Category :
Battery Switch
ASW-A803 200A 12-24V DC Dual Pole Battery Disconnect Switch Features
- Dual Circuit Isolation
This dual pole battery disconnect switch provides independent On/Off control for two separate electrical circuits from a single key. And is designed to simultaneously connect or disconnect two circuits, making it ideal for managing dual battery setups or isolating multiple power systems. This double pole switch allows for the complete isolation of both positive and negative lines for enhanced safety.
- Heavy-Duty Electrical Rating
This master battery switch is designed for high-demand applications and is rated for 125A continuous and 1000A cranking current at 12V. The heavy-duty power cutoff is compatible with 12V-24V DC systems. Its robust internal copper components ensure reliable performance under high-current loads in marine, RV, and heavy vehicle systems.
- Secure Key Operation

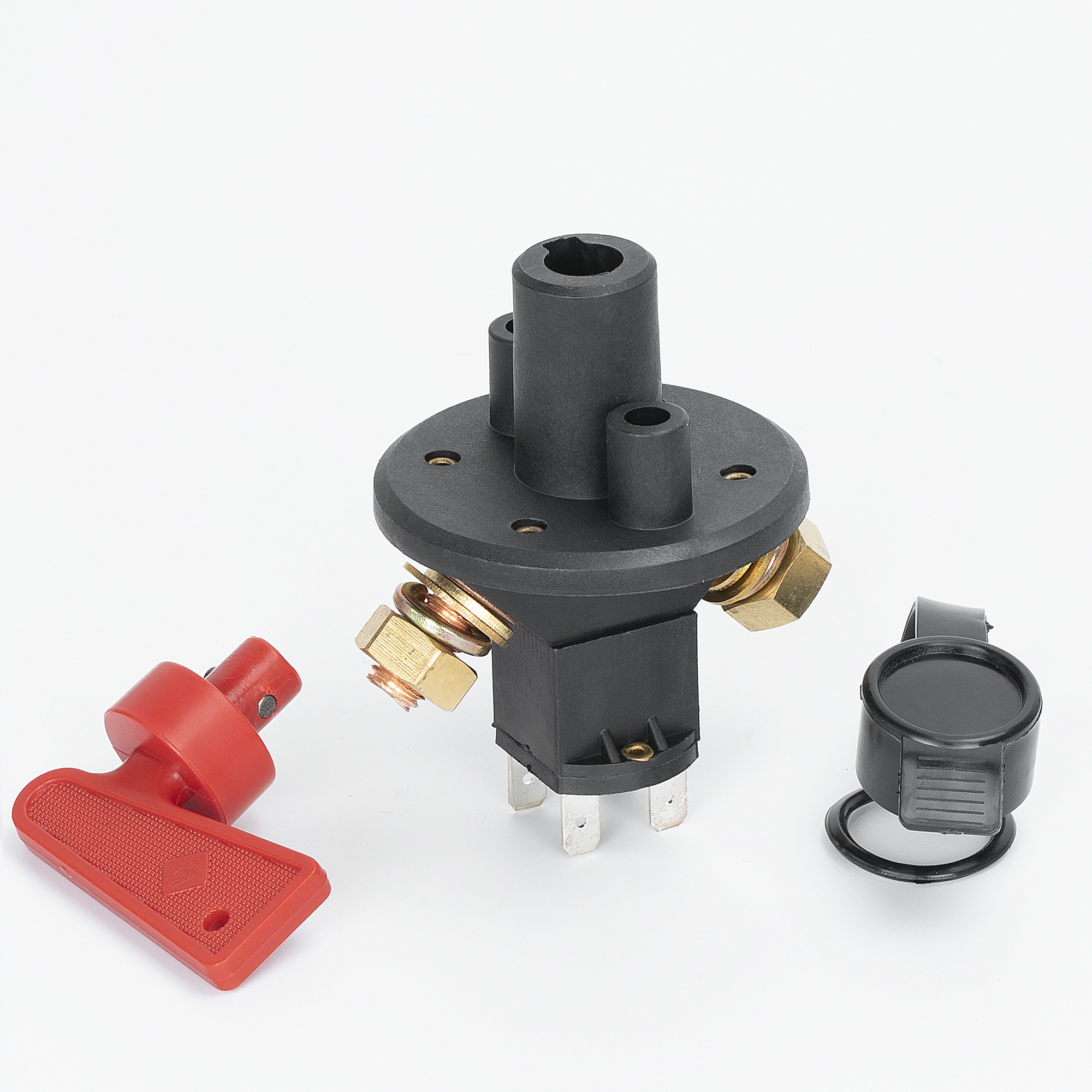

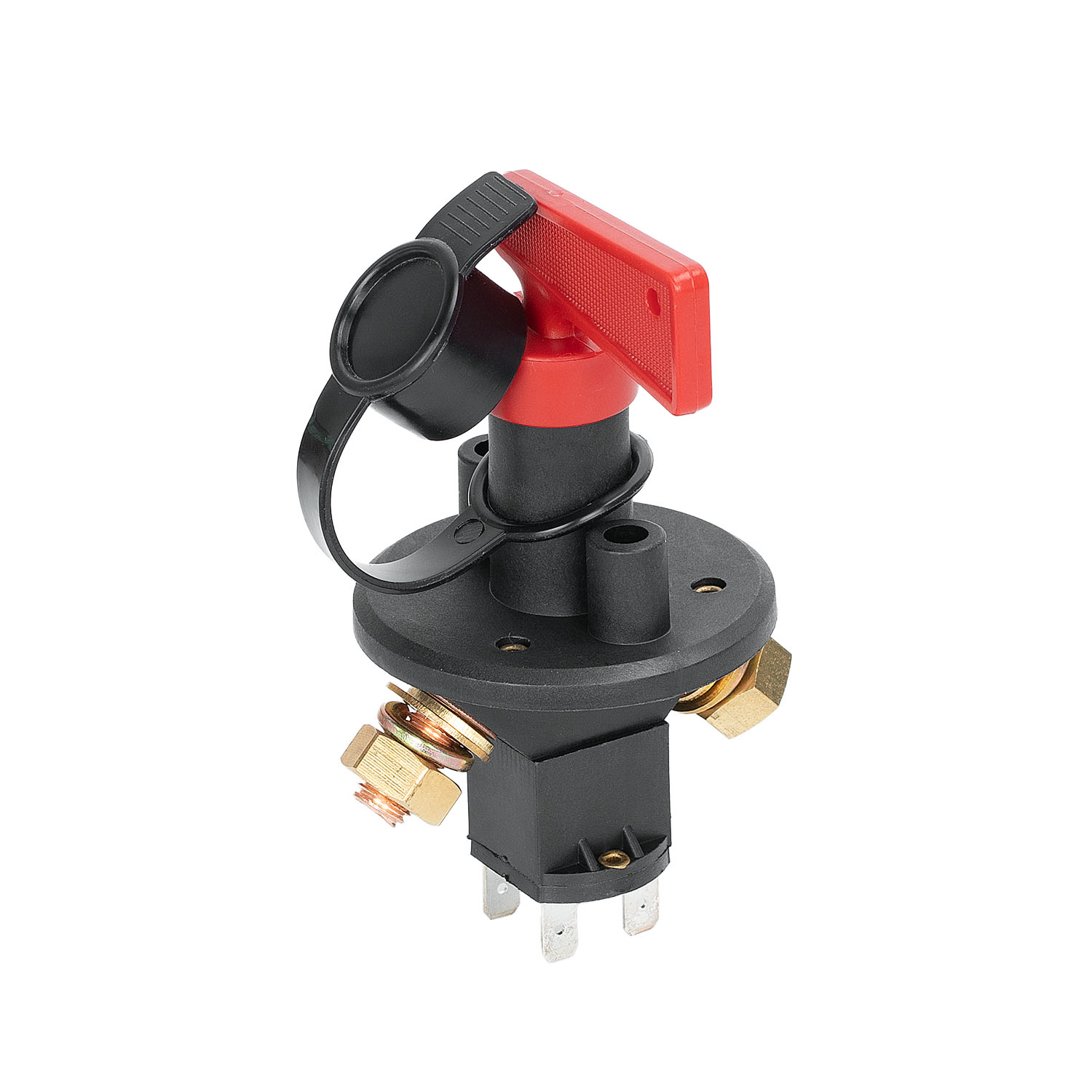

This battery isolator switch features a removable red key for a secure and straightforward On/Off operation. The removable key acts as an anti-theft and safety device, as power cannot be turned on without it. An included dust cover protects the key mechanism from dirt and moisture when the key is removed.
- Robust & Compact Design

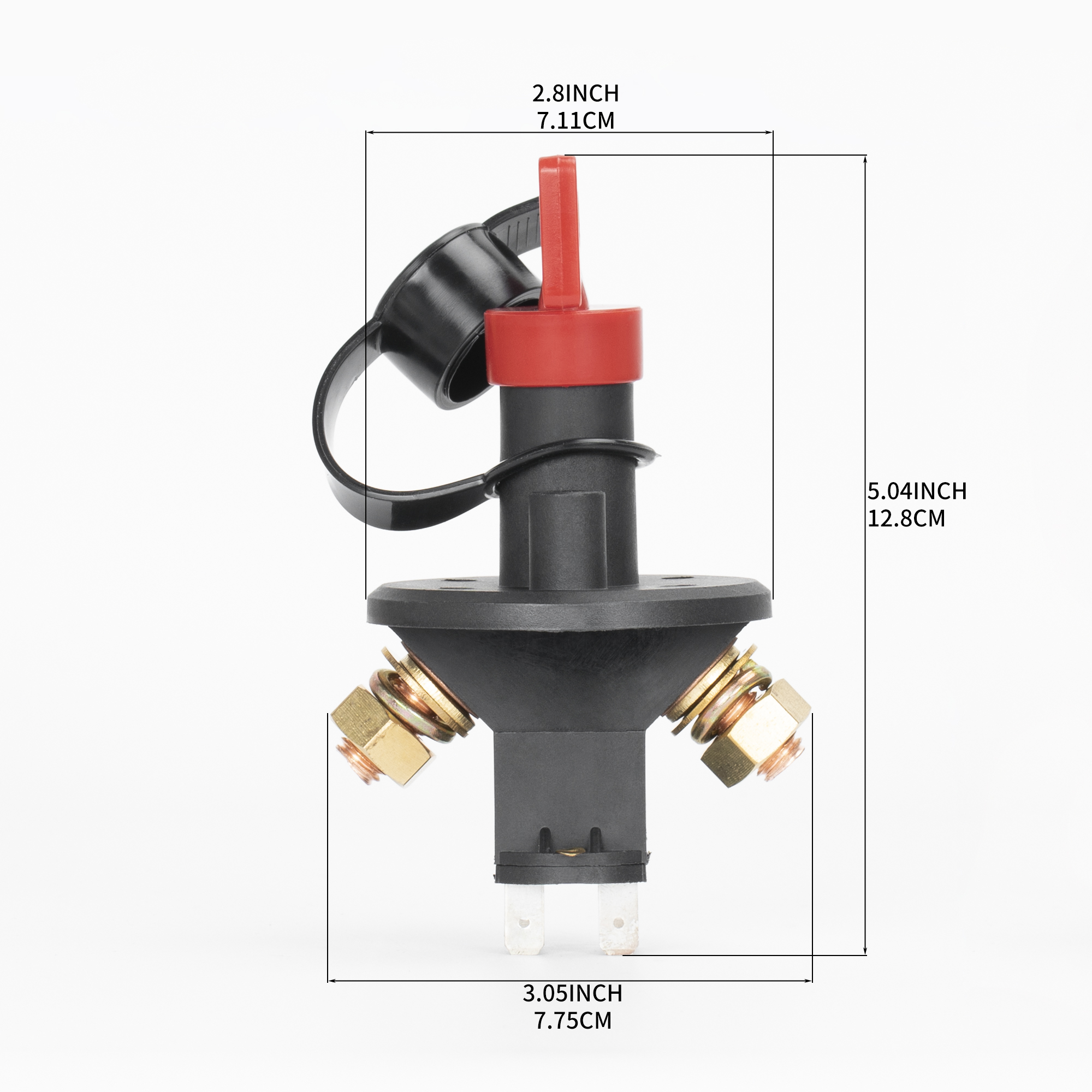

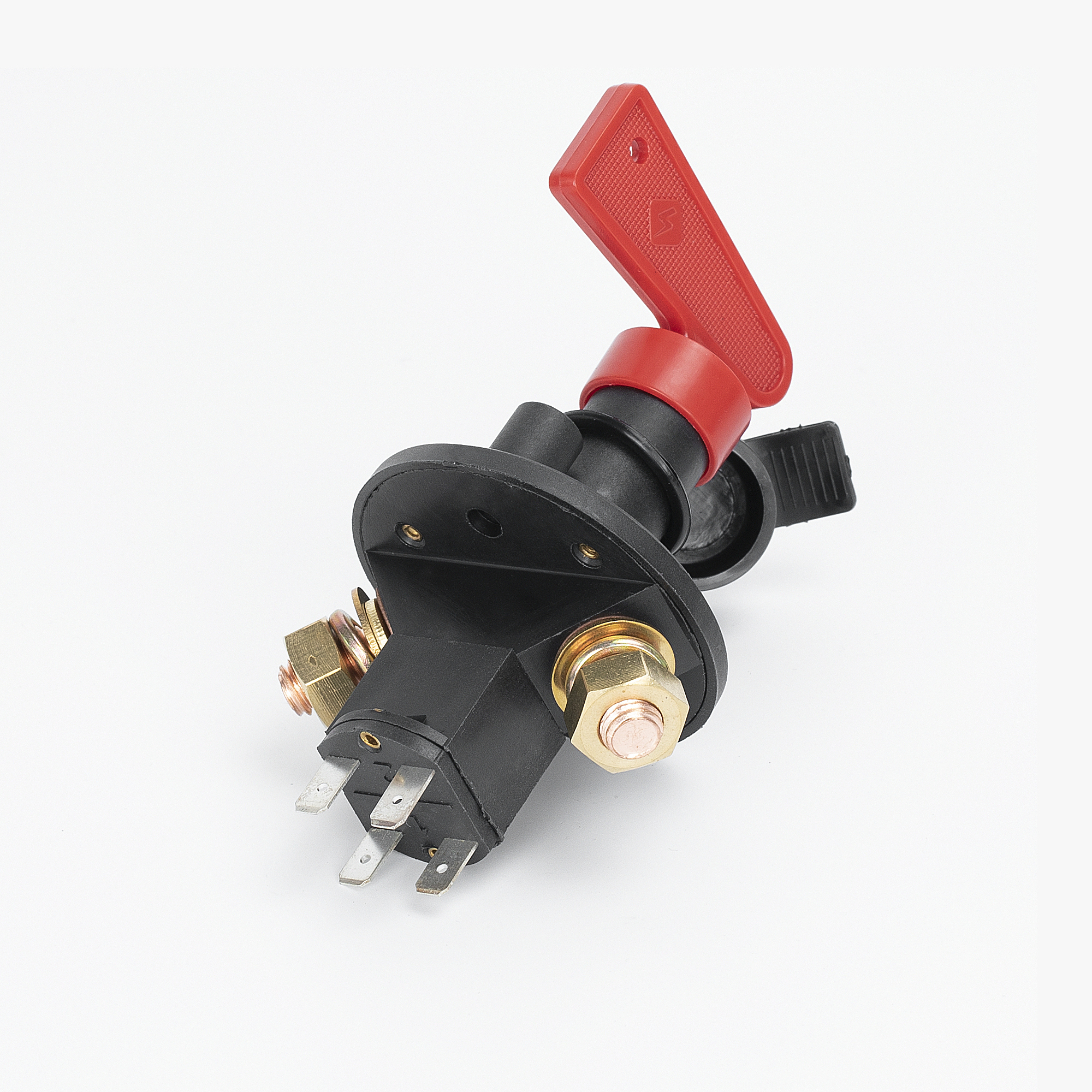

This marine battery switch is constructed from high-quality materials for durability in harsh environments. The compact power isolator features four M10 studs for secure connection of your main electrical cables. Its panel-mount design requires a 40mm cutout and has four mounting holes for a stable installation.
- Versatile System Management
This dual circuit master switch is a versatile solution for managing power in a wide range of applications. The 2-circuit power switch is perfect for boats, RVs, and trucks where isolating both a main and an auxiliary circuit is required. It provides a simple yet effective method for complete power control.
ASW-A803 200A 12-24V DC Dual Pole Battery Disconnect Switch Datasheet
| Model | ASW-A803 |
| Operation | ON / OFF, 2 Positions |
| Circuit Control | Dual Pole / Double Circuit (Simultaneously disconnects or connects two separate circuits) |
| Voltage Rating | 12V – 24V DC |
| Continuous Current Rating | 200 Amps (at 12V DC) |
| Cranking Current Rating | 1000 Amps (at 12V DC) |
| Terminal Studs | 4 x M10 (3/8″) Copper or Copper-Plated Studs |
| Mounting | Panel Mount |
| Mounting Hole Cutout | ø 40mm (Approx. 1.57 inches) |
| Mounting Screw Holes | 4 |
