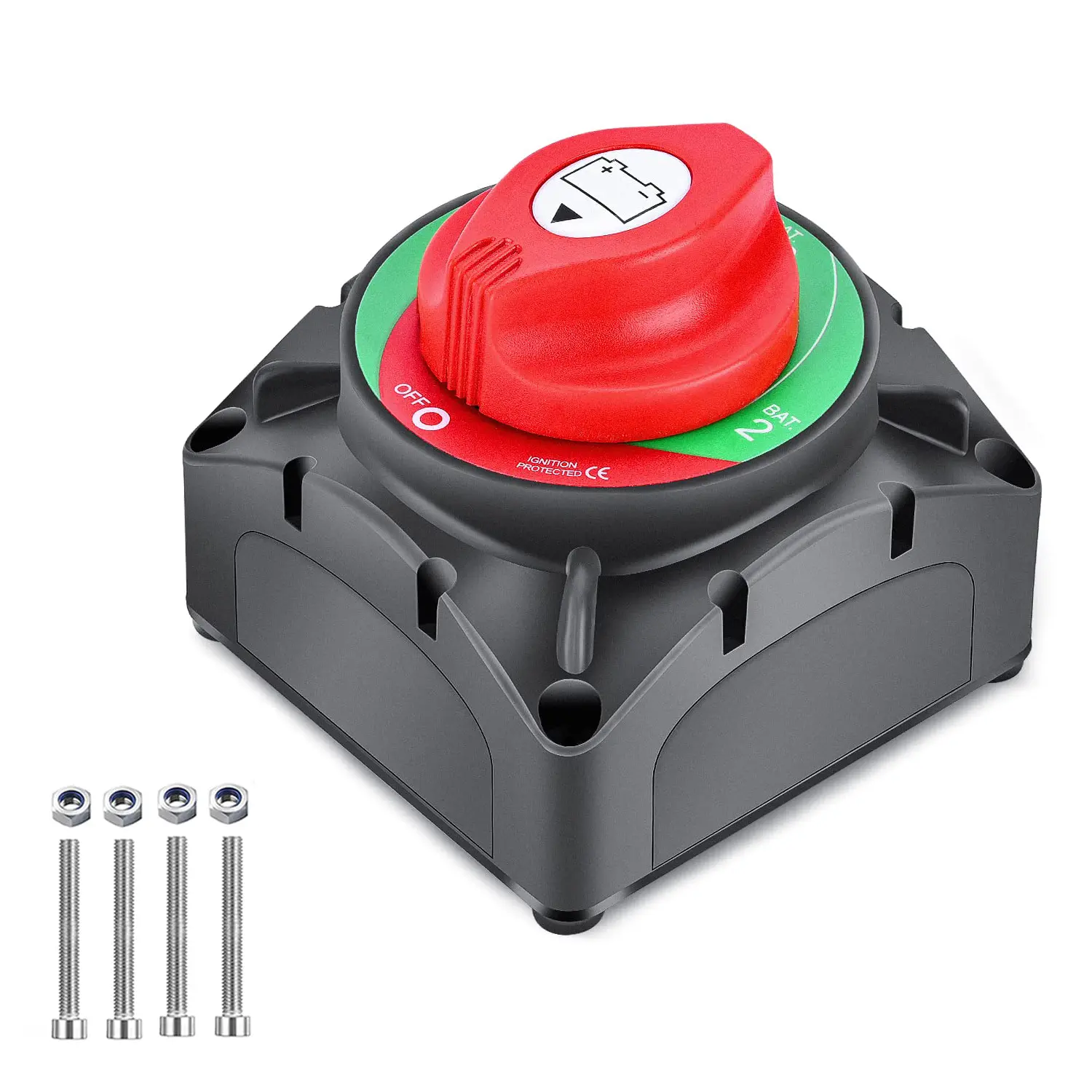

ASW-A720S Heavy Duty 600A 12V-48V 4 Positions 1-2-Both-OFF Dual Battery Switch
Part#ASW-A720s
The heavy duty dual battery switch is rated for 600A continuous current and 2500A intermittent current in 12-48V DC, 1-2-Both-OFF.

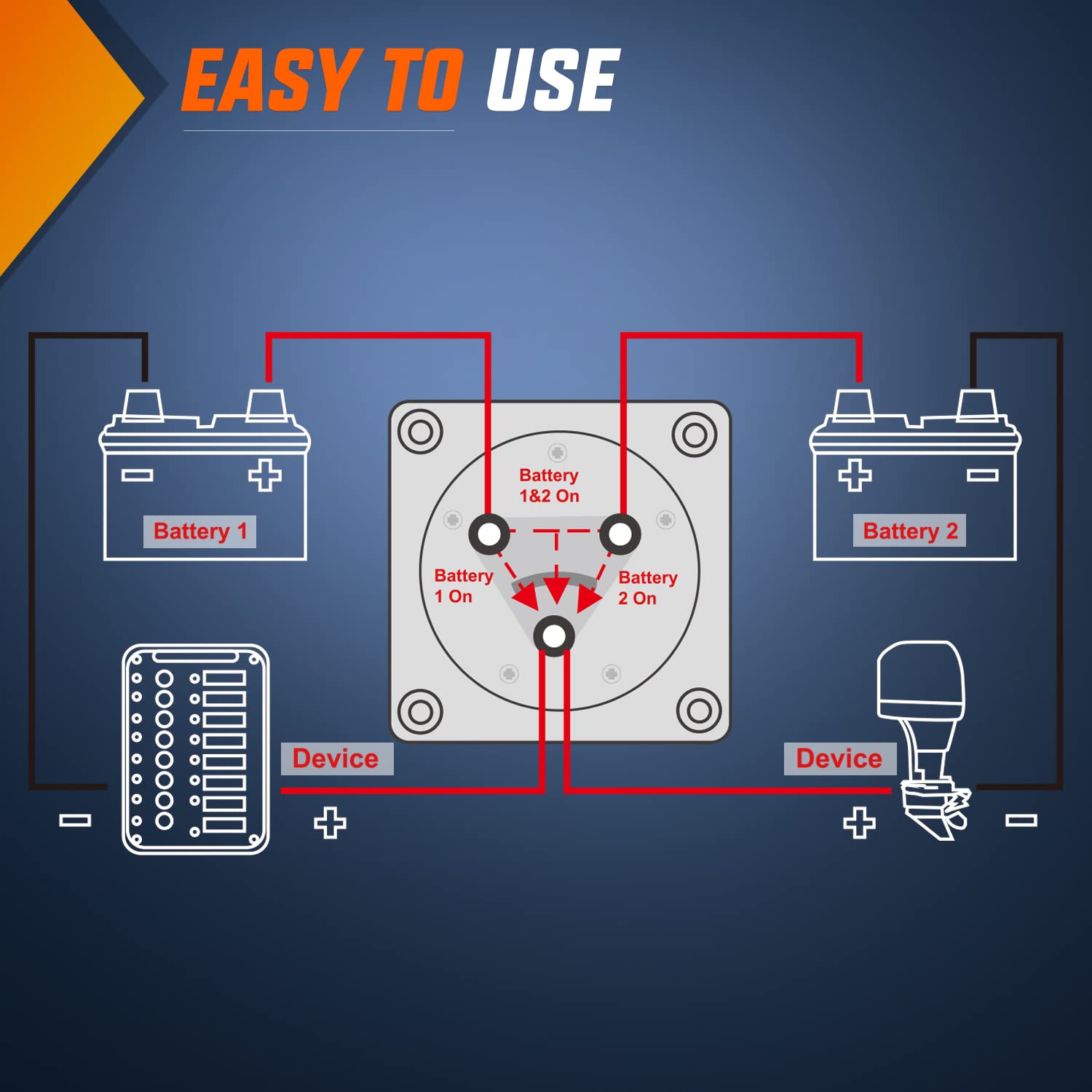

It is designed for two batteries in high current situations and can switch to battery 1 / battery 2 separately or both and off together.
Category :
Battery Switch
ASW-A720S Heavy Duty 600A 12V-48V 4 Positions 1-2-Both-OFF Dual Battery Switch Details

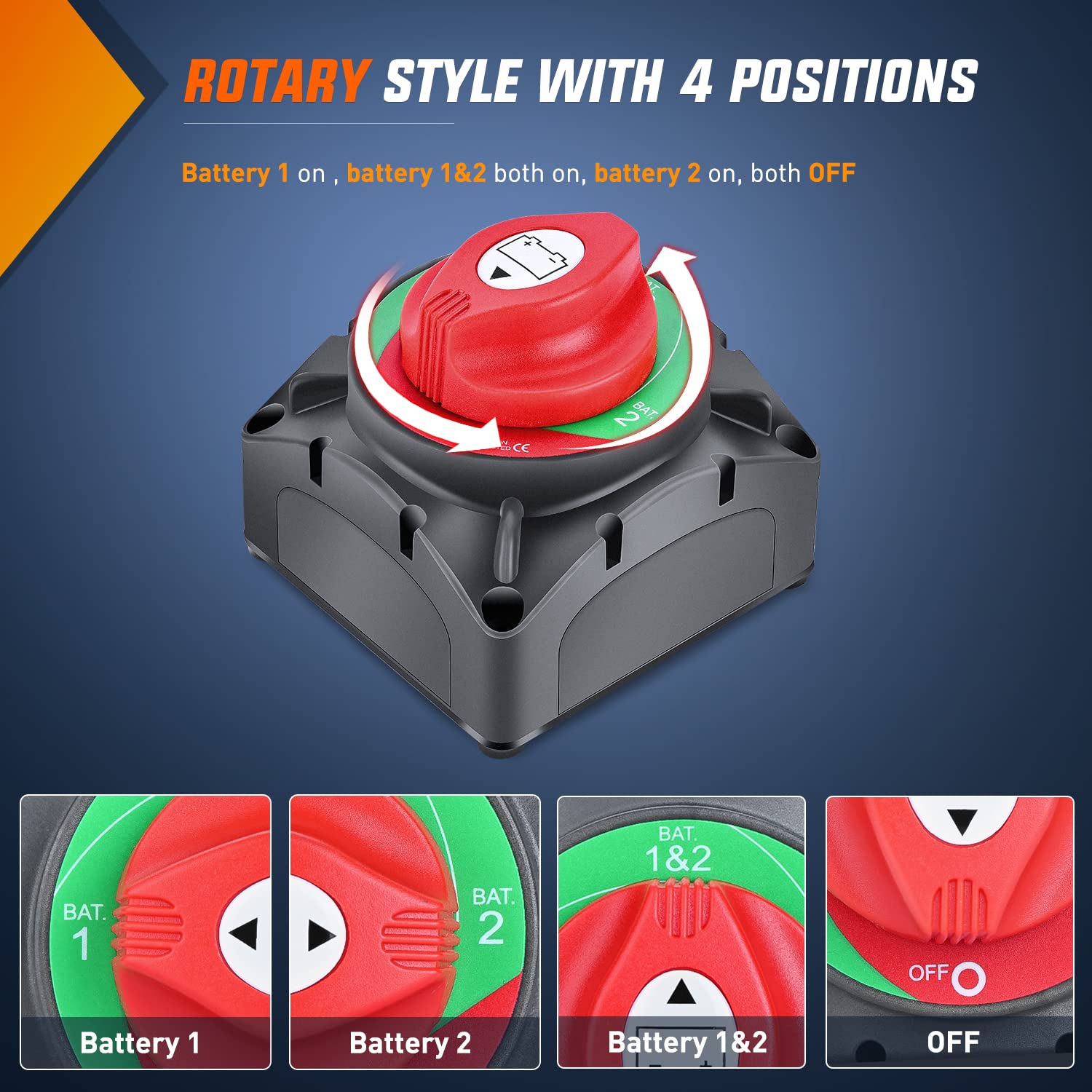

- 1-2-Both-OFF Switch
The battery disconnect switch is a versatile and reliable switch that offers precise control across diverse applications. It has a 1-2-Both-OFF 4 Position feature, a robust 600A DC Continuous rating, and 455A DC Intermittent capacity.
- Strong and Sturdy
It is engineered from high-grade ABS plastic, prioritizing both durability and safety. The M10 tinned copper studs and nuts enhance electrical conductivity, making it a safer and more dependable choice. The added rear cover provides an extra layer of insulation, guarding against potential short circuits.
- Safety Protection
The waterproof battery switch is designed to disconnect the battery and prevent excessive drain during idle periods, ensuring the longevity and peak performance of your batteries. This feature is crucial for vehicles and boats that may experience prolonged inactivity.
- Wide Application

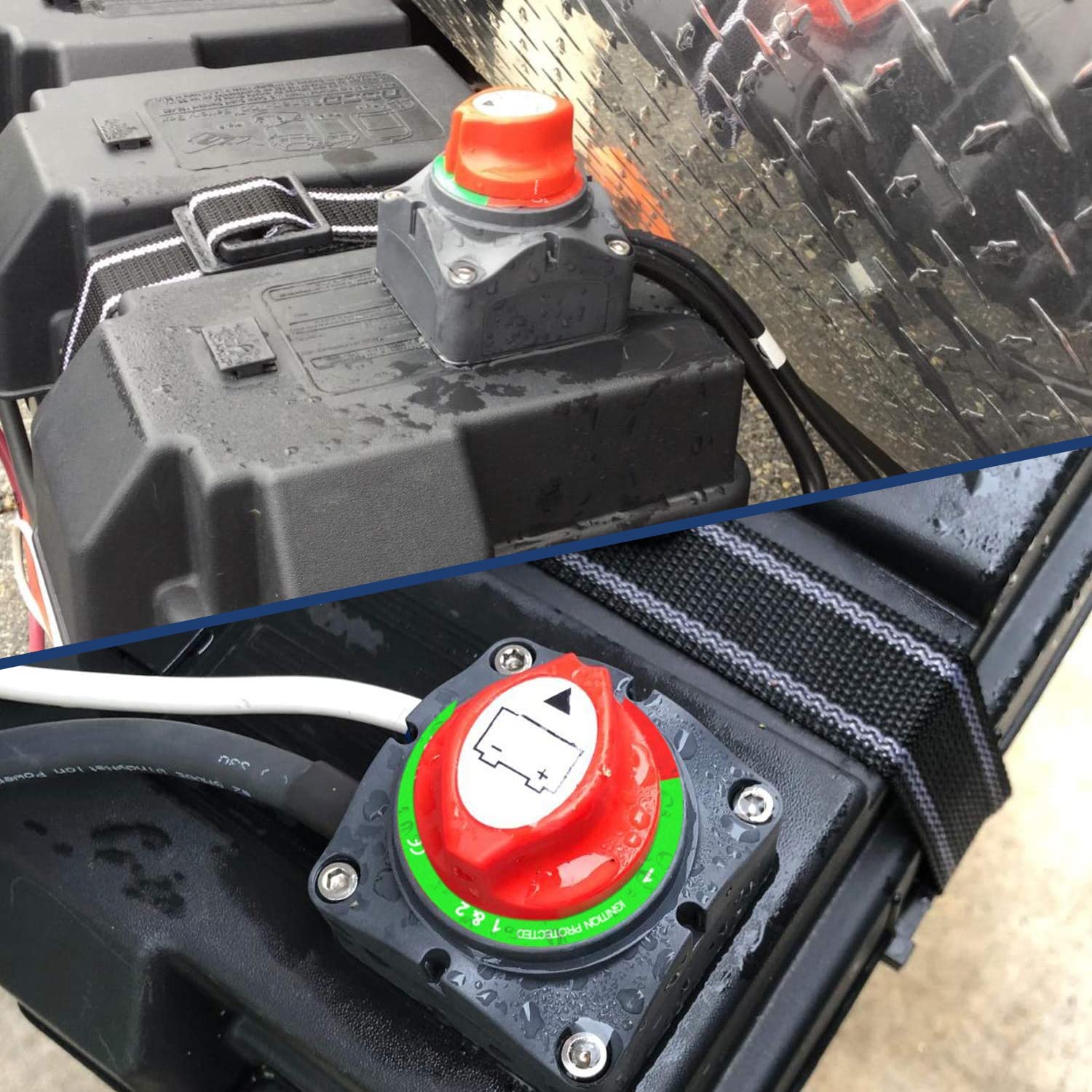

The battery shut off switch is tailored for DC 12-48V systems and is the go-to solution for isolating and fortifying electrical systems. Whether used alone or in conjunction with other switches, it adapts seamlessly and its utility spans across automobiles, marine vessels, RVs, campers, trucks, ATVs, UTVs, battery banks, and an array of electrical equipment.
ASW-A720S Heavy Duty 600A 12V-48V 4 Positions 1-2-Both-OFF Dual Battery Switch Datasheet
| Part NO | ASW-A720S |
| Function | 1-2-Both-OFF |
| Working voltage | 12-48V |
| Rated Current | 600A (12V) |
| Instantaneous Current | 2500A(12V) |
| Terminal | 3 Pins |
| Stud Size | 3/8″ (M10) |
| Stud Material | Metal Copper |
| Housing Material | ABS Plastic |
| Rotation Angle | 360 degrees |
| Size | 101.6 (L)x 101.6 (W)x89.9 (H)mm/4x4x3.54 inch |
Still, have a question about the ASW-A720S Switch that wasn’t answered on this page? Please contact us at sales1@chinadaier.com!
