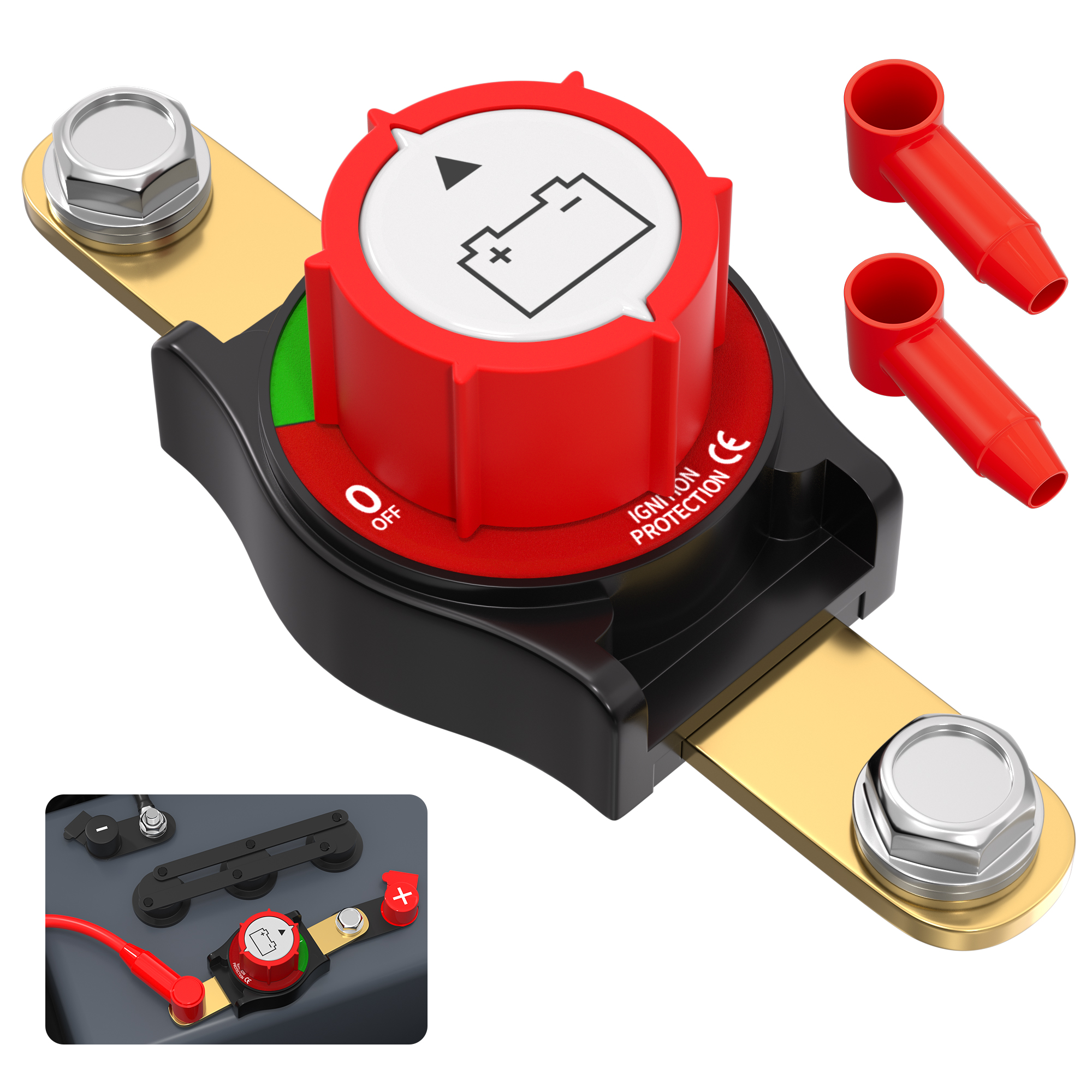

ASW-A71001 275A 12-48VDC ON-OFF Side Post Battery Master Disconnect Switch
Part#ASW-A71001
The 275A side post battery master disconnect switch is designed for demanding applications and can reliably handle 12-48V systems (up to 1250A cranking) with direct terminal mounting and copper contacts.
Its durable, flame-resistant design is crucial for preventing battery drain and ensuring safety during maintenance or storage in Marine, RV, Car, Truck, and heavy-duty vehicle fleets.
Category :
Battery Switch

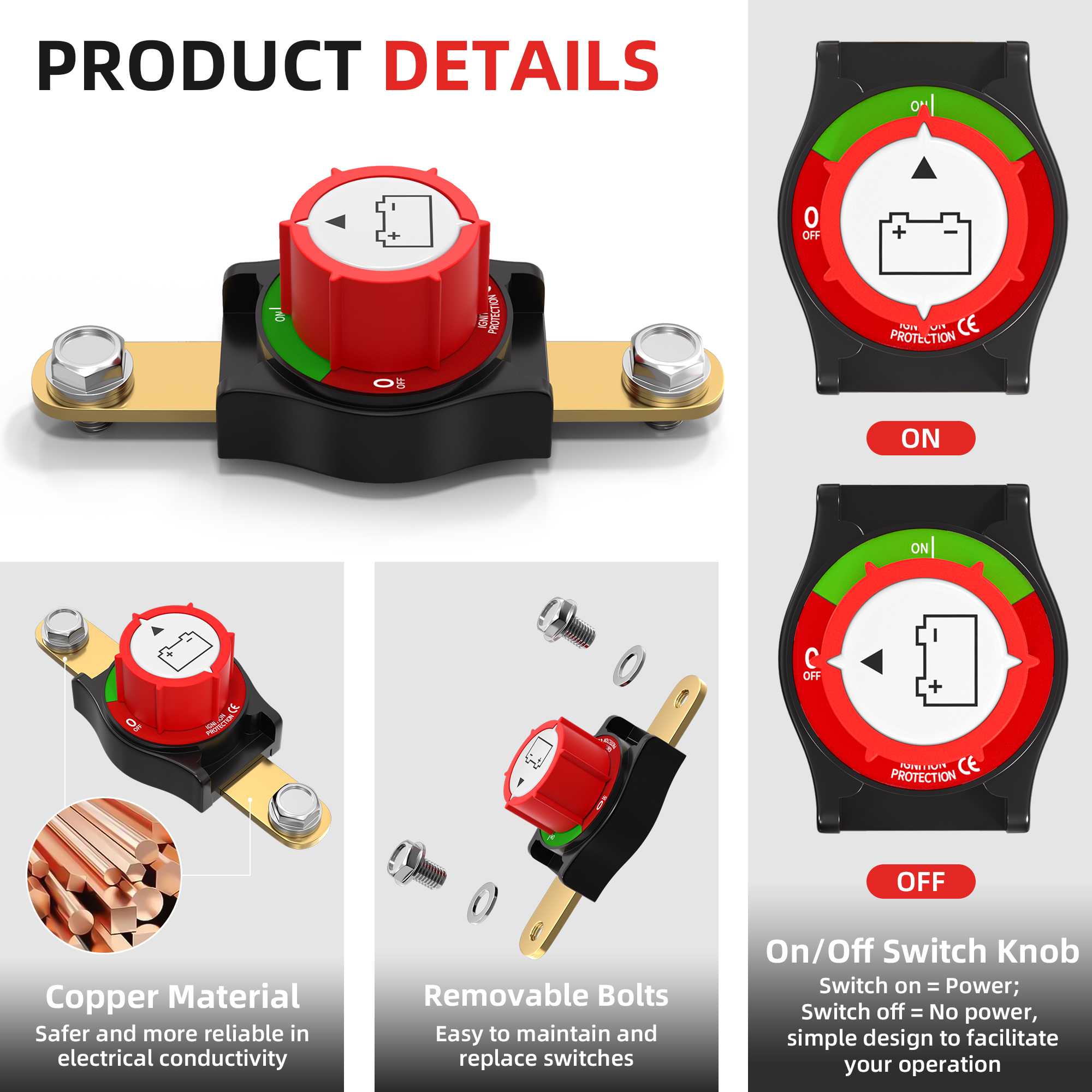

ASW-A71001 275A 12-48VDC ON-OFF Side Post Battery Master Disconnect Switch Details
- Robust Electrical Capacity
This heavy-duty battery disconnect switch is rated for 275 Amps continuous DC current. The master power cutoff switch reliably handles intermittent loads up to 455A and cranking currents of 1250A. Its versatile design supports electrical systems operating from 12V up to 48V DC.

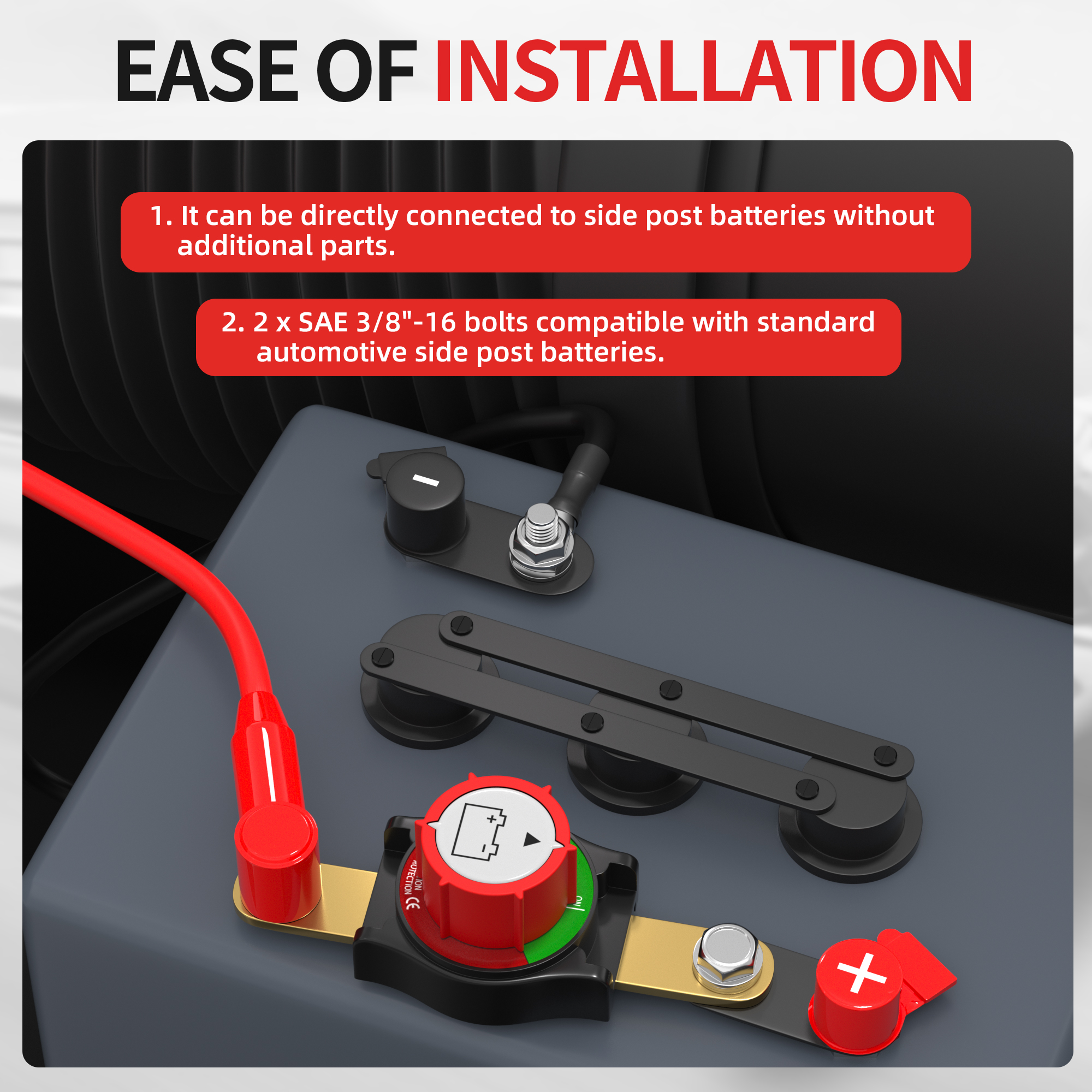

- Direct Terminal Mounting
This side post battery switch facilitates straightforward installation directly onto compatible battery terminals. The automotive battery cut off switch typically includes M10 (3/8″) studs suitable for standard side post connections. Easy mounting eliminates the need for extra cables or complex modifications in many setups.

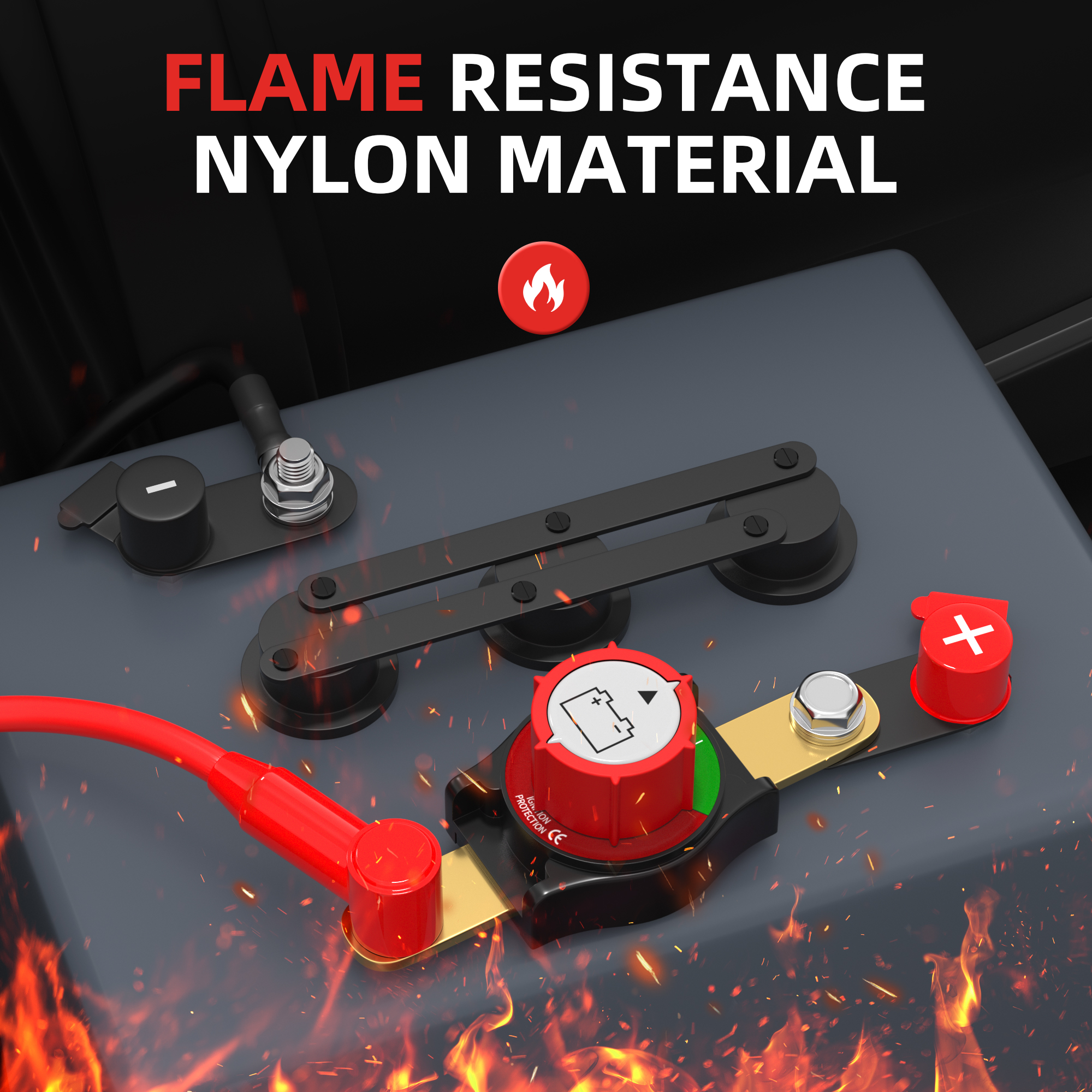

- Premium Component Quality
High-conductivity copper terminals are utilized in this battery isolator switch to ensure maximum electrical efficiency and minimal voltage drop. The switch housing, often made from durable ABS plastic or flame-resistant Nylon, provides robust protection against physical impact and environmental factors. This quality construction guarantees reliable long-term performance for the power disconnect switch.
- Essential Power Safeguard
Using this battery kill switch effectively prevents unwanted parasitic battery drain during periods of non-use. The master disconnect switch allows for secure isolation of the battery circuit, enhancing safety during vehicle maintenance or storage. Implementing this switch is crucial for preserving battery health and longevity.

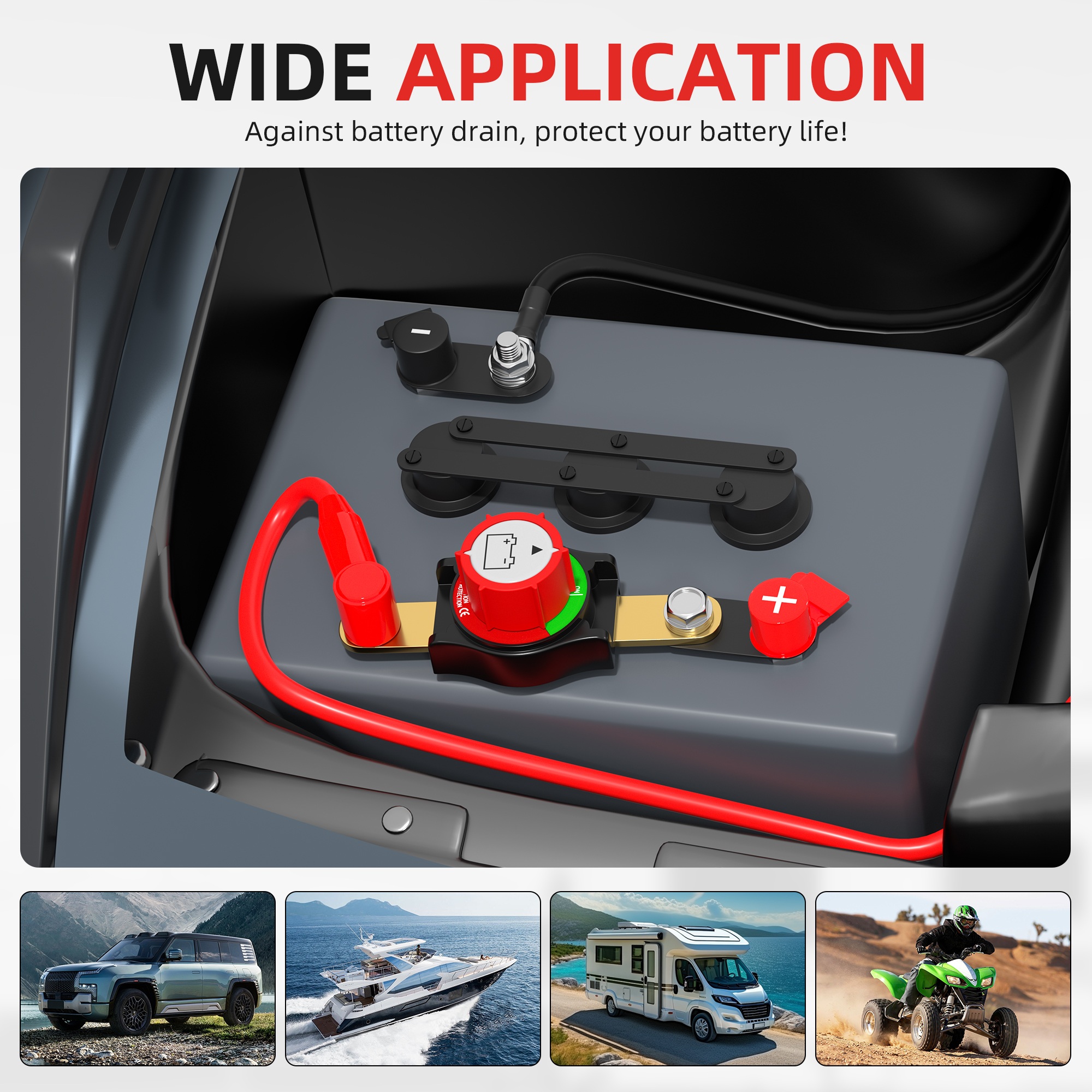

- Wide Application Range
This versatile 12V battery shut off switch is engineered for diverse applications across multiple vehicle types. The electrical system isolator is ideal for cars, marine vessels, boats, RVs, campers, and trucks. Its compatibility extends to ATVs, UTVs, and various battery bank configurations requiring reliable power isolation.

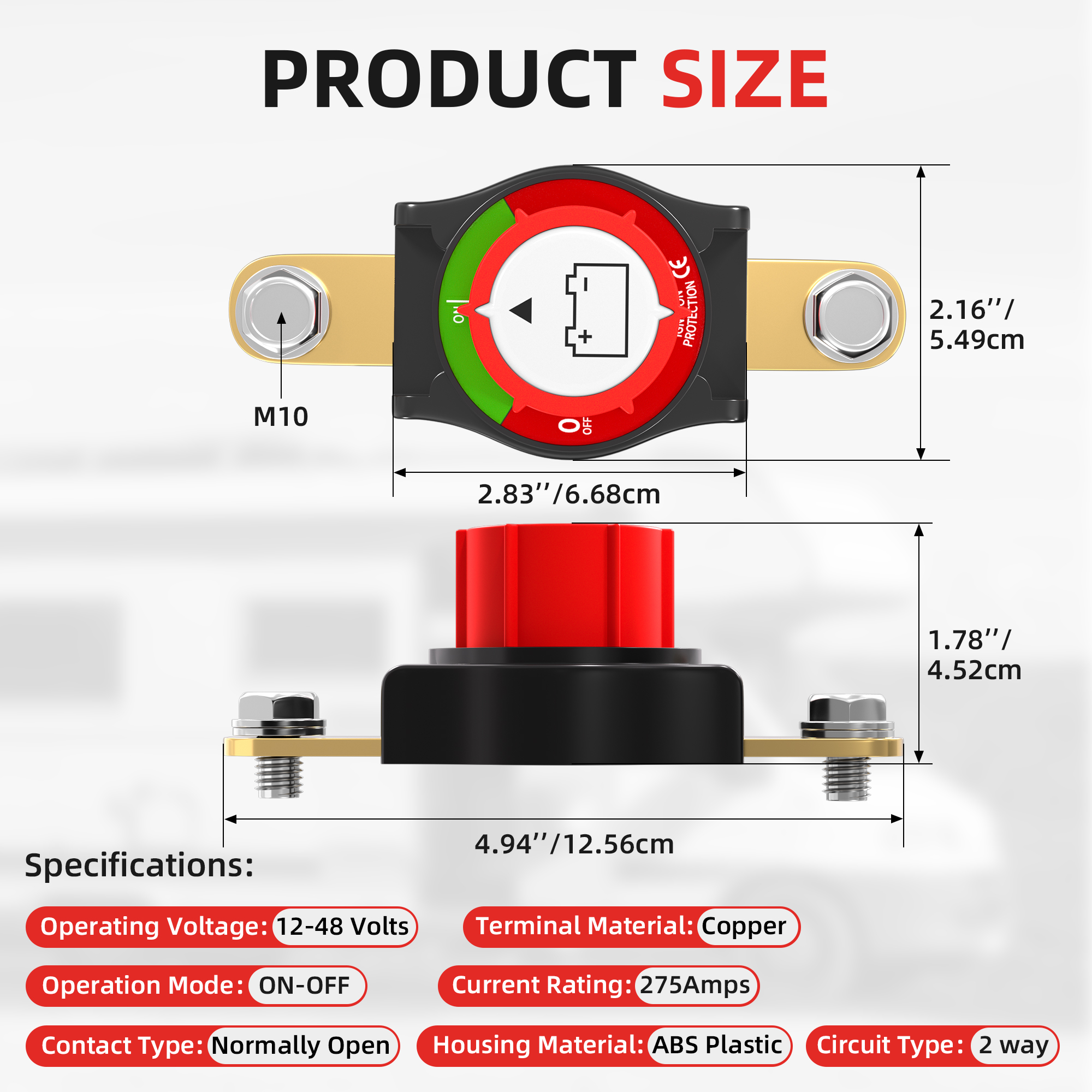

ASW-A71001 275A 12-48VDC ON-OFF Side Post Battery Master Disconnect Switch Datasheet
| Part NO | ASW-A71001 |
| Function | ON-OFF |
| Operating Voltage | 12-48V DC |
| Rated Current | 275A DC (Continuous) |
| Intermittent Current | 455A DC (5 min) |
| Cranking Current | 1250A DC (10 sec) |
| Stud Size | M10 (3/8″) |
| Stud Material | Tinned Copper |
| Housing Material | ABS Plastic (Flame Resistant) |
| Rotation Angle | 90 Degrees |
| Mounting Style | Side Post Battery Terminal |
| Circuit Type | 2 Way / SPST |
