ASW-A701-KIT1 275A 12-48VDC ON-OFF Battery Switch with Mounting Brackets for Battery Positive
Part#ASW-A701-KIT1

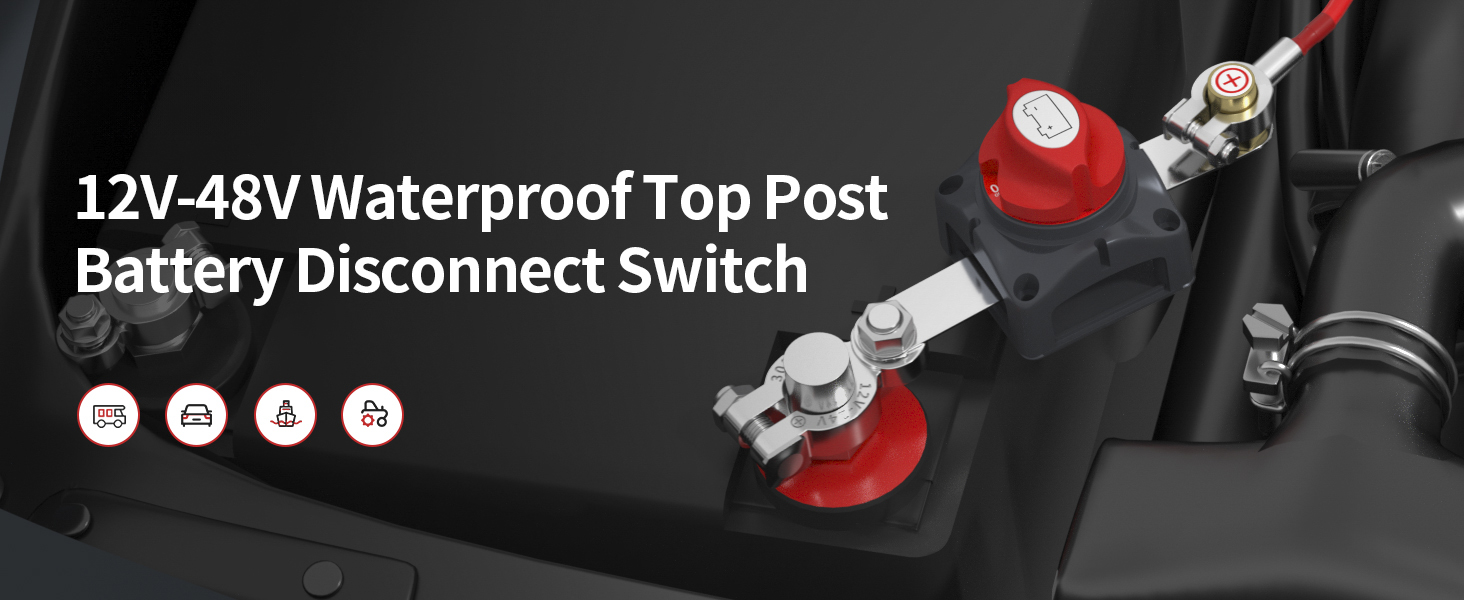

This ON-OFF battery disconnect switch handles up to 275A continuous current and is suitable for use on the positive battery terminal of 12-48V DC systems.
Designed with safety and reliability in mind, it features M10 tinned copper studs, a protective rear cover, and comes complete with all necessary mounting hardware and copper conductive sheets.
Category :
Battery Switch
ASW-A701-KIT1 275A 12-48V ON-OFF Battery Switch with Mounting Brackets Details
- High Current Capacity
This battery disconnect switch handles demanding high-power applications with a 275A continuous current rating (1 hour), 455A intermittent (5 minutes), and 1250A cranking (10 seconds).
- Flexible Installation

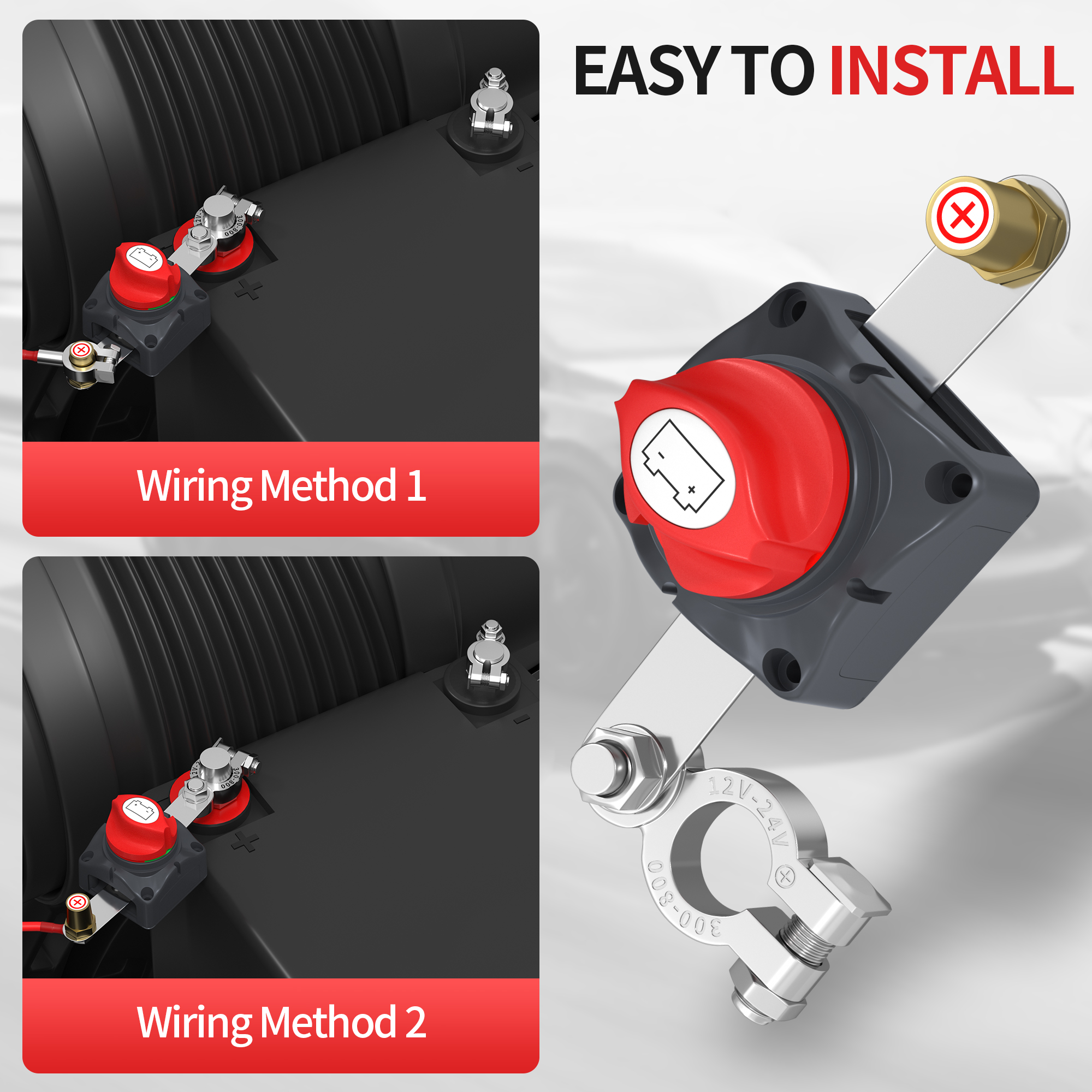

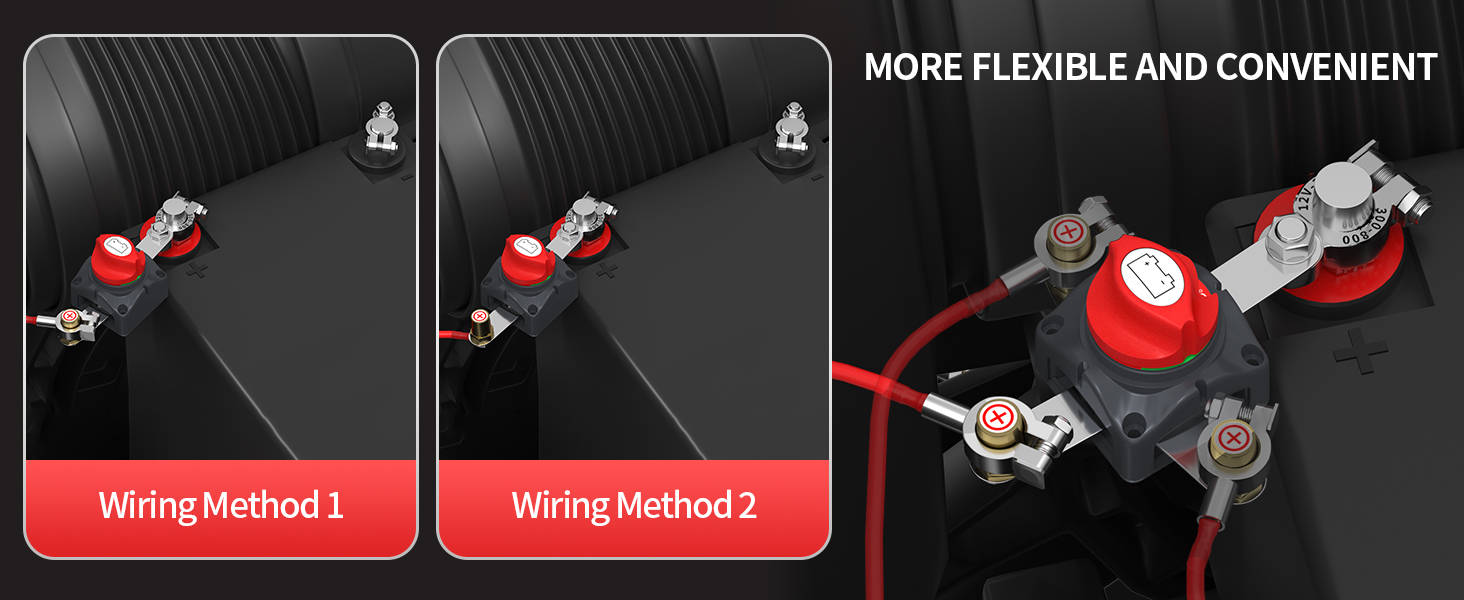

Two included copper conductive mounting brackets enable versatile installation on the positive battery terminal, offering greater flexibility and adaptability compared to other disconnect switch designs.
- Enhanced Safety & Conductivity
Constructed with high-quality ABS plastic, this switch features a rear cover to insulate terminals, preventing short circuits. M10 tinned copper studs and copper conductive sheets ensure superior conductivity and reliable performance.
- Wide Application Range
Suitable for isolating and securing electrical systems in 12-48V DC applications. This switch finds use in automotive, marine, RV, truck, ATV, UTV, and battery bank systems.
- Complete Installation Kit

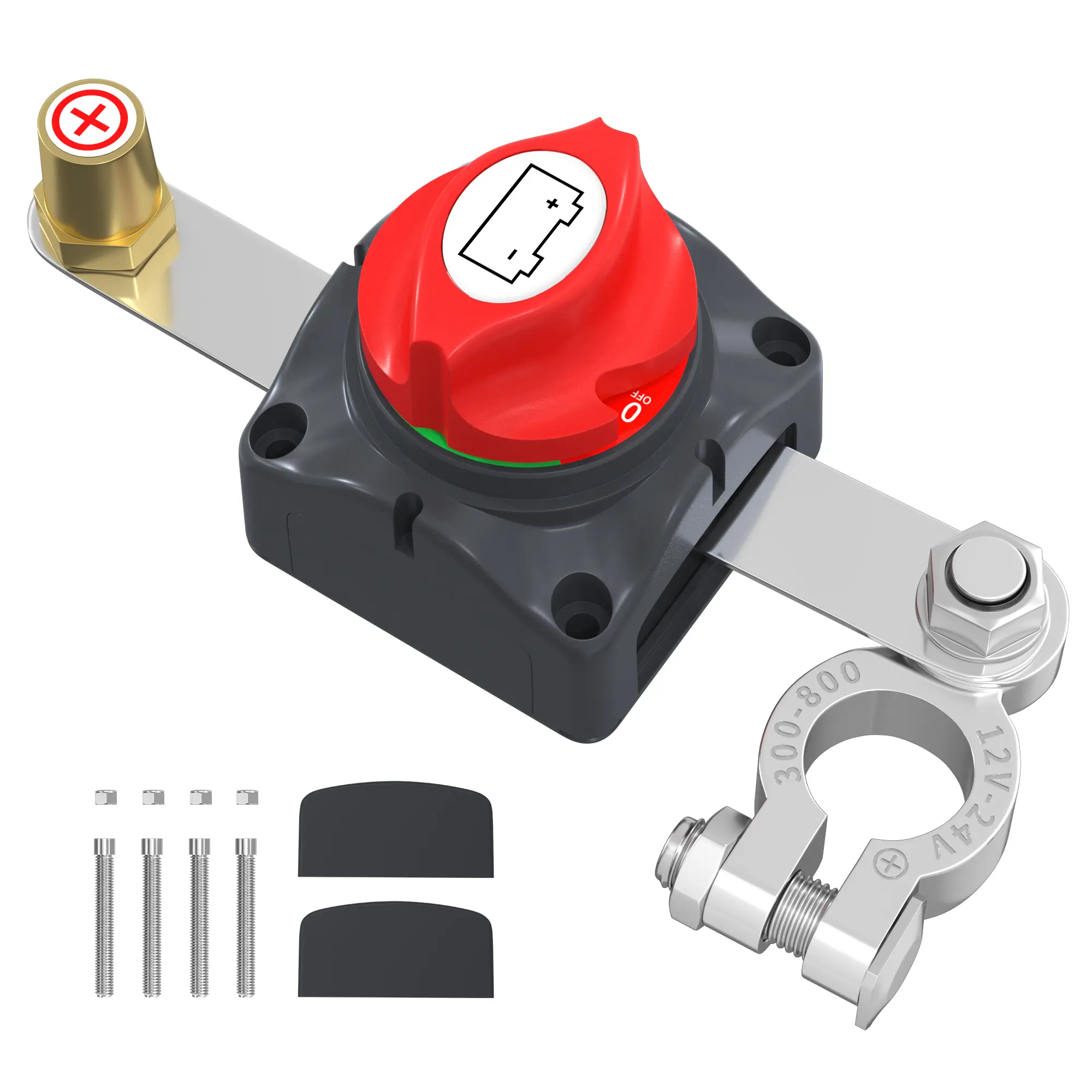

Included are a positive battery terminal connector, four stainless steel mounting screws and caps, and two copper conductive sheets, providing all necessary components for secure and efficient installation, saving time and effort.
ASW-A701-KIT1 275A 12-48V ON-OFF Battery Switch Kit
| Part NO | ASW-A701-KIT1 |

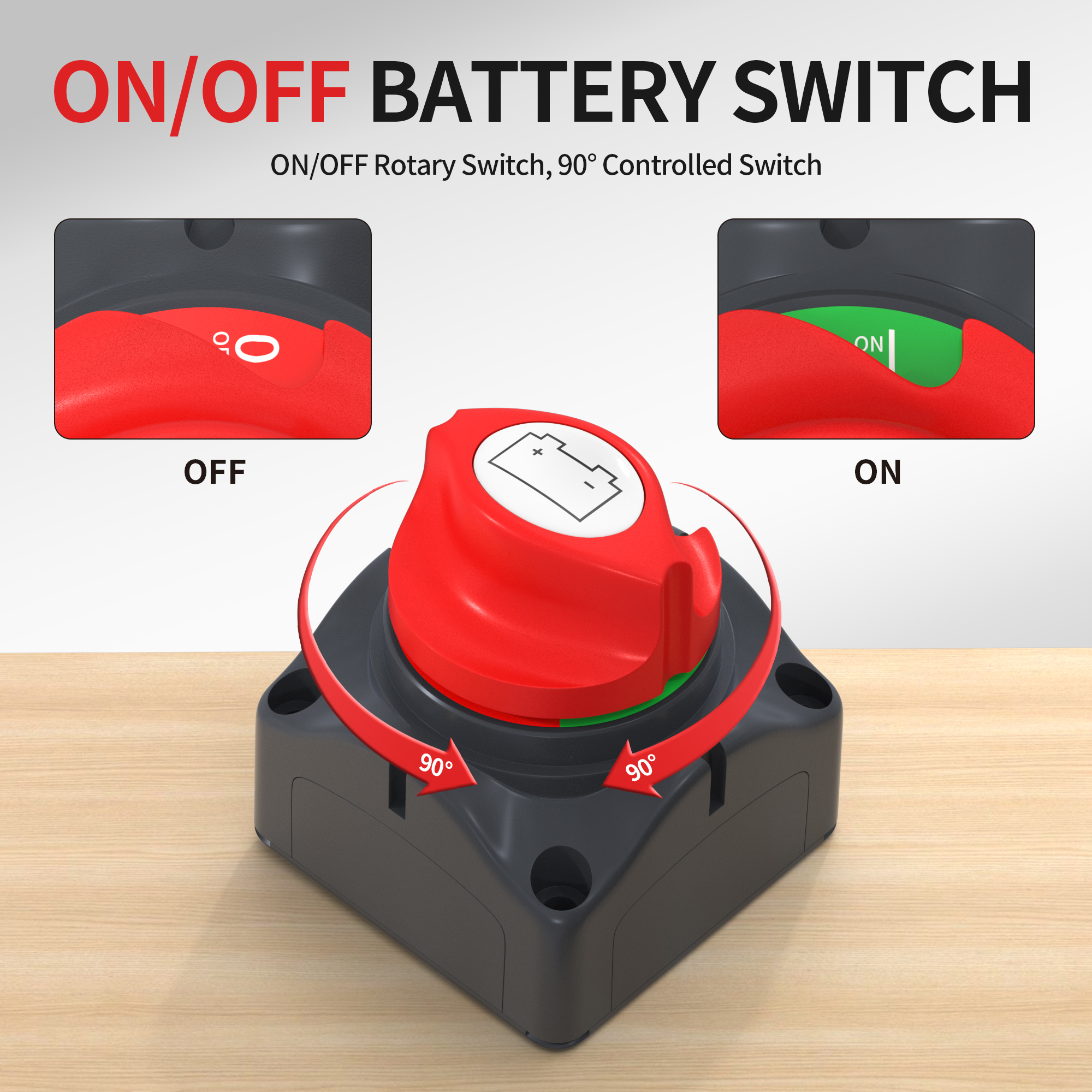

| Function | ON-OFF |
| Working voltage | 12-48V |
| Rated Current | 275A (12V) |
| Instantaneous Current | 1250A(12V) |
| Terminal | 2 Pins |
| Stud Size | 3/8″ M10 |
| Stud Material | Metal Copper |
| Housing Material | ABS Plastic |

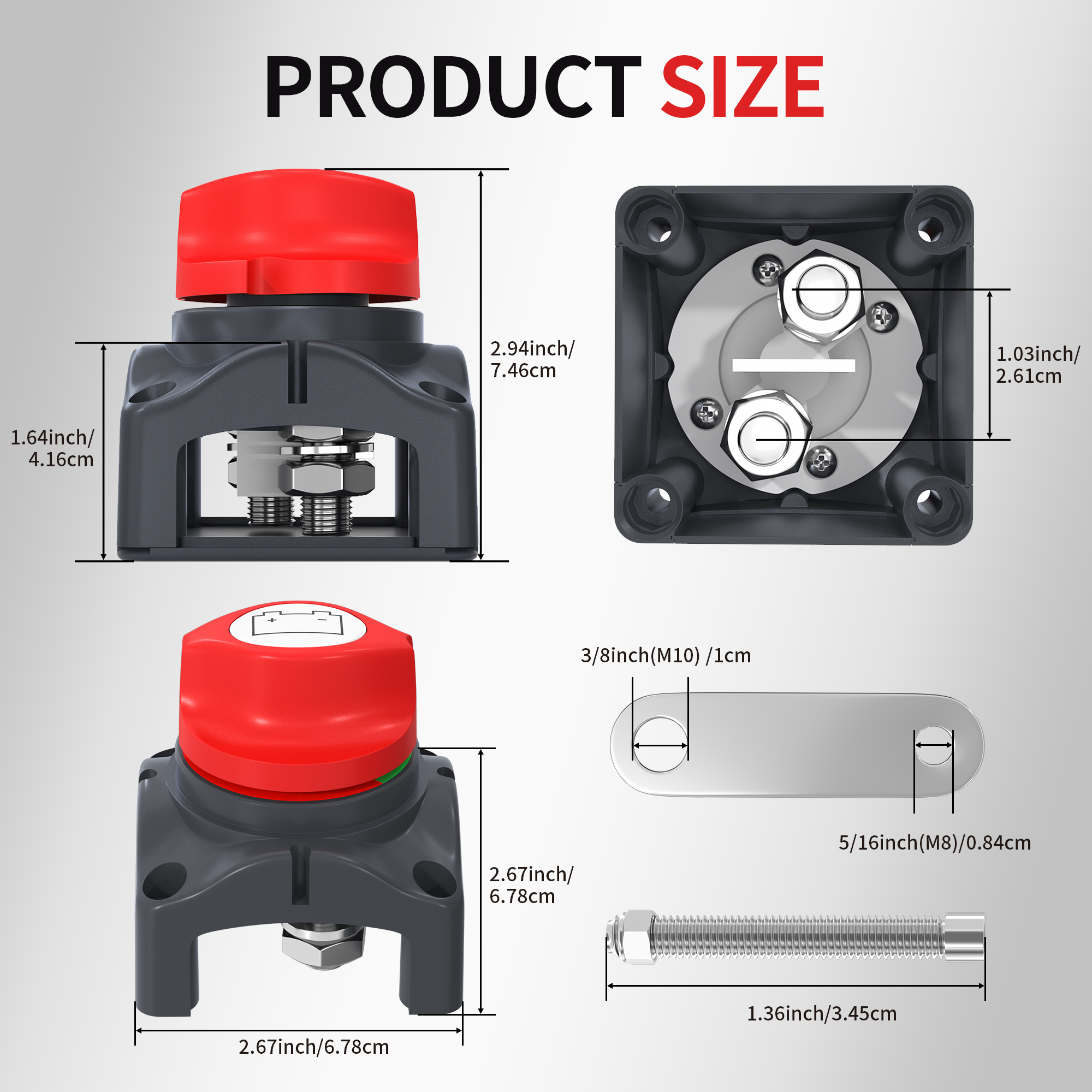

| Size | 69 (L)x69 (W)x75(H)mm/2.75×2.75×3 inch |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
