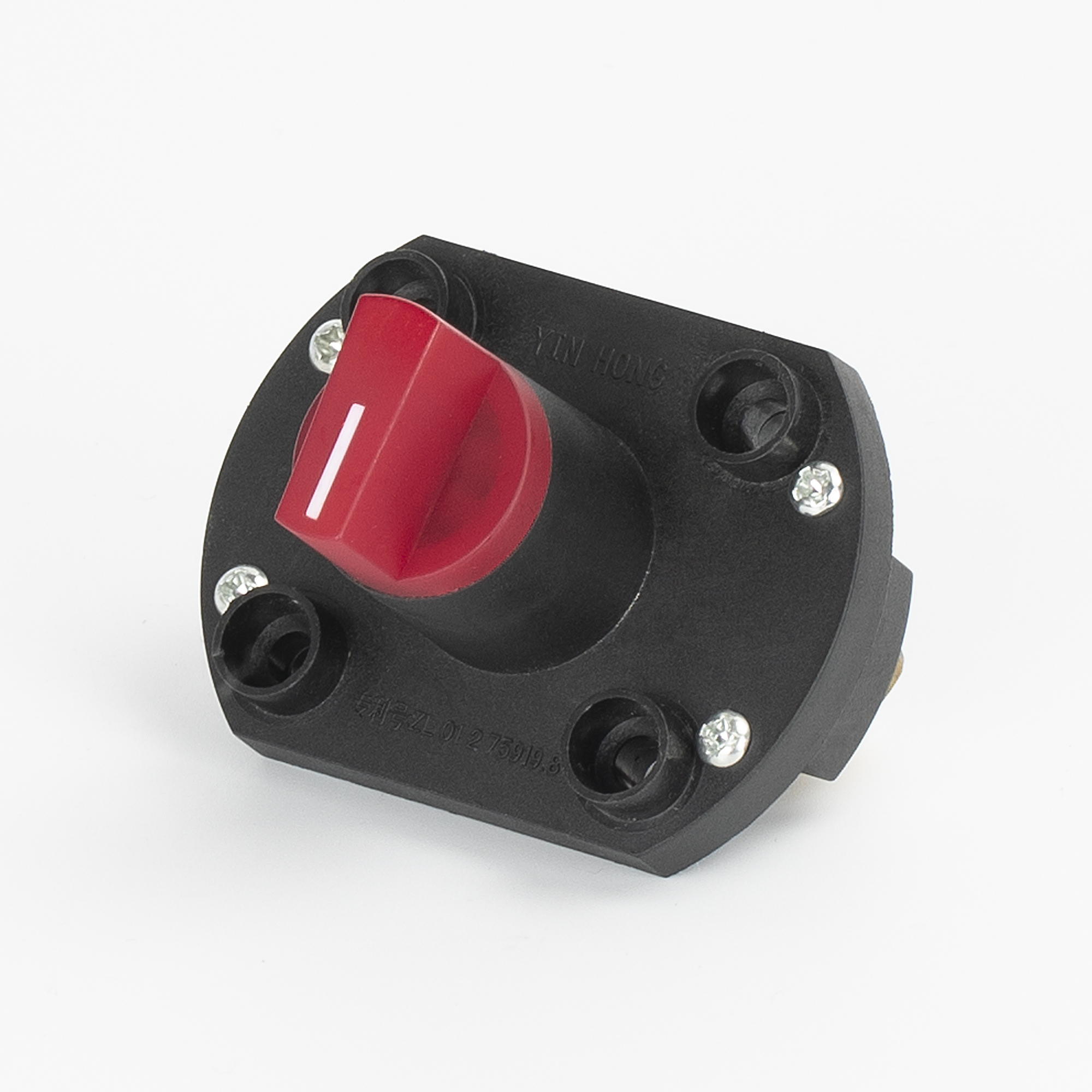

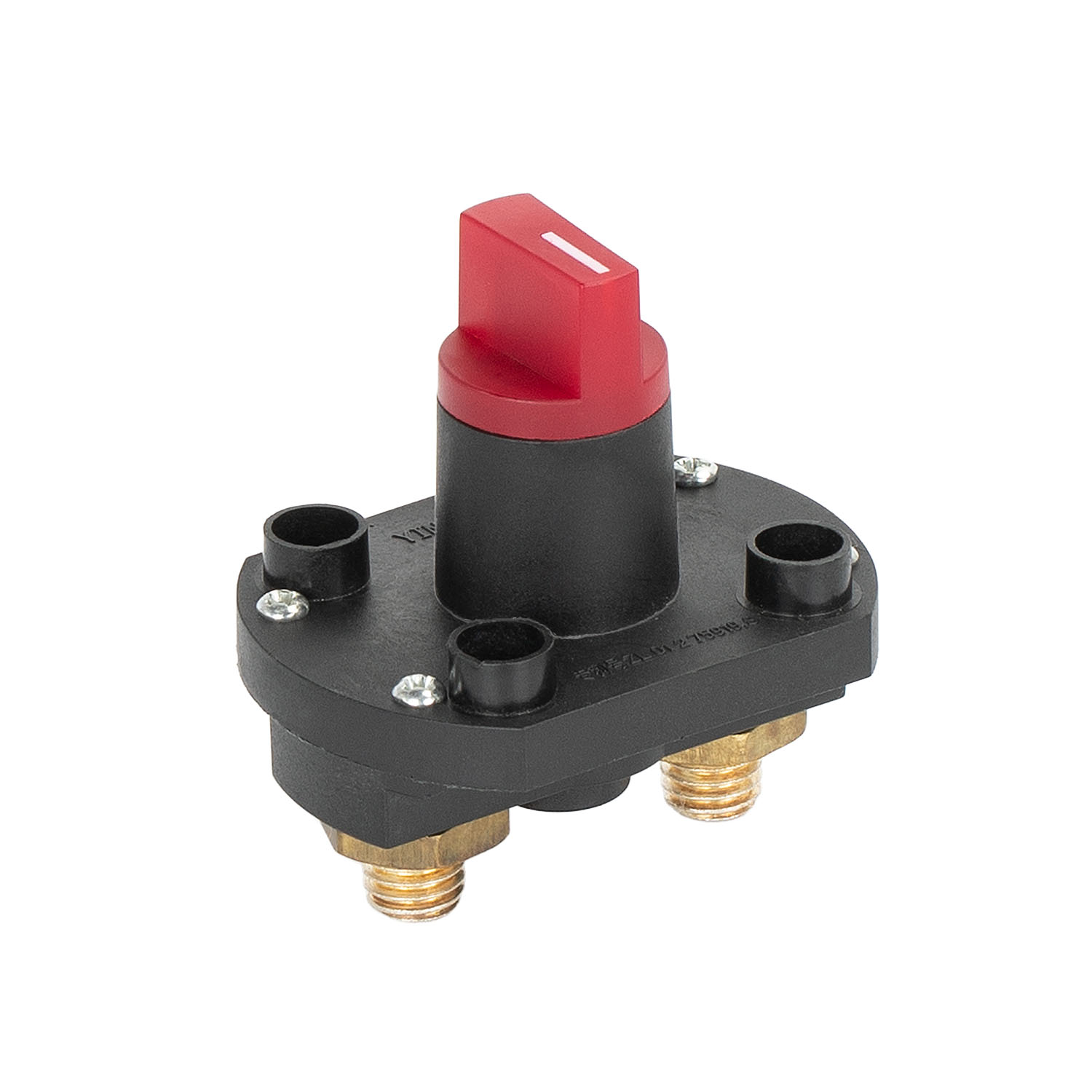

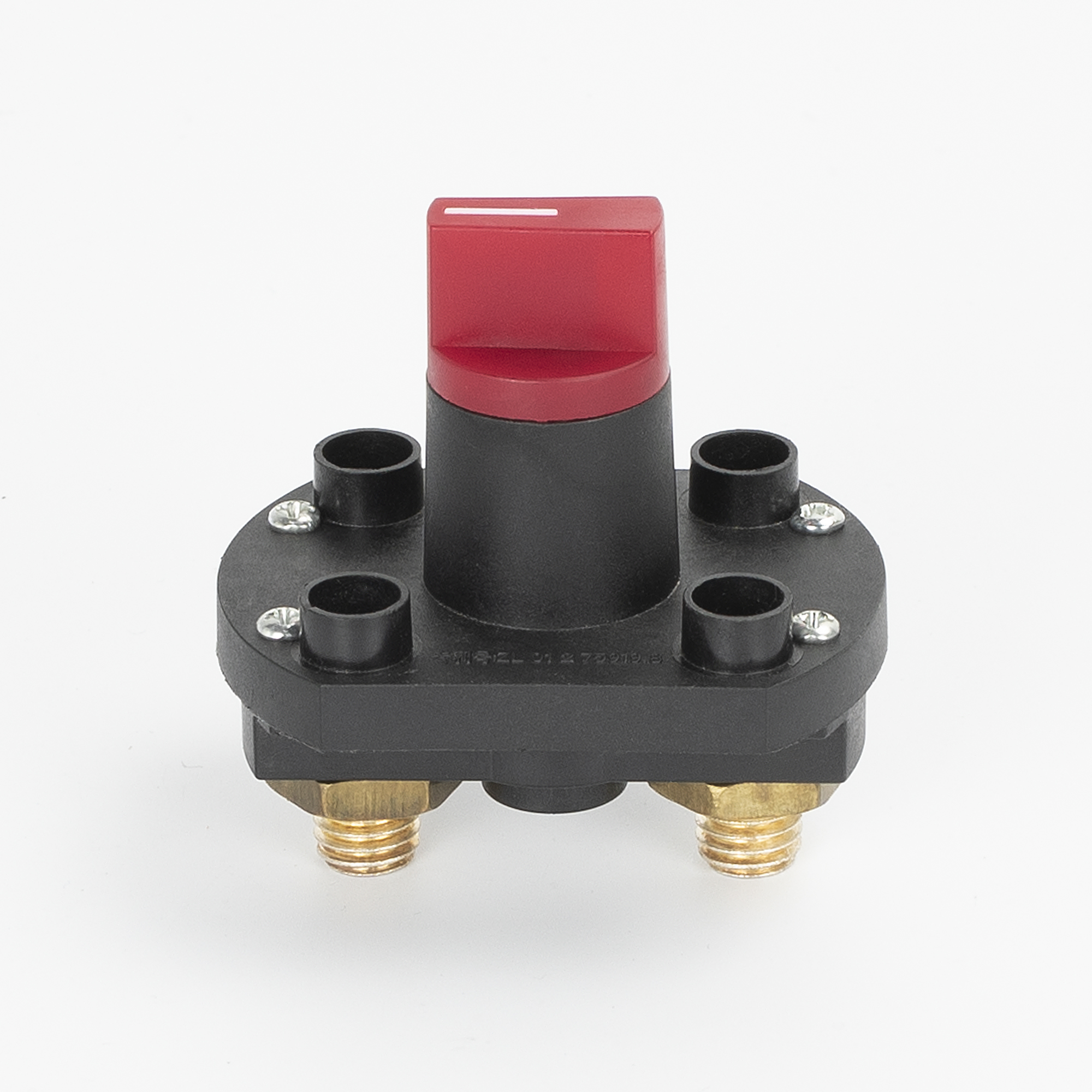

ASW-A06 400A 60V DC Master Battery Isolator Switch ON-OFF Panel Mount with Rotary T-Handle
Part # ASW-A06
This 400A 60V DC master battery isolator switch is Designed for secure through-panel mounting and provides simple On/Off T-handle control for power isolation.
This rotary disconnect switch is engineered for high-current industrial and vehicle systems, featuring M10 brass studs, low contact resistance, and an electrical life exceeding 10,000 cycles.
Category :
Battery Switch
ASW-A06 400A 60V DC Master Battery Isolator Switch ON-OFF with Rotary T-Handle Features
- Exceptional Current Capacity
This heavy-duty disconnect switch is engineered to manage high-power circuits, featuring a substantial rating of 400A at 60V DC. The high-current battery switch provides a reliable means of isolating power in demanding systems. Its high amperage rating makes this master cutoff switch suitable for heavy vehicle, marine, and industrial applications.
- Reliable Electrical Performance
This master power switch is constructed for superior electrical integrity, ensuring low contact resistance of ≤ 50mΩ to minimize voltage drop. The industrial rotary switch also offers high insulation resistance of ≥ 100MΩ and a dielectric strength of ≥ 1500VAC for 1 minute. These specifications guarantee both efficient power transfer and a high degree of safety.
- Extended Service Life
Built for endurance, this rotary cutoff switch is rated for an electrical life of more than 10,000 cycles. The panel-mount disconnect is made from high-quality, resilient materials designed to withstand repeated use. This extended operational lifespan ensures dependable, long-term performance for your critical power systems.
- Secure Through-Panel Mounting

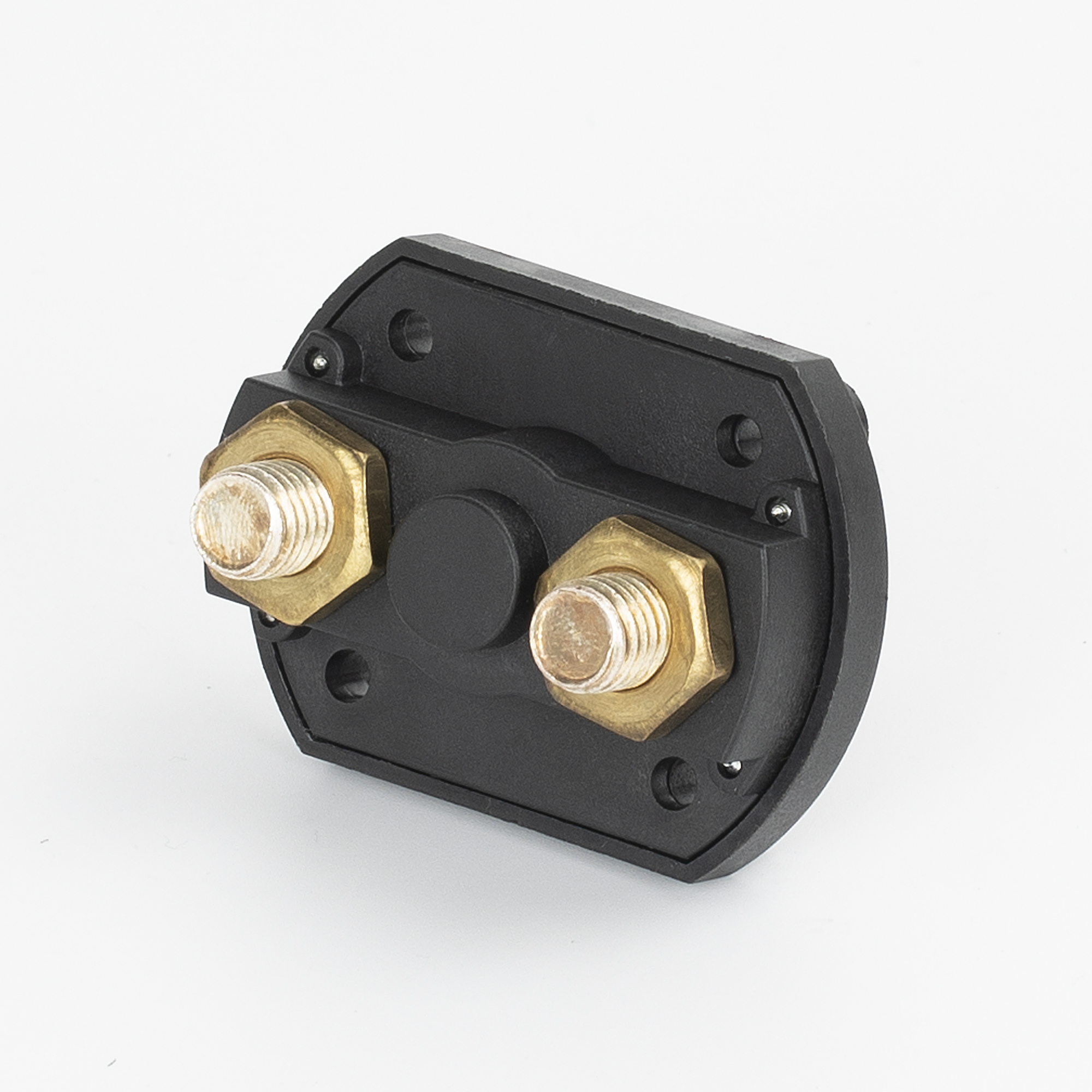

This electrical isolator switch is designed for a secure through-panel installation, featuring a body diameter of approximately 60mm. The switch assembly includes four mounting holes (ø10) and post guides for stable, anti-rotation mounting. It utilizes two M10x1.5 brass studs for securely fastening large-gauge electrical cables from the rear.
- Clear & Simple Operation

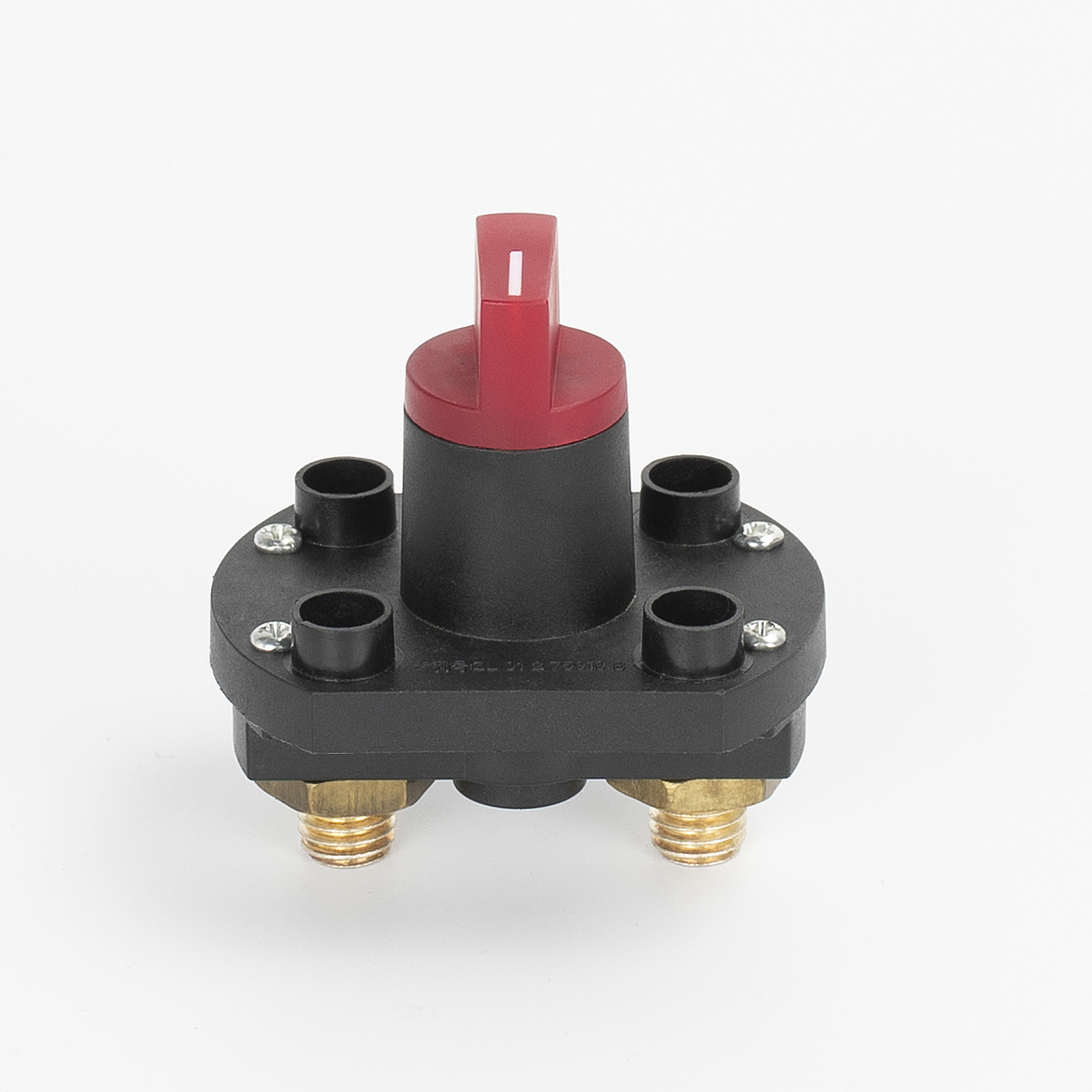

This 2-position disconnect switch features a distinct red T-handle for simple and unambiguous On/Off control. The rotary handle provides a clear visual and tactile indication of the circuit’s status with a 90-degree turn. This straightforward actuation allows for quick and easy power isolation during maintenance or emergencies.
ASW-A06 400A 60V DC Master Battery Isolator Switch ON-OFF Datasheet
| Model Number | ASW-A06 |
| Rated Current / Voltage | 400 Amps at 60V DC |
| Operation | 2-Position (ON / OFF) |
| Actuator Type | Rotary T-Handle |
| Mounting Style | Through-Panel Mount |
| Terminal Studs | 2 x M10x1.5 Brass Studs |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Dielectric Strength | ≥ 1500 VAC / 1 minute |
| Electrical Lifespan | ≥ 10,000 Cycles |
| Mounting Flange Diameter | Approx. 2.36 in (60 mm) |
| Mounting Holes | 4 x ø10 mm holes |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
ASW-A06 400A 60V DC Master Battery Isolator Switch Dimensioned Drawing
