ASW-20D 20A 12VDC SPST 3 Pin ON-OFF Illuminated Oval LED Rocker Switch

Part # ASW-20D

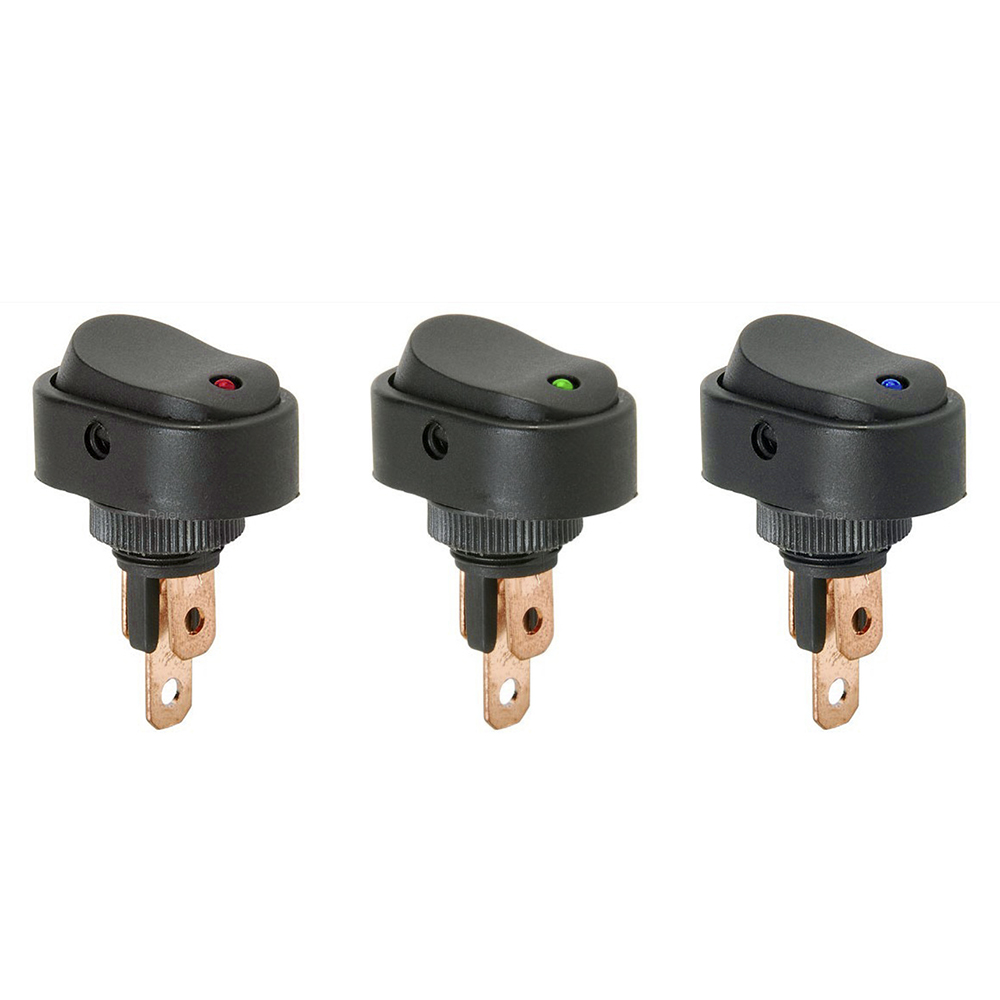

This illuminated oval LED rocker switch features a 30A, 12V DC, ON-OFF, SPST, 3-pin configuration and is available with multiple LED color options, including red, green, yellow, white, and blue.

Its reasonable size can fit in any car and others with a 12 Volt DC source. It comes with a keyhole slot, which can make it fit well and prevent unwanted rotation.



ASW-20D 20A 12VDC SPST 3 Pin ON-OFF Illuminated Oval LED Rocker Switch Features

  • High Amperage Rating

This ON-OFF rocker switch reliably handles high-current applications with its 20A, 12VDC SPST configuration, ensuring consistent performance in demanding environments.

  • Durable Construction

Superior impact resistance and a longer lifespan are guaranteed thanks to the switch’s robust construction using high-impact plastic, metal, and durable electrical components.

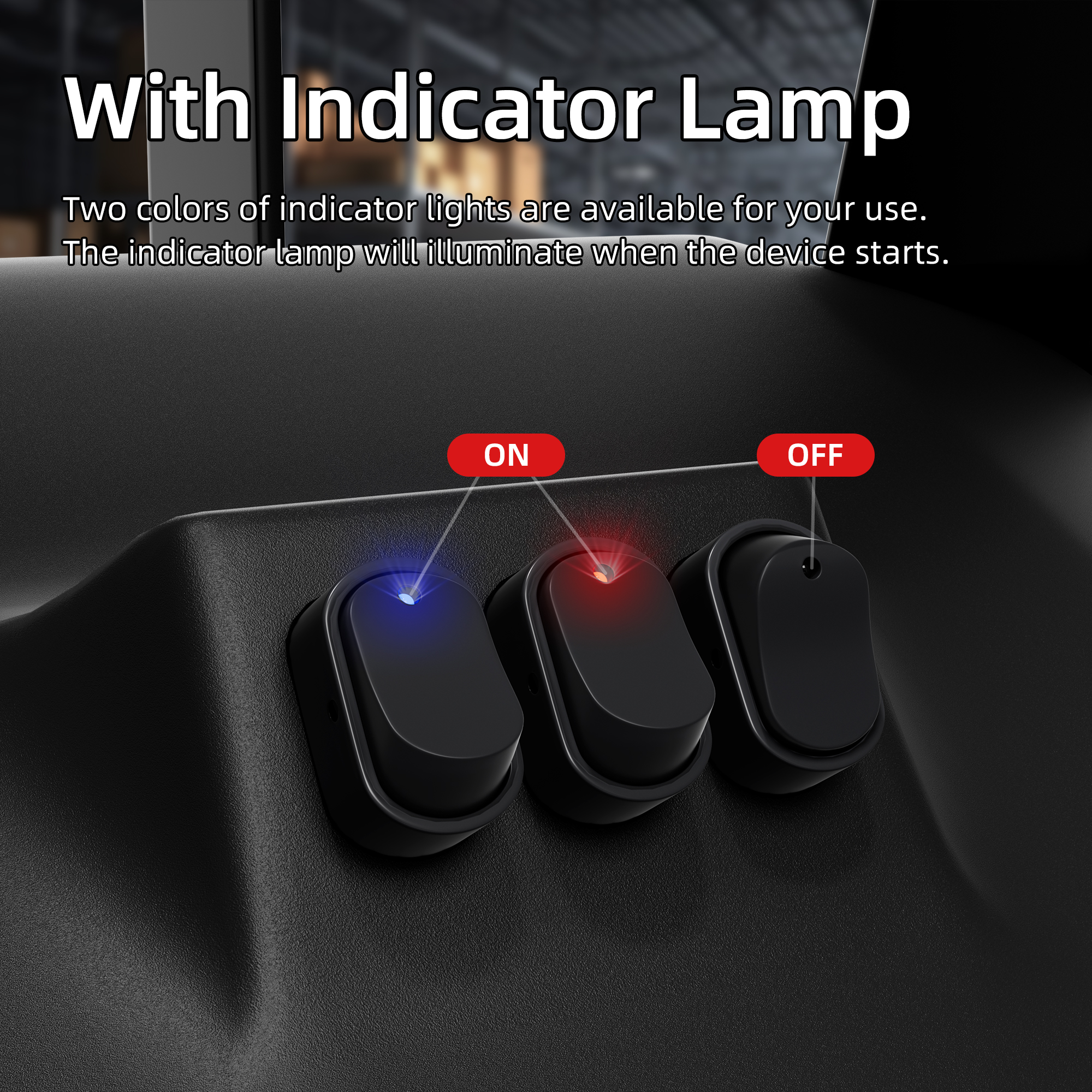

  • Illuminated Feedback

Clear visual confirmation of circuit operation is provided by the illuminated design, enhancing safety and allowing for easy identification of switch status, even in low-light conditions.

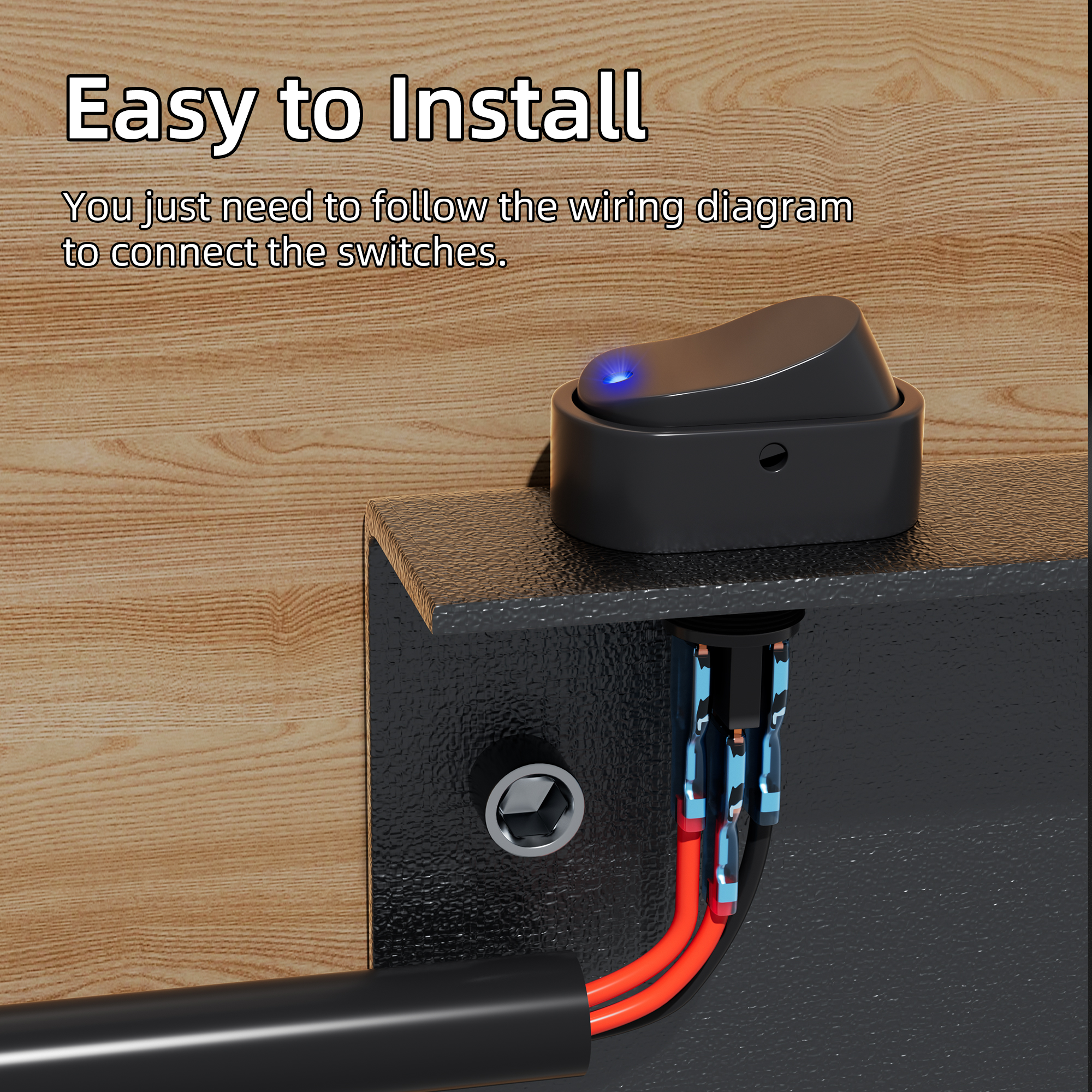

  • Easy Installation

The snap-in design ensures quick and straightforward installation, minimizing downtime and streamlining integration into various panels and systems for increased efficiency.

  • Wide Application

This oval LED switch seamlessly integrates into various systems, including car glass lifts, power door lifts, and motorboat appliances, making it ideal for automotive, marine, and industrial control applications.

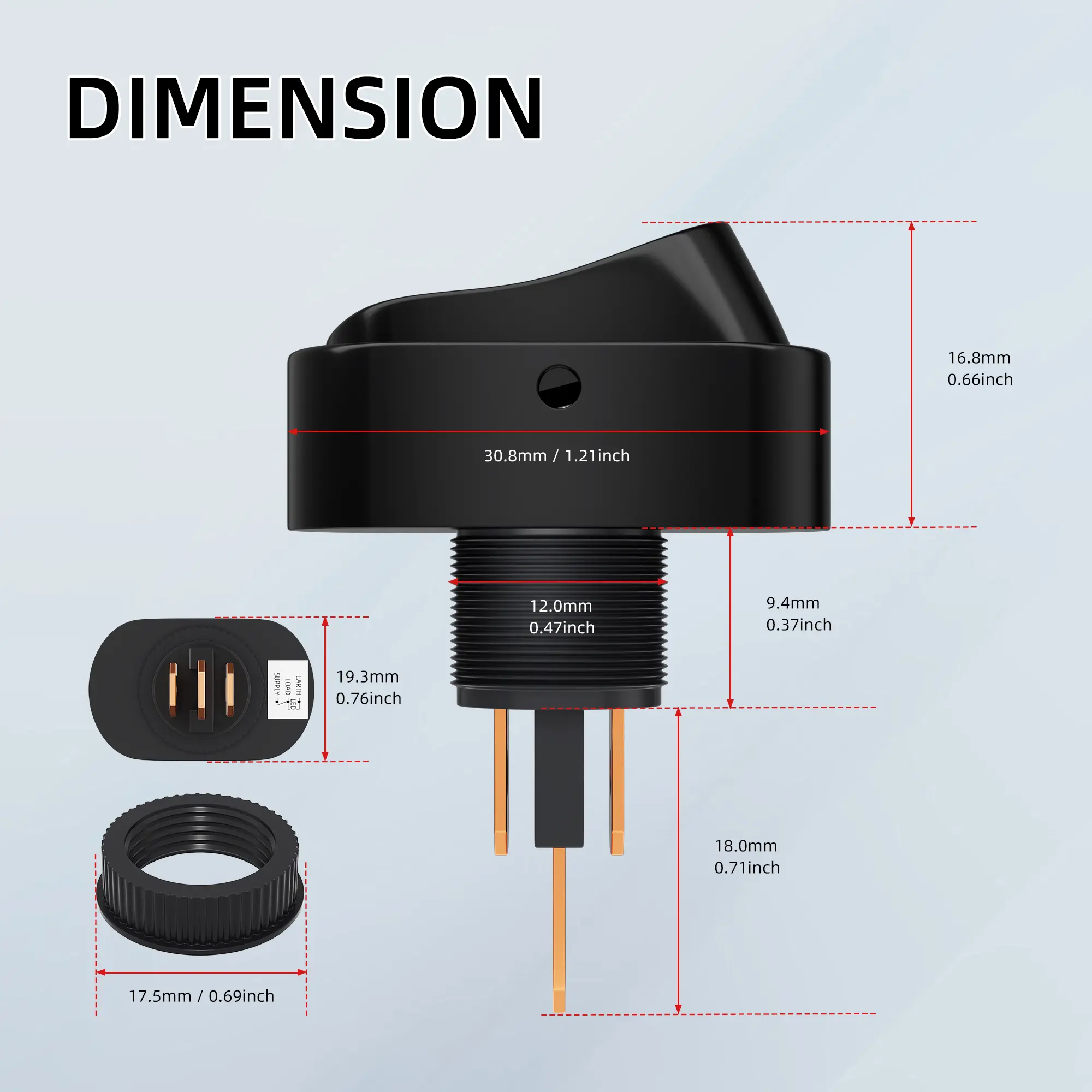

ASW-20D Illuminated Oval LED Rocker Switch Detailed Information

ASW-20D Illuminated Oval LED Rocker Switch

Other types of switches with the same function can also be provided: ASW-20D-2 and ASW-20D-3.

Still have a question about the ASW-20D Rocker Switch that wasn’t answered on this page? Please contact our sales1@chinadaier.com.

ASW-20D Illuminated Oval LED Rocker Switch Datasheet Below:

Rating: 20A 12VDC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) OEM or ODM: Available
