264346-123 12V 30A 3-Way Momentary Toggle Switch | IP67 Waterproof with Pre-Wired 2ft
P/N: 264346-123

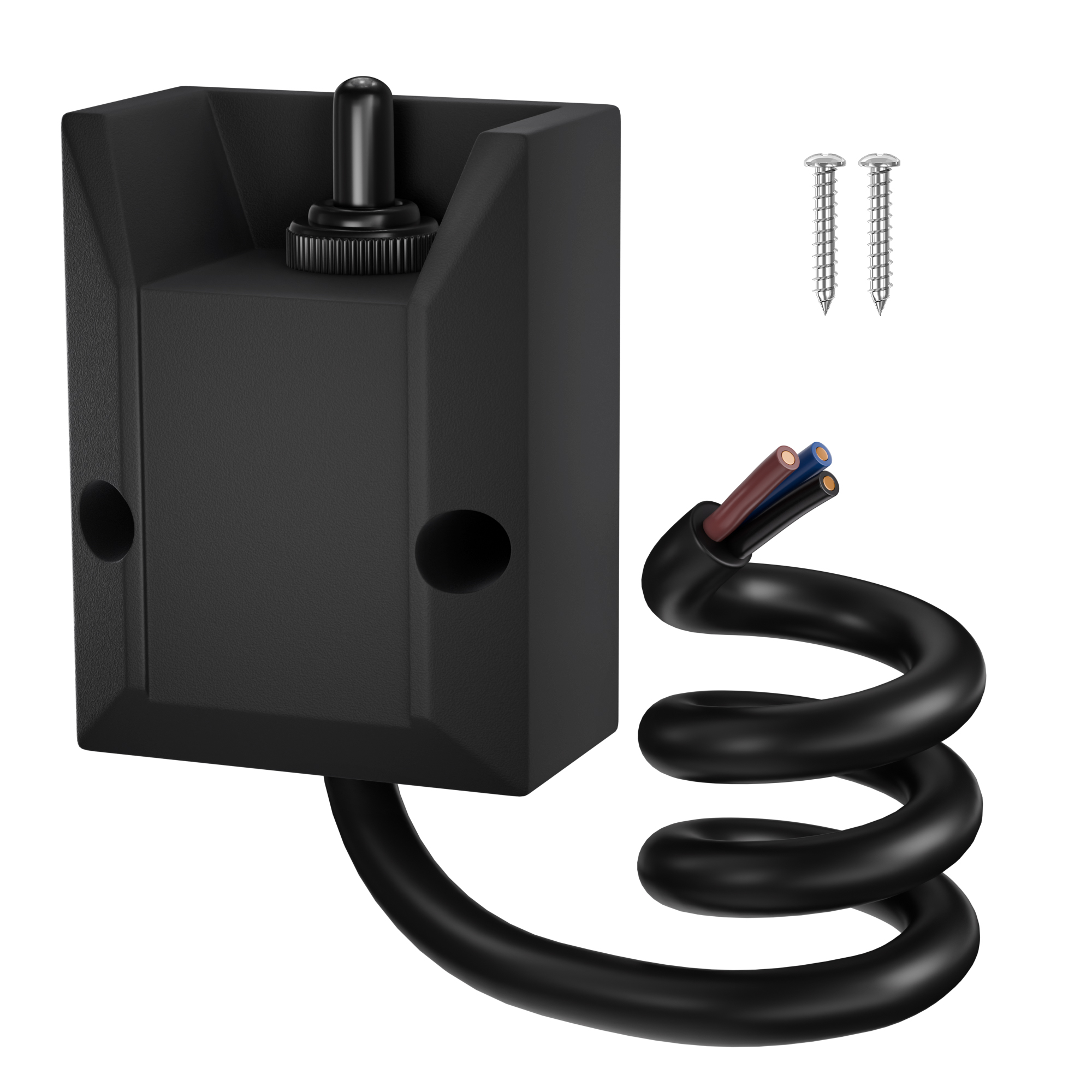

This 12V 30A 3-way momentary toggle switch features an IP67 waterproof surface-mount enclosure and 2 feet of pre-wired 14AWG heavy-duty cable.
Designed for no-drill installation, this ready-to-use controller kit provides precise (ON)-OFF-(ON) operation with accidental activation protection for marine, RV, and truck accessories.
264346-123 12V 30A 3-Way Momentary Toggle Switch Features
- IP67 Weatherproof Shielding

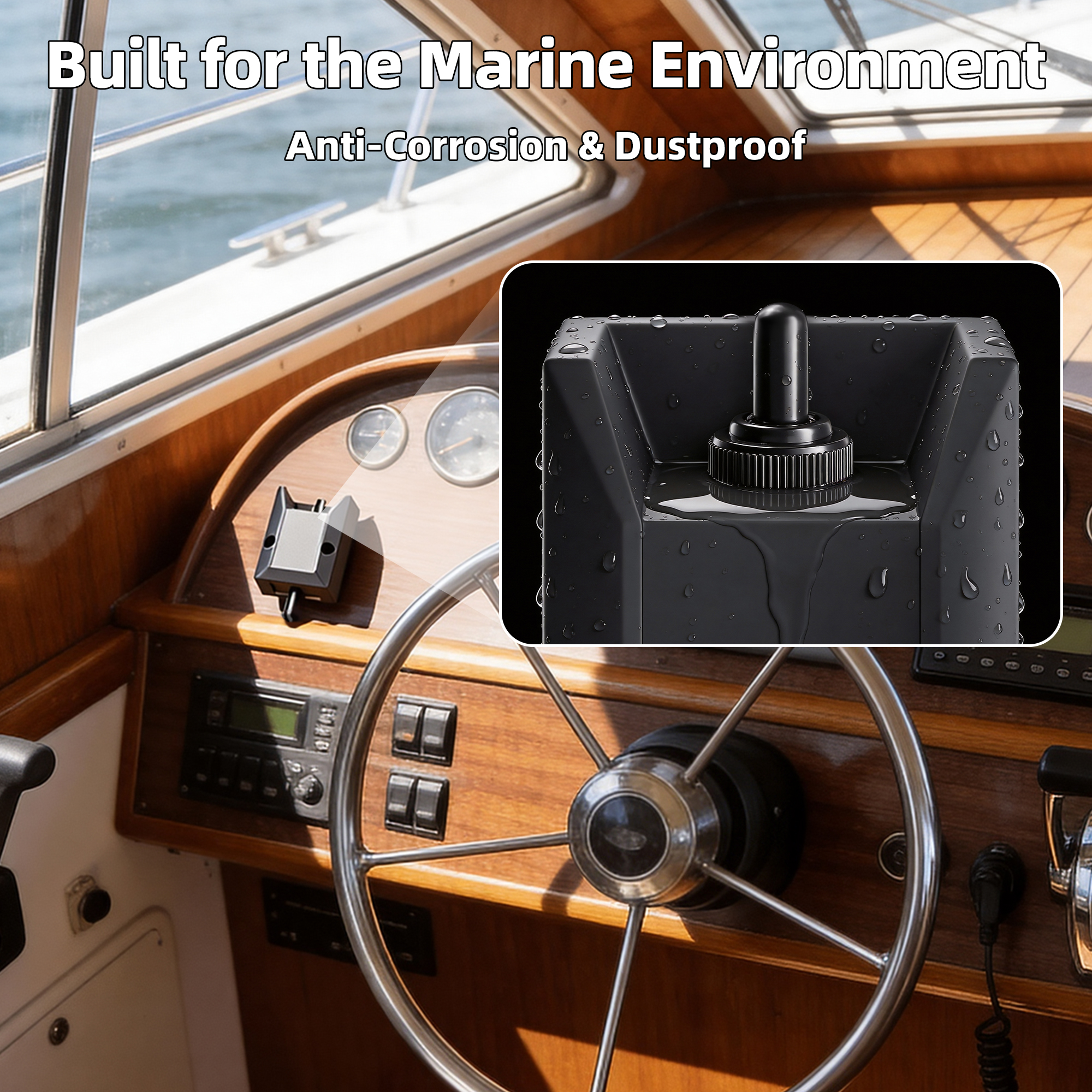

This marine-grade toggle switch features an IP67-rated waterproof sealed enclosure to resist corrosion and moisture intrusion effectively. The weatherproof switch housing ensures consistent electrical performance in harsh environments like boat decks, open trailers, and off-road vehicle exteriors.
- High-Amperage Power Management
This heavy-duty 30A switch supports robust 12V DC electrical loads without the risk of overheating or melting. The industrial-grade power controller provides a reliable solution for managing high-current accessories such as winches, stabilizer jacks, and hydraulic pumps.
- Intuitive Momentary Logic

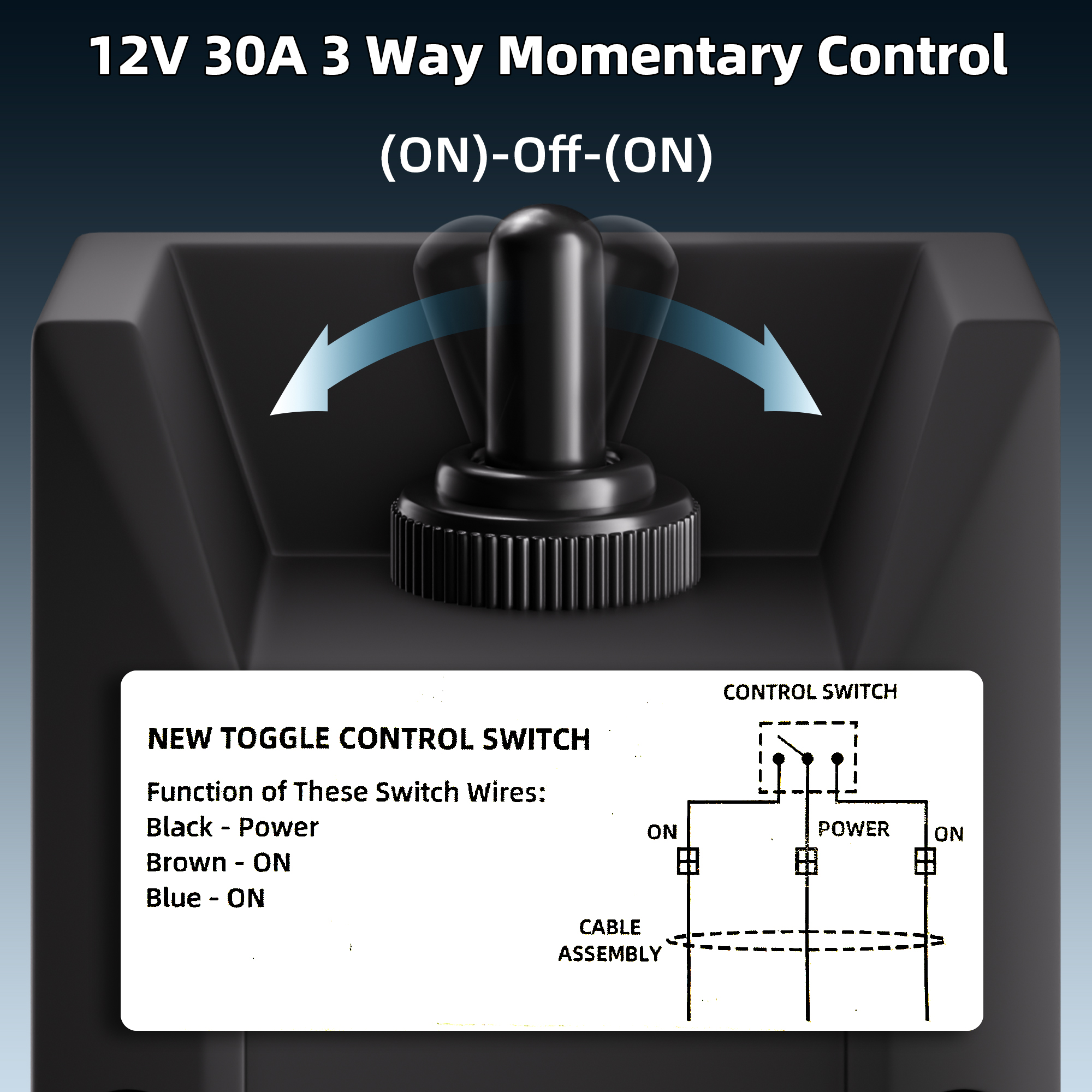

This 3-way momentary switch utilizes an (ON)-OFF-(ON) configuration to provide precise control over extend and retract operations. The spring-loaded actuator automatically returns to the central neutral position upon release to prevent the unintended continuous running of connected motors.
- Non-Destructive Surface Mounting

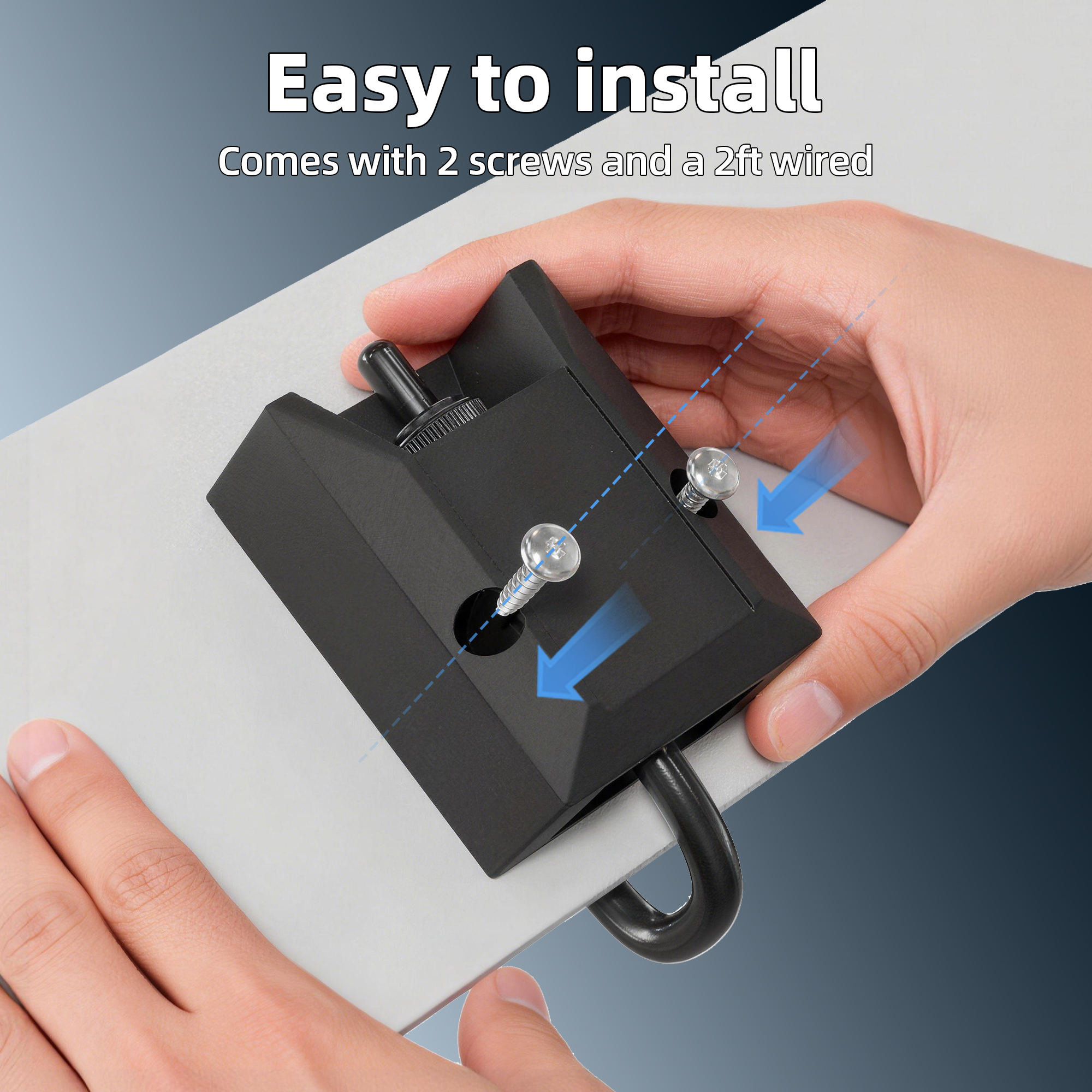

This surface mount switch box installs directly onto any flat surface using the included stainless steel screws to preserve the structural integrity of your dashboard. The pre-wired 2ft cable harness eliminates the need for complex internal wiring and significantly reduces total assembly time for DIY users.
- Impact-Resistant Safety Frame

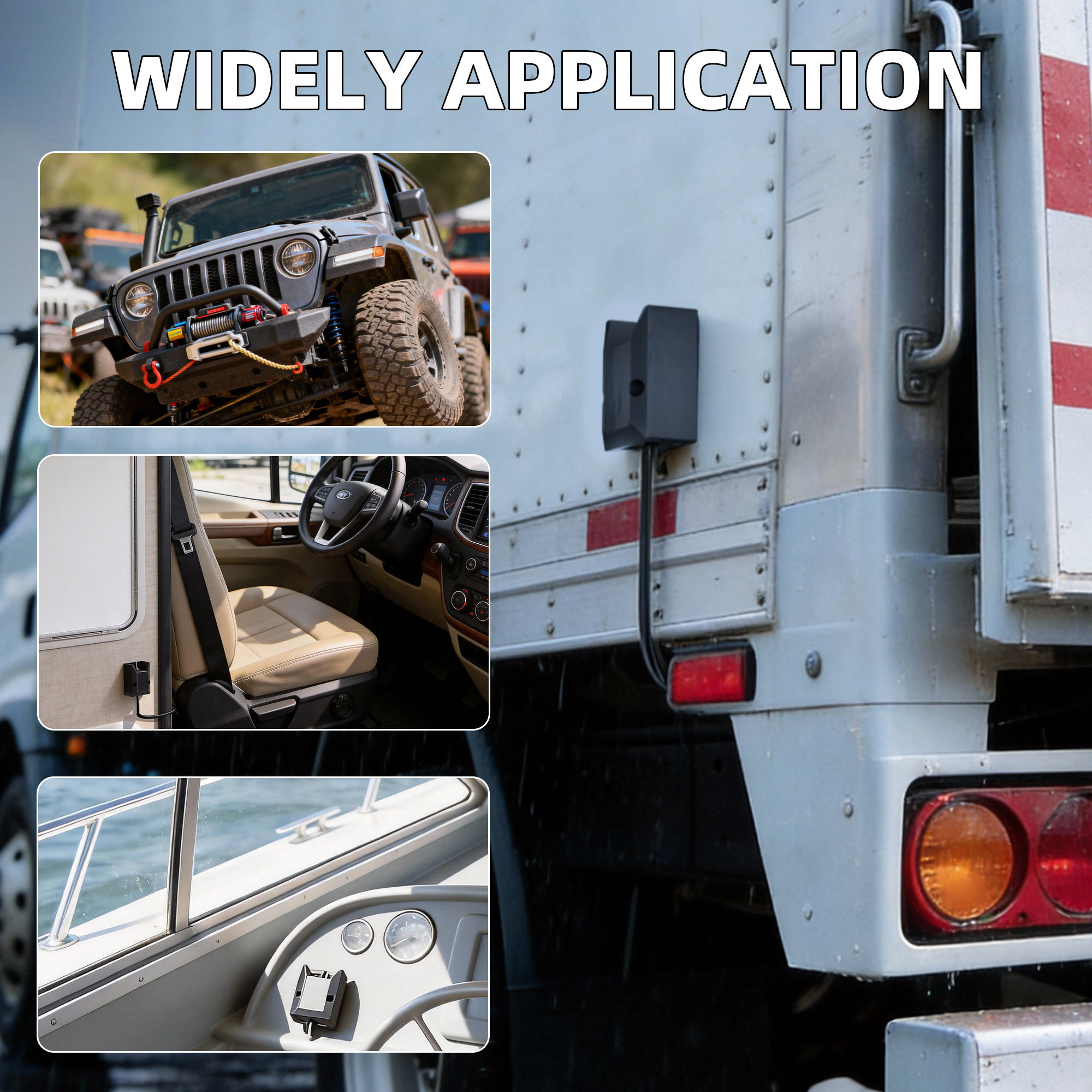

This rugged switch enclosure features raised protective side walls to shield the lever from accidental bumps and mechanical shocks. The anti-collision housing design protects the internal circuitry from heavy vibrations and rough trail conditions in automotive and agricultural applications.
264346-123 12V 30A 3-Way Momentary Toggle Switch Specification
| Part NO | 264346-123 |
| Switch Type | SPDT (ON)-OFF-(ON) (Momentary) |
| DC Electrical Rating | 30A 12V DC / 15A 24V DC |
| AC Electrical Rating | 20A 125V AC / 15A 250V AC |
| Waterproof Rating | IP67 (Fully Sealed & Dust-Tight) |
| Wiring Specification | 14 AWG Pure Copper |
| Cable Length | 2 Feet (60 cm) |

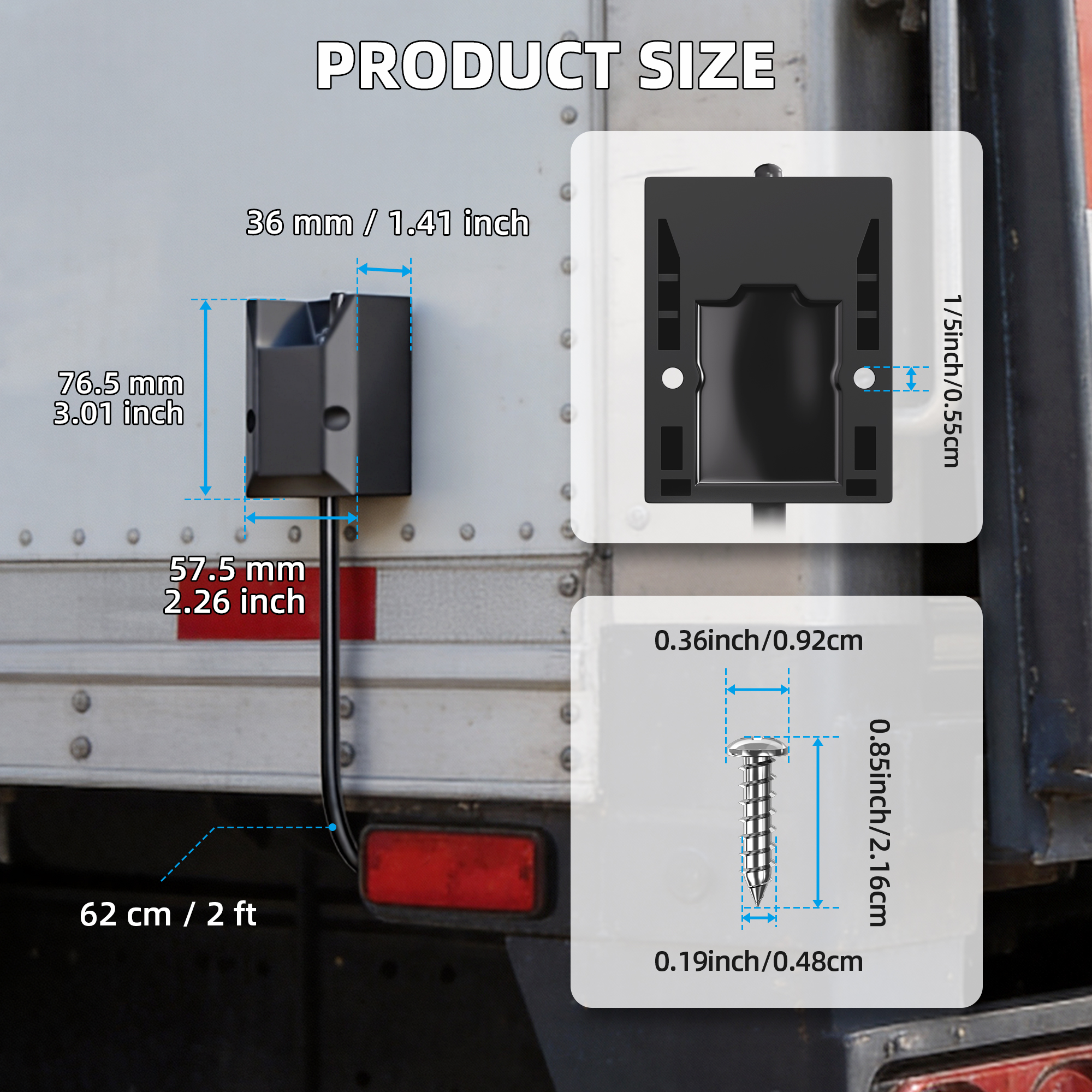

| Enclosure Dimensions | 3.01″ L x 2.26″ W x 1.41″ H (7.65cm x 5.75cm x 3.6cm) |
| Installation Type | Surface Mount (No-Drill) |
