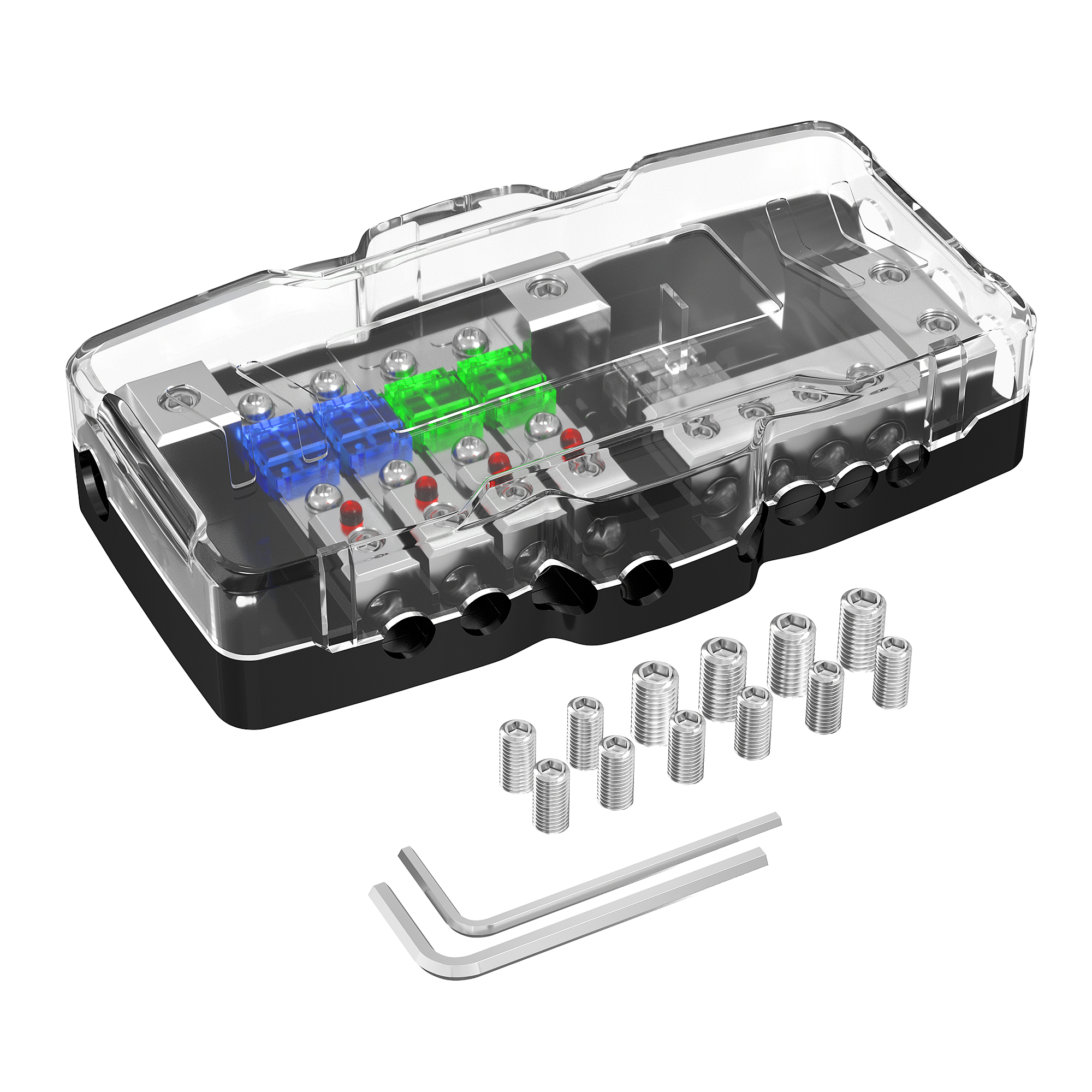

AFS-30 Car Audio 12V 0/4 Gauge 4 Way MIDI Mini-ANL Fuse Block
Part#ASF-30
This compact 4-way MIDI/Mini-ANL fuse block accommodates both positive and negative connections, supports 0/2/4 AWG input and 4/6/8 AWG output wires.
Featuring red LED blown fuse indicators, it offers reliable circuit protection and simplified troubleshooting for demanding automotive, marine, RV, truck, and solar applications.
AFS-30 Car Audio 0/4 Gauge 4 Way MIDI Mini-ANL Fuse Block Details
-

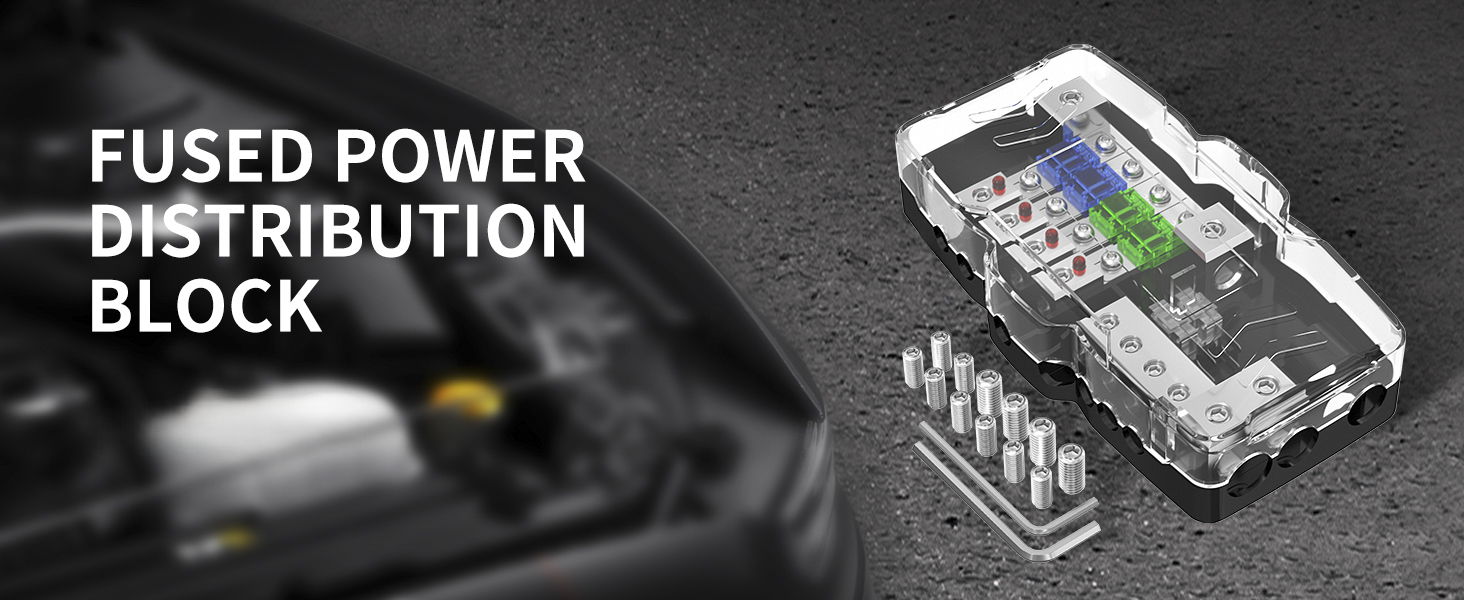

Versatile Power Distribution

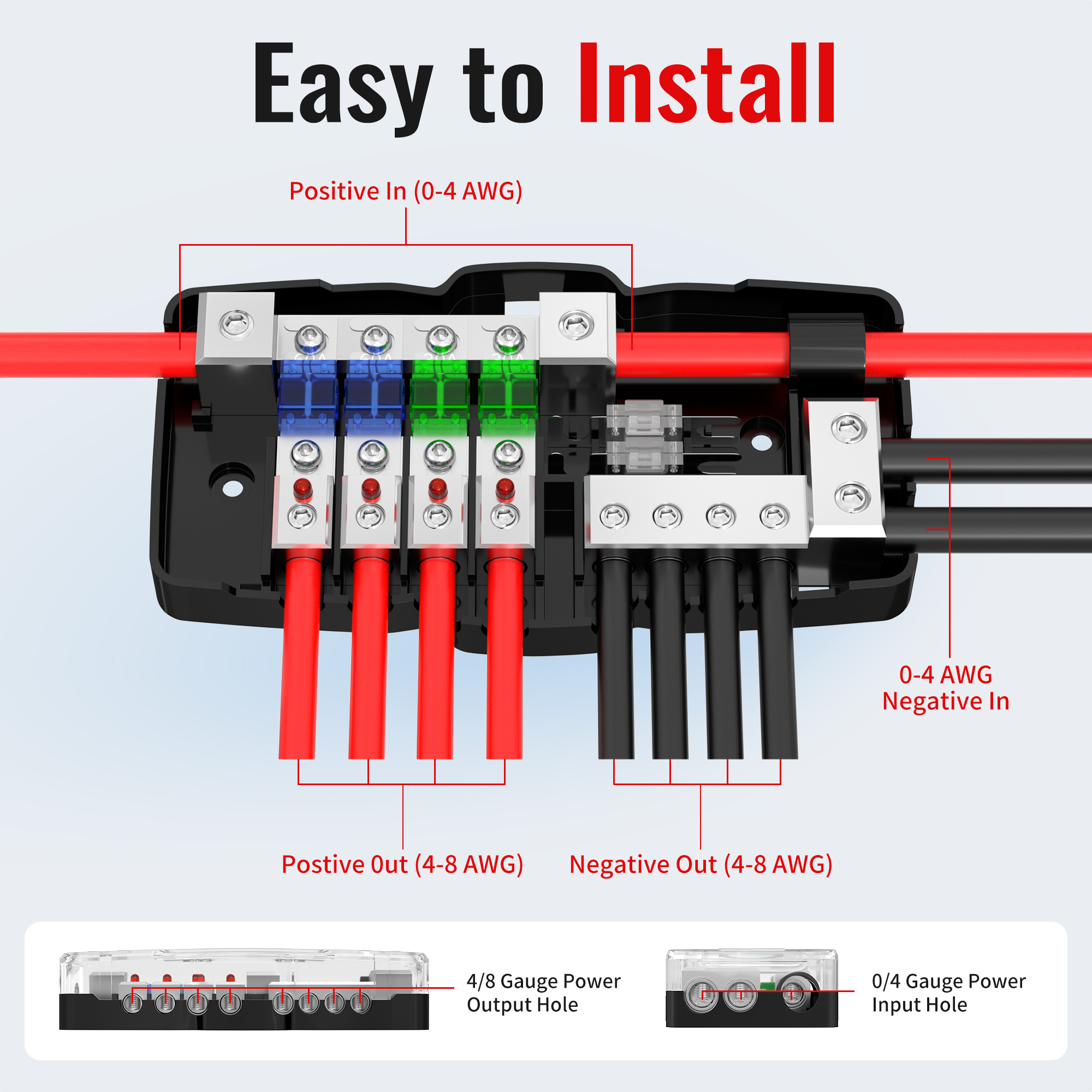

This fuse block accommodates both positive and negative connections, providing two input and four output connections per pole, offering flexible power distribution for various systems.
-
Expanded Wiring Capacity

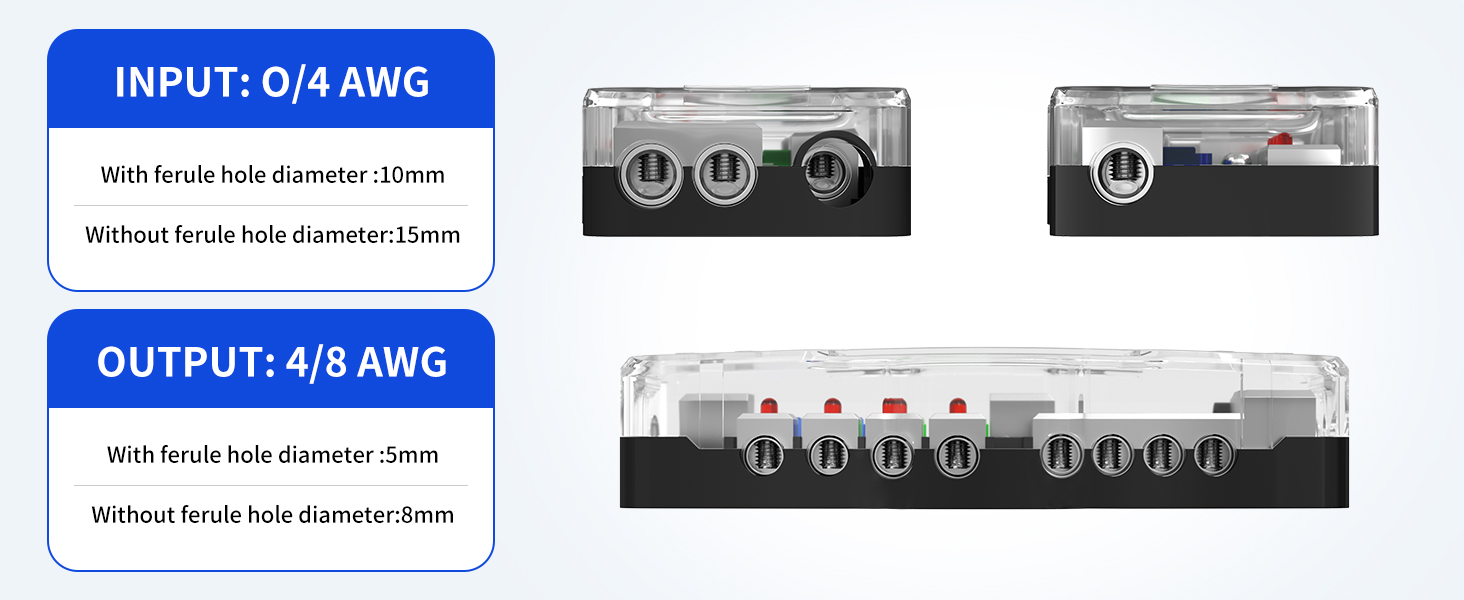

Included ferrules enhance wiring versatility, allowing 0, 2, and 4 AWG input wires and 4, 6, and 8 AWG output wires, ensuring compatibility with a wide range of applications.
-

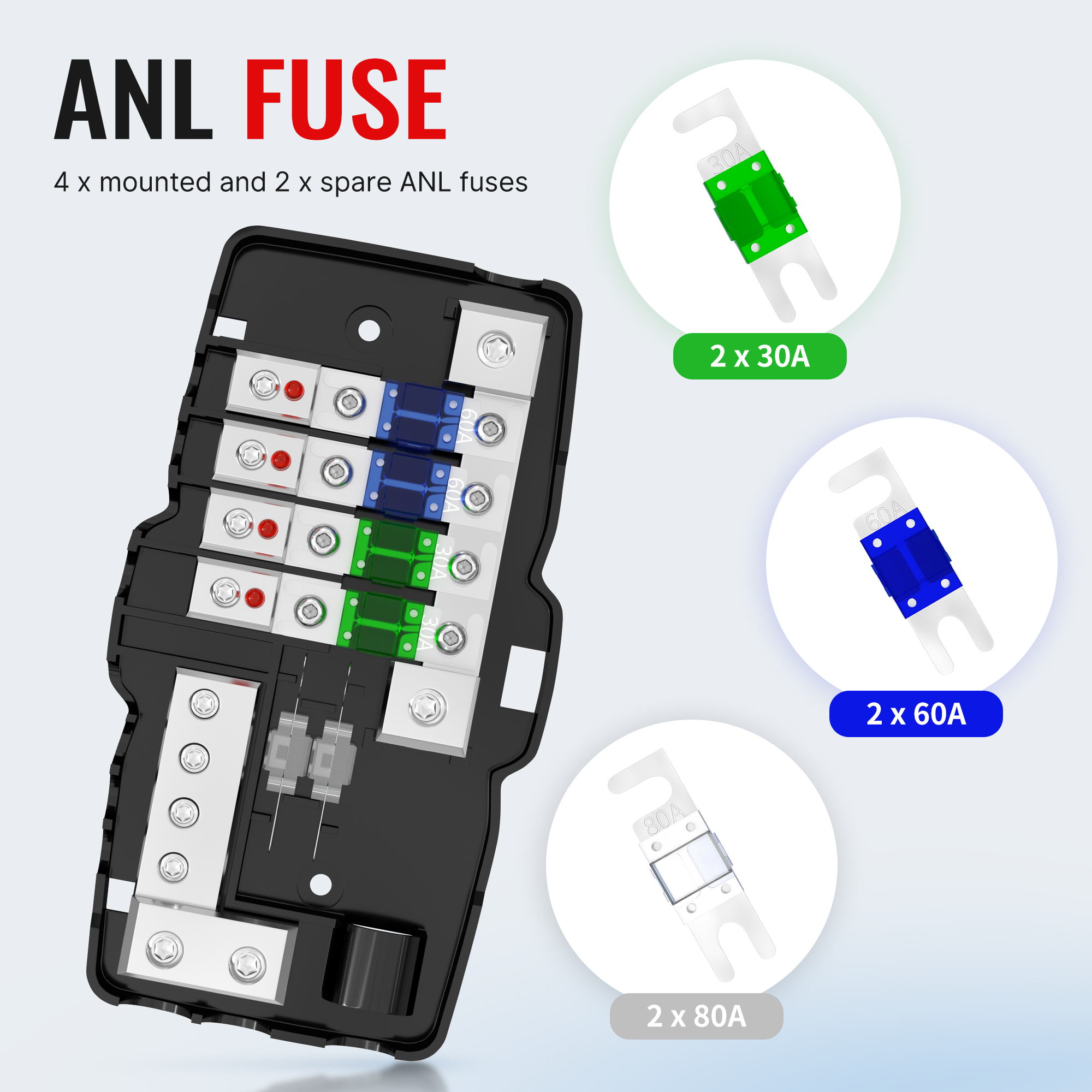

Comprehensive Fuse Selection
This fuse block comes with six MIDI/Mini-ANL fuses (2 x 30A, 2 x 60A, 2 x 80A), providing a comprehensive selection for diverse circuit protection requirements.
-

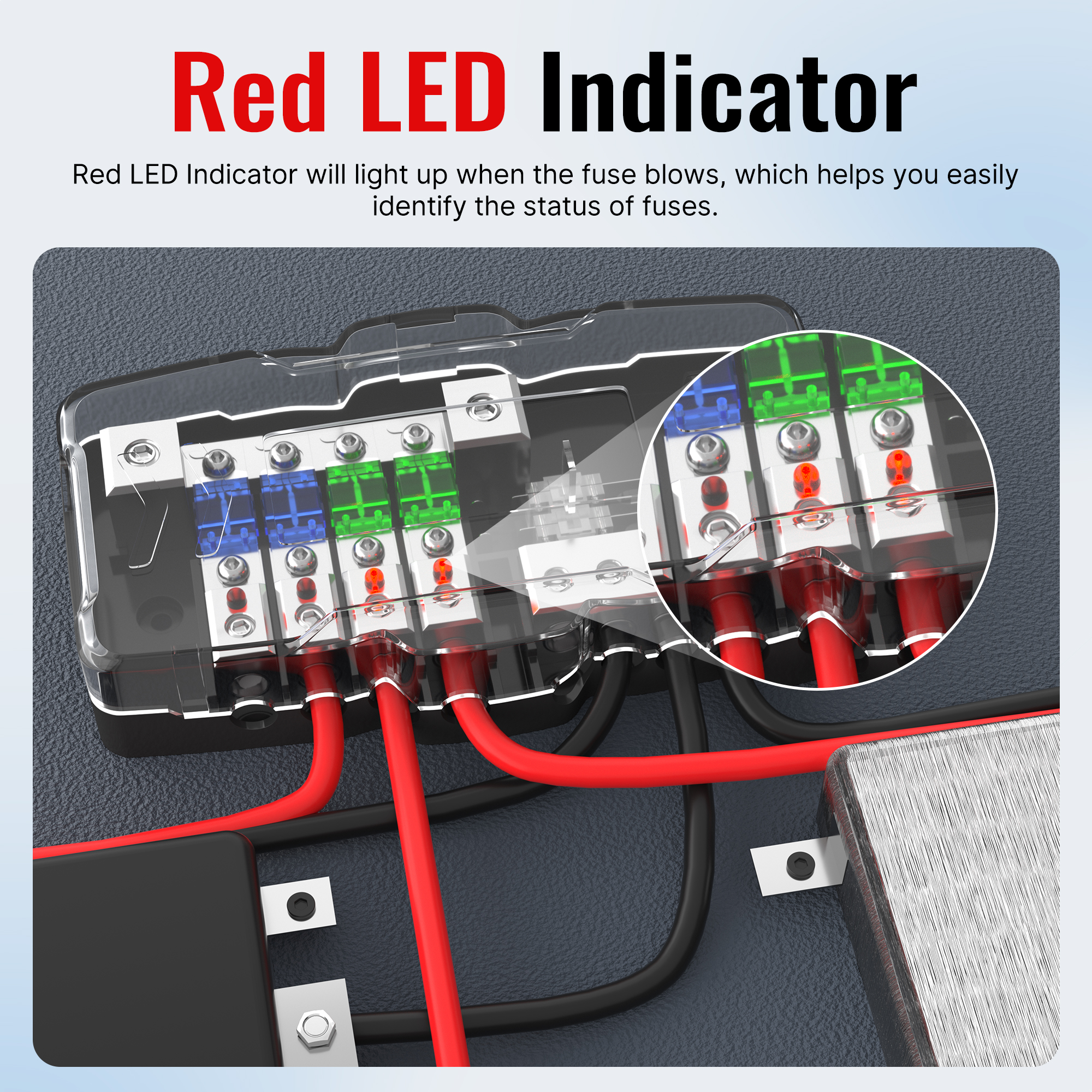

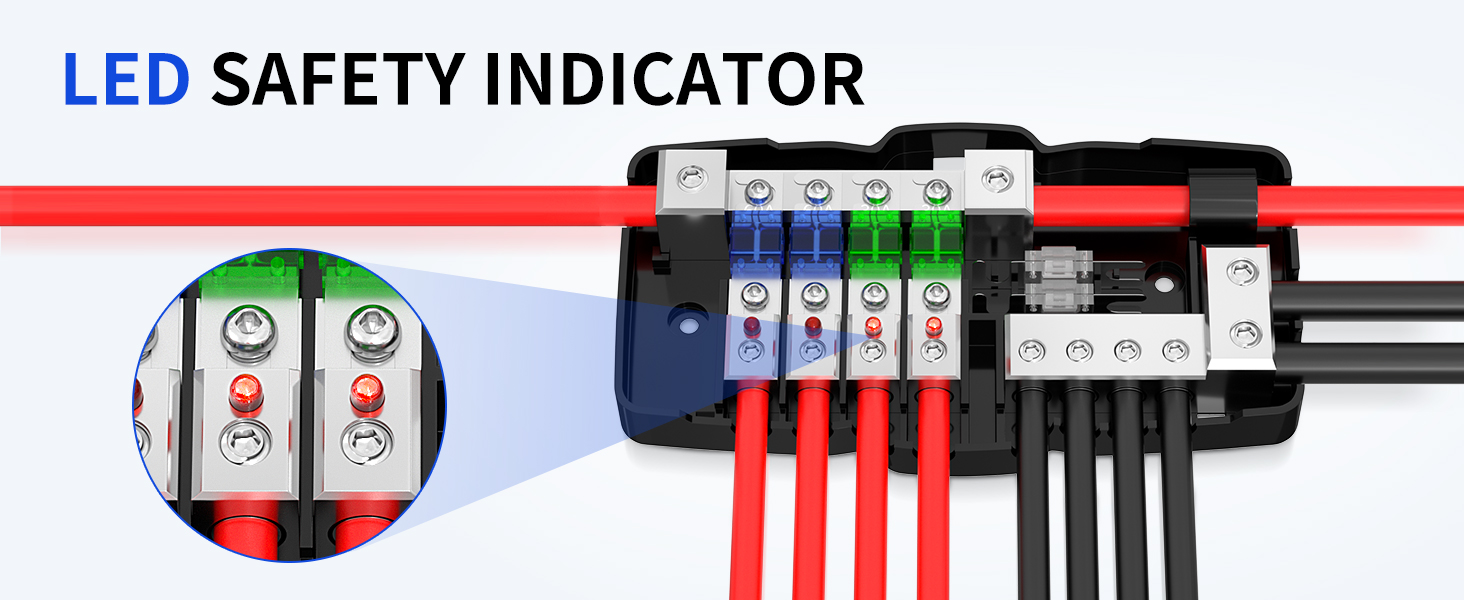

Clear Visual Indication
Integrated red LED indicators illuminate when a fuse blows, enabling quick and easy identification of faulty circuits, simplifying troubleshooting and maintenance.
-
Wide Application
This fuse block is ideal for powering and protecting various systems in automotive, marine, RV, truck, and solar applications, including audio systems, battery banks, and auxiliary circuits.
AFS-30 4 Way MIDI Mini-ANL Fuse Block Datasheet
| Part NO | AFS-30 |
| Type | MIDI/Mini-ANL Fuse |
| Input | 0-4 AWG |
| Output | 4-8 AWG |
| Fuse Type | ANL, 2 x 30A, 2 x 60A, 2 x 80A |
| Feature | Red Indicator Design |

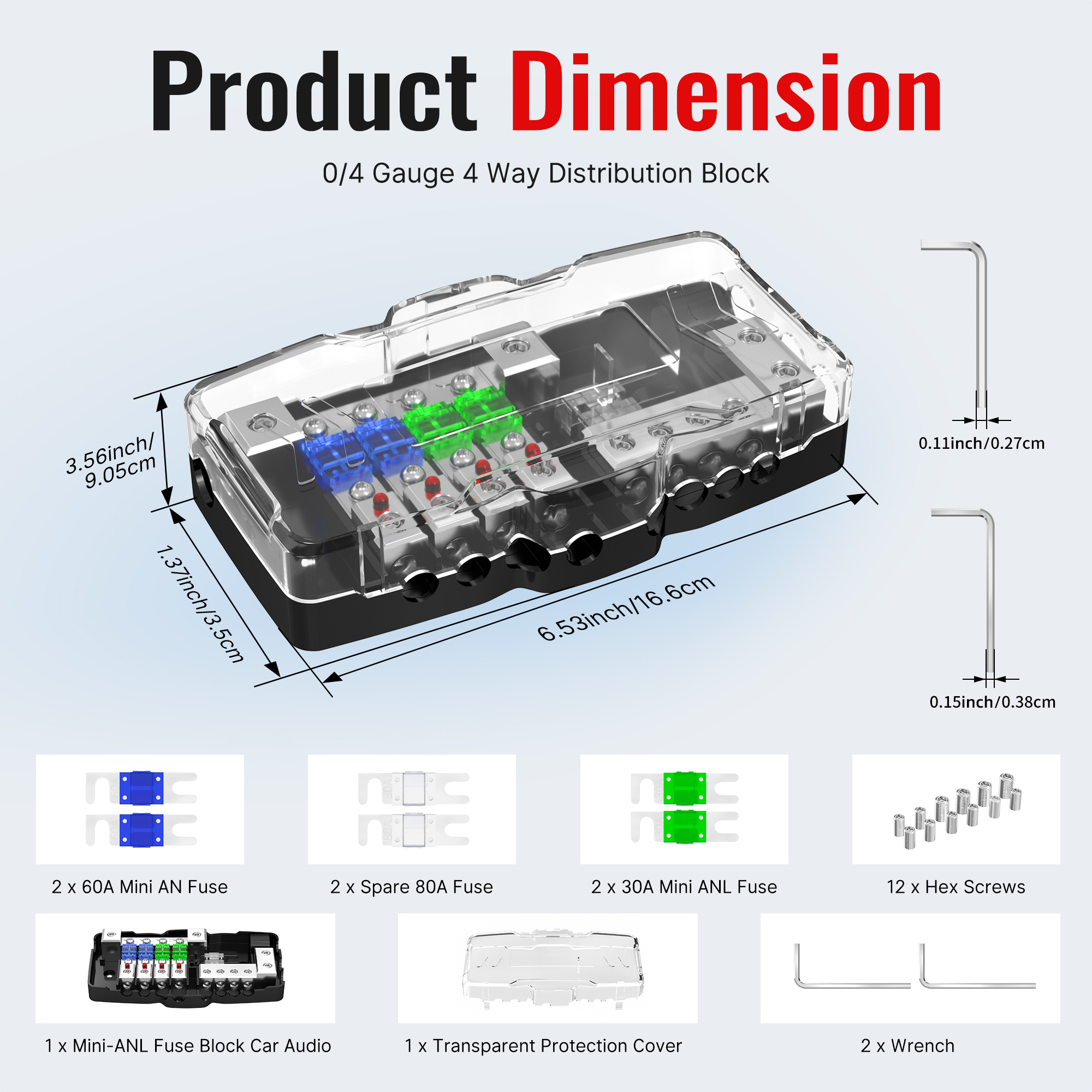

| Dimension | 165mm x 91mm x 36mm(LxWxH) |
