6000N/1320lb 12V Linear Actuator with Switch Controller – Multiple Stroke Options
This 6000N/1320lb 12V linear actuator series offers multiple stroke lengths (50mm-500mm) with a 4mm/s travel speed and includes an easy-to-use switch controller.
Engineered for robust performance and reliability, these IP54-rated actuators feature durable aluminum construction and integrated limit switches, ideal for demanding automation tasks.
6000N/1320lb 12V Linear Actuator with Switch Controller – Multiple Stroke Options Features

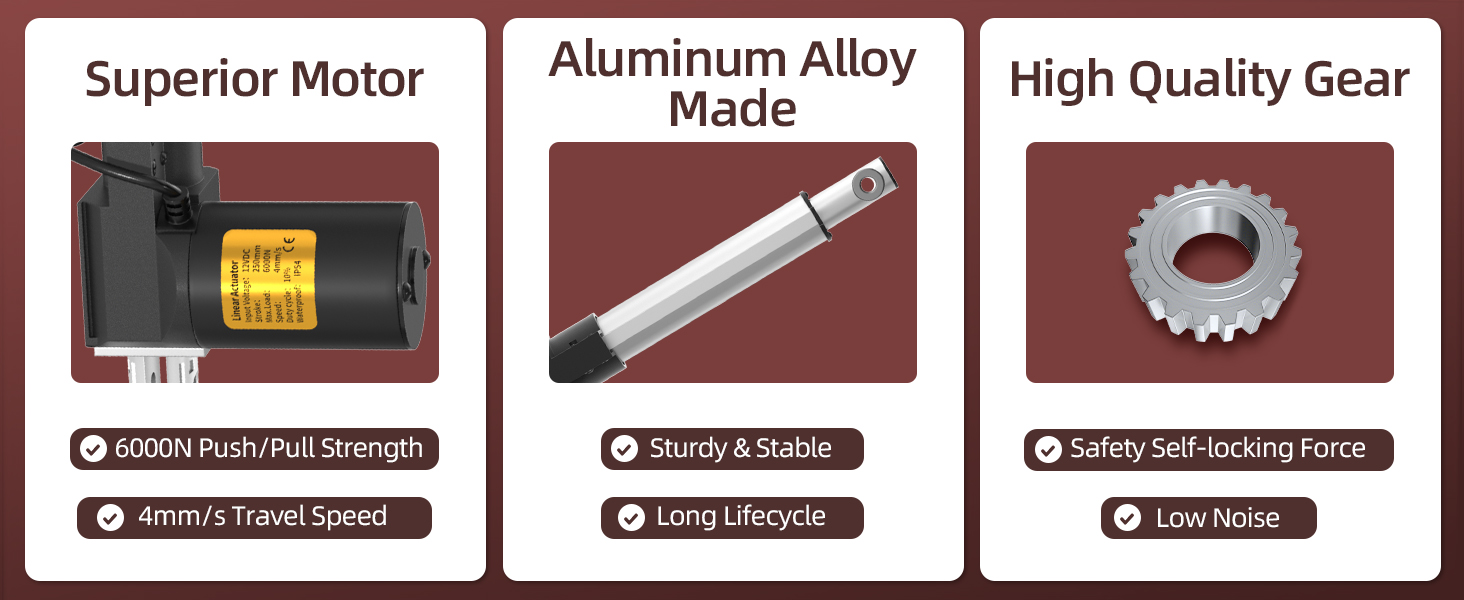

- 6000N Dynamic Load Capacity
This actuator series consistently delivers a powerful 6000N / 1320lb push/pull force, suitable for heavy-duty lifting and positioning tasks across all available stroke lengths.

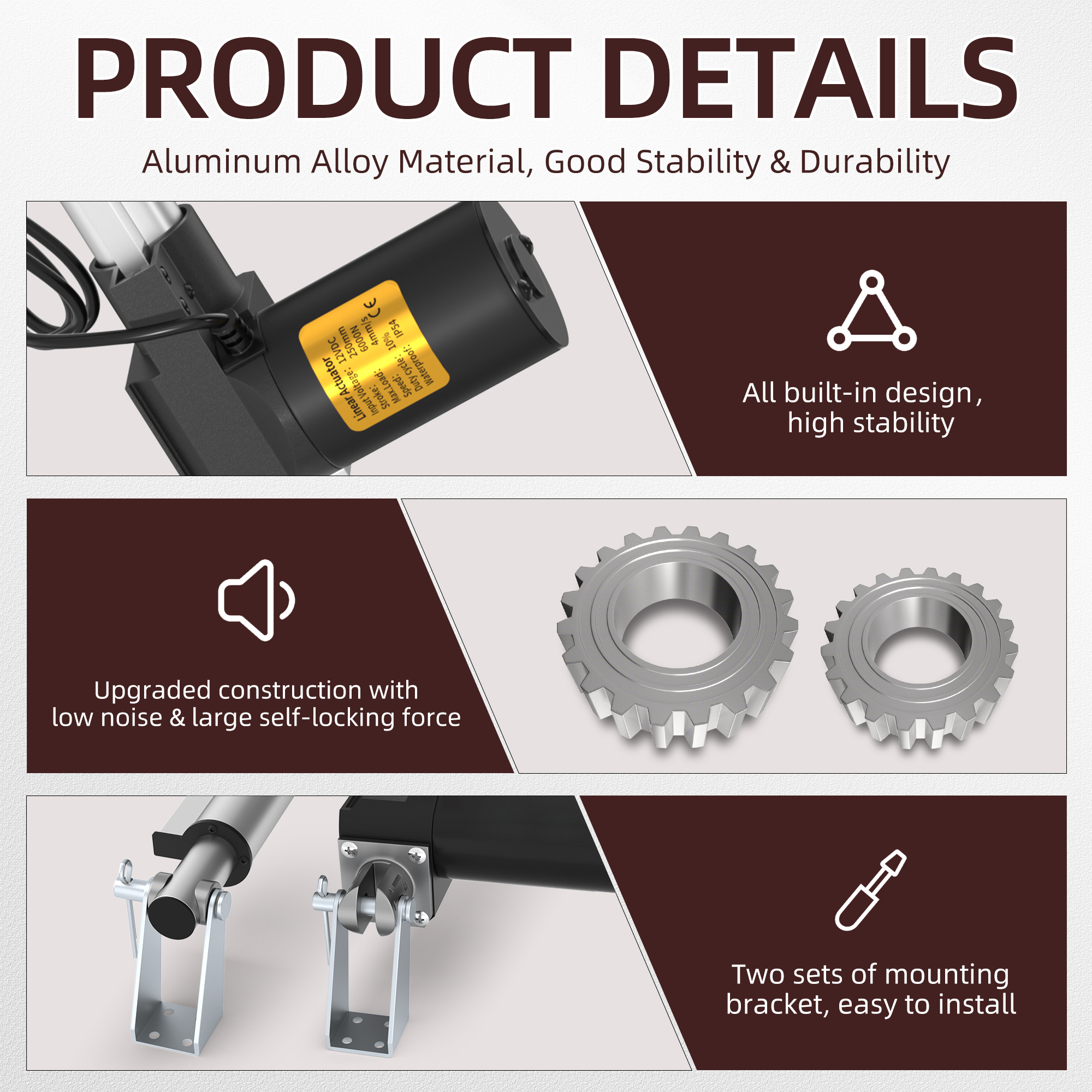

- Durable Aluminum Alloy Build
Its robust construction features a high-strength aluminum alloy housing and extension tube, ensuring long-term reliability and corrosion resistance in demanding industrial environments.
- Integrated Limit Switch Protection
Internal limit switches are pre-installed at both ends of the stroke, automatically stopping movement to prevent over-extension or over-retraction and protect the motor.

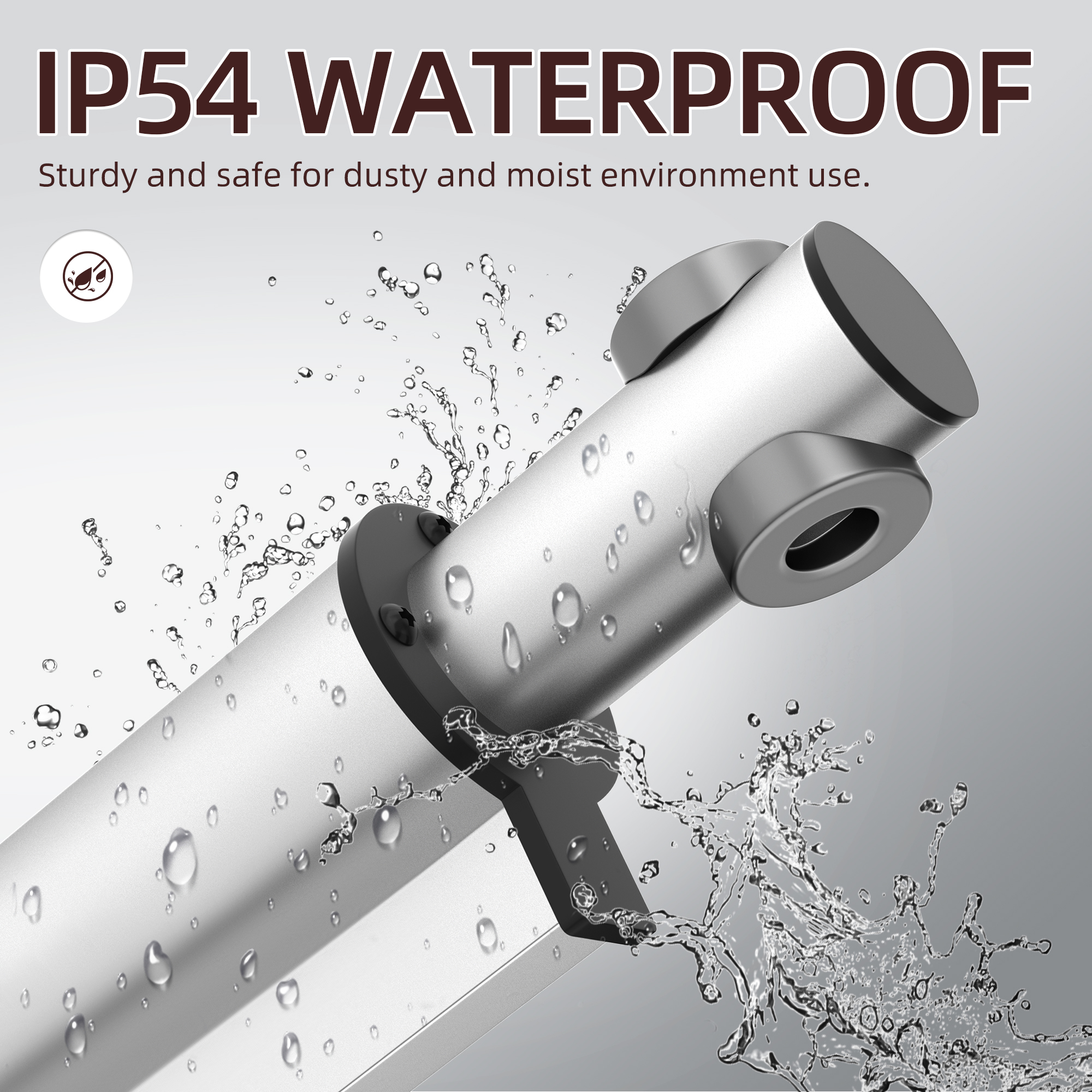

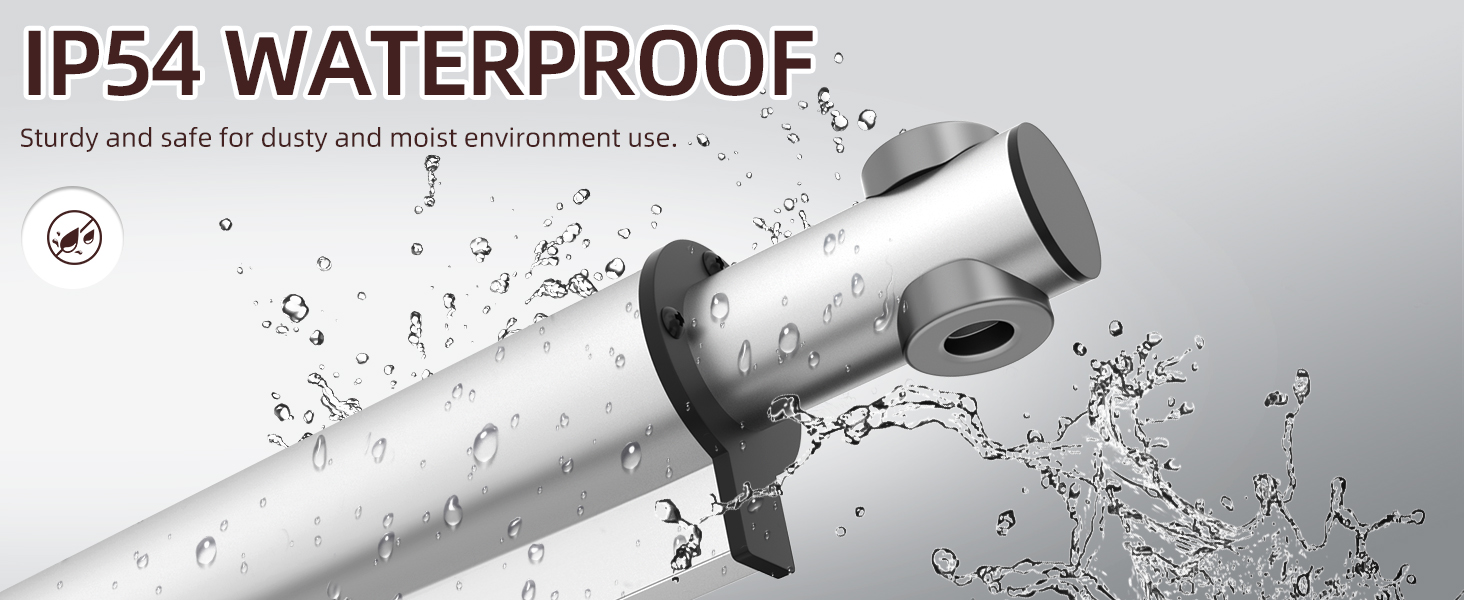

- IP54 Environmental Resistance
The sealed design provides reliable IP54-rated protection against dust ingress and water splashes, making it suitable for use in various indoor and protected outdoor conditions.

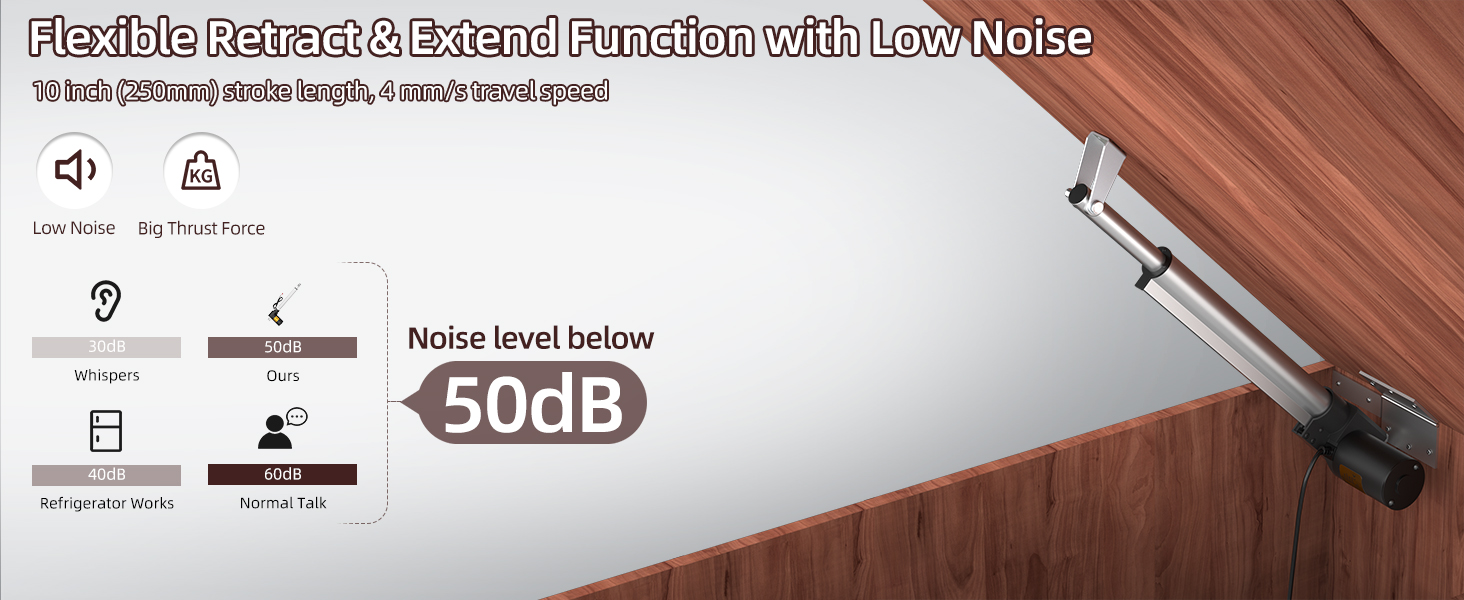

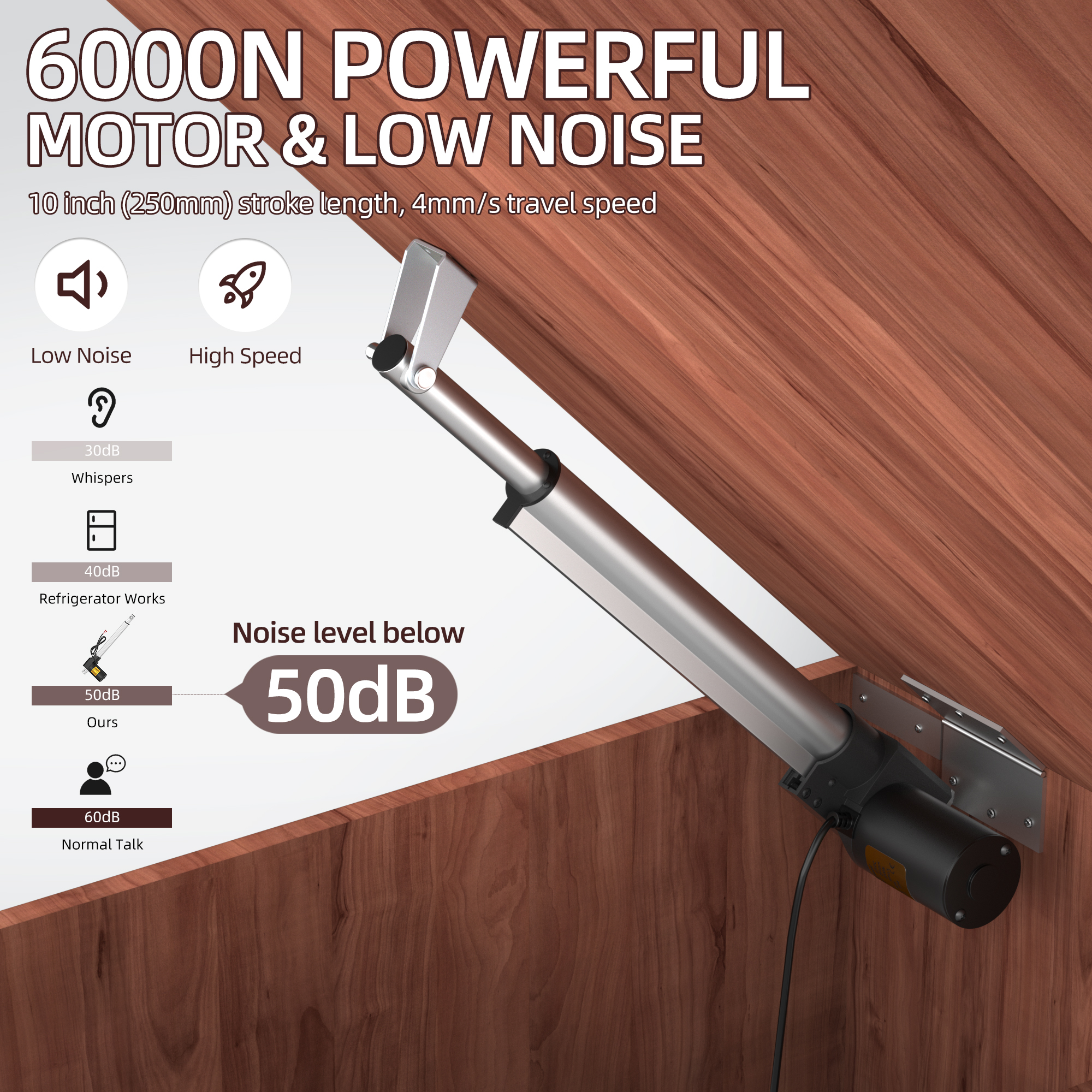

- Low-Noise Operation Standard
Engineered for smooth performance, the actuator operates efficiently with a noise level kept below 50dB, ideal for applications where reduced sound output is preferred.

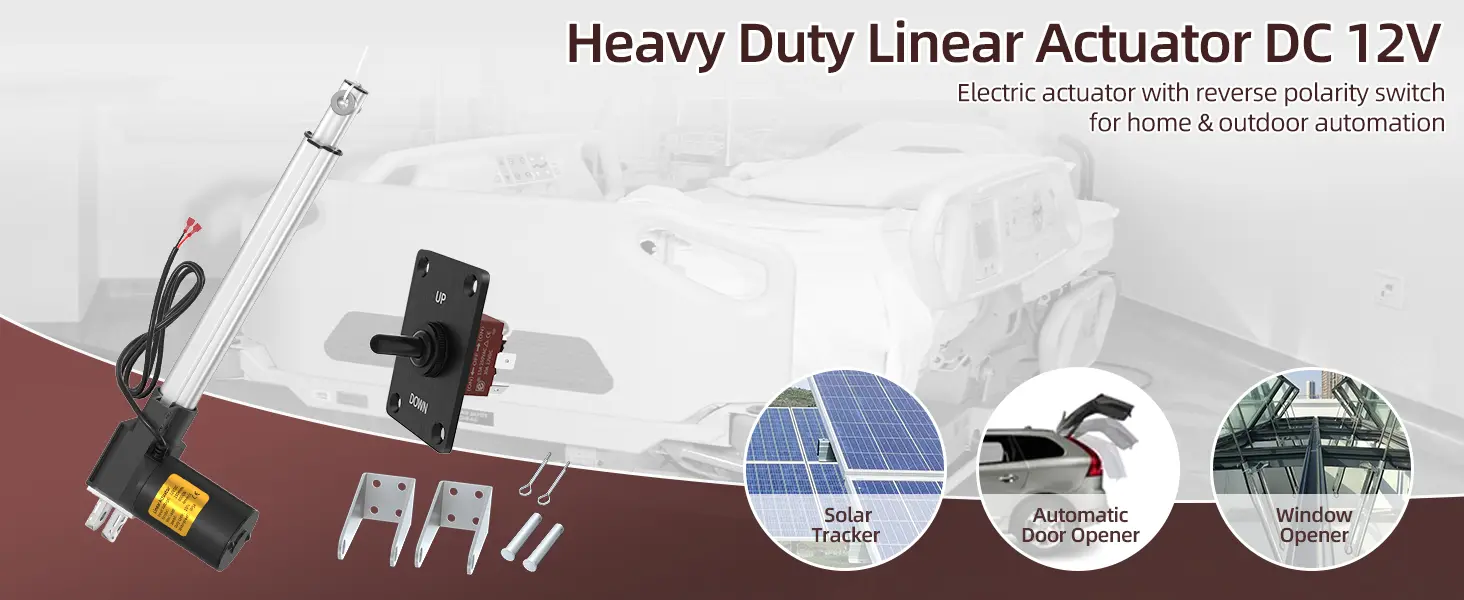

- Complete Integration Kit
Each unit ships with sturdy mounting brackets, essential hardware (pins/clips), and an intuitive reverse polarity switch controller for simplified installation and immediate directional control.
- Common Applications
Ideal for industrial automation, agricultural machinery, solar tracking systems, custom furniture automation (lifts, recliners), robotics, marine applications (hatch lifts), medical equipment, material handling, ventilation control, and various OEM projects.

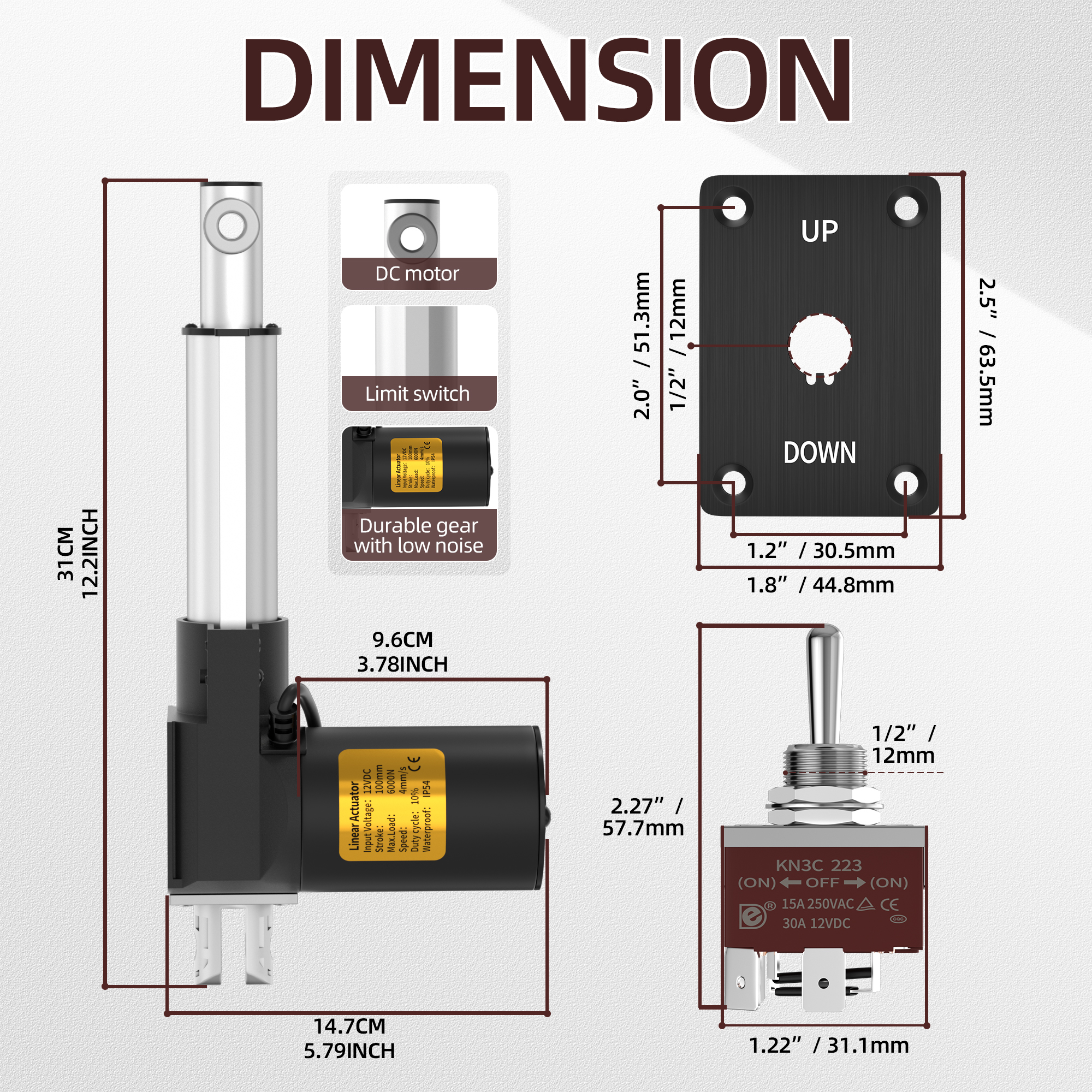

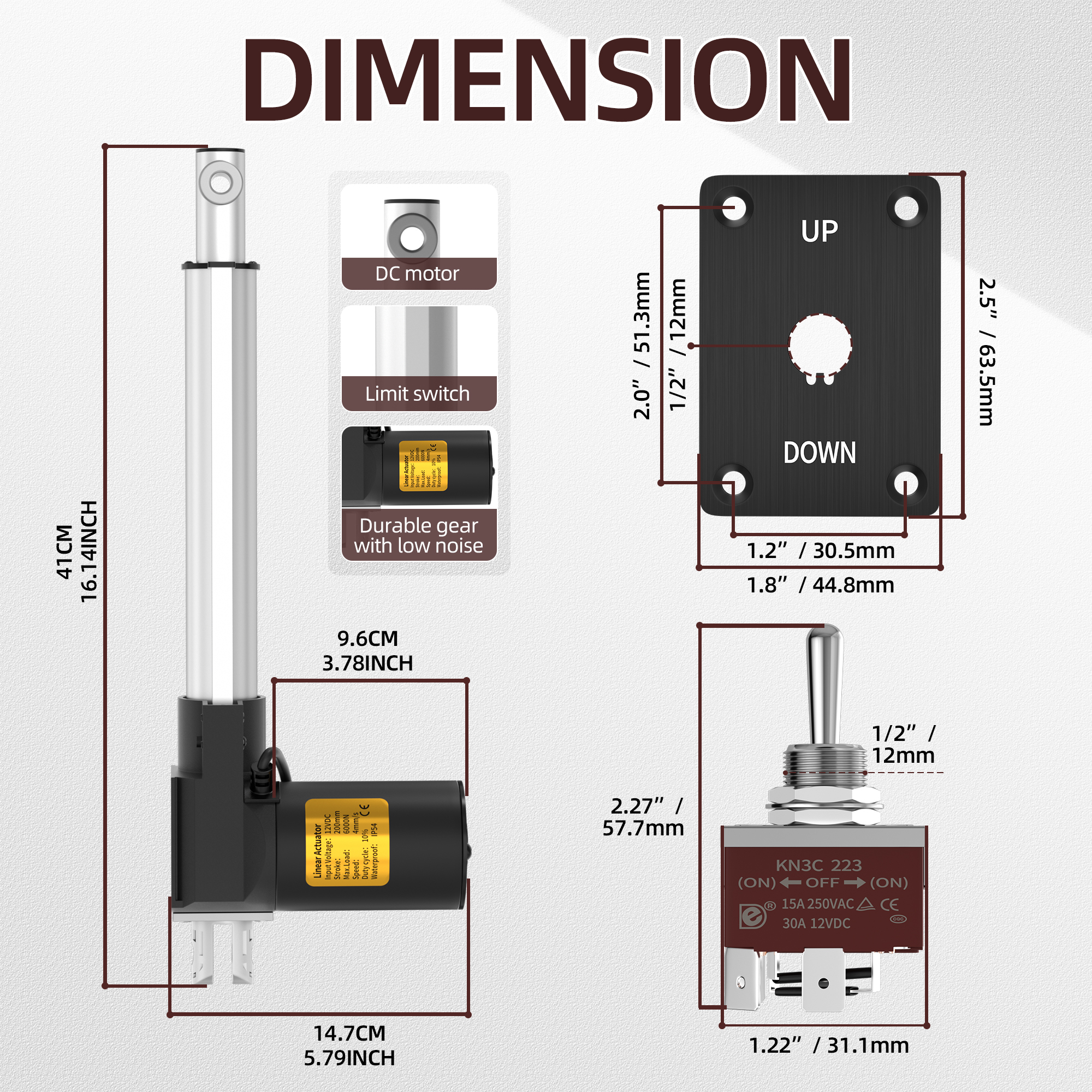

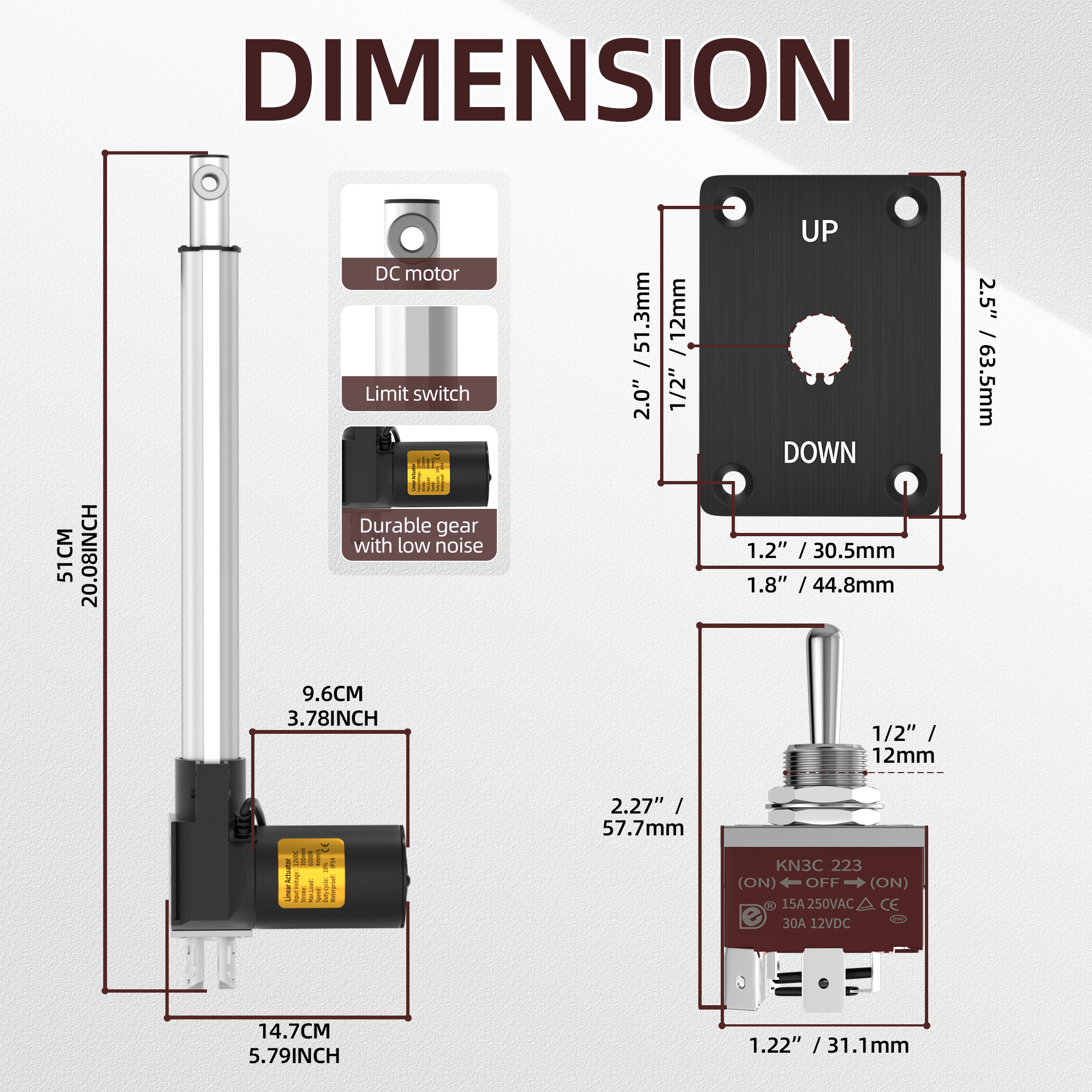

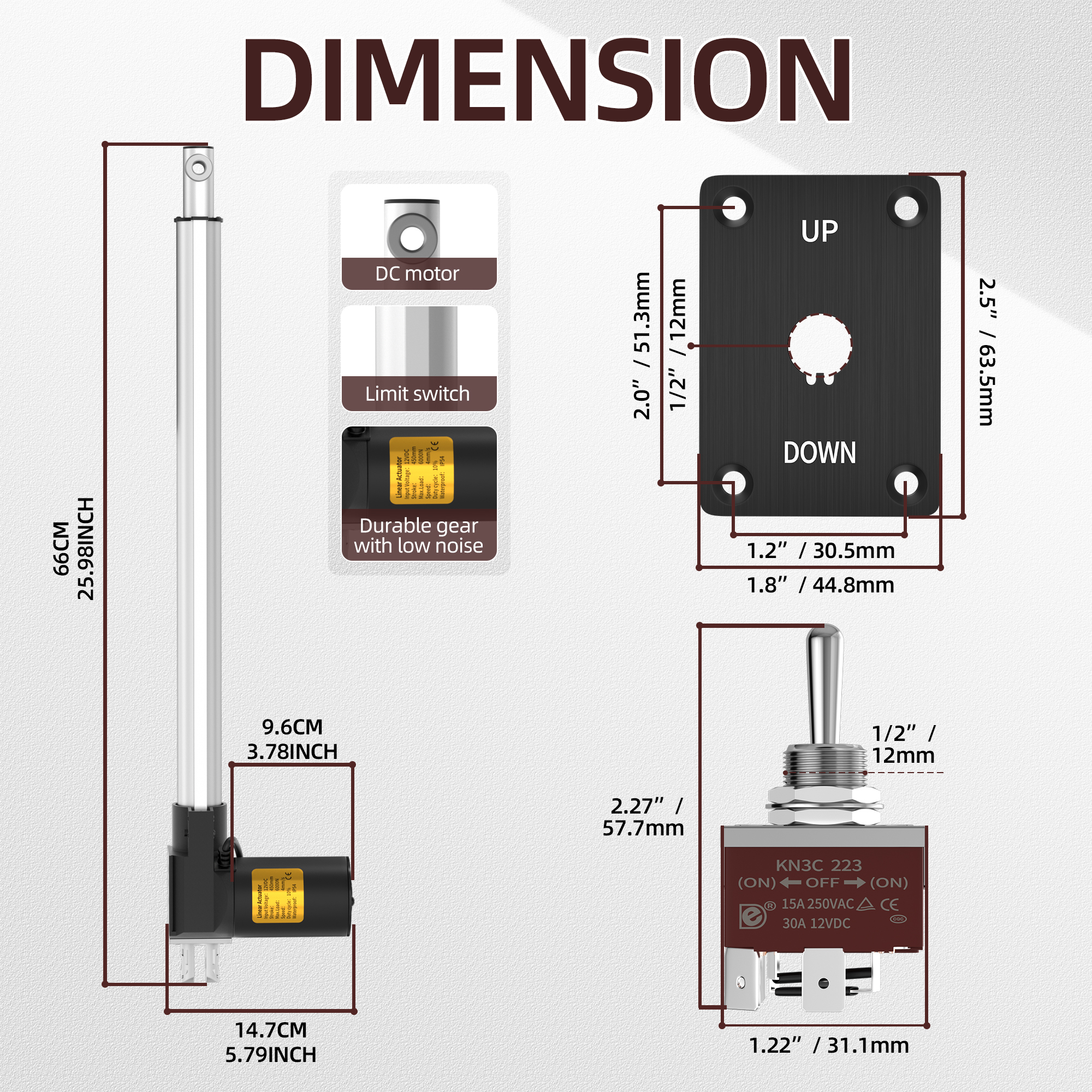

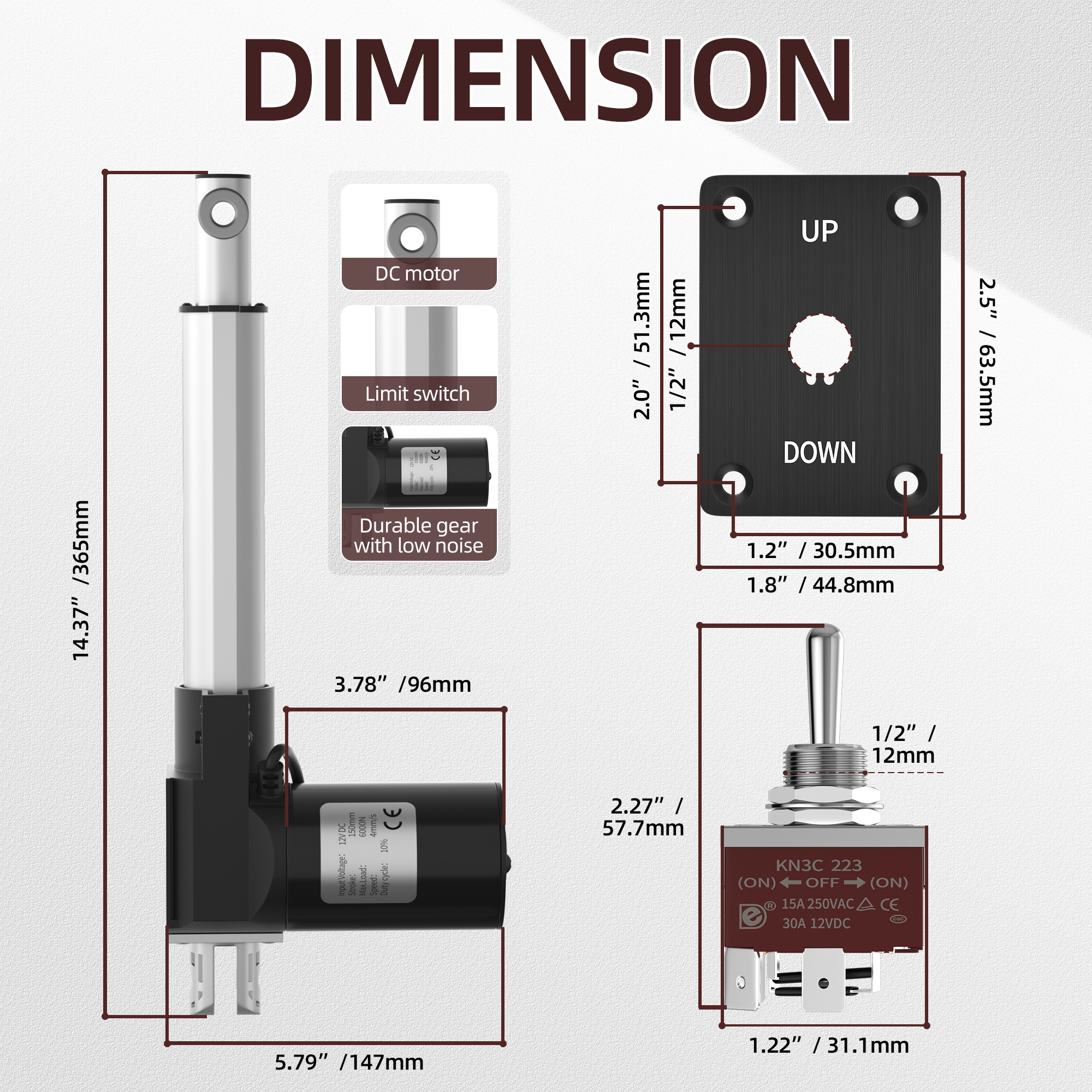

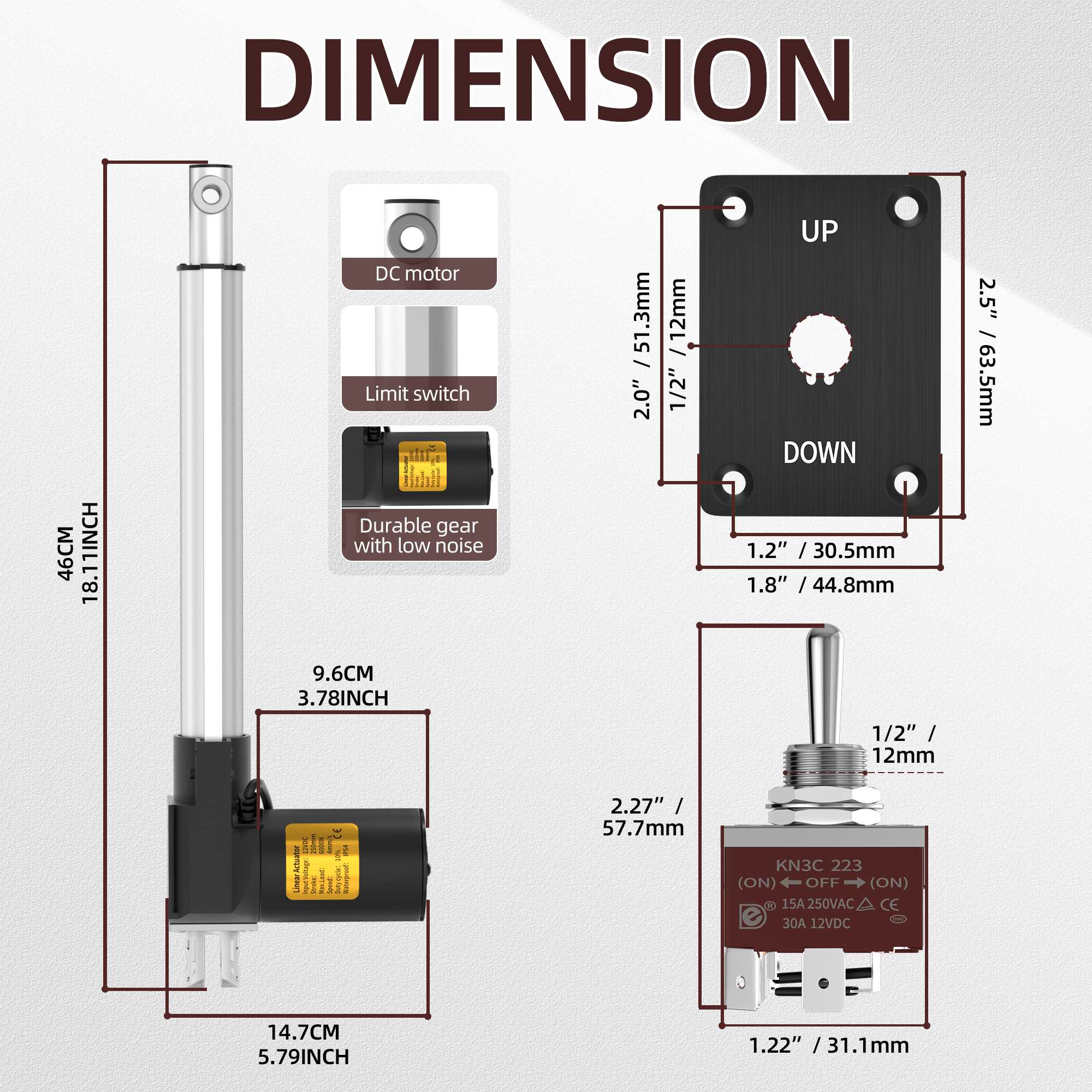

6000N/1320lb 12V Linear Actuator Series Model Variations
| Part NO | Stroke | Min Length (mm) | Max Length (mm) |
| LA01-12-50-6000N | 50mm / 2″ | 225 | 275 |
| LA01-12-100-6000N | 100mm / 4″ | 275 | 375 |
| LA01-12-150-6000N | 150mm / 6″ | 325 | 475 |
| LA01-12-200-6000N | 200mm / 8″ | 375 | 575 |
| LA01-12-250-6000N | 250mm / 10″ | 425 | 675 |
| LA01-12-300-6000N | 300mm / 12″ | 475 | 775 |
| LA01-12-350-6000N | 350mm / 14″ | 525 | 875 |
| LA01-12-400-6000N | 400mm / 16″ | 575 | 975 |
| LA01-12-450-6000N | 450mm / 18″ | 625 | 1075 |
| LA01-12-500-6000N | 500mm / 20″ | 675 | 1175 |
6000N/1320lb 12V Linear Actuator Series Specifications
| Voltage | 12VDC |
| Max Load | 6000N / 1320lbs |
| Speed | 4mm/s |
| Noise Level | Below 50dB |
| Duty Cycle | 10% |
| Switch Function | (ON)-OFF-(ON) Momentary |
| Switch Terminal | 4 Pins |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
