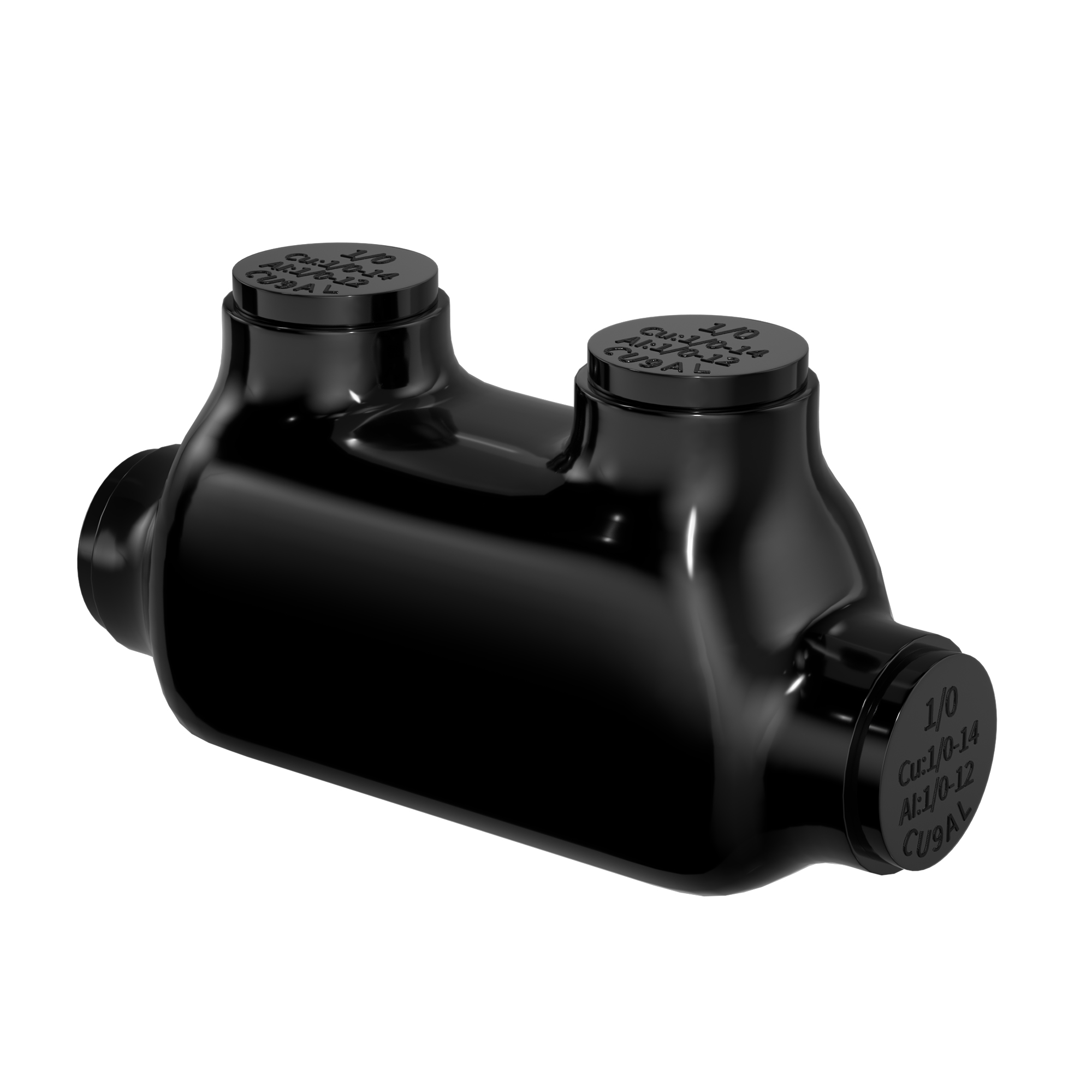

ITC-101-1/0AWG 1/0 AWG – 14 AWG 2-Port Multi-Tap In-Line Wire Entry Pre-Insulated Connector
Part#ITC-101-1/0AWG
This 1/0 AWG – 14 AWG 2-Port pre-insulated connector is designed for Aluminum to Copper connections and features an in-line entry design.
Ensure reliable wiring with this in-line entry insulated connector, which is UL Certified and supports 1/0 AWG – 14 AWG conductors.
ITC-101-1/0AWG 1/0 AWG – 14 AWG 2-Port In-Line Wire Entry Pre-Insulated Connector Features
- Broad Wire Compatibility

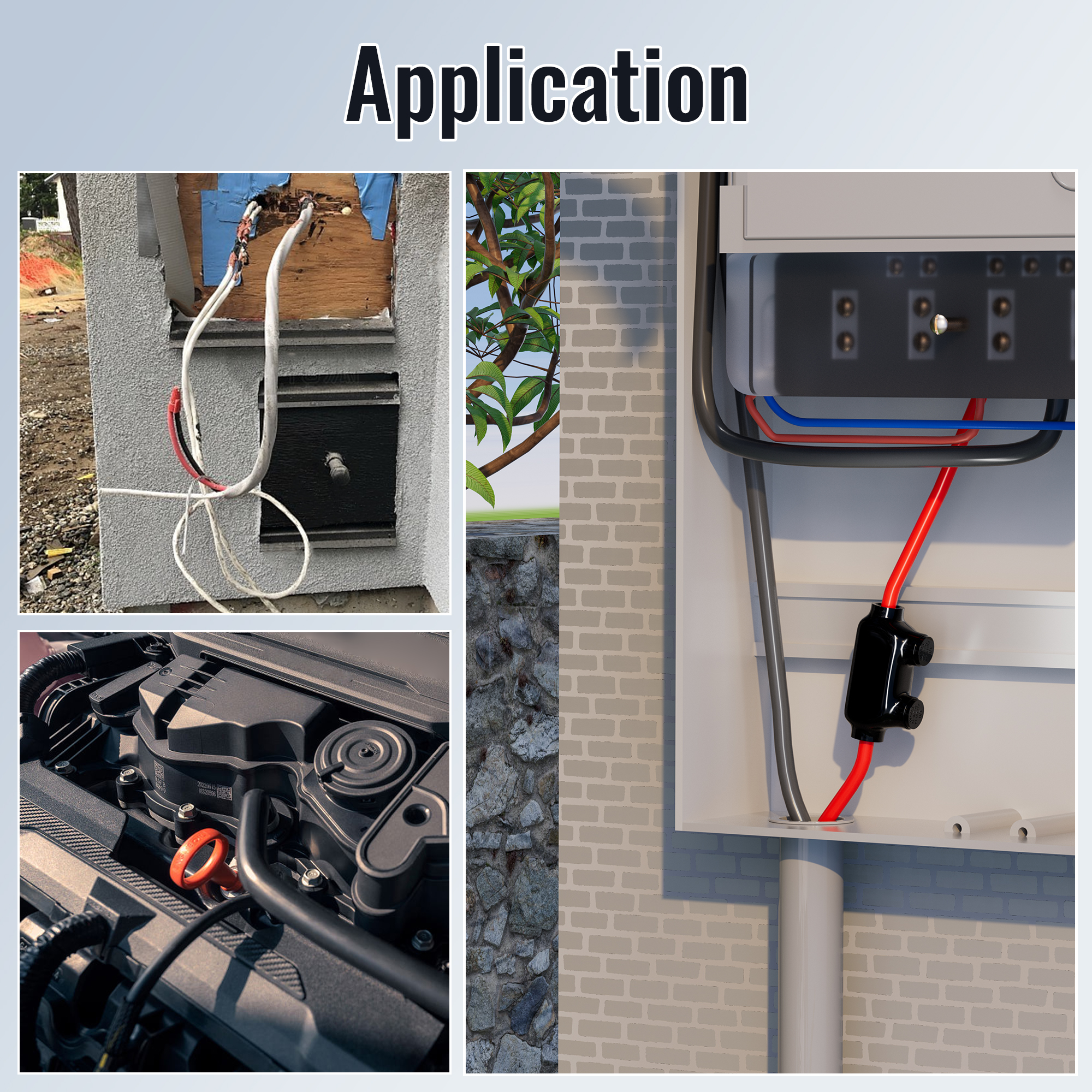

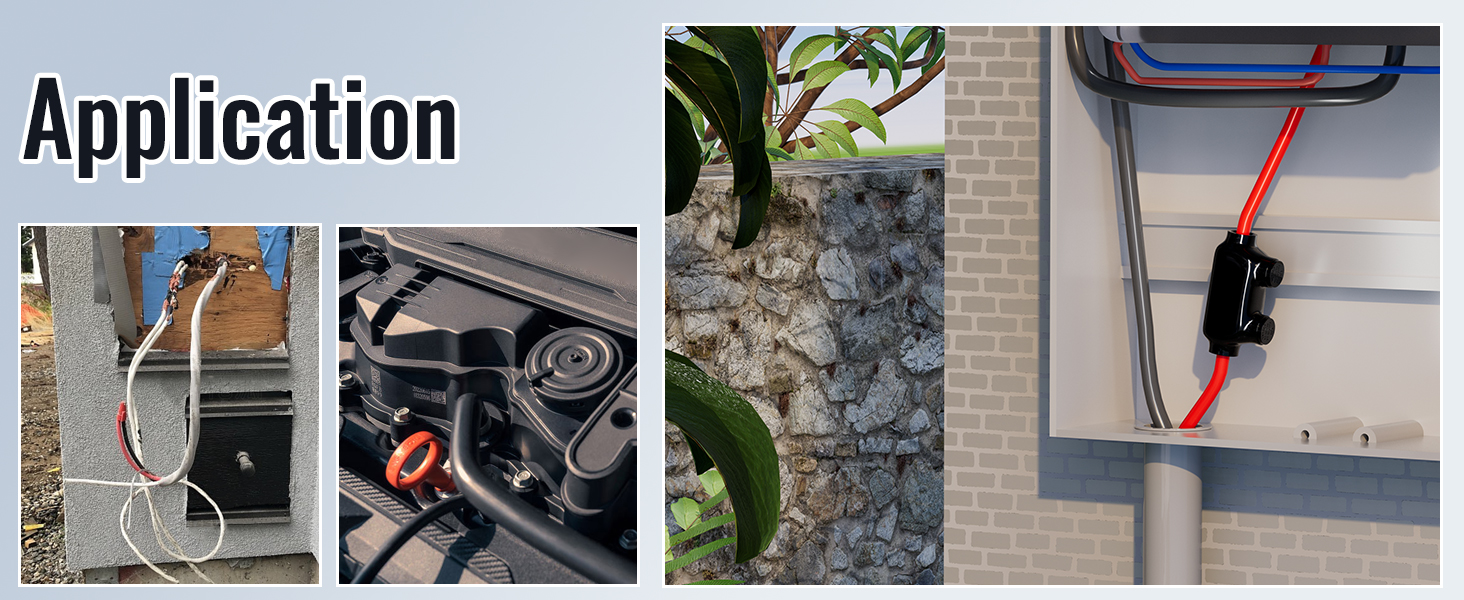

This pre-insulated connector offers exceptional flexibility by accommodating a wide range of wire gauges, from 1/0 AWG to 14 AWG. This broad compatibility makes it suitable for diverse electrical projects, from high-power service entrances to smaller branch circuits.

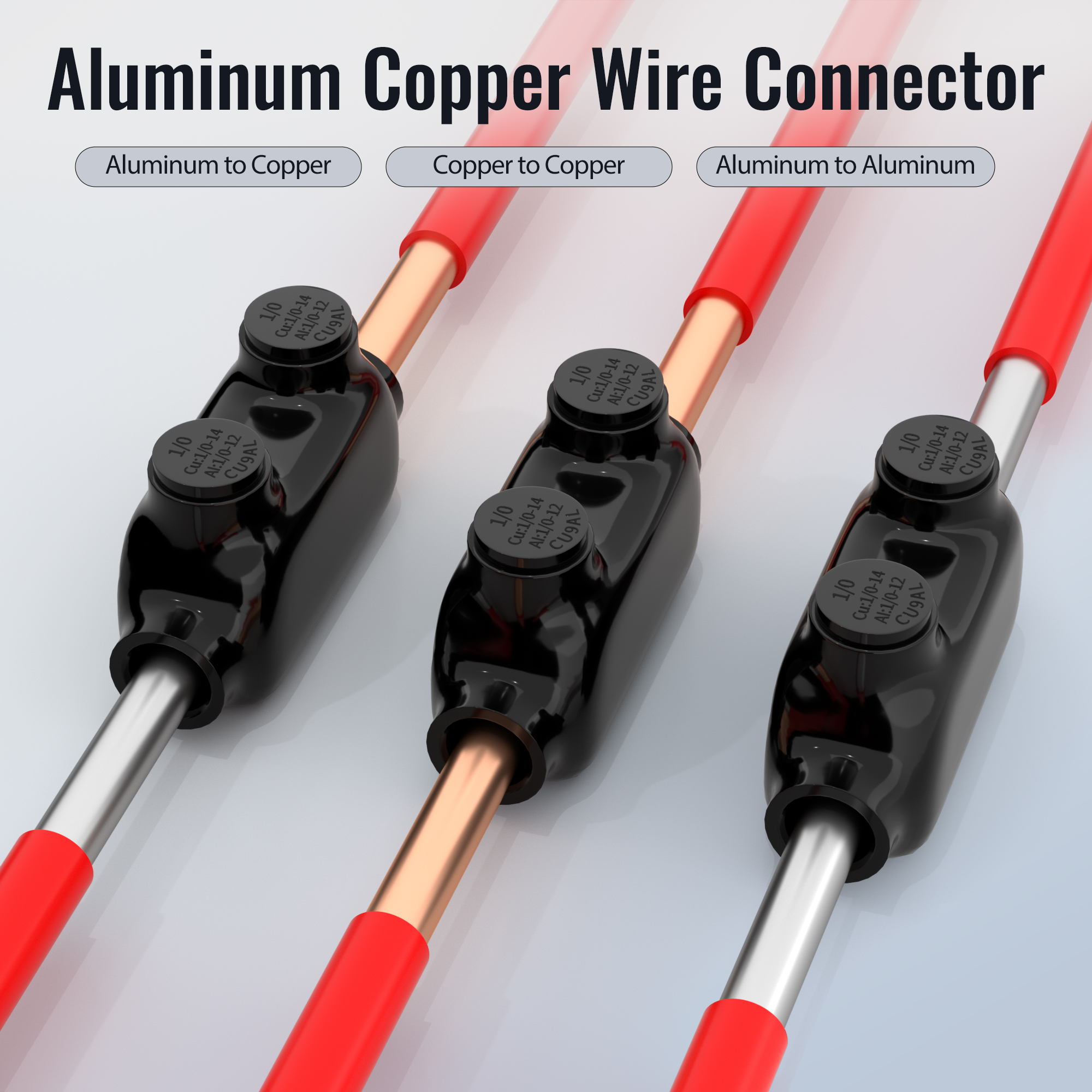

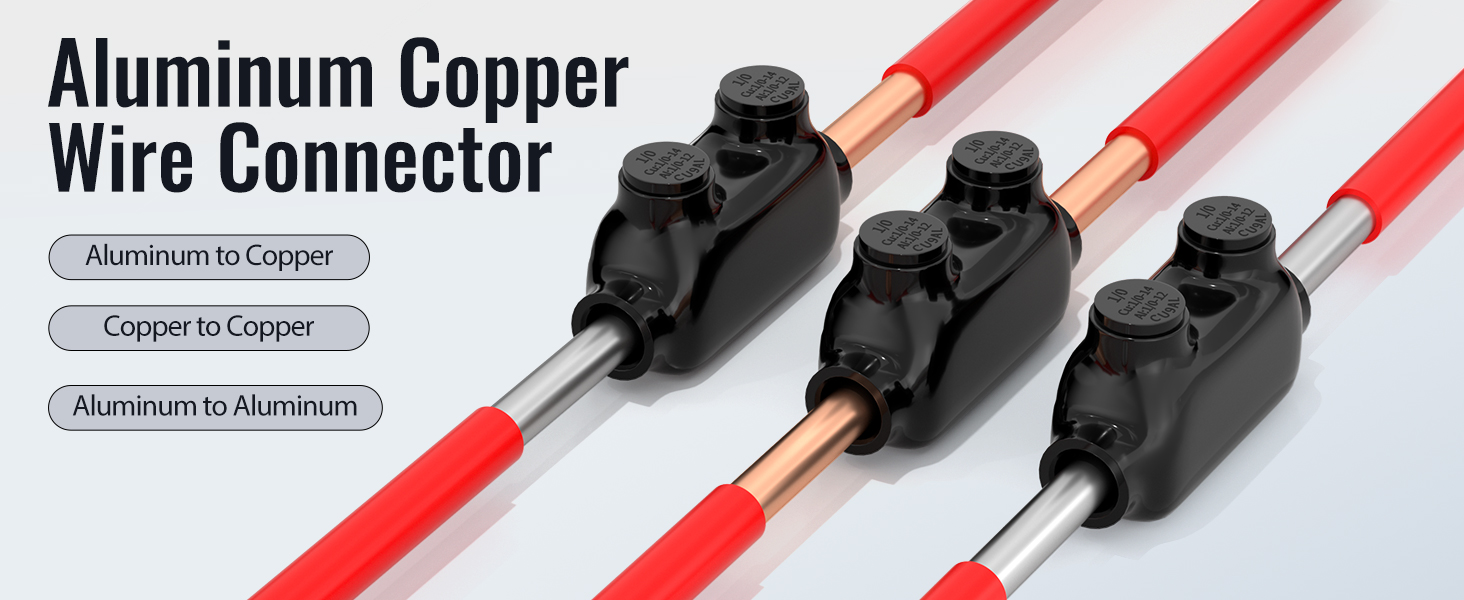

- Copper/Aluminum Design
This connector expertly handles connections between both copper and aluminum wires. The markings clearly shows the 1/0 AWG to 14 AWG range, while the aluminum compatibility extends to 1/0 AWG to 12 AWG. This feature eliminates concerns about galvanic corrosion often associated with dissimilar metal connections.

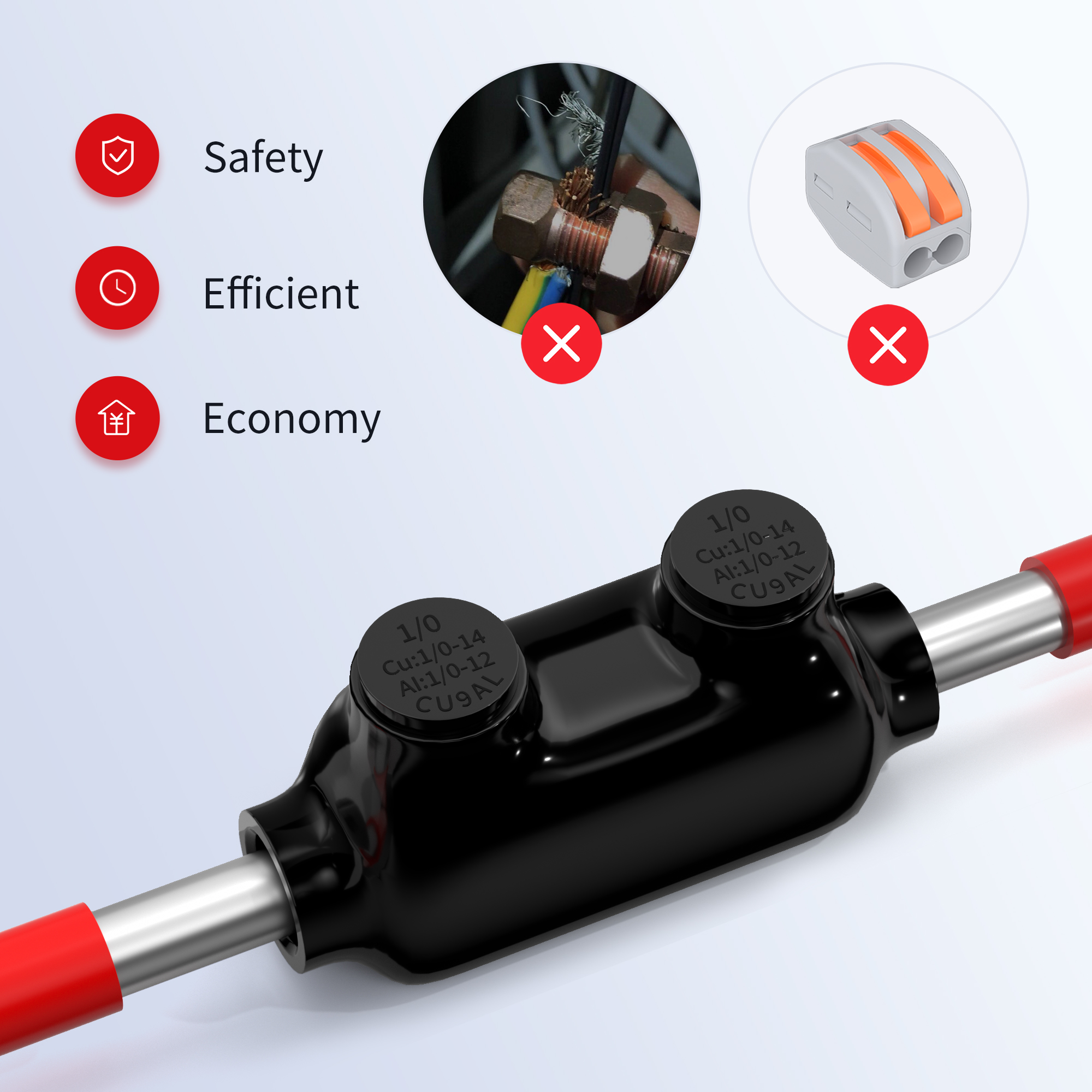

- Hex-Head Reliability
Unlike traditional twist-on or plastic connectors, this pre-insulated connector employs a robust hex-head bolt for secure and reliable wire termination. This design provides more consistent clamping force, reducing the risk of loose connections and ensuring long-term electrical integrity, as well as reducing risk of fire and shock.
- UV-Resistant Insulation
The connector’s pre-insulated body is coated in a UV-resistant plastisol compound, providing exceptional protection against degradation from sunlight exposure. This coating resists cracking, fading, and other forms of UV damage.
- Extreme Temperature Rated
This connector is designed to perform reliably in extreme temperature environments, operating between -49°F (-45°C) and 194°F (90°C). The broad operating temperature and heavy duty properties are a great option for those looking to keep their equipment functional in different applications.

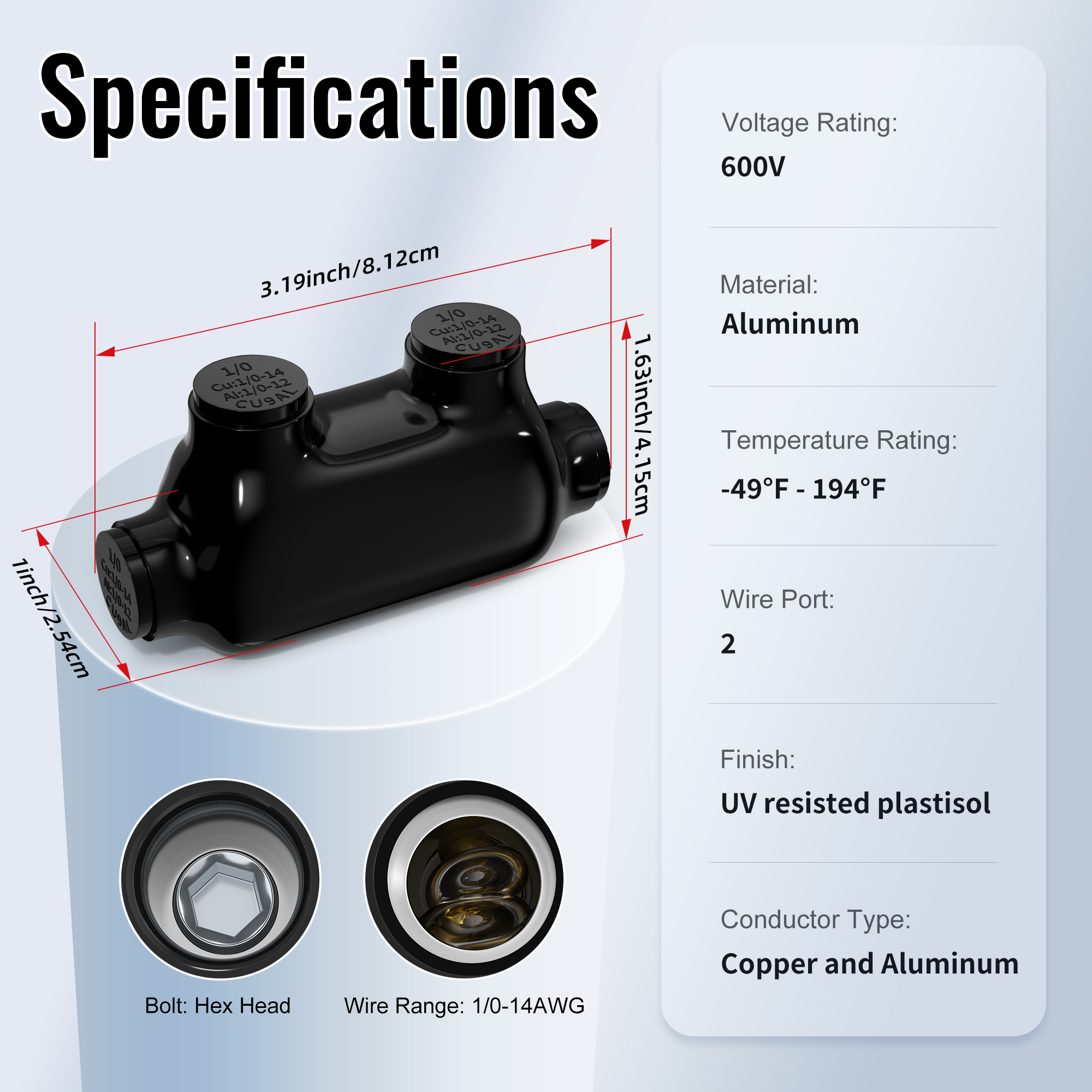

ITC-101-1/0AWG 1/0 AWG – 14 AWG 2-Port In-Line Wire Entry Pre-Insulated Connector Datasheet
| Part NO | ITC-101-1/0AWG |
| Voltage Rating | 600V |
| Wire Range (Cu) | 1/0 AWG – 14 AWG |
| Wire Range (Al) | 1/0 AWG – 12 AWG |
| Bolt | Hex Head |
| Wire Ports | In-line Splice |
| Conductor Type | Aluminum and Copper Wire |
| Finish | UV-Resisted Plastisol |
| Temperature Rating | -49°F – 194°F |
| Certification | UL |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
