WS-A08-H

WS-A08-H

Category :

WATERPROOF TACT

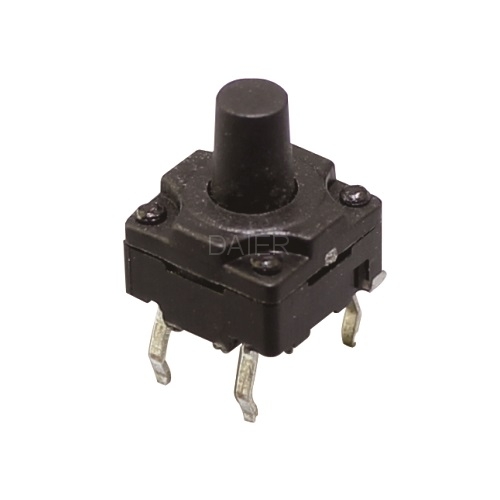

WS-A08-H tactile button:

WS-A08-H is an on/off smd tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.

Daier offers a broad range of miniature tactile, ultra-miniature tactile and micro miniature tactile switches for printed circuit board mounting.  Available in J bend, gull wing, illuminated, sealed, low-profile, low-noise, SMT and through hole versions, Daier’s tactile switches are designed for the most demanding applications.

Pls check the datasheet below:

Waterproof Degree:IP67Operating force:180/250±30gf
Operating Direction:Top PushTravel:0.25mm
Operating Life:Over 100,000 cyclesInitial contact resistance:100mΩ max.
Stem height:H=6.5-19mmOperating Temperature:-25℃~+105℃
Rating (max.):50mA 12V DCRating (min.):10µA 1V DC
SPQ:1,000pcsOEM or ODM:Available
