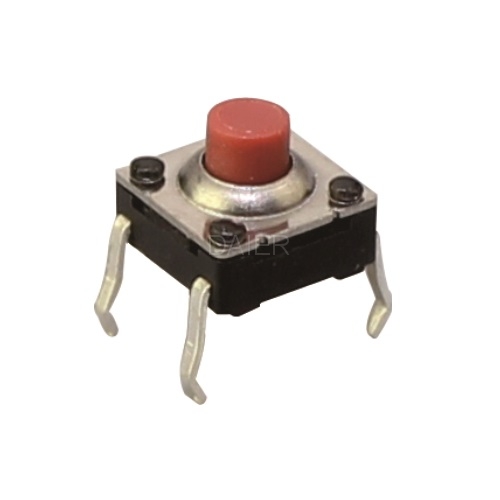

WS-M06-H ip67 waterproof tact switch:
WS-M06-H is an on/off smd tactile switch that is only on when the button is pressed or if there is a definitive change in pressure.
The Tactile Switch applications include: Low power, miniature devices, digital switching, anything where operator feedback is required (a switch confirmation coming from the switch being depressed) will find that the perfect choice is a Tactile switch.
Daier offers a broad range of miniature tactile, ultra-miniature tactile and micro miniature tactile switches for printed circuit board mounting. Available in J bend, gull wing, illuminated, sealed, low-profile, low-noise, SMT and through hole versions, Daier’s tactile switches are designed for the most demanding applications.
Pls check the datasheet below:
|Waterproof Degree:||IP67||Operating force:||180/250±30gf|
|Operating Direction:||Top Push||Travel:||0.25mm|
|Operating Life:||Over 100,000 cycles||Initial contact resistance:||100mΩ max.|
|Stem height:||H=4.3/5.0mm||Operating Temperature:||-25℃~+105℃|
|Rating (max.):||50mA 12V DC||Rating (min.):||10µA 1V DC|
|SPQ:||1,000pcs||OEM or ODM:||Available|
