BCP-1K Remote Battery Jump Post Kit with Wire Leads
Part#BCP-1K

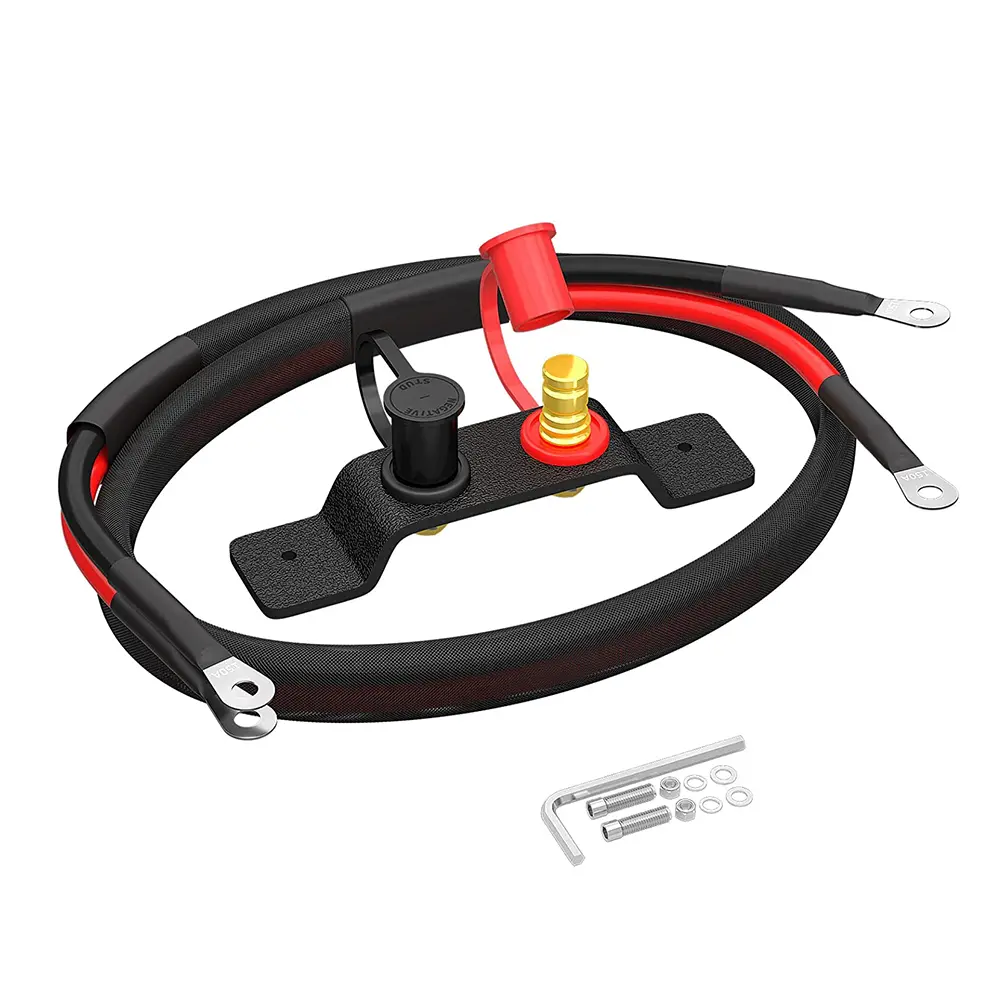

The battery jump post kit includes 2 x battery posts, 1 x mounting bracket, 1 x set of 4 gauge wires (150A max.), and 1 x set of mounting hardware.
Each set of battery charger posts comes with a set of 4 wires for ease of use, which are approximately 53 inches in length and can accept up to 150A.
Category :
Busbar
BCP-1K Remote Battery Jump Post Kit with Wire Leads Details
- High Quality
It is made of high-quality copper wire, 3.95 feet long, with good electrical conductivity, thermal conductivity and corrosion resistance to ensure it can work for a long time.
- Remote Battery Termination
Each battery terminal kit is assembled using top-quality brass terminals that can transmit maximum power. Equipped with insulated caps for easy identification and preventing cable crossover, they are waterproof and dustproof for long life.
- Accessories
Our battery relocation kits are made of thick PVC plastic for greater strength and lightness, with pre-drilled holes to prevent the possibility of arching on important vehicle hardware.
- Easy Installation
Our X3 battery jumper kit is designed to be compact and easy to install anywhere that is convenient for vehicle jumper cables. It allows you to easily charge your battery and even jump start your vehicle without removing the annoying back seat.
- Scope of Application
The battery jump post kit is suitable for Can-Am X3 models 2 or 4 seaters all models, all Polaris RZR models 2 or 4 seater, all UTV/ATV models, trucks, race cars, travel trailers, tractors, lawn mowers, diesels, boats, etc.
BCP-1K Datasheet
| Post Size | 0.78″ (About 20MM) |
| Connect Terminals | 3/8″ (M10) Stud Terminals |
| Overall Dimension (with Cover) | 45mm x 45mm x 68mm |
| Cap Color | Positive – Red, Negative – Black |
| Wire Gauge | 4 Gauge |
| Wire Length | 53 Inches |
| Max Amperage Rating | 150A |
BCP-1K Dimension
