BB250X2-T6M8-C 250A 48VDC Positive and Negative Dual Bus Bar with 12×M8 Studs
Part#BB250X2-T6M8-C
The 250A positive and negative dual bus bar is designed for use in 12-48V DC systems, 12×M8(5/16″) terminal studs ensure efficient power distribution in a variety of environments.
Each busbar is fitted with a protective cover that reduces the risk of accidental contact and prevents short circuits by shielding exposed areas.
Category :
Busbar
BB250X2-T6M8-C 250A 48VDC Positive and Negative Dual Bus Bar Features
- High Capacity

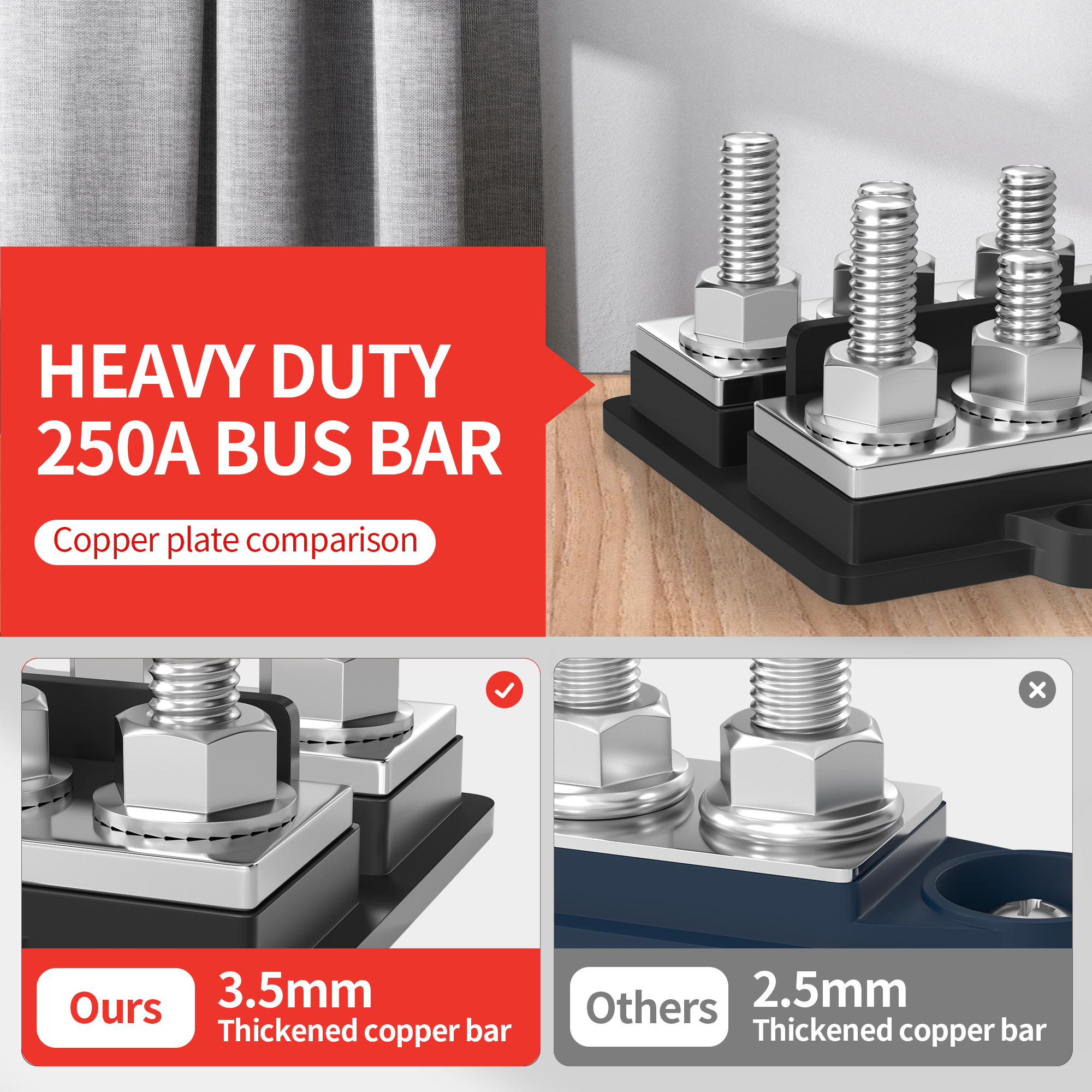

The 250A double row busbar serves as a reliable positive and negative power distribution block, providing robust performance for a variety of electrical applications.
- Voltage Rating
This 12V battery distribution block is rated up to 250A and can safely handle a maximum source voltage of 48V, ensuring efficient power distribution in a variety of setups.
- Versatile Terminals

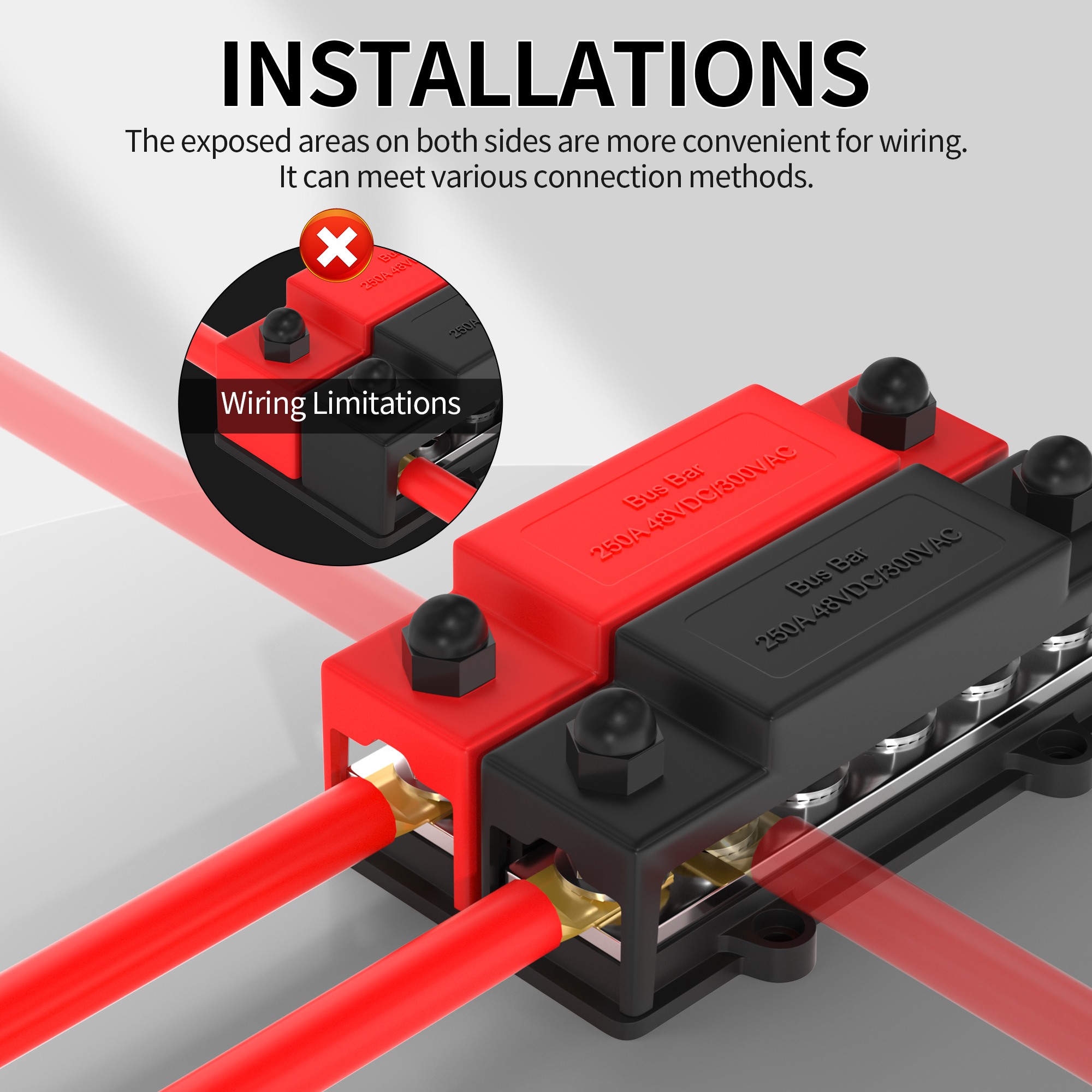

This busbar terminal block has 12×M8 (5/16″) stud terminals. It accepts large size connectors and wires, providing flexibility and compatibility with different electrical setups.

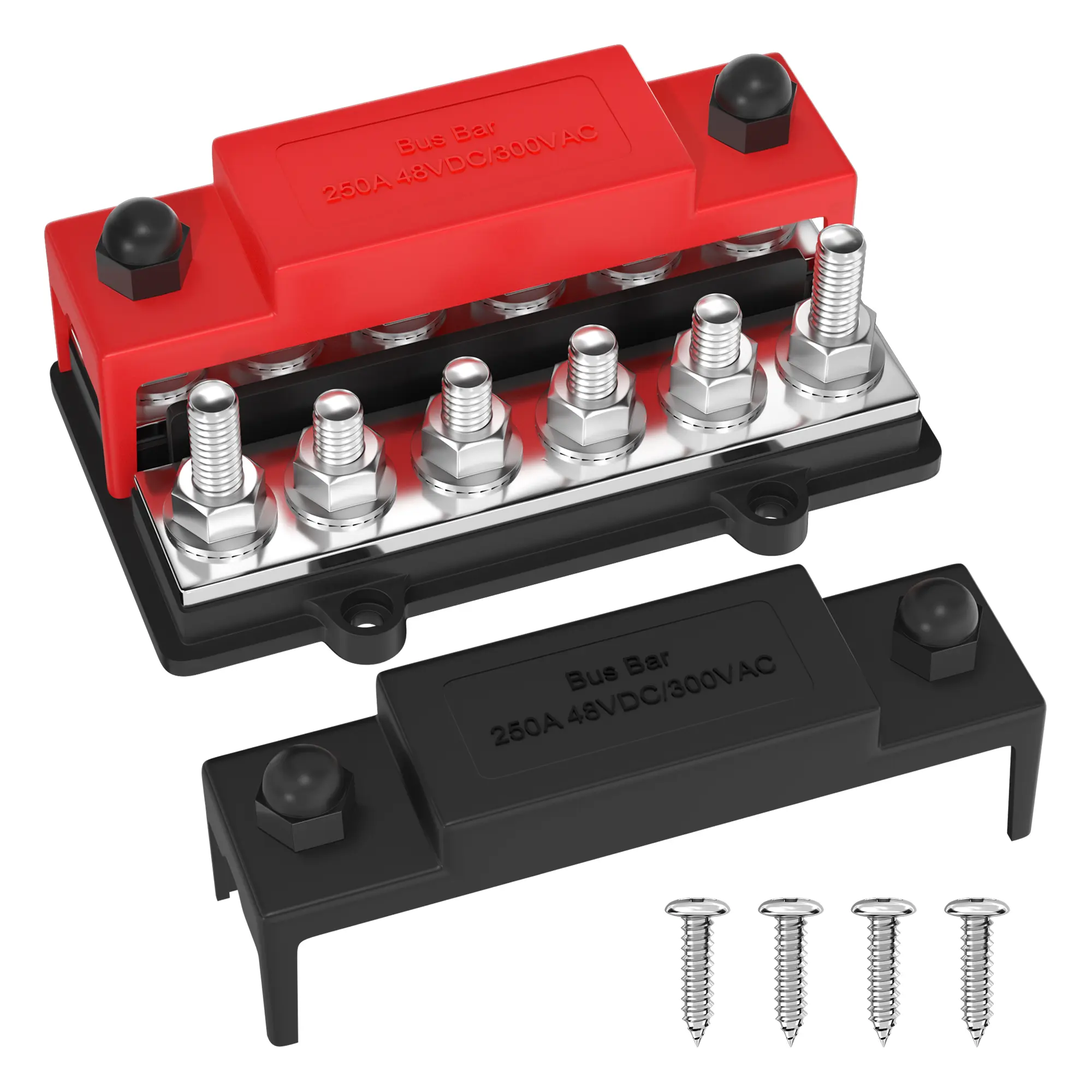

- Protective Accessories
Each busbar is supplied with a protective cover and two nuts, providing enhanced safety by shielding exposed areas to reduce the risk of accidental contact and prevent short circuits, ensuring a safer circuit.
- Wide Application

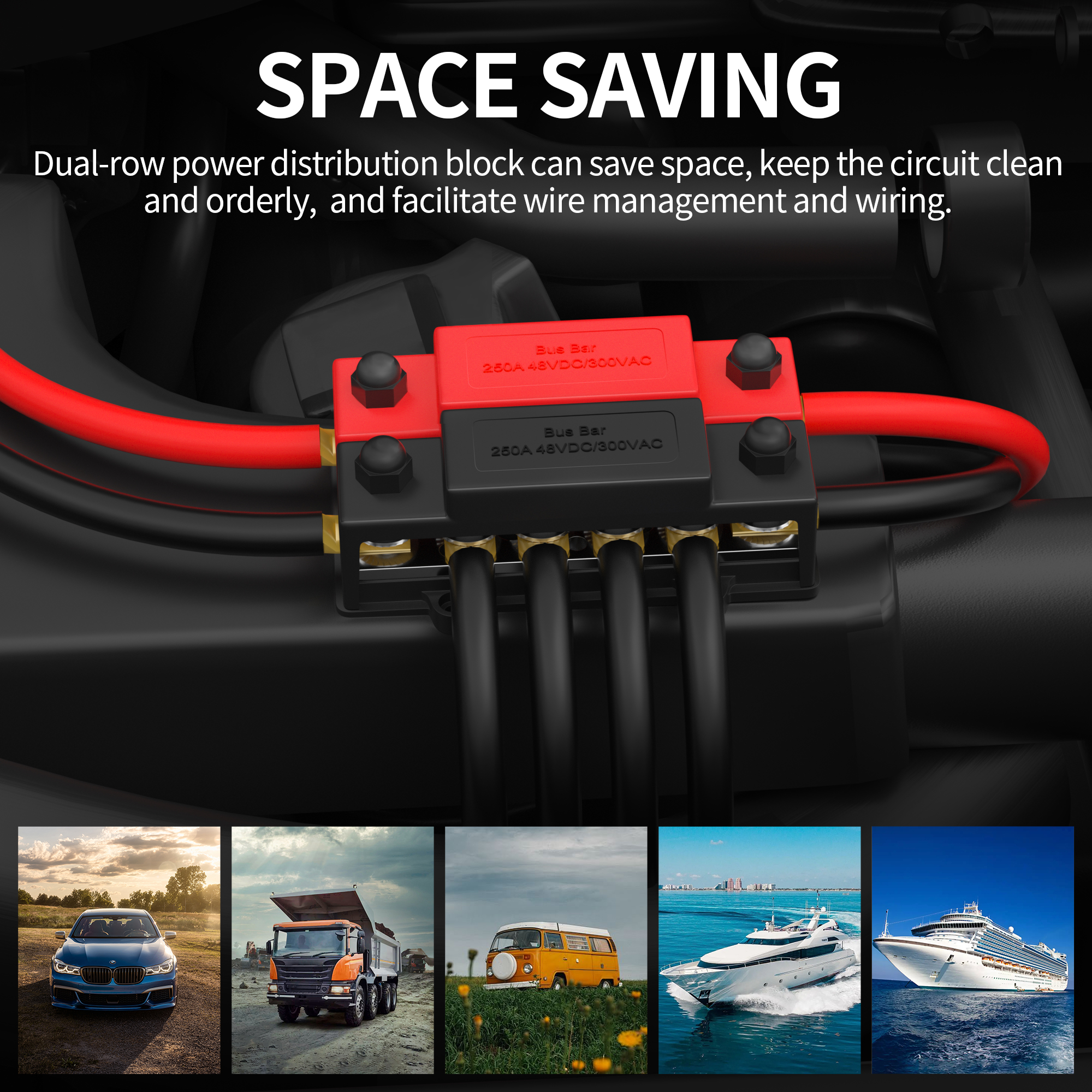

The 48 V bus bar with cover is designed to promote tidy wiring and prevent electrical shorts and is suitable for a wide range of applications including cars, RVs, trucks, marine vessels, boats, solar power systems and more.

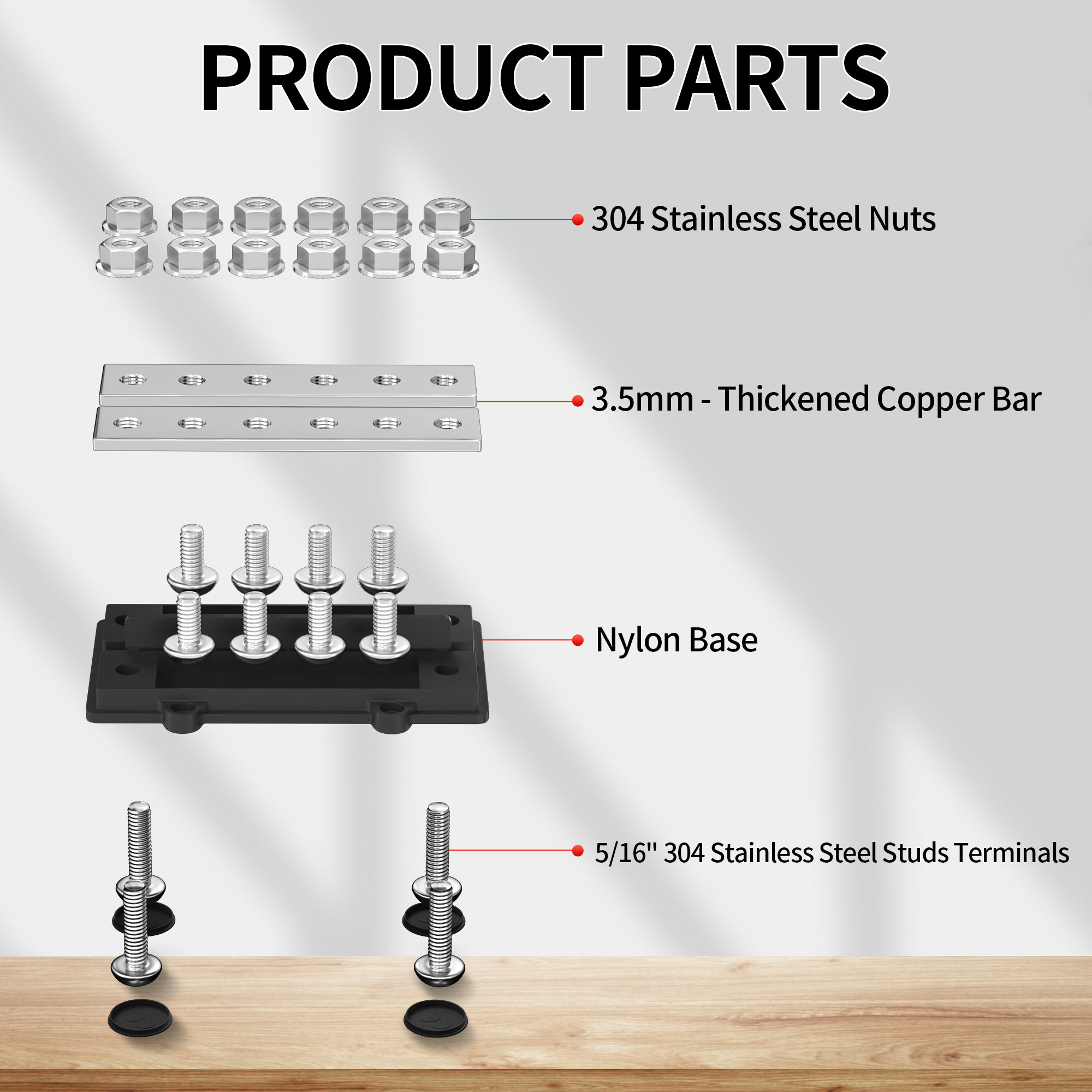

BB250X2-T6M8-C 250A 48VDC Positive and Negative Dual Bus Bar Datasheet
| Part NO | BB250X2-T6M8 |
| Connection Type | Red for Positive Black for Negative |
| Terminal Studs | 12 x M8 (5/16″) |
| Base & Cover Material | Nylon |
| Bus Material | Brass |
| Terminals Material | Stainless Steel |
| Max Voltage | 48V DC |
| Max Continuous Amperage | 250 AMP @ 12V |
| Overall Dimension | 126.8mm x 81.9mm x 53mm (LxWxH) |
