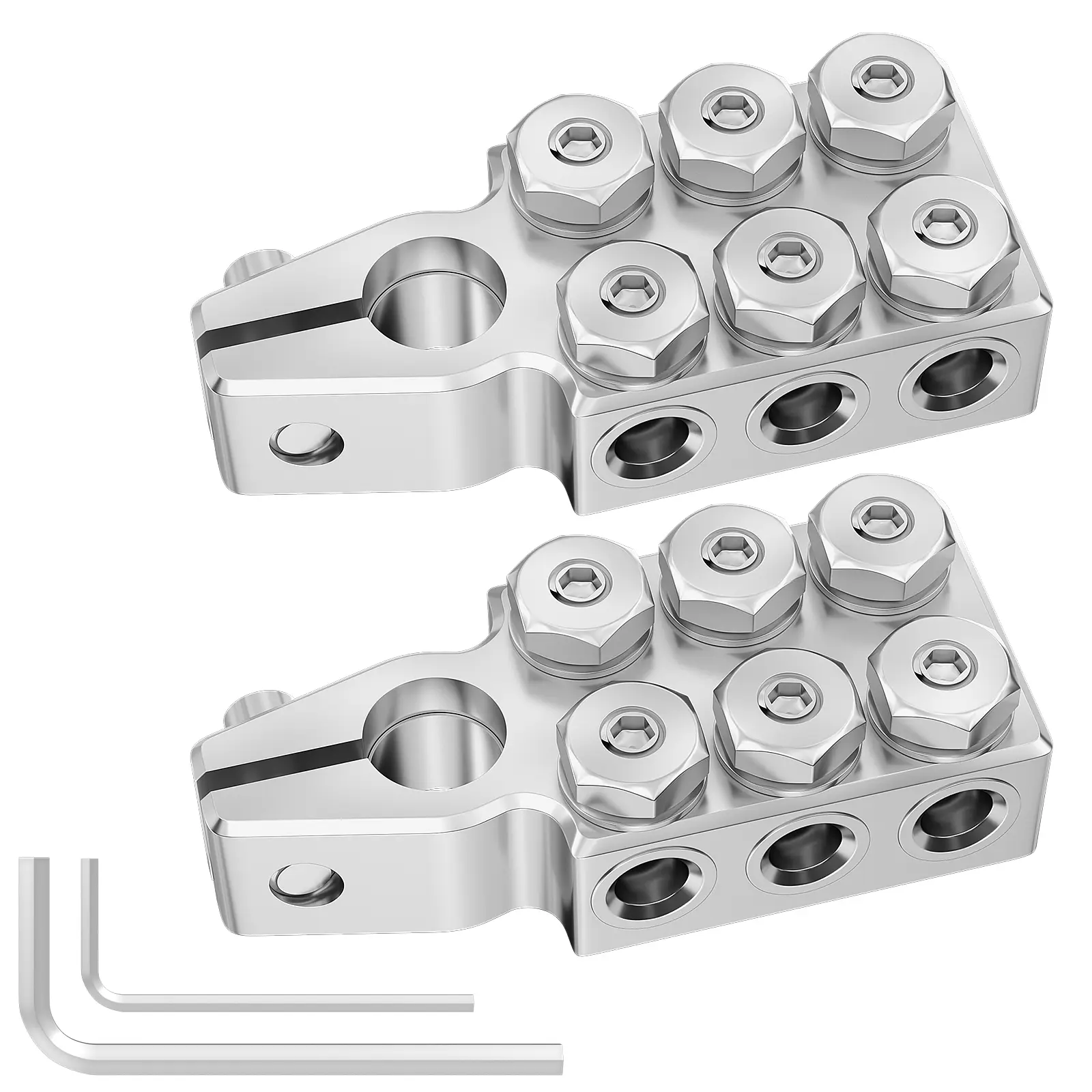

BT-21 12-Way 8AWG up to 4/0(XL) AWG Gauge Battery Terminal Clamps
Part#BT-21
The battery terminal clamps available in voltage options of 48V, 36V, 24V, 12V, and 6V, are designed to accommodate different cable sizes (0 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG).
The battery terminal clamps feature versatile specification options, corrosion-resistant construction, easy installation, and wide application, providing reliable connectivity for various vehicles and equipment.
BT-21 12-Way Battery Terminal Clamps Details
- Specification
The battery terminal connector supports various voltage options (48V, 36V, 24V, 12V, 6V) and can be used with multiple cable sizes (0 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG). It is designed to fit tapered SAE, DIN, and EN columns.
- Product Advantages
It is made of corrosion-resistant zinc alloy, our battery terminal distribution block ensures strong conductivity, durability, and a long service life.
- Easy Installation
With the included Allen wrench, you can easily connect our battery terminal to the terminal post. The 12-way car battery terminals come with 6 hole-holders and 6 threaded studs, allowing for secure connection of multiple cables simultaneously.
- Wide Application
The battery top post terminals are suitable for a range of vehicles such as automobiles, trucks, motorcycles, as well as forklifts, cranes, and yachts. They are also ideal for installing audio systems and other equipment.
BT-21 Dimension
| 12-Way connectors | 6 x hole-holders 6 x threaded studs |
| Battery Voltage | 48V, 36V, 24V, 12V, 6V |
| Wire Range | 4AWG up to 4/0 AWG |
| Positive Hole Size | 0.67″ |
| Negative Hole Size | 0.59″ |
| Overall Dimensions | 3.59“x1.56″x0.77″9(L*W*H) |
| Material | Zinc Alloy |
| Tapered Post Type | SAE/ EN/ DIN |
Still, have a question about the BT-21 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
