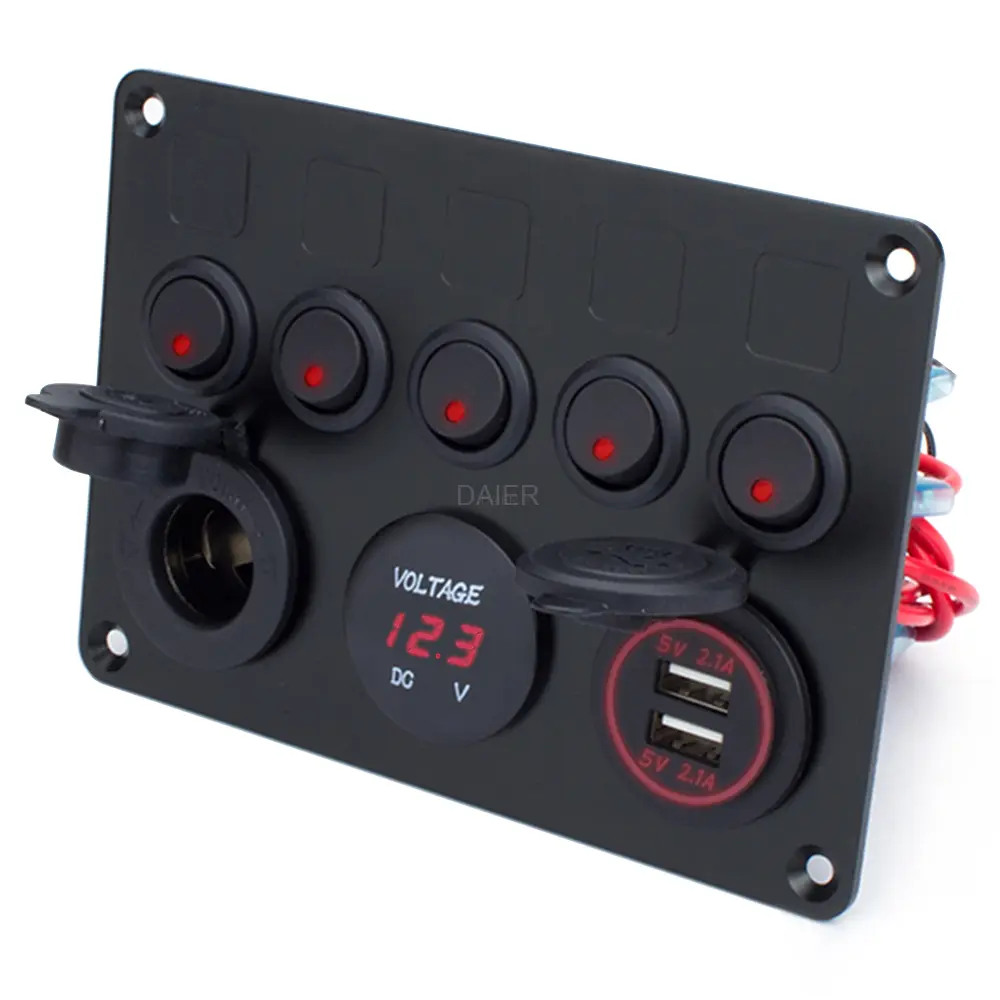

PN-R5S3 5 Gang Marine Switch Panel With Fuses


PN-R5S3 5 gang marine switch panel with fuses used for DC 12V-24V, 5×rocker switches, 3.1A dual USB charger, 12V outlet, and digital voltmeter.

The real-time LED voltmeter shows the status of the voltage. Pre-wire design with 15A fuse providing you with an overload, over-current, and short circuit protection.

Category :

Switch Panel

PN-R5S3 5 Gang Marine Switch Panel With Fuses

  • Safety Protection

The switch panel has a built-in fuse, which is easy to replace and prevents overheating, overcurrent, and short circuit.

  • Strong Durability

The switch panel is made of reinforced aluminum plate and pins with good conductivity to ensure its durability.

  • Visual Feedback

Illuminated toggle switches operate at 12 volts DC and light up to provide visual feedback of your circuit operation.

  • Water Resistance

The switch panel adopts waterproof marine switches and a splash-proof panel, which can be well adapted to the marine environment.

  • Wide Application

This switch is suitable for 12v-24v systems and widely applicable for cars, TV/ATV, trucks, trailers, RV, boats, yachts, etc.

PN-R5S3 Datasheet

Switch Rating 12V 20A / 24V 10A
Power  Outlet DC 12V
USB Socket Output DC 5V 4.2A (2.1A+2.1A)
Voltmeter Measuring Range 6V – 30V
Installation Pre-wired
Material ABS, Nylon, Aluminum
Waterproof grade IP65
Operating Temperature -25℃~+85℃
LED Color Green/Red/Blue

Other products with different specifications: PN-L3S2, PN-L6S3, PN-R4S2PN-R6S3, and PN-R8S4.
