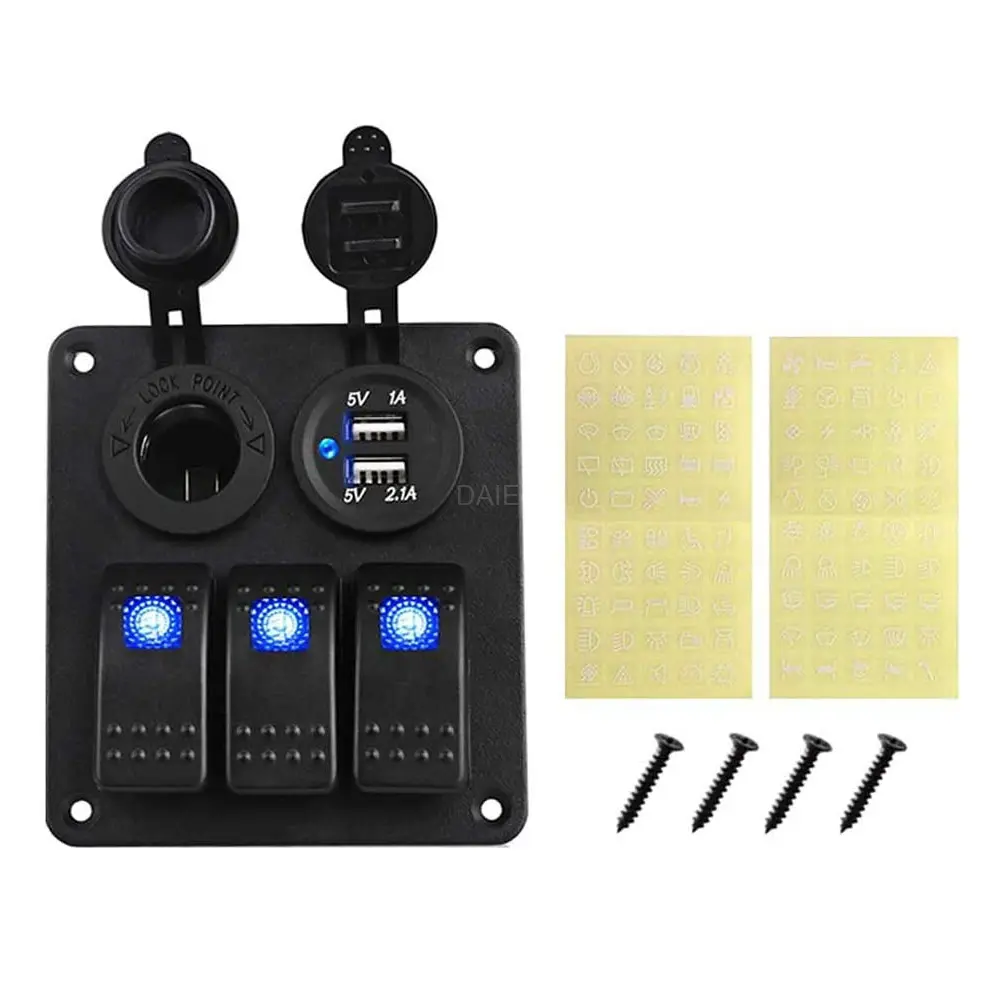

PN-L3S2 12 Volt Control Panel With Dual USB

Part#PN-L3S2

PN-L3S2 12 volt control panel with dual USB used for 20A/12V and 10A/24V, 3×rocker switches, 1×3.1A dual USB charger, and cigarette socket.

This is a universal 12V cigarette lighter socket, which is mainly made of durable flame-resistant hard plastic material for safe use.

Category :

Switch Panel

PN-L3S2 12 Volt Control Panel With Dual USB Details

  • Safety Protection

The switch panel has a built-in fuse, which is easy to replace and prevents overheating, overcurrent, and short circuit.

  • Strong Durability

The switch panel is made of reinforced aluminum plate and pins with good conductivity to ensure its durability.

  • Visual Feedback

Illuminated toggle switches operate at 12 volts DC and light up to provide visual feedback of your circuit operation.

  • Water Resistance

The switch panel adopts waterproof marine switches and a splash-proof panel, which can be well adapted to the marine environment.

  • Wide Application

This switch is suitable for 12v-24v systems and widely applicable for cars, TV/ATV, trucks, trailers, RV, boats, yachts, etc.

PN-L3S2 Datasheet

Rating 12V 20A / 24V 10A
Dual USB Charger Input voltage: 12 – 24V DCOutput voltage: 5V DCOutput current: 3.1A (2.1A & 1A)
Cigarette Lighter Input voltage: 12 – 24V DCOutput voltage: 12V DC
Function SPST 5PIN ON/OFF
Installation Pre-wired
Material ABS, Nylon, Aluminum
Waterproof grade IP65
Operating Temperature -25℃~+85℃

Other products with different specifications: PN-L6S3, PN-R4S2, PN-R6S3, PN-R5S3, and PN-R8S4.

Still, have a question about the PN-L3S2 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
