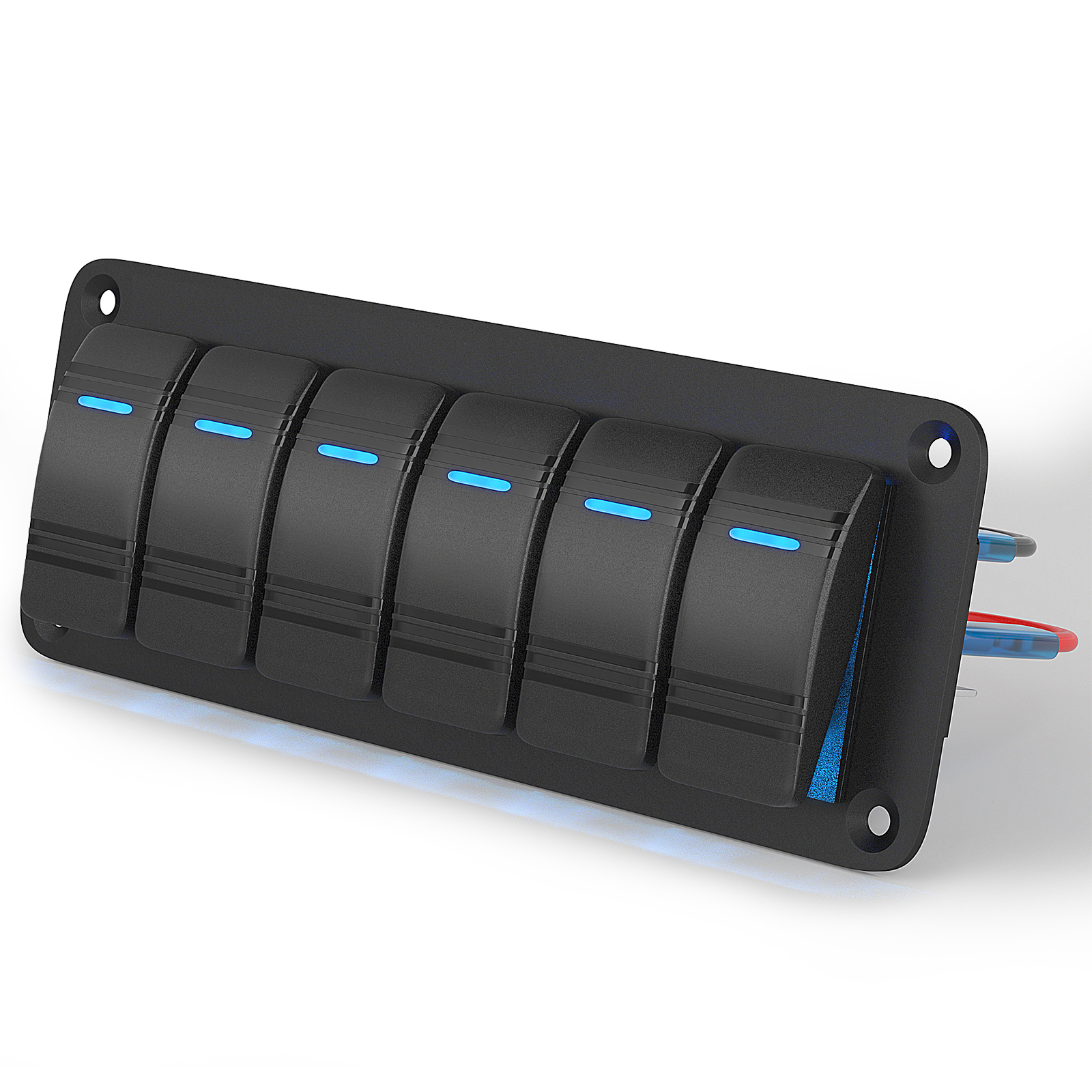

PN-1816-A11813ABL 6 Gang Rocker Switch Panel
Part#PN-1816-A11813ABL
The 6 gang rocker switch panel with multiple types of luminous stickers for DIY your specific needs and the panel size is 7″‘ x 2.75” x 2.6”.
This 6 gang switch panel includes a panel, 6 x toggle switches, 4 x stainless steel screws, and 1 x luminous sticker.
Category :
Switch PanelPN-1816-A11813ABL 6 Gang Rocker Switch Panel Details
- Sturdy and Durable
The switch panel is composed of an aluminum panel and superior ABS&PC switches. It possesses superior physical properties, good temperature resistance and electrical performance, and strong flame retardancy to ensure its durability.

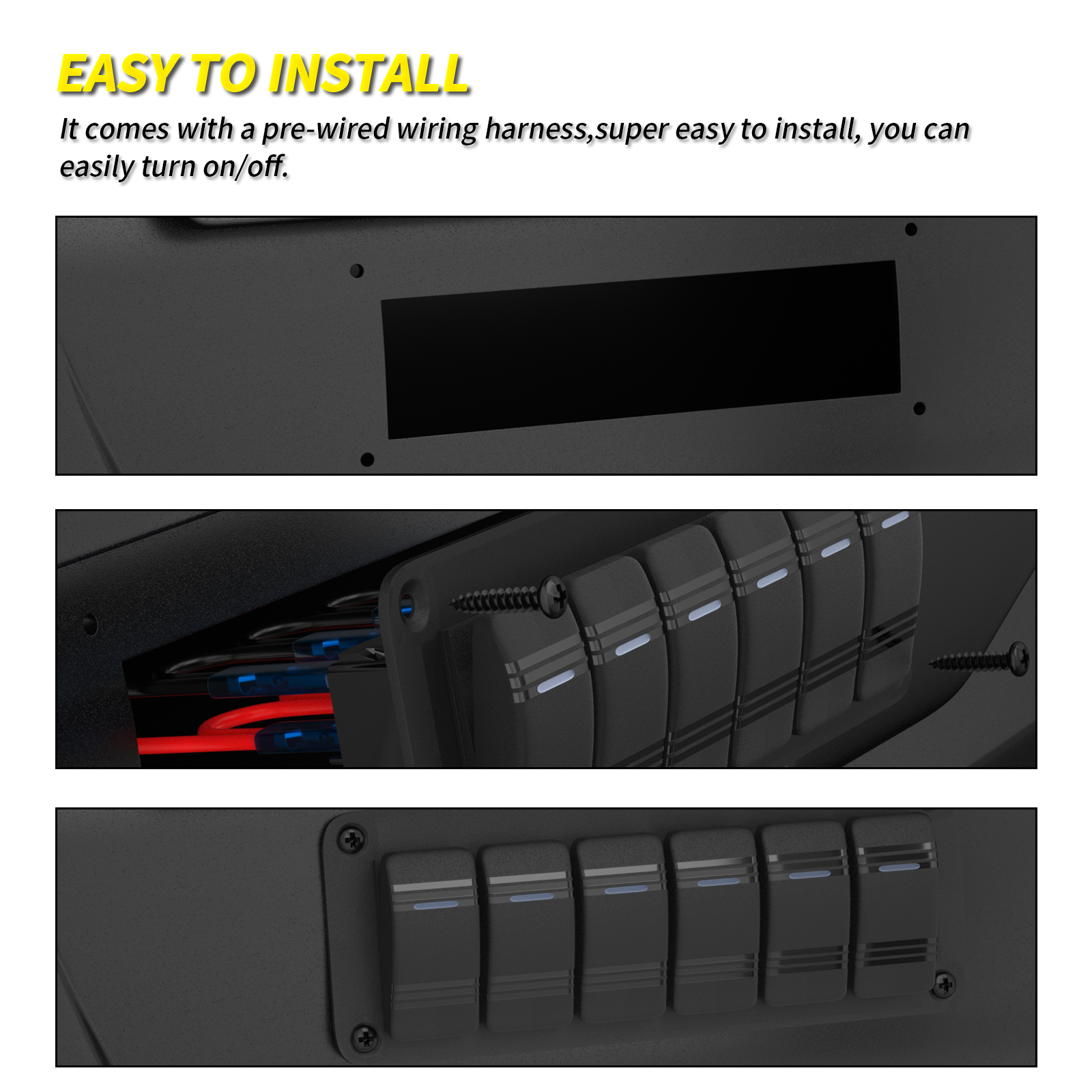

- Easy installation

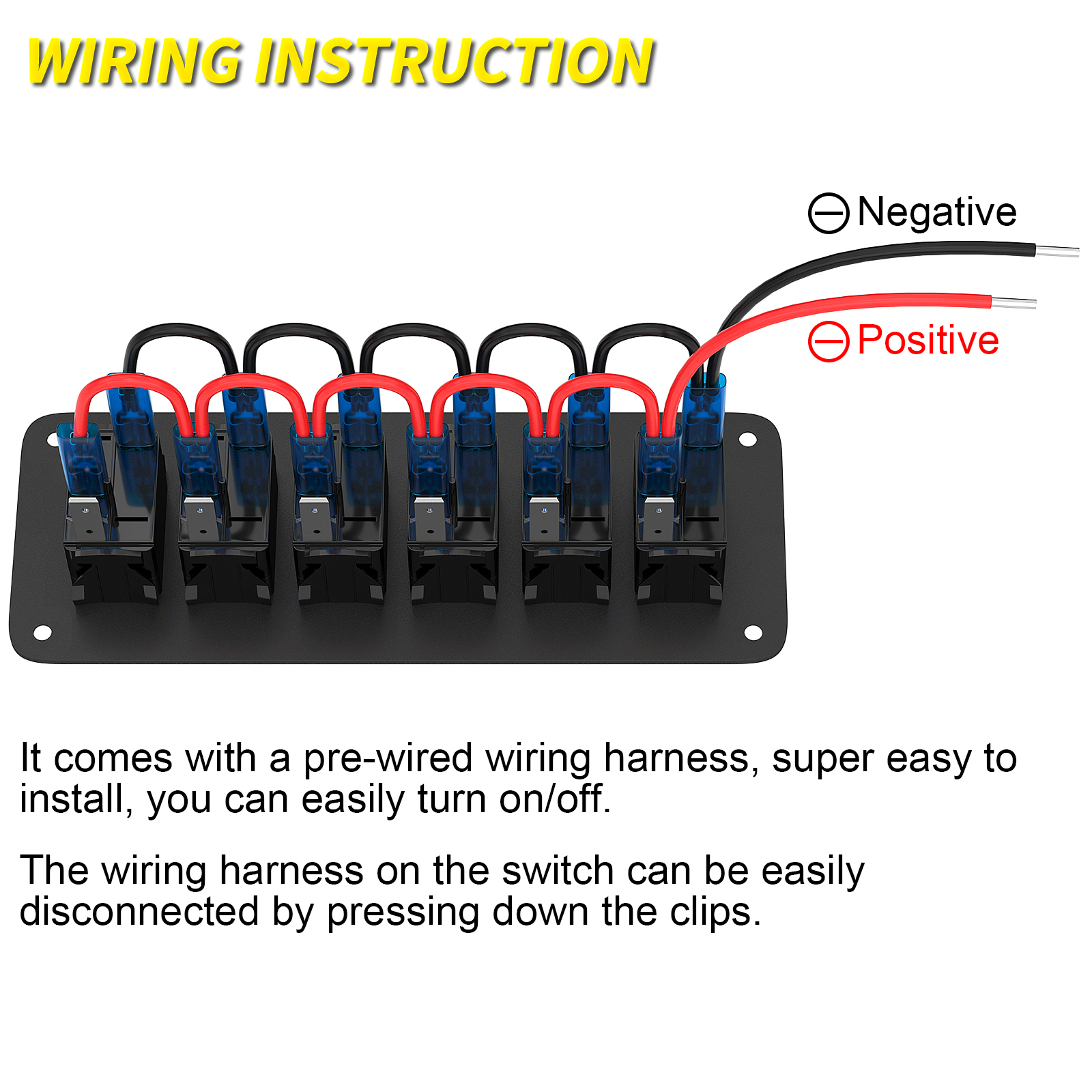

This switch panel features a pre-wired design that makes it easy to connect wires for your vehicle. The wiring harness on the switch can be easily disconnected by pressing down the clips, the blade will not be pulled out and damage the switch.
- Water Resistant
This switch panel features an IP65 waterproof-rated rocker switch and splash-proof panel that is well adapted to the marine environment.
- Luminous DIY Stickers
The luminous multiple logo stickers are made of high-quality luminous material, using the principle of light storage, the sticker absorbs light and can be seen in a dark environment.
- Widely Application
This switch panel is suitable for 12-24V DC systems and is commonly used in automobiles, ATVs, UTVs, RVs, boats, etc.
PN-1816-A11813ABL Datasheet
Material | Aluminum, ABS, and PC |
Installation | Pre-wired |
Mounting Type | Panel Mount |
Operation Mode | SPST (Single Pole Single Throw), ON/OFF |
Panel Size | 7″‘x2.75”x2.6” (L x W x H) |
Operating Voltage | 12V / 24V DC |
Operating Current | 20 amp / 10 amp |
Operating Temperature | -40℃~+85℃ |

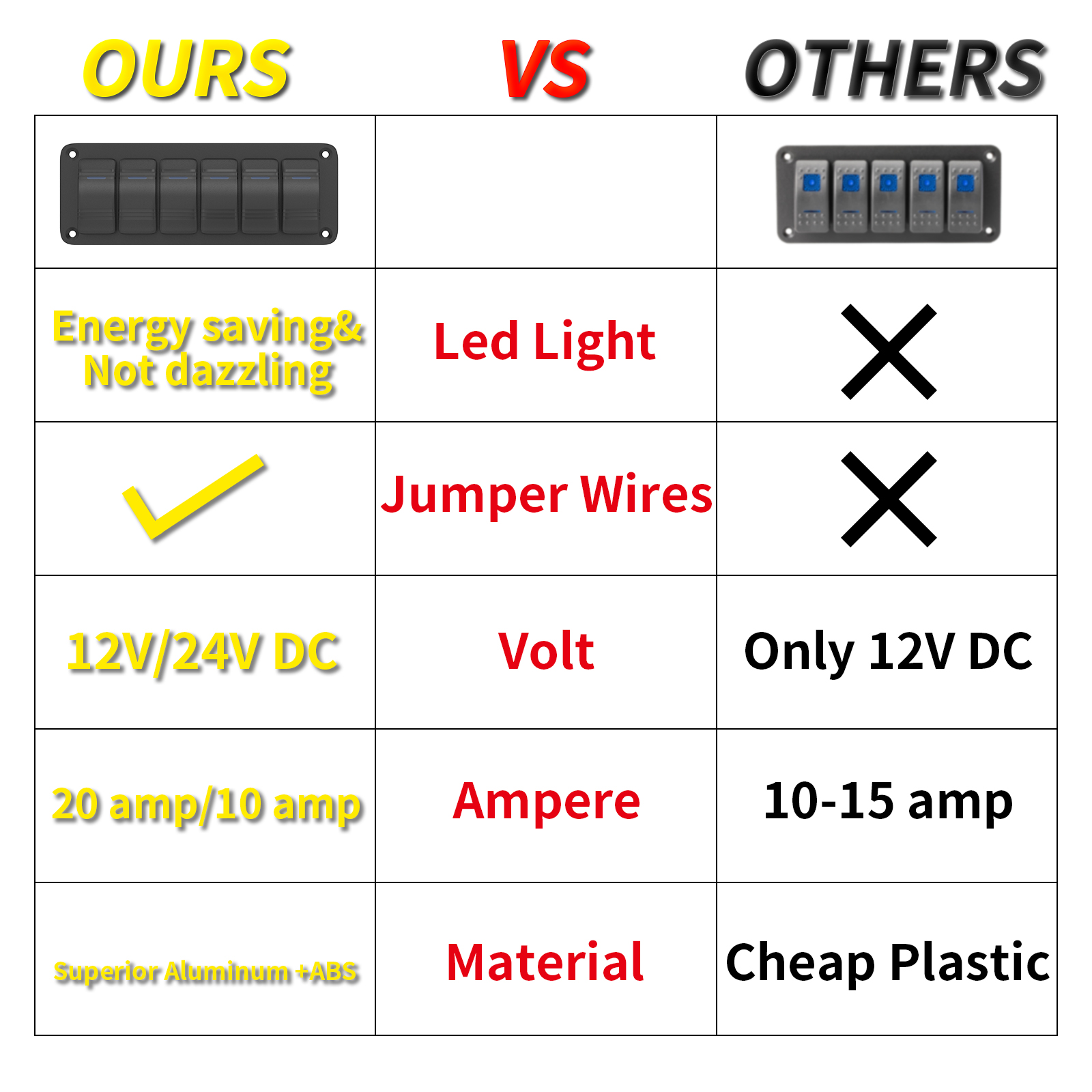

Compare with the Same Type of Switch
Still, have a question about the PN-1816-A11813ABL that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!

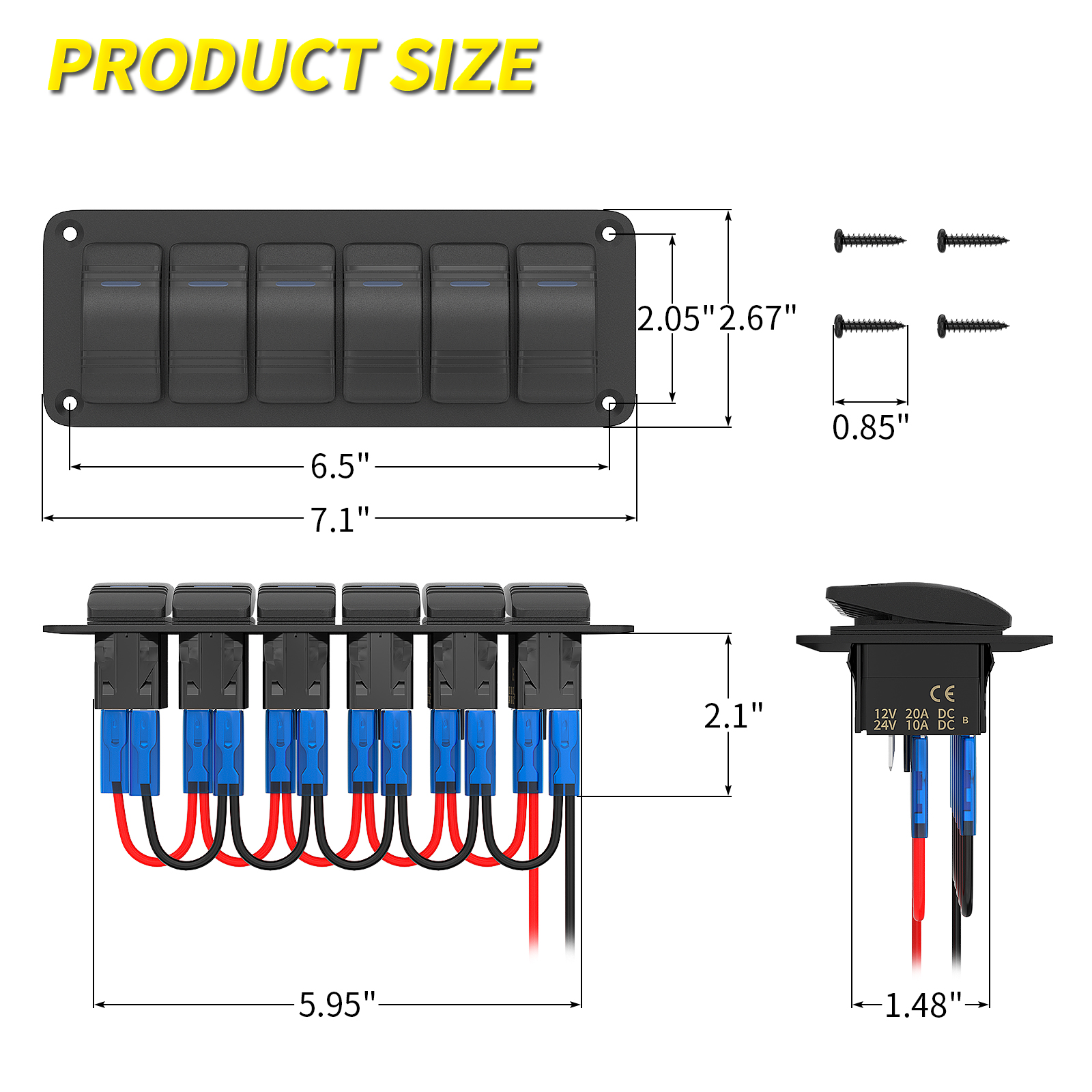

PN-1816-A11813ABL 6 Gang Rocker Switch Panel Dimensioned Drawing
