PN-SAC2 3 in 1 12V Race Car Switch Panel Kit
Part#PN-SAC2

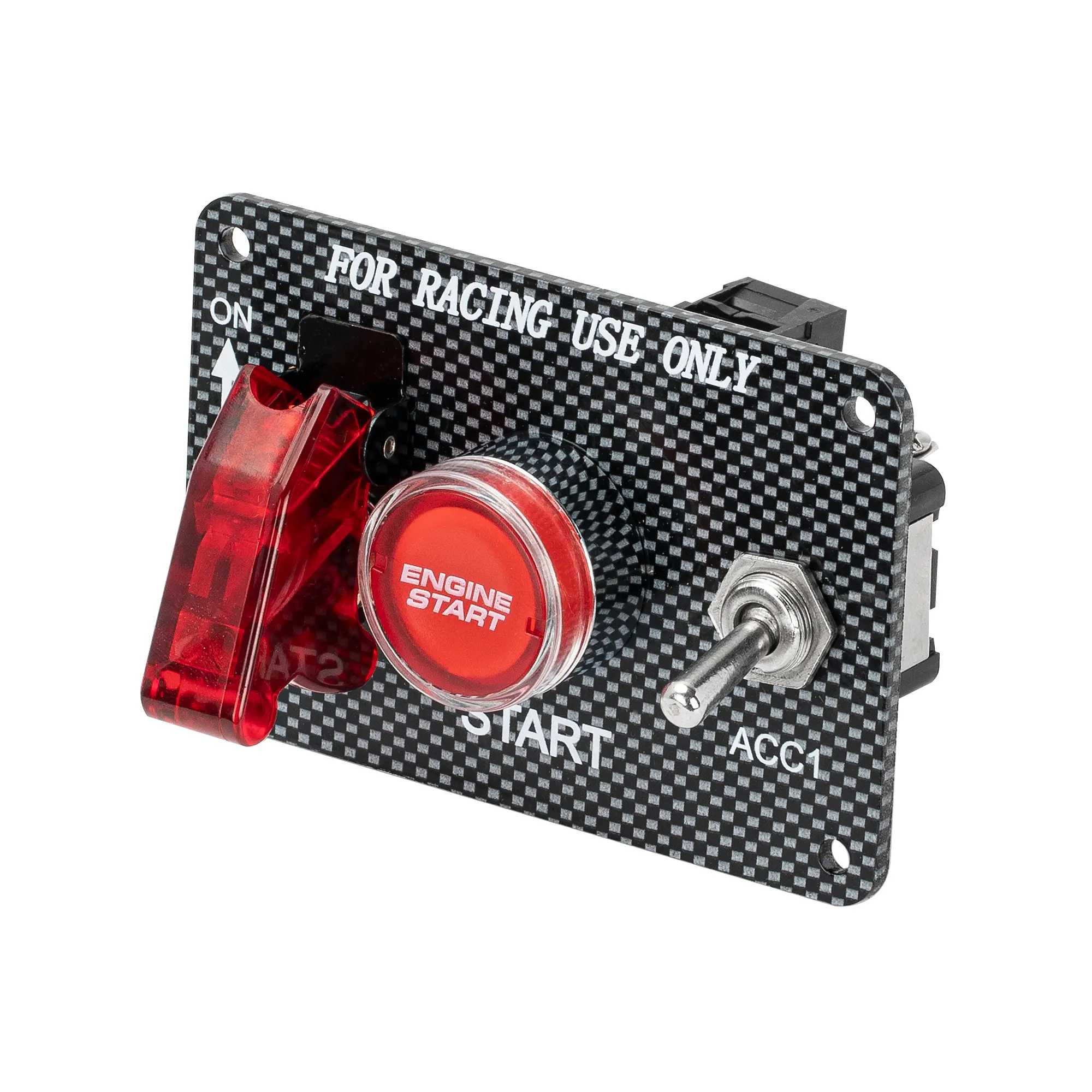

The 3-in-1 race car switch panel kit, Rating: 12V DC, 20Amp and includes 1 x ignition switch panel, 3 x wires (Black, Red, Blue), 1 x relay, and 4 x screws.
It uses a Pre-drilled mounting hole design, the mounting hole size: 0.3 cm / 0.12″, and panel size: 100 x 95 x 66 mm / 3.94″x3.74″x2.60″(L*W*H).
Category :
Switch PanelPN-SAC2 Race Car Switch Panel Kit Details
- Material
High-quality carbon fiber patterned plate, durable and comfortable to touch, pre-drilled mounting holes.
- Voltage and Current
12V, 20A ignition switch. Red LED toggle switch with black airplane-style cover to power off the entire vehicle in an instant.
- Design
Pre-drilled mounting holes are designed for easy installation. Mounting hole size: 0.3 cm/0.12 inch.
- Widely Application
Universal use for racing cars, trucks, RVs, boats, yachts, etc. Car ignition switch for racing cars, and RVs. It can also be used as a starter switch, battery switch, chassis light, fog light, or dome light switch.
PN-SAC2 Toggle Switch Datasheet
| Rating | 20A 12V DC |
| Contact Resistance | 50m ohm Max. |
| Insulation Resistance | DC 500V 100M ohm Min. |
| Dielectric Strength | AC 1500V 1 minute |
| Operation Temperature | -20℃ ～+85℃ |
| Switch Function | 3P SPST ON-OFF(LED Red) |
PN-SAC2 Starter Switch Datasheet
| Rating | 50A 12V DC |
| Contact Resistance | 50m ohm Max. |
| Insulation Resistance | DC 500V 100M ohm Min. |
| Dielectric Strength | AC 1500V 1 minute |
| Operation Temperature | -25℃ ～+85℃ |
| Switch Function | 3P SPST (ON)-OFF (LED Red) |
| LED Lens Color | ∅5 White diffuse |
| VF/IF | 3.7V/20mA |
| Frame | Nylon 66 (94V-2), Black |
| Cover | ABS(94HB) |
| Terminals | Copper Alloy |
| Actuator | PC (94V-2), Red |
PN-SAC2 Dimension Drawing
Still, have a question about the PN-SAC2 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
PN-SAC2 Race Car Switch Panel Size
