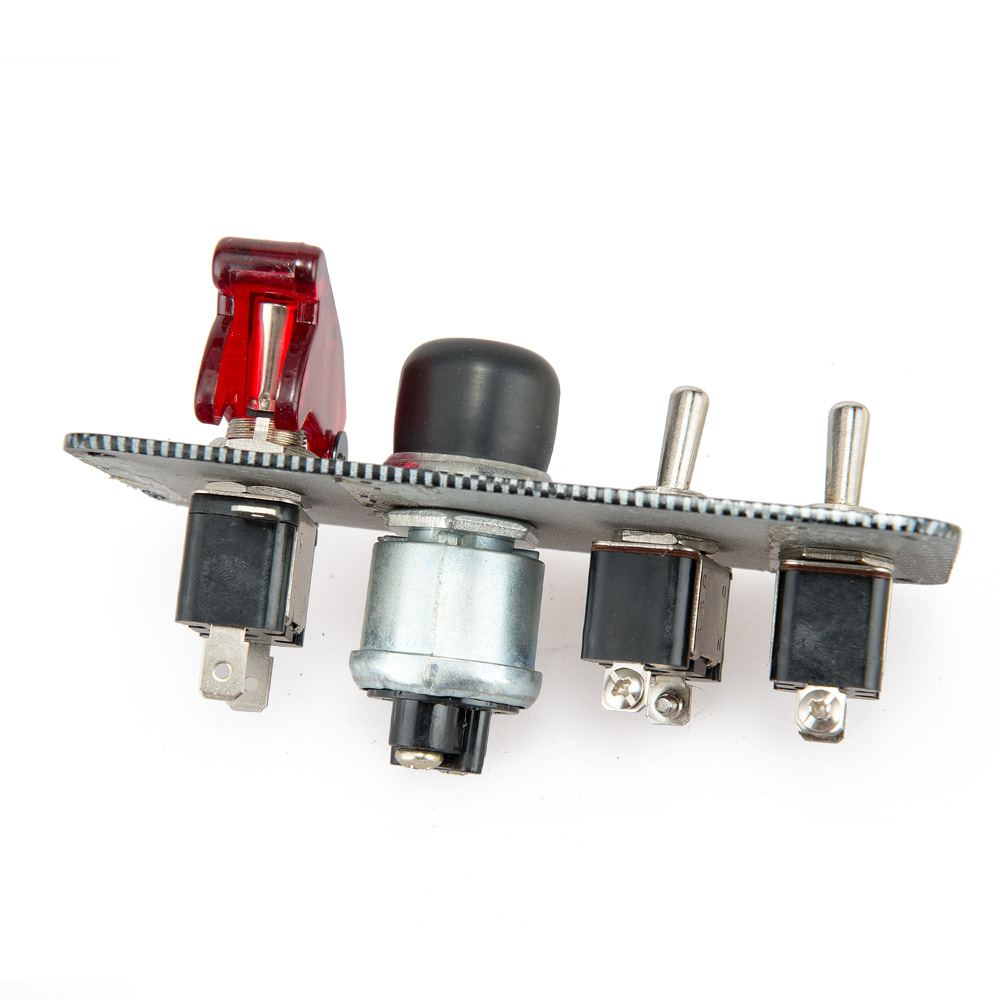

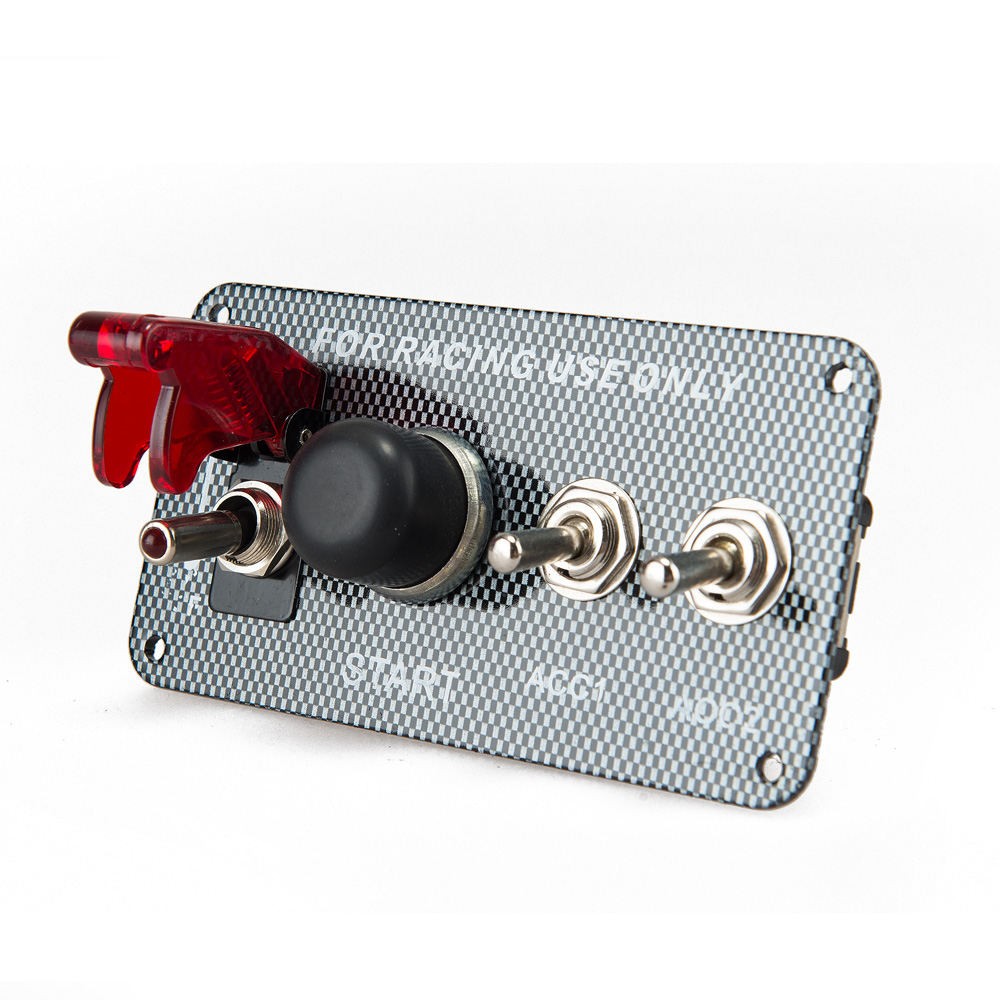

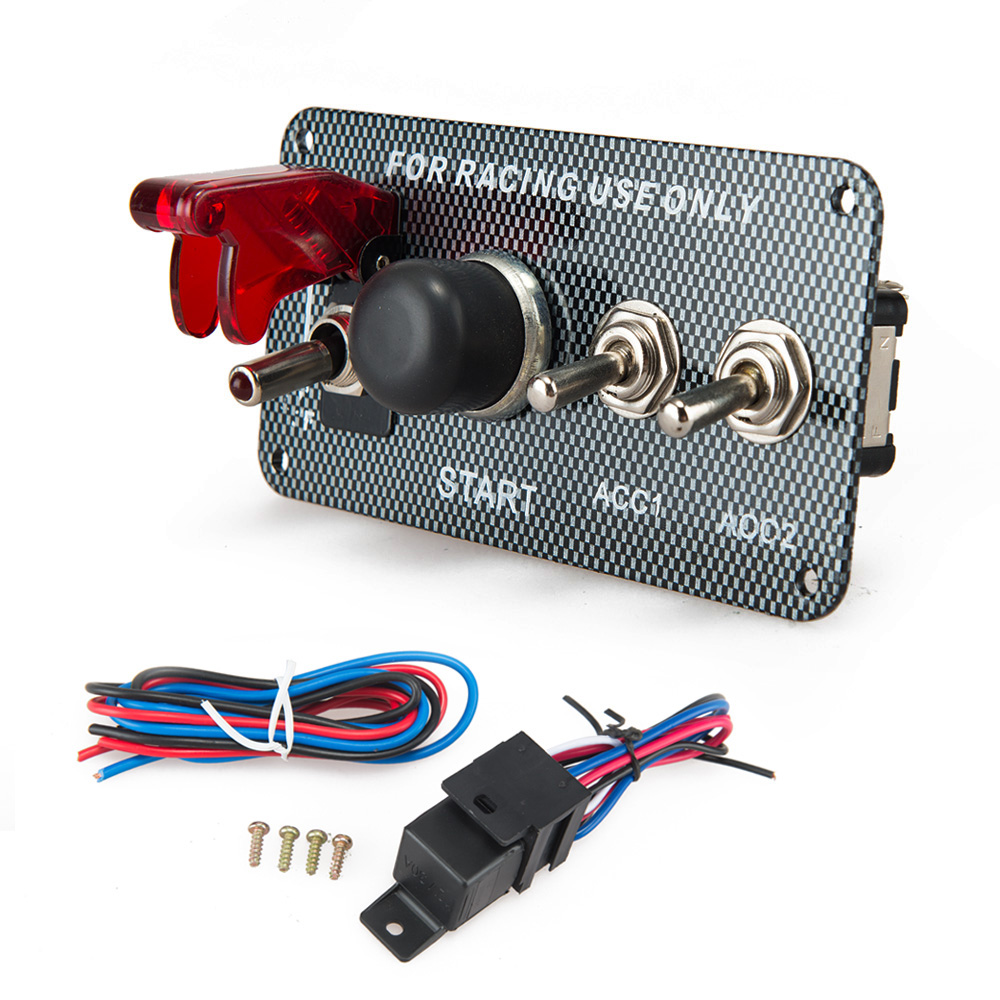

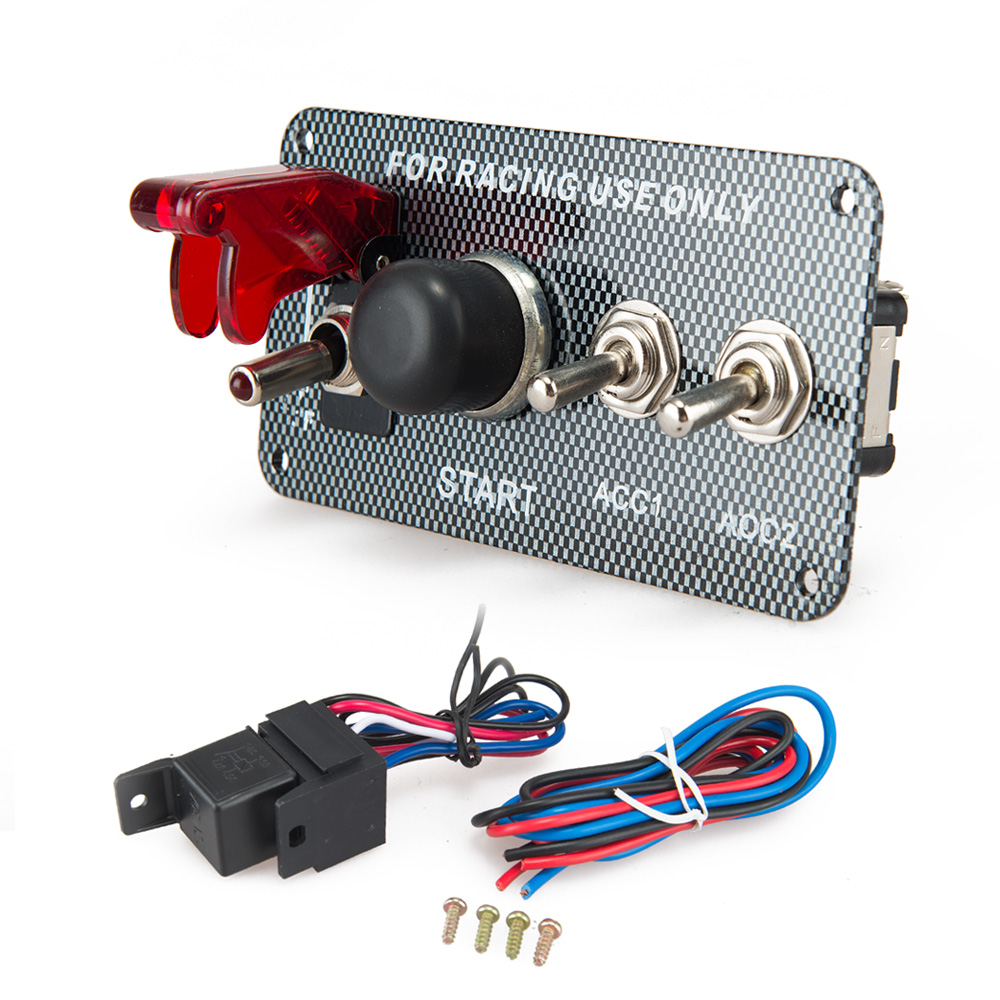

PN-SAC4-B05 4 in 1 Ignition Switch Panel with Engine Push Button and LED Toggle Switch
Part#PN-SAC4-B05
The 4 in 1 ignition switch panel, operating voltage: 12V DC and includes 2 x toggle switches, 1 x engine starter switch, and 1 x red LED toggle switch.
This racing switch panel features extreme racing style and quality construction with versatile features and easy installation.
PN-SAC4-B05 4 in 1 Ignition Switch Panel Details
- All-in-One Ignition Control
Experience advanced control with our 4-in-1 ignition switch panel featuring an engine push button and LED toggle switch. This panel combines multiple functionalities into a single, sleek unit, streamlining your vehicle’s control interface.
- Effortless Engine Start
The integrated engine push button in this ignition switch panel provides a convenient and stylish way to start your vehicle. Enjoy the ease of initiating your engine with a simple push, adding both functionality and a modern touch to your driving experience.
- Durable and Stylish Design
Crafted with durability and style in mind, this ignition switch panel is not only a functional addition but also enhances the aesthetics of your vehicle’s interior. The sleek design and quality materials contribute to a polished and professional appearance.
- Versatile Applications
Suitable for a range of vehicles including cars, trucks, boats, and more, this ignition switch panel is a versatile solution for those seeking a consolidated and efficient control center. Upgrade your vehicle’s dashboard with this all-in-one ignition control unit for enhanced performance and style.
PN-SAC4-B05 4 in 1 Ignition Switch Panel Datasheet
| Part NO | PN-SAC4-B05 |
| Type | 4 in 1 Ignition Switch Panel |
| Toggle Switch Function | SPST ON OFF |
| Toggle SwitchTerminals | 3 Pins |
| LED Color | Red LED |
| Relay Rate | 30A/40A 12V |
| Rating | 30A 12V |
| Plate Material | Aluminum |
PN-SAC4-B05 Toggle Switch Datasheet
| Rating | 20A 12V DC |
| Contact Resistance | 50m ohm Max. |
| Insulation Resistance | DC 500V 100M ohm Min. |
| Dielectric Strength | AC 1500V 1 minute |
| Operation Temperature | -20℃ ～+85℃ |
| Switch Function | 3P SPST ON-OFF(LED Red) |
PN-SAC4-B05 Engine Starter Switch Datasheet
| Rating | 50A 12VDC |
| Function | Momentary |
| Contact Type | 1NO SPST |
| Terminal | 2 Pins |
| Terminal Type | Screw Terminal |
