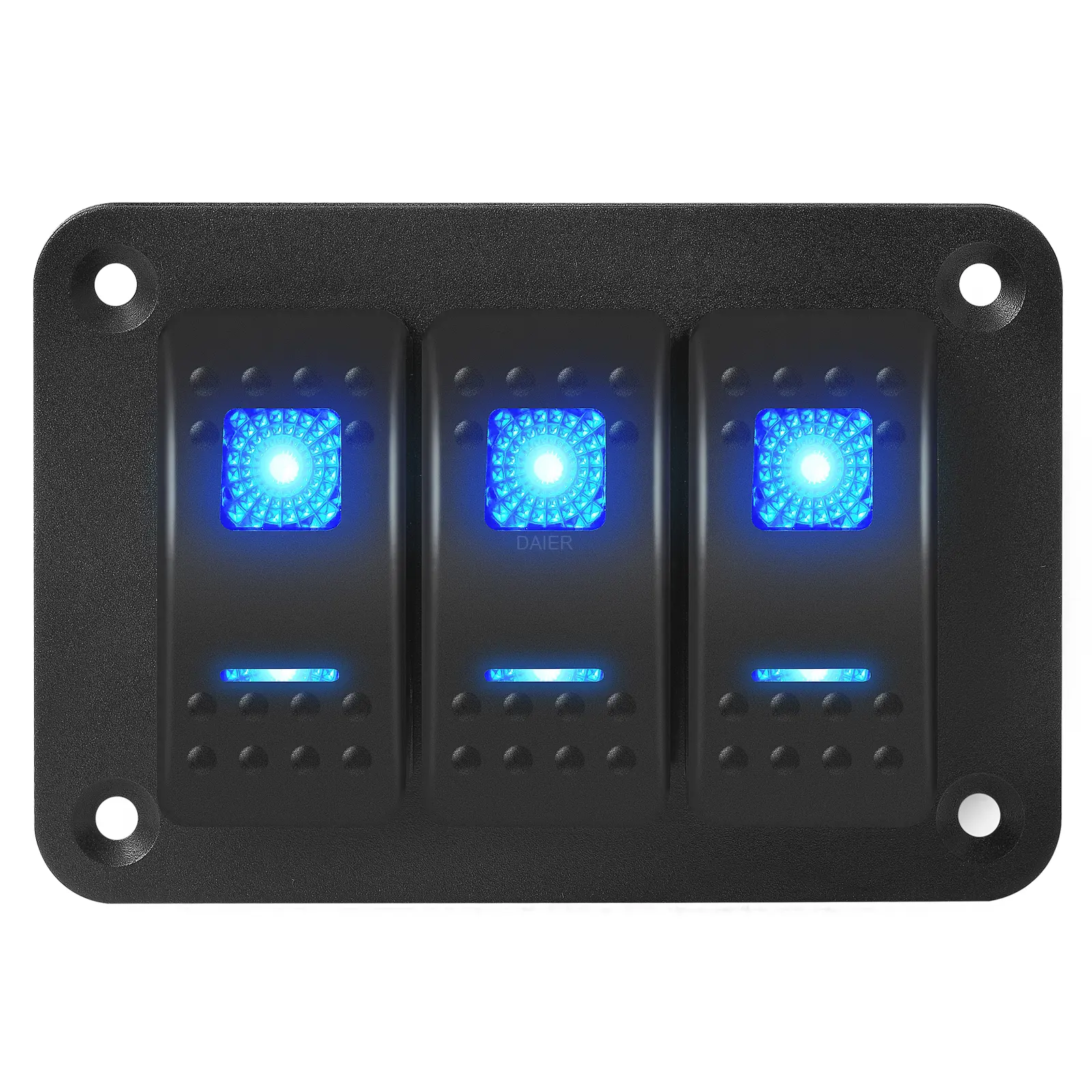

PN-1813 Waterproof 3 Gang Aluminum 5 Pin ON/OFF 12V Switch Panel with Pre-Wired
Part# PN-1813
The waterproof 3 gang 12V switch panel used for 20A 12V / 10A 24V systems, 3×rocker switch, ON-OFF, SPST, 5 Pin, and IP65 with pre-wired.
Rocker switch panel with pre-wired wiring harness for you to easily install in both 12V and 24V vehicles, yachts, ships, caravans, trucks, etc.
Category :
Switch Panel
PN-1813 3 Gang Waterproof 12V Switch Panel Details
- Switch Type
The 12-volt marine rocker switch panel features a robust SPST 5-pin design, complete with a vibrant blue LED illumination for easy visibility.
- Dual LED
This 3-gang rocker switch panel boasts a dual LED setup. The lower LED provides constant illumination, aiding in locating switches during low-light conditions. Meanwhile, the upper LED indicates the switch’s status, ensuring you can easily discern its position.
- Waterproof Design
Designed with waterproofing in mind, this marine toggle switch panel is suitable for both automotive and marine applications. Its waterproof construction ensures durability even in wet conditions.
- Customizable Labeling
Included with this 12V switch panel is a transparent label sticker sheet. It contains 50 different symbol stickers, allowing you to customize the marine switch panel to your specific needs. Personalize it for optimal functionality.
Safety Protection – The switch panel has a built-in fuse, which is easy to replace and prevents overheating, overcurrent, and short circuit.
Strong Durability – The switch panel is made of reinforced aluminum plate and pins with good conductivity to ensure its durability.
Visual Feedback – Illuminated toggle switches operate at 12 volts DC and light up to provide visual feedback of your circuit operation.
Water Resistance – The switch panel adopts waterproof marine switches and a splash-proof panel, which can be well adapted to the marine environment.
Wide Application – This switch is suitable for 12v-24v systems and widely applicable for cars, TV/ATV, trucks, trailers, RV, boats, yachts, etc.
PN-1813 12V Switch Panel Datasheet
| Rating | 12V 20A/24V 10A |
| Function | SPST 5PIN ON/OFF |
| Installation | Pre-wired |
| Material | ABS, Nylon, Aluminum |
| Waterproof grade | IP65 |
| Operating Temperature | -25℃~+85℃ |
| LED Color | Green/Red/Blue |
Other products with different specifications: PN-1812, PN-1814, PN-1815, PN-1816, and PN-1818.
