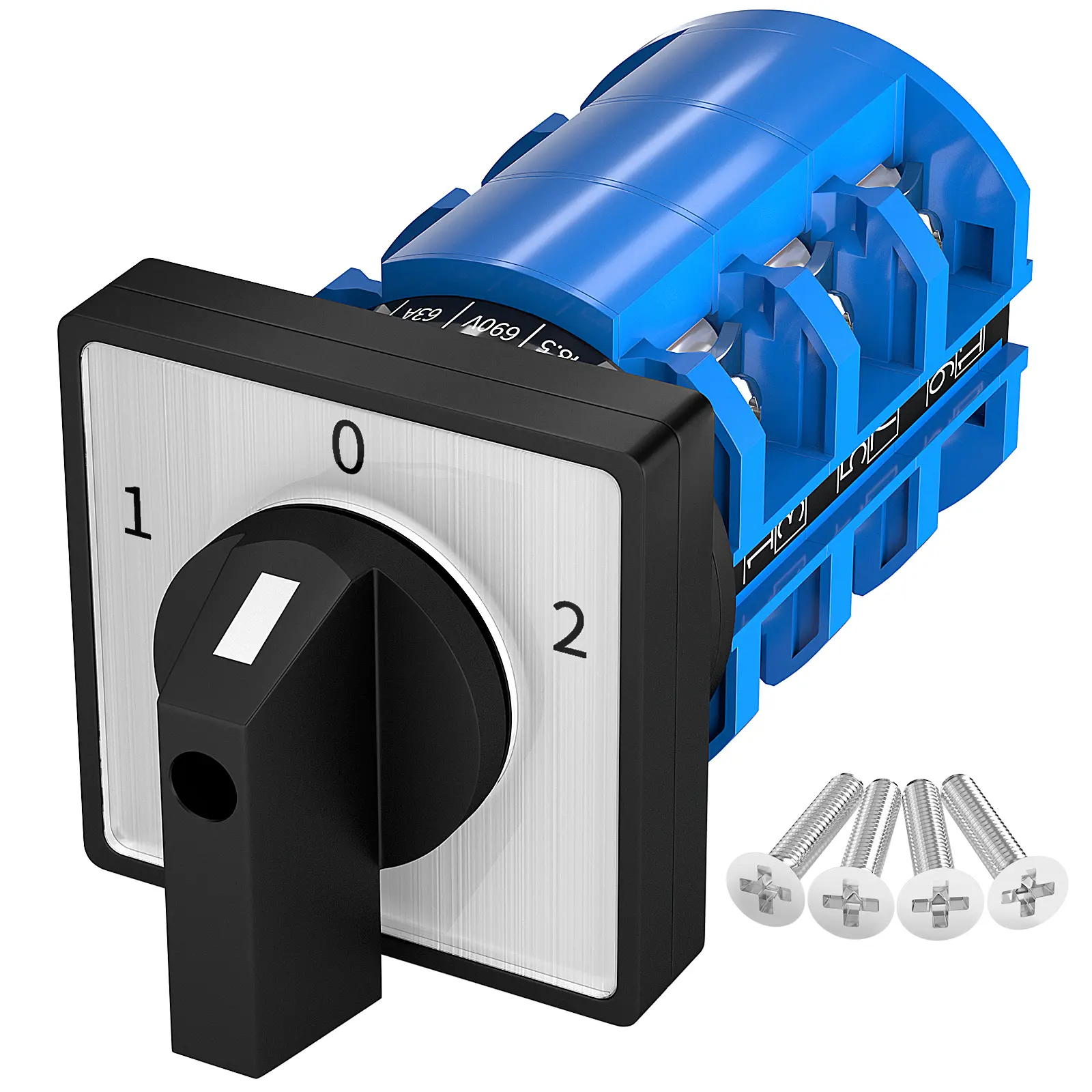

LW26-63/3 3 Position Cam Rotary Changeover Switch
Part#LW26-63/3
The rotary changeover switch is a 3-position 12 terminal cam switch with a latching ON/OFF/ON (1-0-2) design. Ui: 690V, Ue: 440V AC, Ith: 63A.
It is an ideal choice for electrical wiring in the power switches, speed switches, and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.
LW26-63/3 3 Position Cam Rotary Changeover Switch Details
- Safety Protection
This selection changeover switch is made of flame-retardant PC material that has good insulation and high-temperature resistance. With flexible handle conversion, easy control with rotary selector, and easy installation with square plate and screws.
- Sturdy & Durable
High-quality copper parts with silver alloy points make it not easy to slide and have strong thermal conductivity. The quality and service life of the toggle switch are improved and durable to use.
- Technical Specification
The Universal Rotary switch is a 3-position 12 terminal rotary switch with a latching ON/OFF/ON (1-0-2) design. Ui: 690V, Ith: 63A, Ue: 440V AC. Image 3 has shown which terminal will be connected in different positions, please read the wiring diagram as a reference.
- Widely Application
This rotary changeover switch is very suitable for the electrical wiring of power switches, speed control switches, induction motors, and also for control circuit switching.
LW26-63/3 Datasheet
| Rated Voltage | Ui: 690V, Ue: 440V AC, Ith: 32A |
| Position | 1-0-2, 3 Position |
| Terminal Quantity | 12 |
| Frequency | 50Hz |
| Action Type | Latching |
| Positioning Angle | 60-0-60 Degree |
| Panel Size | 65 x 65 mm |
LW26-63/3 Dimension Drawing
Still, have a question about the LW26-63/3 that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com!
