RS16 Rotary Selector Switch

Category :

Rotary Switch

RS16 series rotary selector switch:

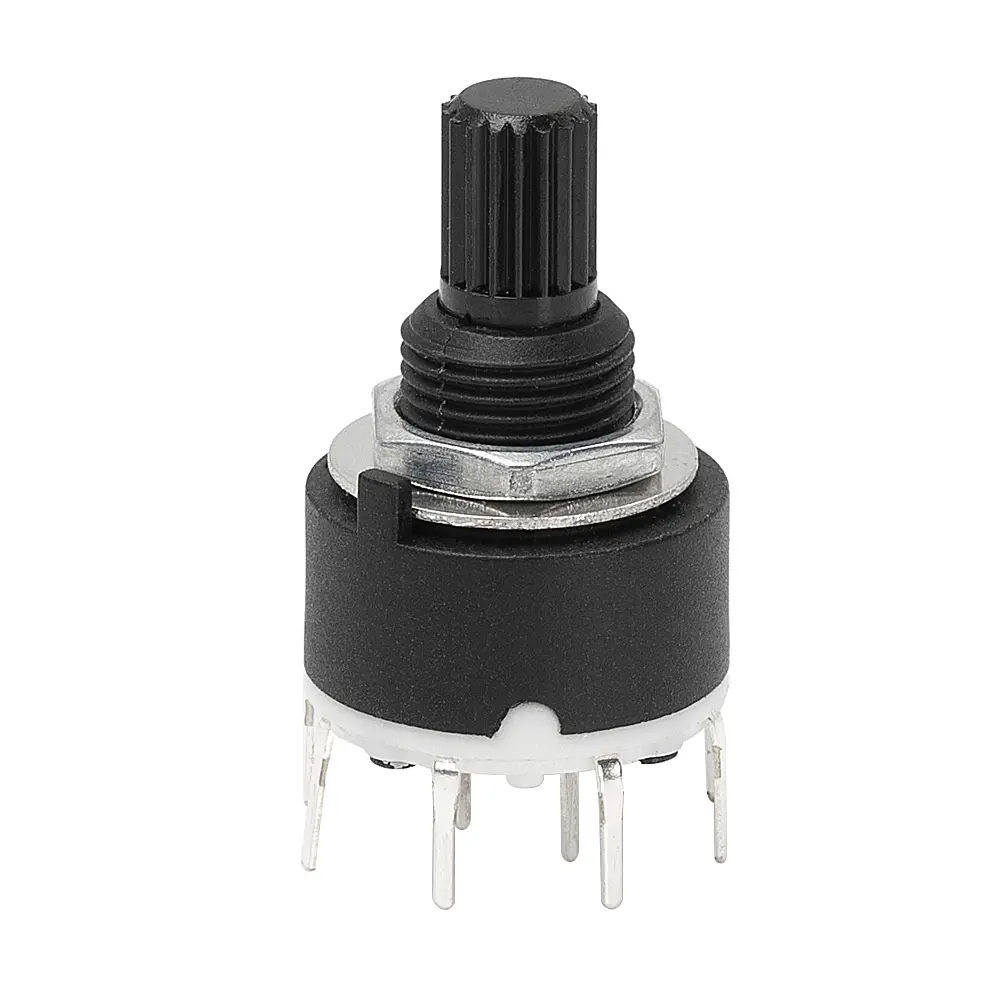

This is our RS16 rotary selector switch.
They can be made with PCB terminal.
They also can be made with different poles.
It is most popular used in audio equipment.

Many of our rotary switches are MIL qualified to exacting electrical, mechanical and environmental standards. We offer many options including isolated positions, spring returns, adjustable stops, concentric shaft switches and configurable keylock switches. Standard rotaries can be configured with solder lug termination, PC termination, various angles of throw and multiple poles.

How to order:

RS1618 –15 V P

  • RS: Rotary Selector Switch
  • 16: Product Order
  • 1: Poles (1P: 1 pole, 2P: 2 poles)
  • 8: Positions (8: 8T, 4: 4T)
  • 15: Length of Shaft (15: L=15mm; 20: L=20mm; 25: L=25mm)
  • V: Shaft Options (V: 18teeth shaft)
  • P: Terminal Options (P: PCB terminal)

For example, RS16-1-8-15VP, it is 1 pole 8 positions with 15mm 18teeth shaft and PCB terminal rotary switch.

Pls check the datasheet below:

Rating: 0.3A 125VAC;0.15A 250VAC Operating Temperature: -25℃~+85℃
Contact Resistance: ≤20mΩ Rotation Torque: 1.0+/-0.5 kgf
Insulation Resistance: 100mΩ min(500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1000VAC 1 minute OEM or ODM: Available
