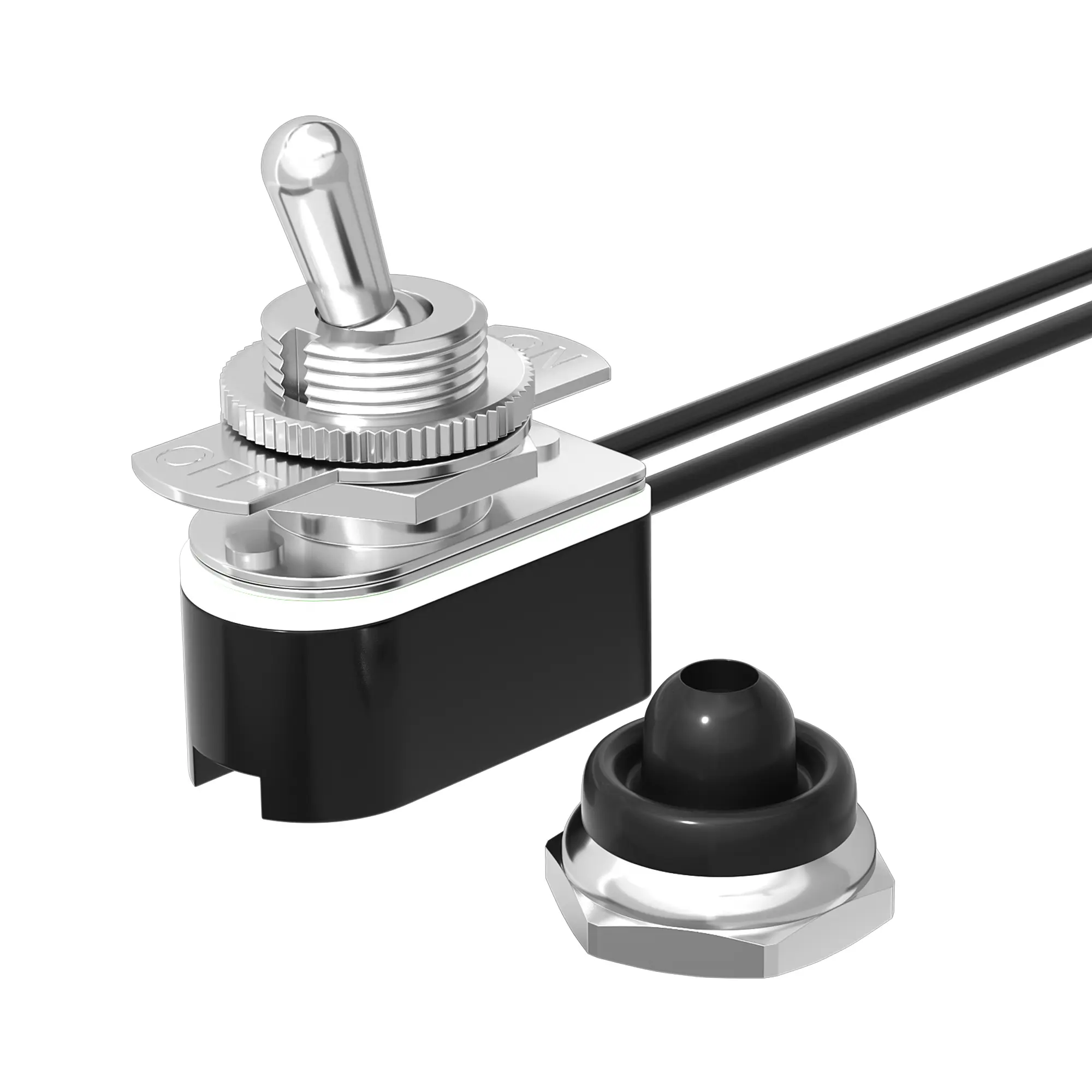

KNS-1+WPC-10 Waterproof 10A 12VDC SPST 2 Pin ON-OFF Medium Toggle Switch with Wires

Part#KNS-1+WPC-10

The 10A 12VDC SPST 2-Pin ON-OFF medium toggle switch with wires is a highly durable and versatile electrical switch with a waterproof rubber cap for easier use.

With a waterproof rating, it operates efficiently in challenging conditions and boasts a mechanical lifespan exceeding 50,000 cycles, making it a reliable choice for various applications.

KNS-1+WPC-10 10A 12VDC SPST 2 Pin ON-OFF Medium Toggle Switch Details

  • Rugged Durability

This waterproof toggle switch boasts impressive durability with a rating of 250V 3A (AC) and 12V 10A (DC), featuring a robust SPST 2-pin ON/OFF configuration. It’s engineered for longevity, with a mechanical lifespan exceeding 50,000 cycles and an electrical lifespan surpassing 20,000 cycles.

  • Premium Construction

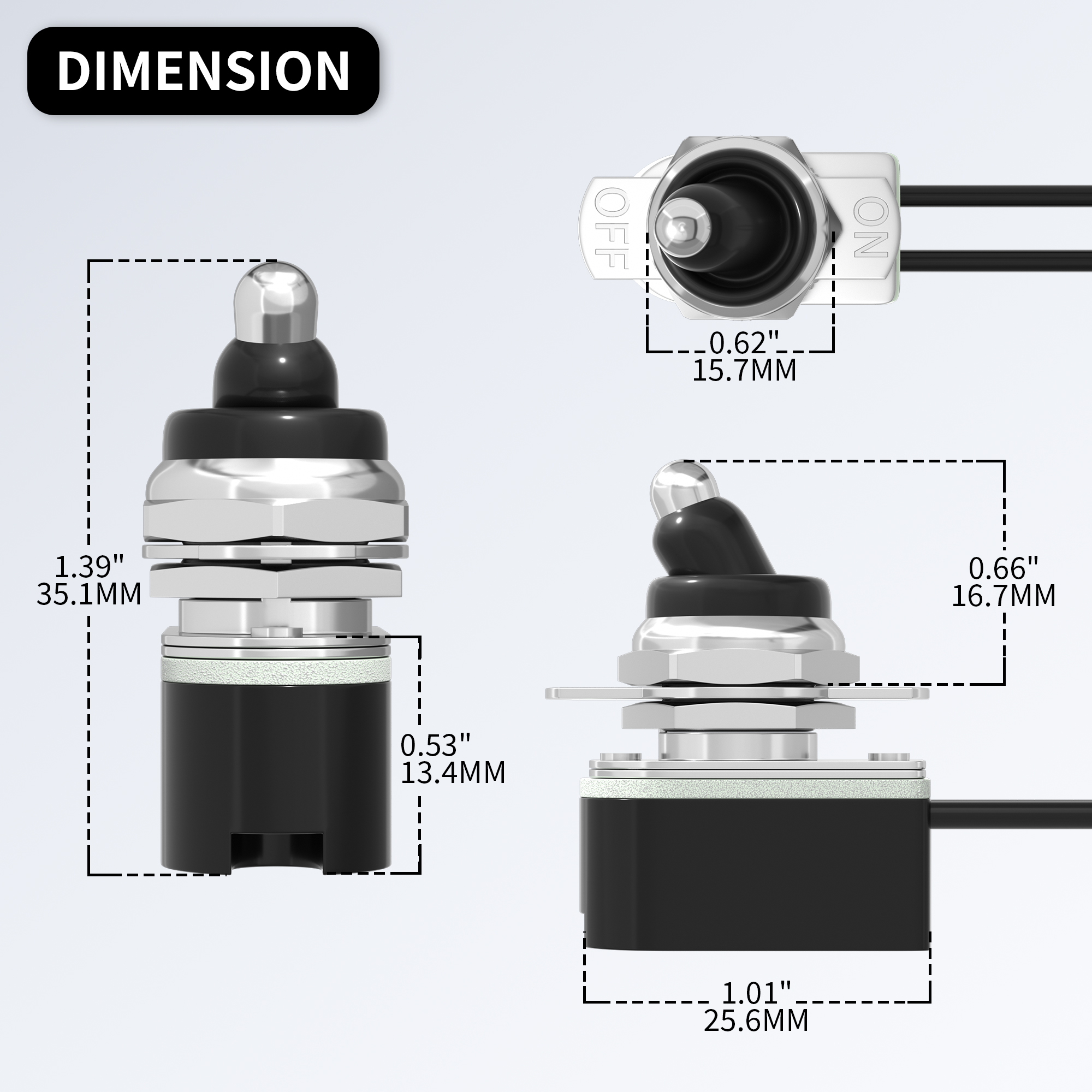

 Crafted from a blend of metal and plastic, this high-quality marine toggle switch comes equipped with 6-inch leads for added convenience. Its 12mm mounting hole diameter ensures easy installation and contributes to its extended service life.

  • Waterproof Shield

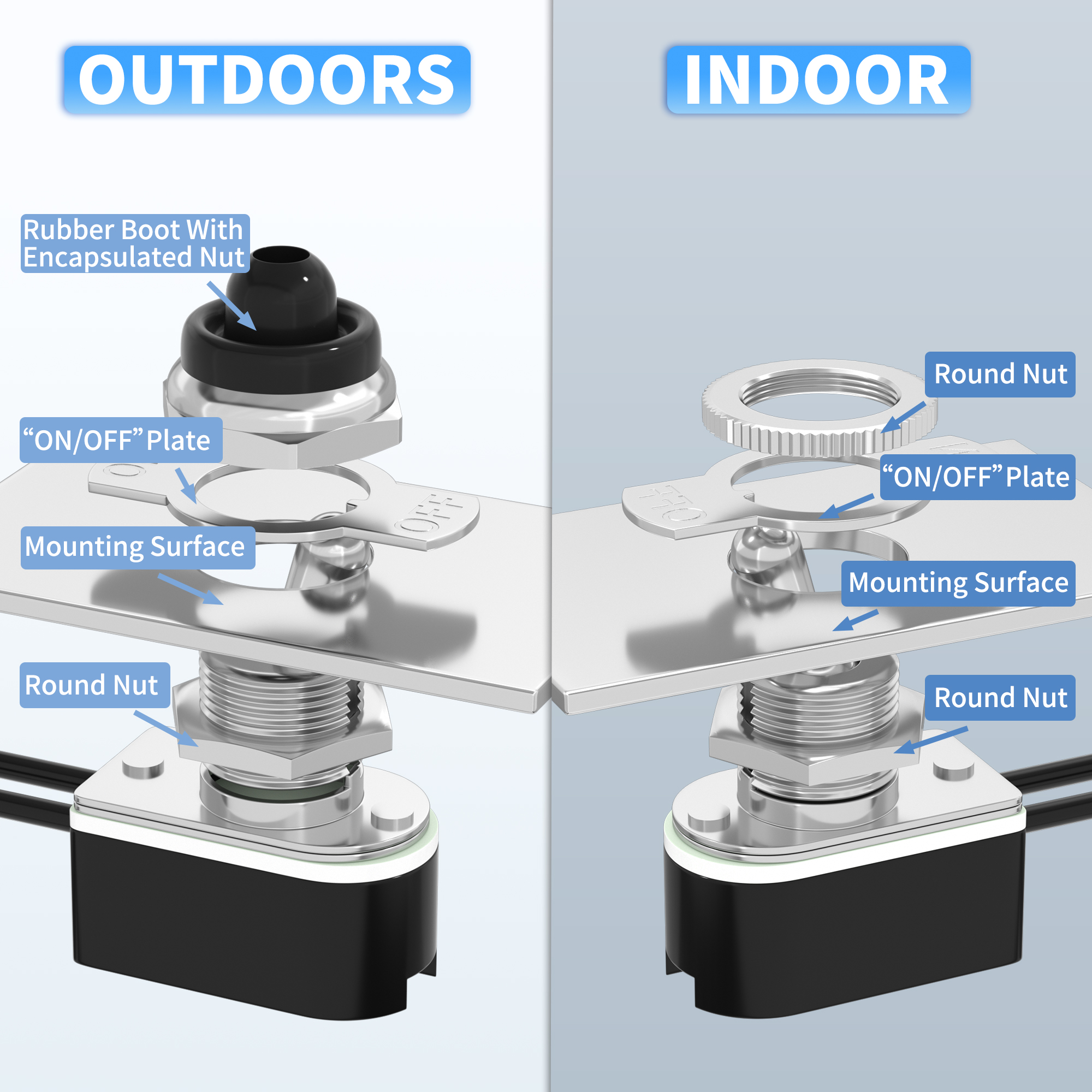

Designed to withstand challenging conditions, the included waterproof rubber cover effectively shields the switch from the intrusion of liquids and dust, safeguarding it from potential damage. Installation is a breeze, requiring only a straightforward tightening along the thread direction.

  • Versatile Utility

This SPST toggle switch finds application across a wide spectrum of uses, including automobiles, boats, yachts, household appliances, industrial machinery, and automation equipment. Its adaptability makes it a versatile choice for various settings.

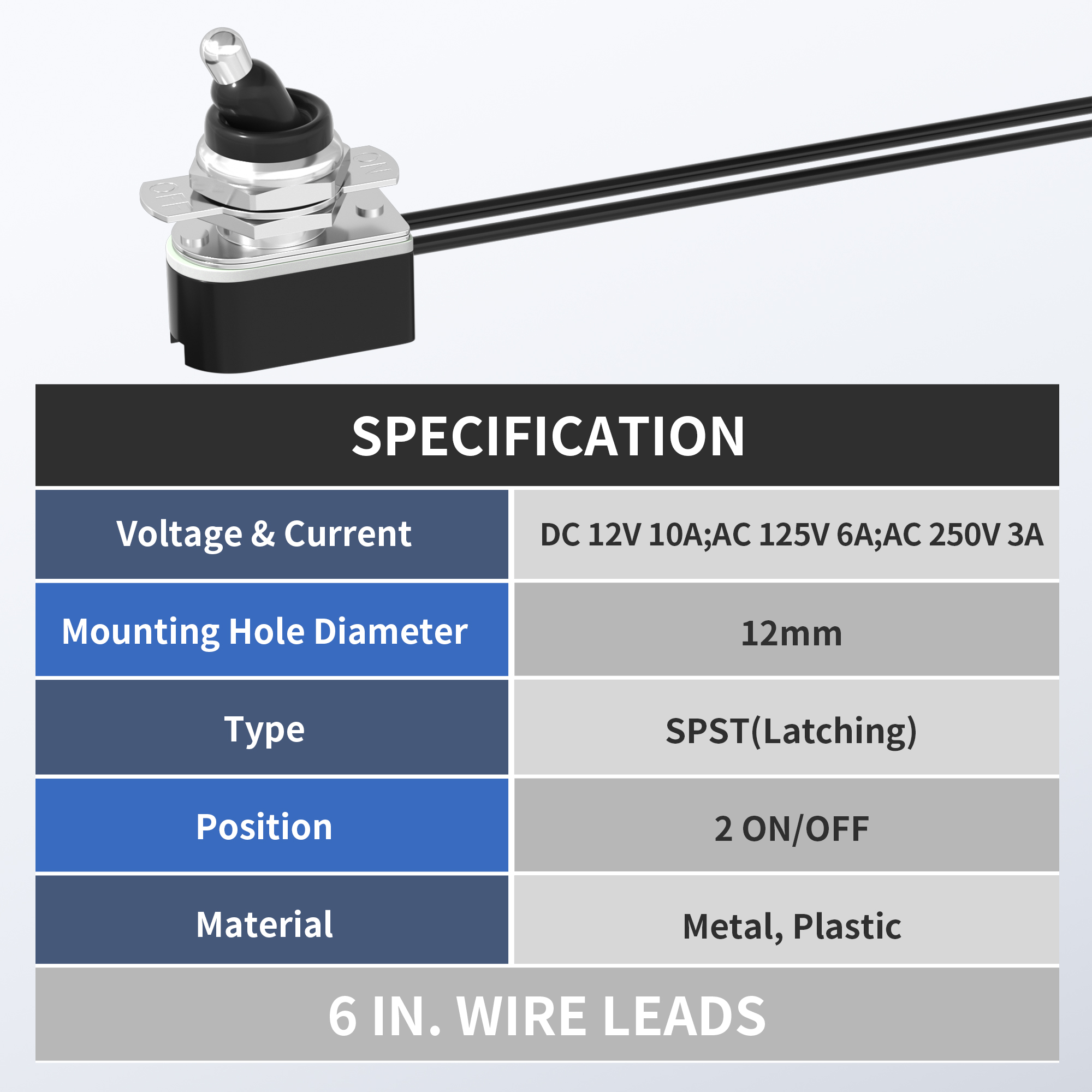

KNS-1+WPC-10 10A 12VDC SPST 2 Pin ON-OFF Medium Toggle Switch Datasheet

Housing: Bakelite Lever: Brass with Nickel plated
Terminal: Brass with sliver plated Contact & Operation: ON-OFF/(ON)-OFF
Rating: 6A 125VAC/3A 250VAC/10A 12VDC Contact Resistance: 50mΩ max
Electrical Life: ≥ 10,000 Cycles Mechanical Life: ≥ 100,000 Cycles
Dielectric strength: 1500VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1000mΩ min (500VDC) OEM or ODM: Available

If you have any unanswered questions about the product or would like more information, we encourage you to reach out to us via email at sales1@chinadaier.com or through our live chat. We are here to assist you and provide the information you need.
