KCD3-4-103/123 16A/250V 20A/125V Latching/Momentary ON-OFF-ON 3 Position SPDT Rocker Switch
Part#KCD3-4-103/KCD3-4-123

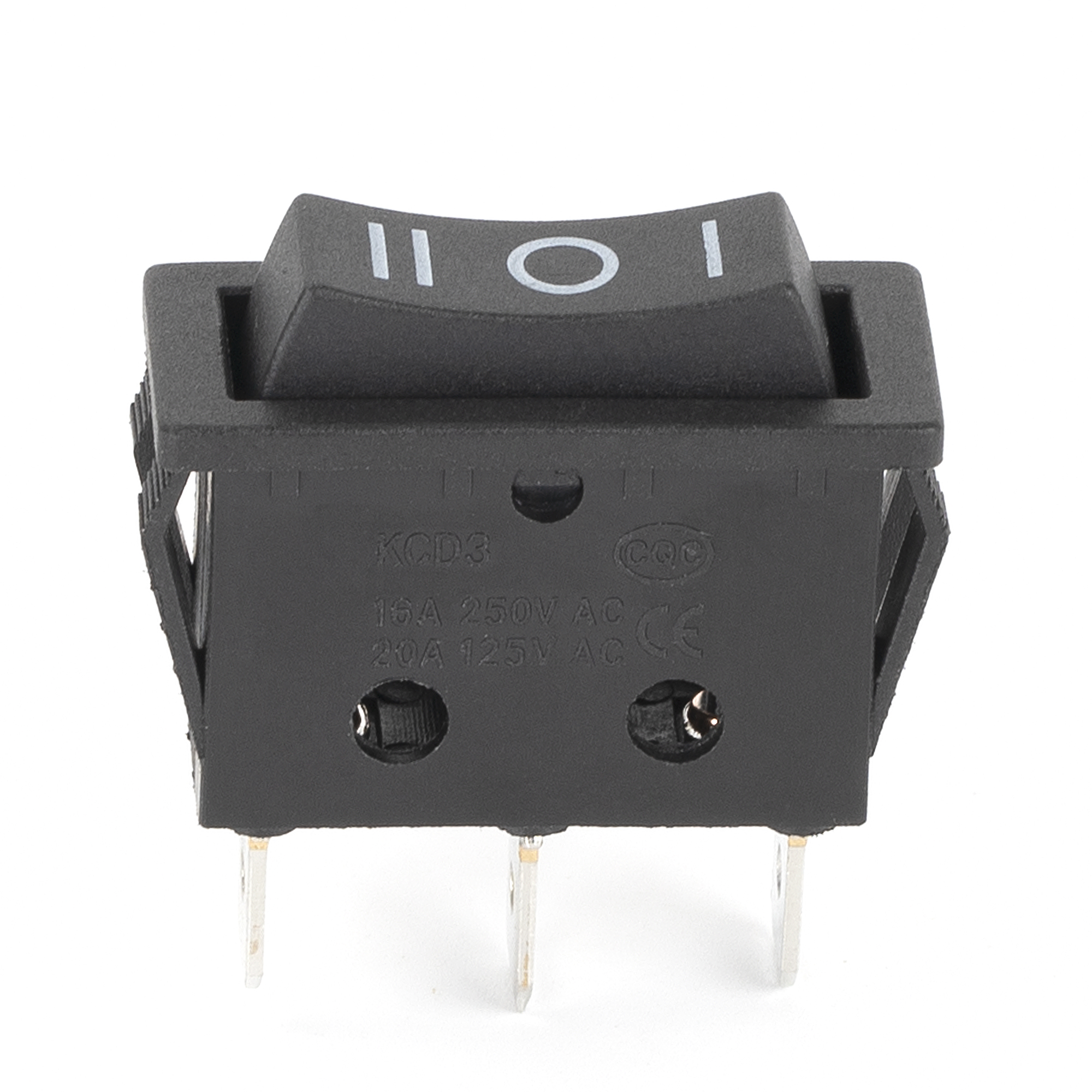

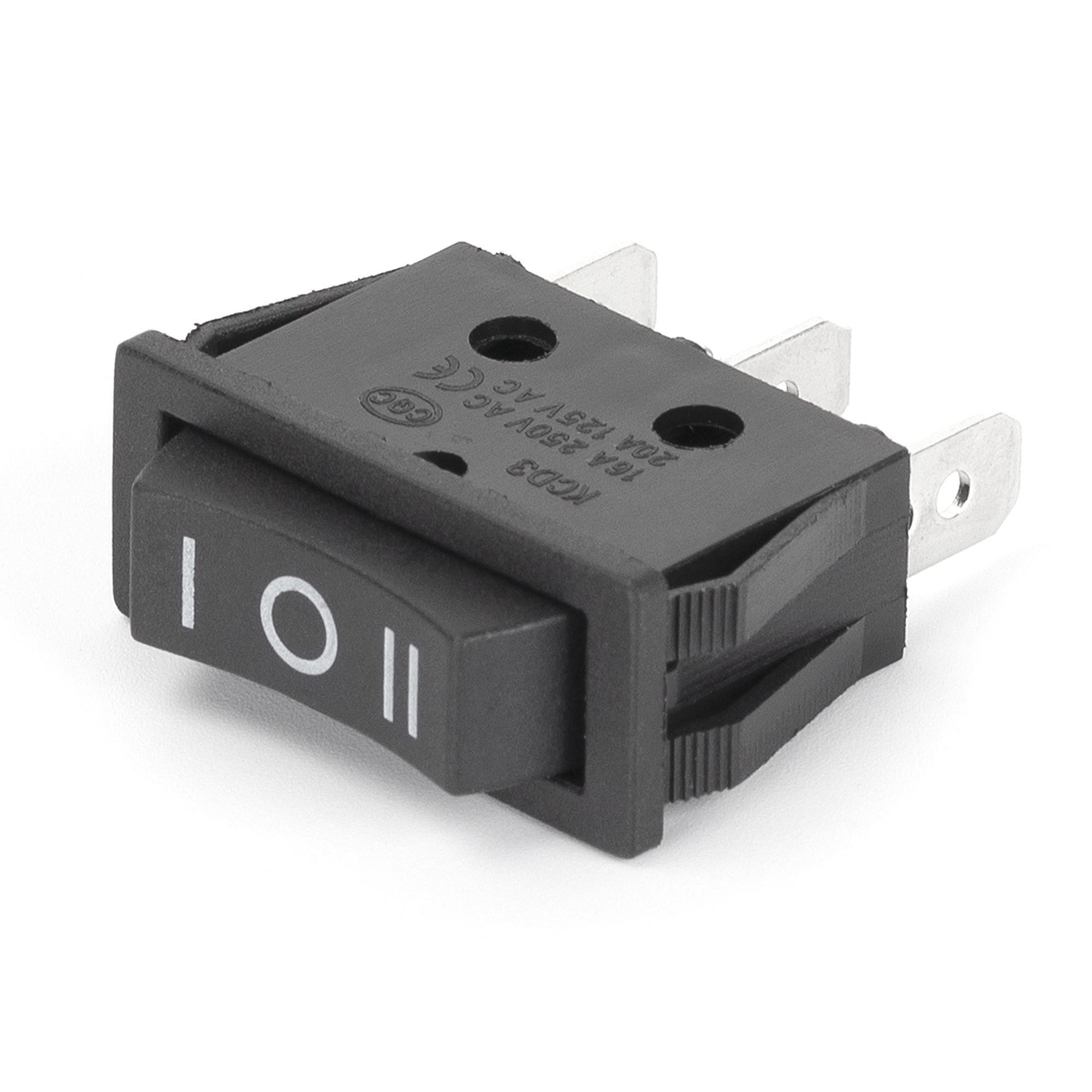

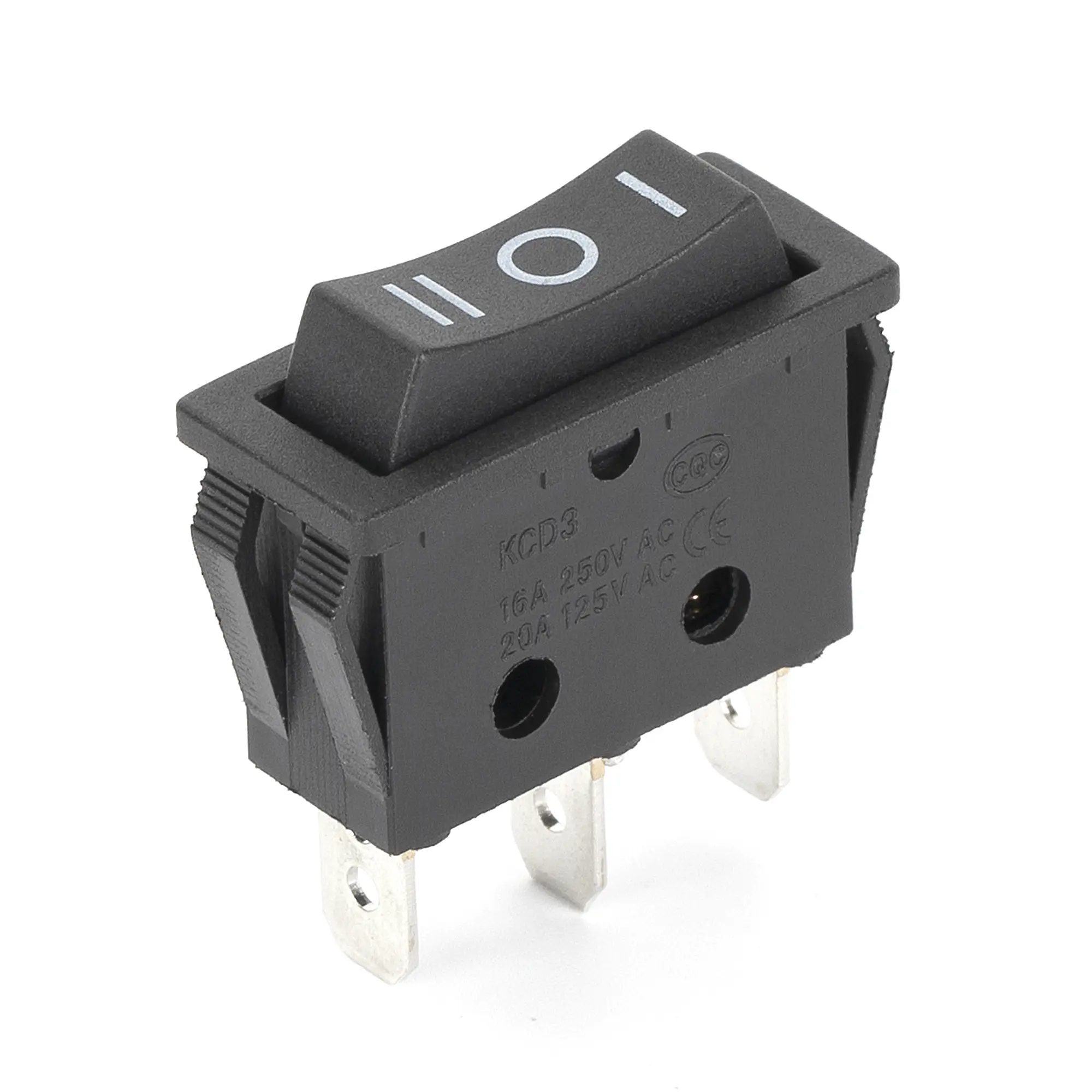

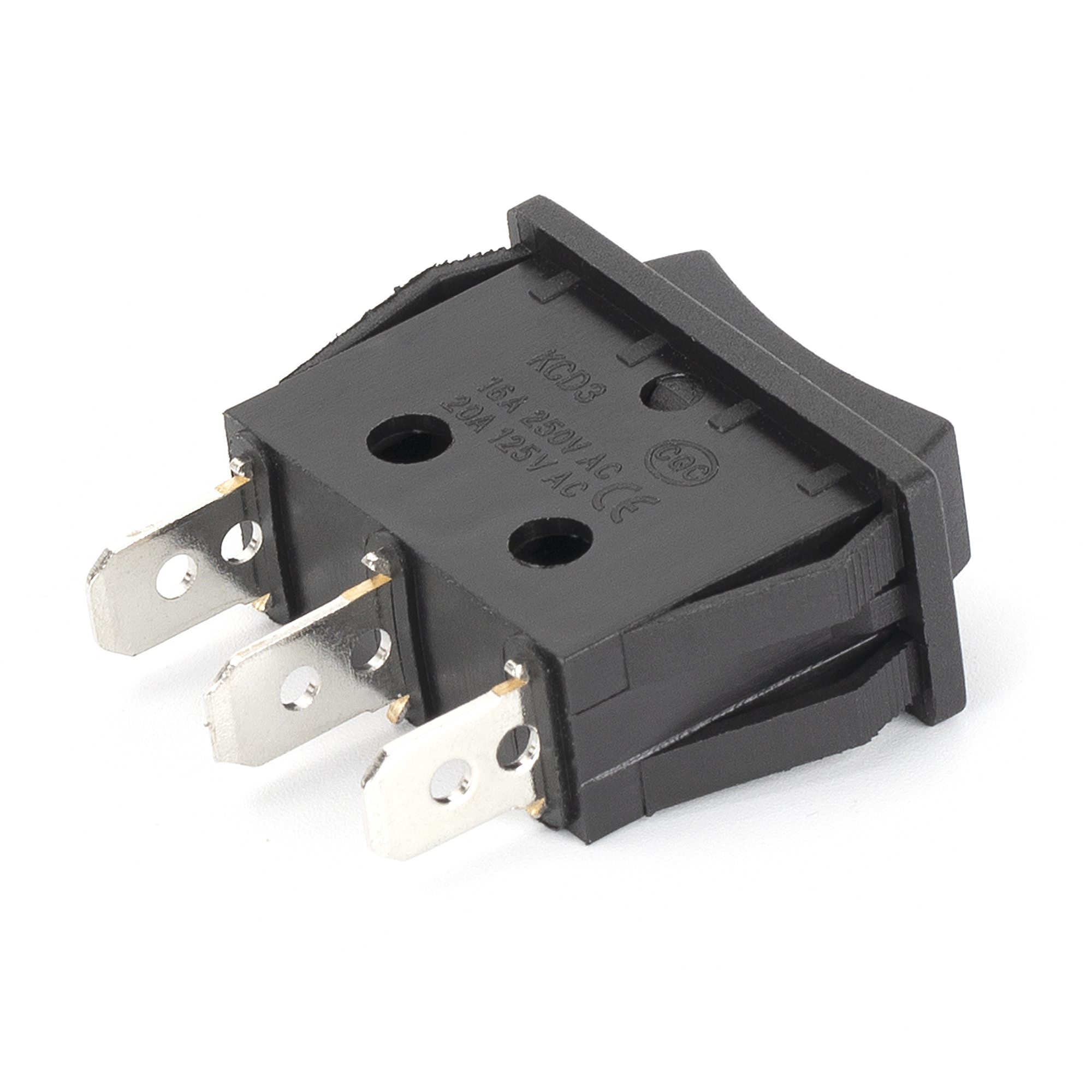

The 3 position SPDT rocker switch is available in latching (ON-OFF-ON) or momentary ((ON)-OFF-(ON)) functionality, handling 16A at 250VAC and 20A at 125VAC.
Its convenient snap-in design (28.5mm x 10mm / 1.1″ x 0.39″) allows for easy installation, while its compact form factor ensures seamless integration into various panels and enclosures.
Category :
Medium Single Pole Rocker Switch
KCD3-4-103/123 Latching/Momentary 3 Position SPDT Rocker Switch Features
- Versatile 3-Position Functionality
This rocker switch features a versatile SPDT (single pole, double throw) configuration with latching/momentary ON-OFF-ON functionality, allowing for flexible circuit control in various applications.
- High Current Rating
With a robust rating of 16A at 250VAC and 20A at 125VAC, this switch handles high-current loads reliably, making it suitable for demanding industrial and commercial applications.
- Durable Nylon 66 Construction
Built with a rugged nylon 66 housing, this rocker switch offers exceptional impact resistance, high dielectric strength, and resistance to chemicals and extreme temperatures, ensuring reliable performance in challenging environments.
- Snap-In Mounting for Easy Installation:
This 3 position ON-OFF-ON switch features a convenient snap-in mounting design that allows for quick and safe installation without the need for special tools, saving assembly time and effort.
- Compact Design & Industry-Standard Dimensions

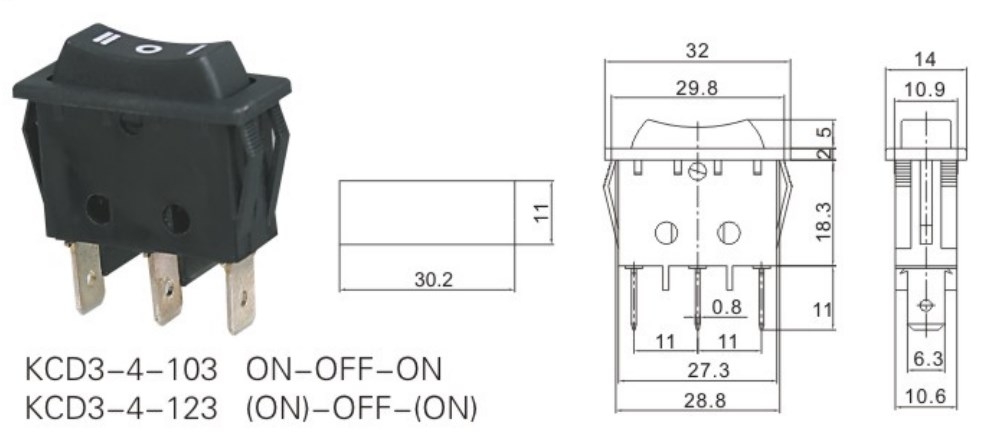

With compact dimensions of 31 x 13 x 38mm (1.23″ x 0.54″ x 1.5″) and a standard mounting hole size of 28.5 x 10mm (1.1″ x 0.39″), this switch seamlessly integrates into various panels and enclosures.
KCD3-4-103/123 Latching/Momentary 3 Position SPDT Rocker Switch Information
| KCD3-4-103 | 16A/250V 20A/125V, 3-Pin, Latching, ON-OFF-ON, without Lamp |
| KCD3-4-123 | 16A/250V 20A/125V, 3-Pin, Momentary, (ON)-OFF-(ON), without Lamp |
KCD3-4-103/123 Latching/Momentary 3 Position SPDT Rocker Switch Datasheet
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with sliver plated | Button color: | Standard black |
| Rating: | 20A 125VAC/16A 250VAC | Housing color: | Standard black |
| Contact Configuration: | SPDT | Switch Operation: | Latching/Momentary ON-OFF-ON/(ON)-OFF-(ON) |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
If you have any questions about the product or would like more information, we encourage you to contact us via email at sales1@chinadaier.com or through our live chat. We are here to help you and give you the information you need.
