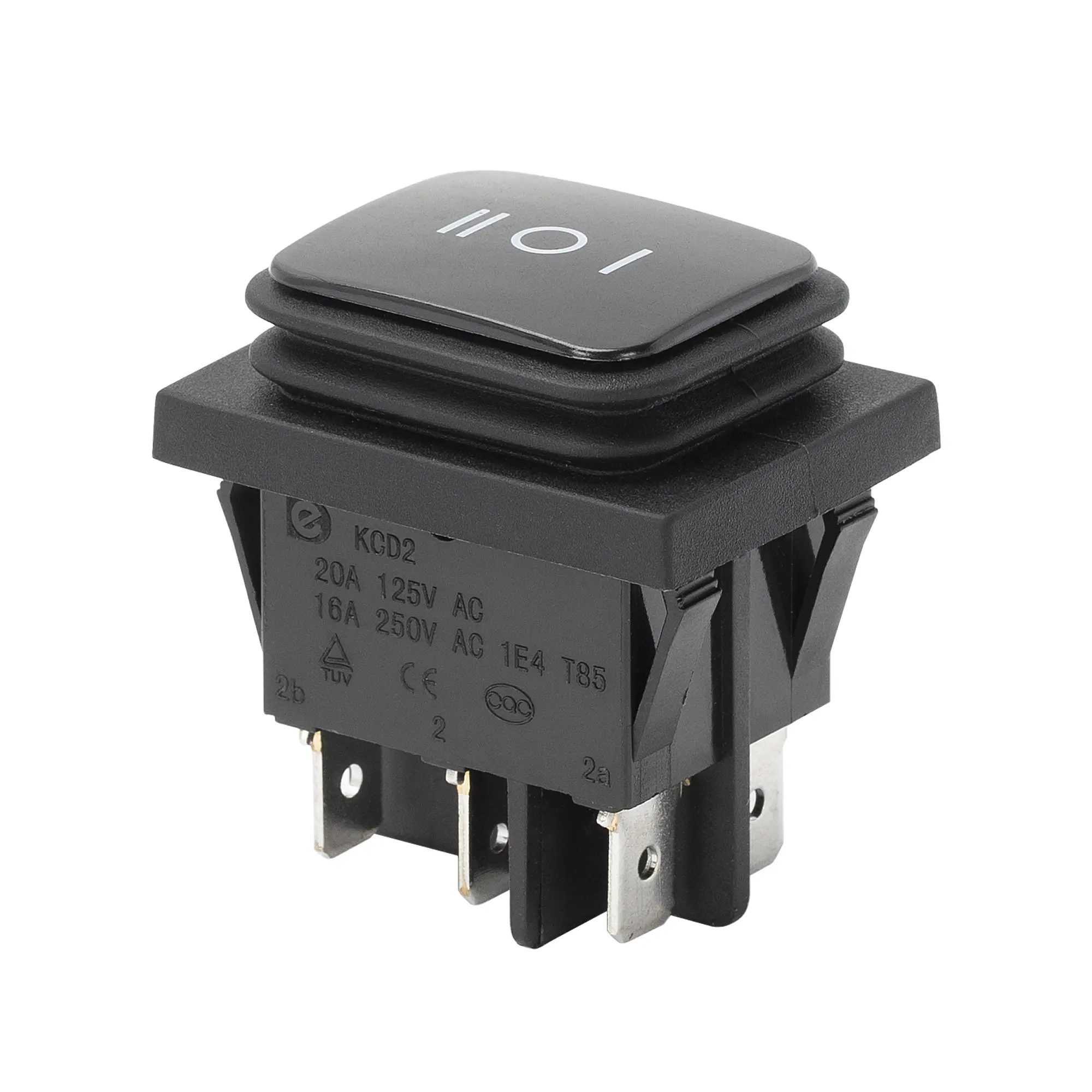

KCD2-2-203W/KCD2-2-223W Waterproof 6-Pin 3 Position DPDT Rocker Switch
Part#KCD2-2-203W/KCD2-2-223W
The 6-pin 3-position DPDT rocker switch features a waterproof design, ensuring reliable performance even in wet environments.
This snap-in type rocker switch is not only built to handle high mechanical stress and is suitable for a wide range of applications that require both robustness and water resistance.
Category :
Medium Double Pole Rocker Switch
KCD2-2-203W/KCD2-2-223W DPDT Rocker Switch
Daier KCD2-2-203W/KCD2-2-223W waterproof rocker switch provides a high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry-standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and rocker switches for other colors, please contact us.
KCD2-2-203Series Rocker Switch Related Products
| KCD2-2-203W | It is 6P, ON-OFF-ON waterproof rocker switch without a lamp |
| KCD2-2-203NW | It is 6P, ON-OFF-ON waterproof rocker switch with a lamp |
| KCD2-2-223W | It is 6P, (ON)-OFF-(ON) waterproof rocker switch without a lamp |
KCD2-2-203W/KCD2-2-223W DPDT Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal: | Brass with silver plated | Button Color: | Black /Red/green |
| Rating: | 20A 125VAC/16A 250VAC | Housing color: | Standard black |
| Contact&Operation: | DPDT, ON-OFF-ON | IP Level: | IP54 |
| Contact Resistance: | 50mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500V AC/5S | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, TUV, SGS | OEM or ODM: | Available |
