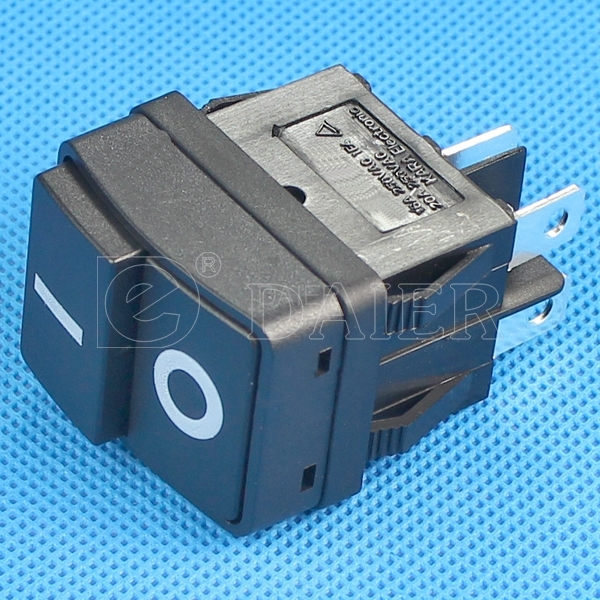

KCD2-2-201P Double Pole Rocker Switch

Daier KCD2-2-201P switch rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other rocker pushbutton switches, please contact us.

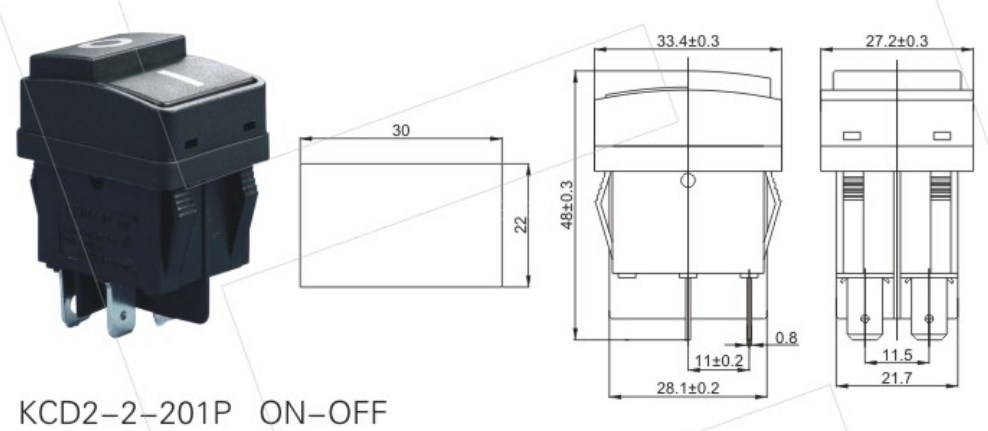

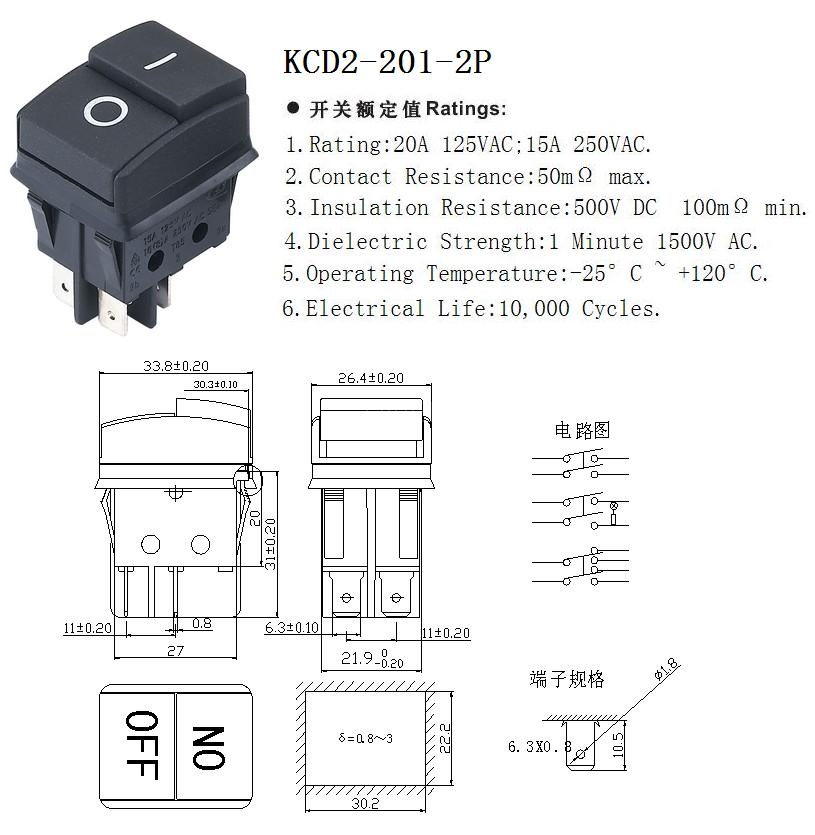

KCD2-2-201P Double Pole Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Standard black
Rating: 20A 125VAC/15A 250VAC Housing color: Standard black
Contact Configuration: DPST Switch Operation: ON-OFF
Contact Resistance: 50mΩ max Operating Temperature: -25℃~+120℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
