KCD1-122-1 Hair Dryer Rocker Switch
KCD1-122-1 Hair Dryer Rocker Switch
Category :
Miniature Rocker Switch

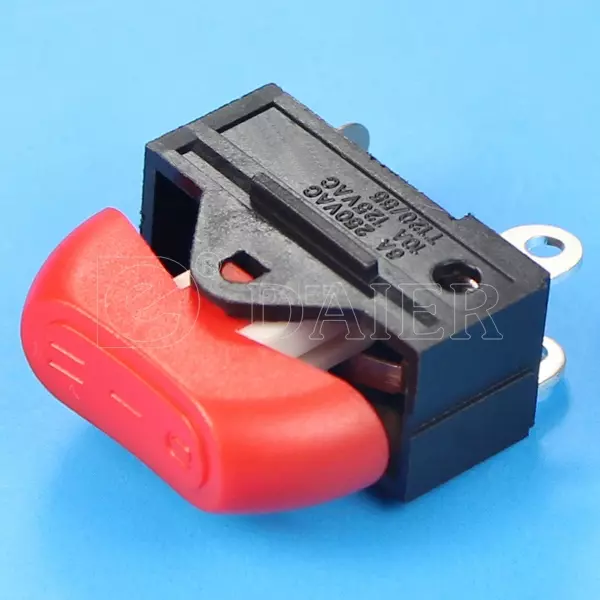

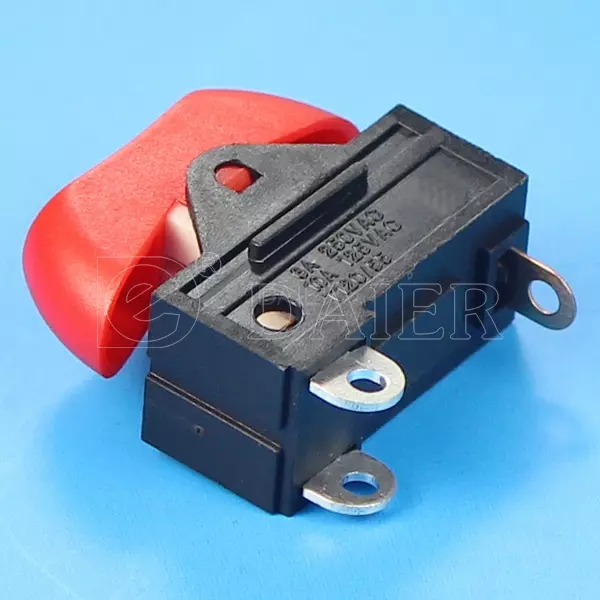

KCD1-122-1 Hair Dryer Rocker Switch
Daier KCD1-122-1 open-to-open miniature rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
At Daier, we are proud to provide a comprehensive series of switches for various applications at an affordable price. With competitive prices, modern design and durability, our switches are your ideal choice.
For more information about the full range of switches and other types of rocker switches, please contact us.
KCD1-122-1 Hair Dryer Rocker Switch datasheet below
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass with sliver plated | Button color: | Black and red color |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black |
| Contact Configuration: | SPDT | Switch Operation: | OFF-ON-ON |
| Contact Resistance: | 50mΩ max | Operating Temperature: | -25℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | >=1500VAC /5S/0.5mA | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
