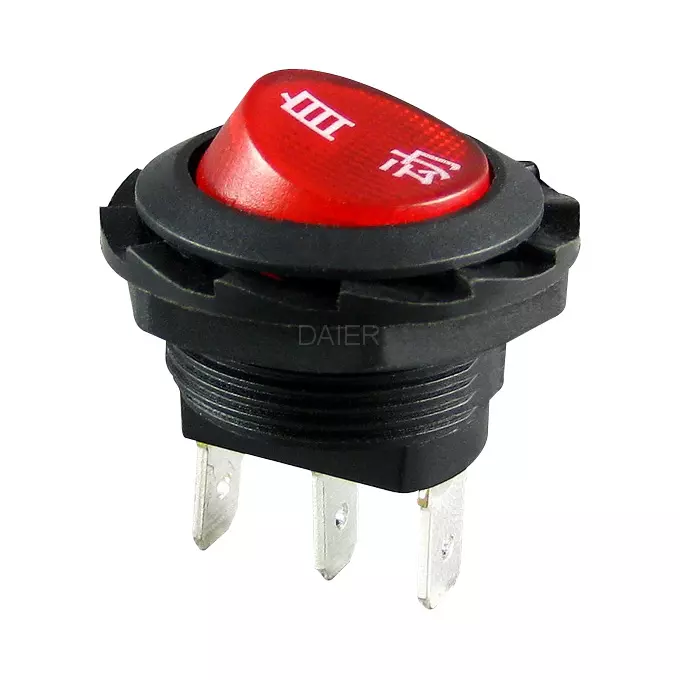

Daier KCD1-7-101NY on off miniature round rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
If you want to know more about the 110V Rocker Switch, please contact us, I will check and reply to you.

KCD1-7-101NY 110V Rocker Switch related product,pls check the detailed information as below

KCD1-7-101Y It is 2P,ON-OFF,SPST without lamp
KCD1-7-101NY It is 3P,ON-OFF,SPST with lamp

KCD1-7-101NY 110V Rocker Switch datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Transparent red/green
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Lamp: 110V/220VAC,12V,24V Switch Operation: SPST,ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-7-101NY 110V Rocker Switch datasheet
