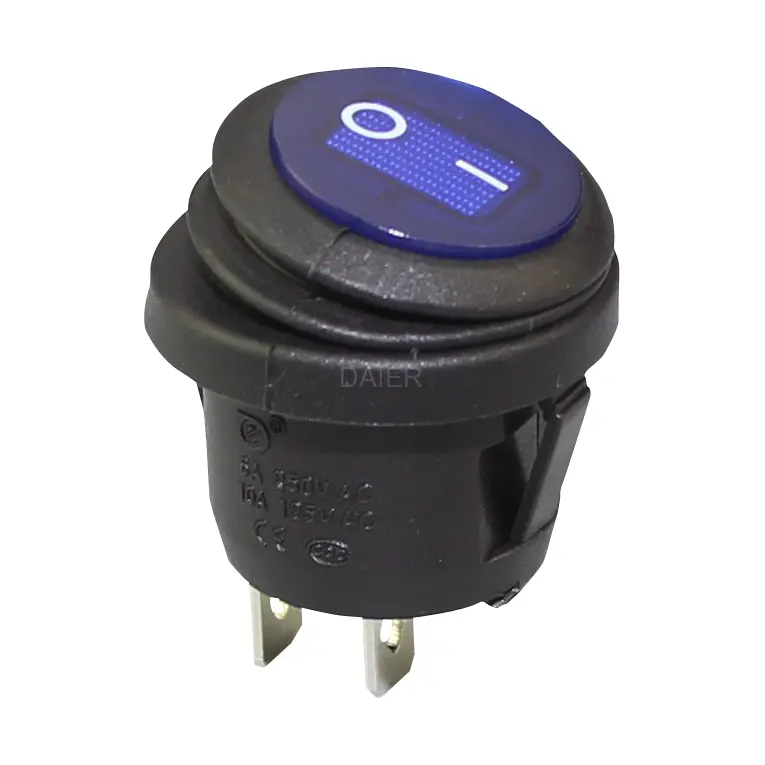

Daier KCD1-5-101W on off miniature waterproof round rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
A selection of waterproof rocker switches including IP 65 rated round rocker switches,We carry many options in stock, however, should the item you are looking for not appear in our stock please do not hesitate to contact us and we will see if this can be added to stock.

KCD1-5-101W Waterproof Round Rocker Switch datasheet below



Housing: Nylon 66 Button: Nylon 66
Terminal: Brass with sliver plated Button color: Black color,transparent blue and red
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Waterproof Grade: IP65 Switch Operation: SPST,ON-OFF
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-5-101W Waterproof Round Rocker Switch datasheet
