KCD1-5-101NH 10A 125VAC Neon Illuminate SPST Round Specialty Rocker Switch
Part#KCD1-5-101NH

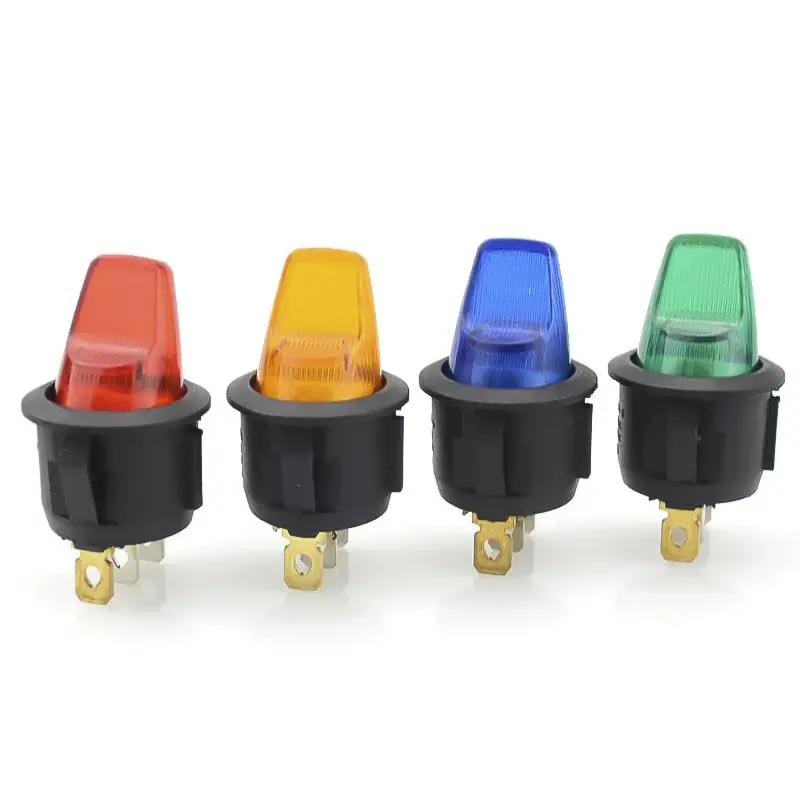

This on/off round specialty rocker switch features a 6A/10A, 250VAC/125VAC SPST configuration with neon illumination (red, yellow, blue and green).
Its snap-in mounting design ensures easy installation and is ideal for applications requiring a reliable and visually indicative on/off solution.
Category :
Miniature Rocker Switch
KCD1-5-101NH Neon Illuminate SPST Round Specialty Rocker Switch Features
- High Switching Current Capacity
Engineered to handle demanding applications, this compact rocker switch boasts a high switching current capacity of up to 10A at 125VAC, ensuring reliable performance and minimizing the risk of overload.
- Durable Nylon 66 Housing
This rocker switch is built with a rugged nylon 66 housing, providing excellent impact resistance, dielectric strength (1500VAC for 1 minute), and resistance to various chemicals and environmental factors, ensuring long-lasting performance in demanding industrial settings.
- Snap-In Mounting for Easy Installation
Designed for efficiency and ease of use, this rocker switch features a convenient snap-in mounting mechanism, allowing for quick and secure installation without the need for specialized tools, reducing assembly time and costs.
- Neon Illumination for Clear Status Indication
Equipped with a built-in neon lamp, this illuminated rocker switch offers clear visual confirmation of the switch status, even in low-light environments, enhancing safety and user experience.
- Long Mechanical & Electrical Life
Built for demanding applications, this robust rocker switch boasts a mechanical life exceeding 100,000 cycles and an electrical life exceeding 10,000 cycles at rated load, minimizing downtime and maintenance requirements for increased productivity.
KCD1-5-101NH Round Specialty Rocker Switch Related Products Detailed Information
| KCD1-5-101H | It is 2P,ON-OFF,SPST without lamp |
| KCD1-5-102H | It is 3P,ON-ON,SPDT without lamp |
| KCD1-5-103H | It is 3P,ON-OFF-ON,SPDT without lamp |
| KCD1-5-101NH | It is 3P,ON-OFF,SPST with lamp |
KCD1-5-101NH Neon Illuminate SPST Round Specialty Rocker Switch Datesheet
| Housing: | Nylon 66 | Button: | Nylon 66 |
| Terminal | Brass with sliver plated | Button color: | Transparent red/green/yellow/blue |
| Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black ,white and grey |
| Lamp: | 220VAC,12V,24V | Switch Operation: | SPST,ON-OFF |
| Contact Resistance: | 35mΩ max | Operating Temperature: | -20℃~+85℃ |
| Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
| Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
| Certification: | CE, CQC, SGS | OEM or ODM: | Available |
