KCD1-1-101 Rocker Switch T85 1E4
KCD1-1-101 Rocker Switch T85 1E4

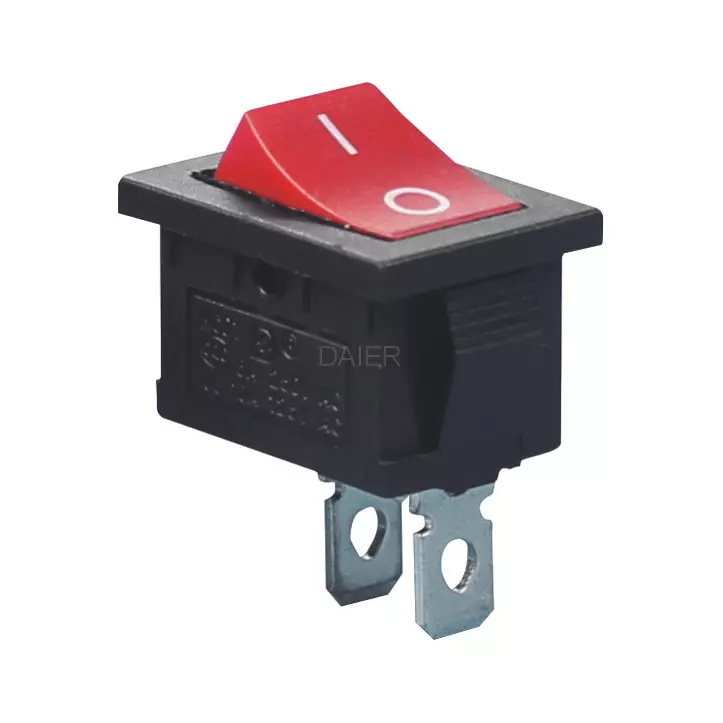

Daier KCD1-1-101 miniature rocker switch offer a high switching current in a compact design.
It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.
They have high quality for long life at heavy loads and industry-standard mounting dimensions.
This rocker switches can be used in a variety of applications, like water dispenser and extension socket and so on.
Please consult us when considering to wash tact switches
Please don’t immerse soldering flux into tact switches
Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
The second welding should be done after switches return to normal temperature
If you need other colors, please let me know and I will check and reply to you.
KCD1-1-101 Rocker Switch T85 1E4 datasheet below
Housing: | Nylon 66 | Button: | Nylon 66 |
Terminal | Brass with sliver plated | Button color: | Black, Red, White and so on |
Rating: | 10A 125VAC/6A 250VAC | Housing color: | Standard black, other colors also available |
Contact Configuration: | SPST | Switch Operation: | ON-OFF |
Contact Resistance: | 35mΩ max | Operating Temperature: | -25℃~+85℃ |
Insulation Resistance: | 100mΩ min (500VDC) | Electrical Life: | ≥ 10,000 Cycles |
Dielectric strength: | 1500VAC 1 minute | Mechanical Life: | ≥ 100,000 Cycles |
Certification: | CE, CQC, SGS | OEM or ODM: | Available |
