KCD1-11-103 Automotive Rocker Switch

KCD1-11-103 Automotive Rocker Switch

KCD1-11-103 Automotive Rocker Switch

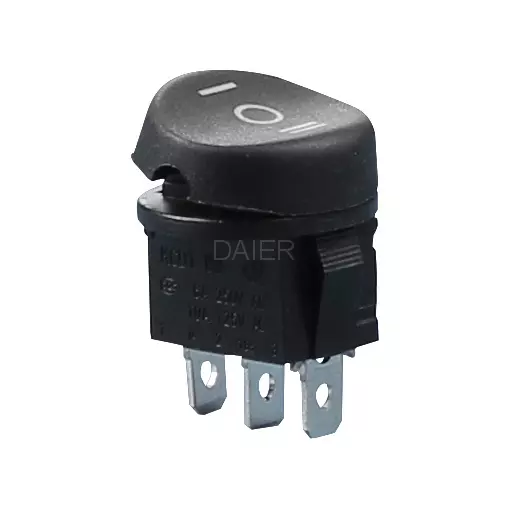

Daier KCD1-11-103 on off on miniature rocker switch provides high switching current in a compact design.
It is a snap-in type rocker switch with high mechanical life in a sturdy nylon 66 housing.
They are of high quality and can achieve long life under heavy loads and industry standard installation dimensions.
This kind of rocker switch can be used in various applications, such as water dispensers and extension sockets.
Use our car switch to turn on
Provide your car with the best car switches in the industry. Regardless of your vehicle model, our car switch series can meet your needs, and more!
At Daier, we are proud to provide a comprehensive series of switches and automotive switches for various applications at an affordable price. With competitive prices, modern design and durability, our car switches are your ideal choice.
For more information about the full range of switches and automotive switches, please contact us.

KCD1-11-103 Automotive Rocker Switch related product,pls check the detailed information as below

KCD1-11-101 It is 2P,ON-OFF rocker switch without lamp
KCD1-11-103 It is 3P,ON-OFF-ON rocker switch without lamp

KCD1-11-103 Automotive Rocker Switch datasheet below


Housing: Nylon 66 Button: Nylon 66
Terminal Brass with sliver plated Button color: Black color
Rating: 10A 125VAC/6A 250VAC Housing color: Standard black
Contact Configuration: SPDT Switch Operation: ON-OFF-ON
Contact Resistance: 35mΩ max Operating Temperature: -25℃~+85℃
Insulation Resistance: 100mΩ min (500VDC) Electrical Life: ≥ 10,000 Cycles
Dielectric strength: 1500VAC 1 minute Mechanical Life: ≥ 100,000 Cycles
Certification: CE, CQC, SGS OEM or ODM: Available
KCD1-11-103 Automotive Rocker Switch datasheet
