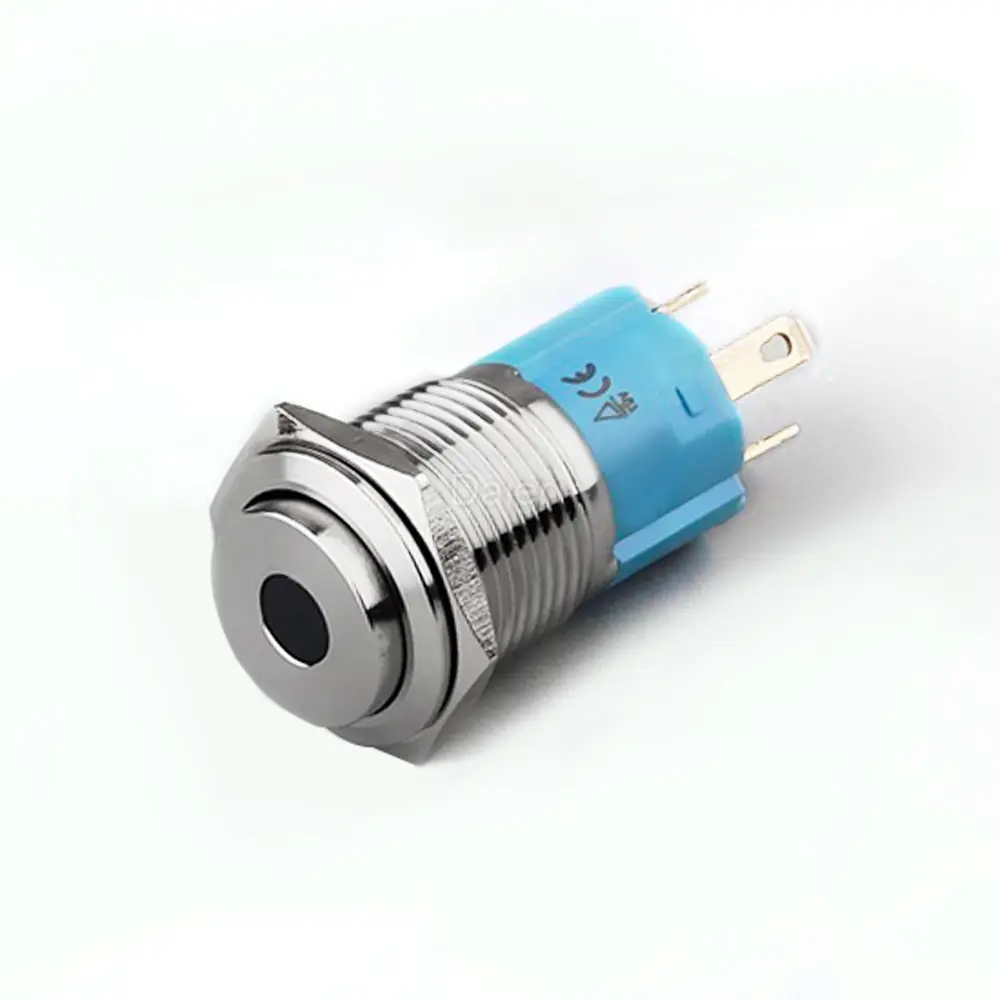

LAS3-16H-11D IP67 Push Button Starter Switch with LED

LAS3-16H-11D IP67 Push button starter switch with LED:

LAS3-16H-11DM:  16mm switch, Momentary type with dot LED, high button

LAS3-16H-11EL:  16mm switch,  Latching type with dot LED, high button

Category :

16MM Anti-Vandal

LAS3-16H-11D IP67 Push button starter switch with LED

Daier announces the anti-vandal switch series, it is most popular item in our push button switch series.

They are RoHS certified, offering a rating of 3A 250VAC.



LAS3-16H-11D IP67 Push button starter switch with LED



Check the detailed information as below

LAS3-16H-11DM: ON-(ON) momentary, Dot Illuminated, High button
LAS3-16H-11DL: ON-ON latching, Dot Illuminated, High button

LAS3-16H-11D IP67 Push button starter switch with LED datasheet below:



Rating: 3A 250VAC Contact Resistance: 50mΩ max
Electrical Life: 50,000 Cycles Function: momentary or latching
Dielectric strength: 2,000VAC 1 minute Operating Temperature: -25℃~+85℃
Insulation Resistance: 1,000mΩ min Panel cutout: 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc.
LED voltage: 3V, 6V, 12V, 24V, 48V, 110V, 220V Waterproof Grade: IP40-IP67
 Contact Configuration:  Single Pole, Double Pole OEM or ODM: Available
