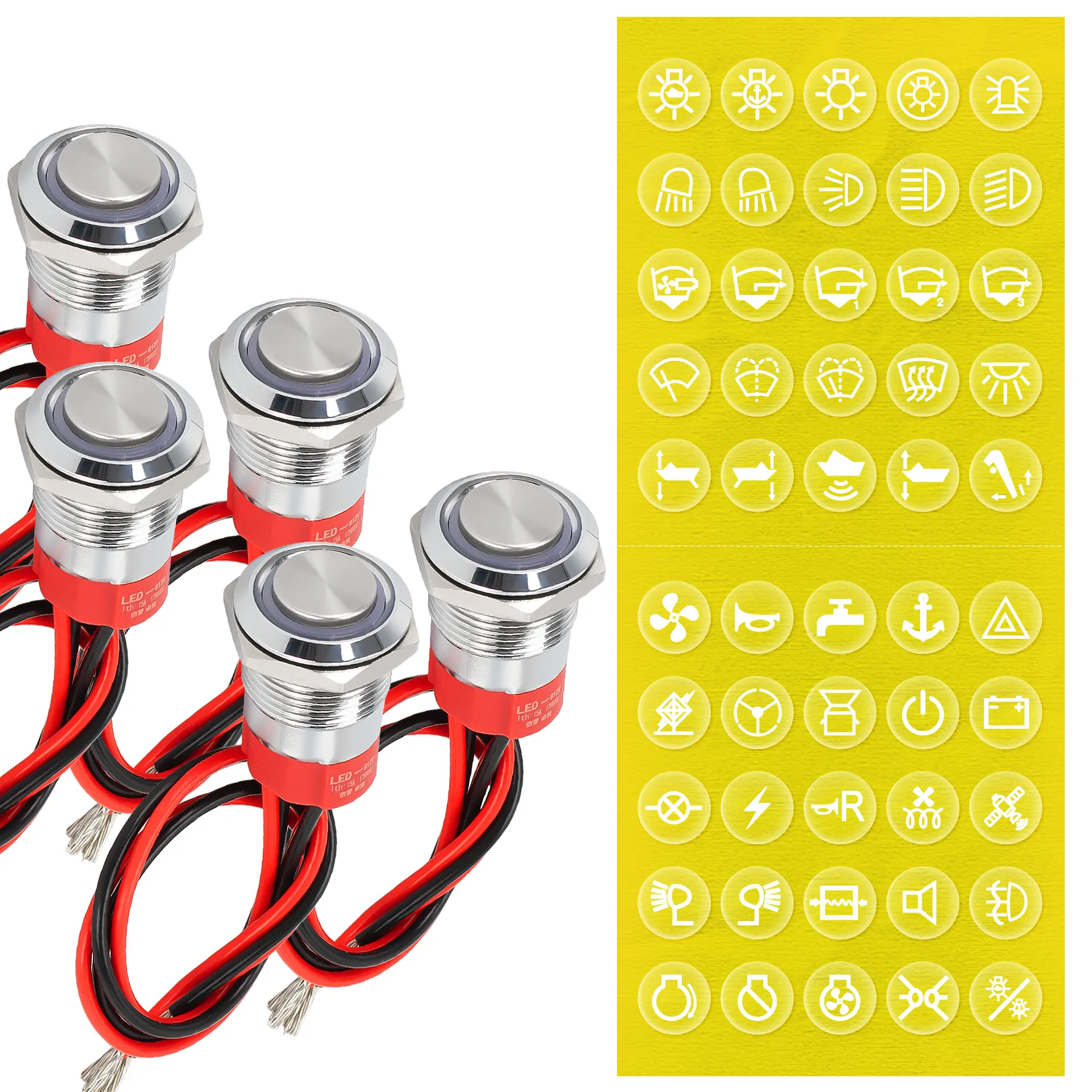

LAS3D-16H-20EL-W 16MM Push Button Latch Switch with Ring LED Light
Part#LAS3D-16H-20EL-W
The 16mm 15A 12V DC push button latch switch features a 4-PIN ON/OFF configuration with a silver housing and blue LED lights.
Its user-friendly latching design allows for effortless power control – press to power on, and press again to power off.
LAS3D-16H-20EL-W 16MM Push Button Latch Switch with Ring LED Light Details
- Latching Push Button Switch
The 16mm Push Button Latch Switch features a 4-PIN ON/OFF configuration with a silver housing and blue LED lights, providing a visually appealing and functional design. With a switch rating of 15A 12V DC, it ensures reliable performance. The 5/8”/16mm hole size requirement makes installation easy.
- Easy to Use
This 16mm Latching Switch allows for convenient power control with a simple push of the button – press to power on, and press again to power off. Its user-friendly operation makes it ideal for various applications.
- Durable and Waterproof
Constructed with an aluminum anodized black metal body, this latching push button switch ensures durability and longevity. Additionally, it boasts an IP65 waterproof rating, making it suitable for use in wet or dusty environments.
- Wide Application
Designed for versatility, this waterproof push button switch is suitable for a wide range of applications, including boats, marine vessels, RVs, vehicles, trucks, cars, motorcycles, industrial equipment, home lamps, and more. It provides a reliable solution for controlling power in various settings.
LAS3D-16H-20EL-W 16MM Push Button Latch Switch Datasheet
| Part NO | LAS3D-16H-20EL-W |
| Mounting Size | 16mm |
| Rating | 15A 12VDC |
| Function | Latching |
| Contact Type | 1NO 1NC |
| Terminal | 4 Pins |
| Terminal Type | Solder Terminal |
| Button Type | High Button |
| Illuminated Type | Transparent Sticker |
| LED Voltage | 12V |
| LED Color | Red/Green/Yellow/Blue/White |
| Waterproof Degree | IP65 |
| Housing Color | Silver |
