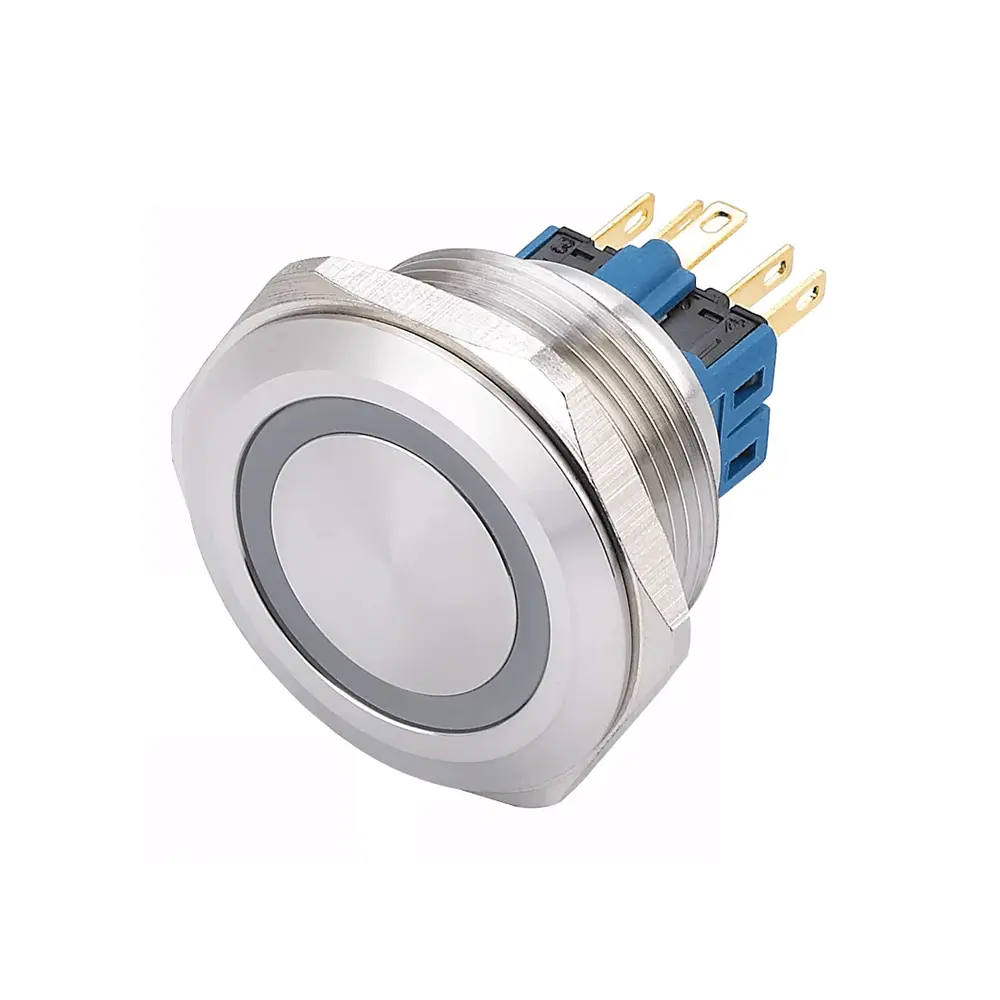

GQ30-22EL 30MM Ring LED Latching Push Button


The Latching Push Button with ring illuminated, function: IP67, DPDT, 10 Pins, 2NO 2NC; contact rating: 3A 250V AC.

Category :

30MM Anti-Vandal

GQ30-22EL 30MM Ring LED Latching Push Button Details

  • Easy Installation

Anti-vandal switches with screw clamp type terminal make the installation of switch simple and convenient.

  • Visual Feedback

The switch and LED are separated, the LED can be on all the time or only on when the switch is on, depending on how you wire it.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

GQ30-22EL/S Datasheet

Function DPDT, 10 Pins, 2NO 2NC, Latching, Ring illuminated
Crust Material Stainless steel
Contact Rating 3A 250VAC
Contact Resistance ≤ 50mΩ
Insulation Resistance ≥ 1000mΩ
Dielectric Strength 2,000V AC 1Min
Operating Temperature -25℃~+55℃
Mechanical Life ≥1,000,000 Cycles
Electrical Life ≥50,000 Cycles
IP Class IP67, IK10
Operating Force 3.5±1N
LED Color Red/Yellow/Blue/Green/White

GQ30 Series Dimensioned Drawing

Our company’s GQ series push button switches have passed the RoHS certification!
