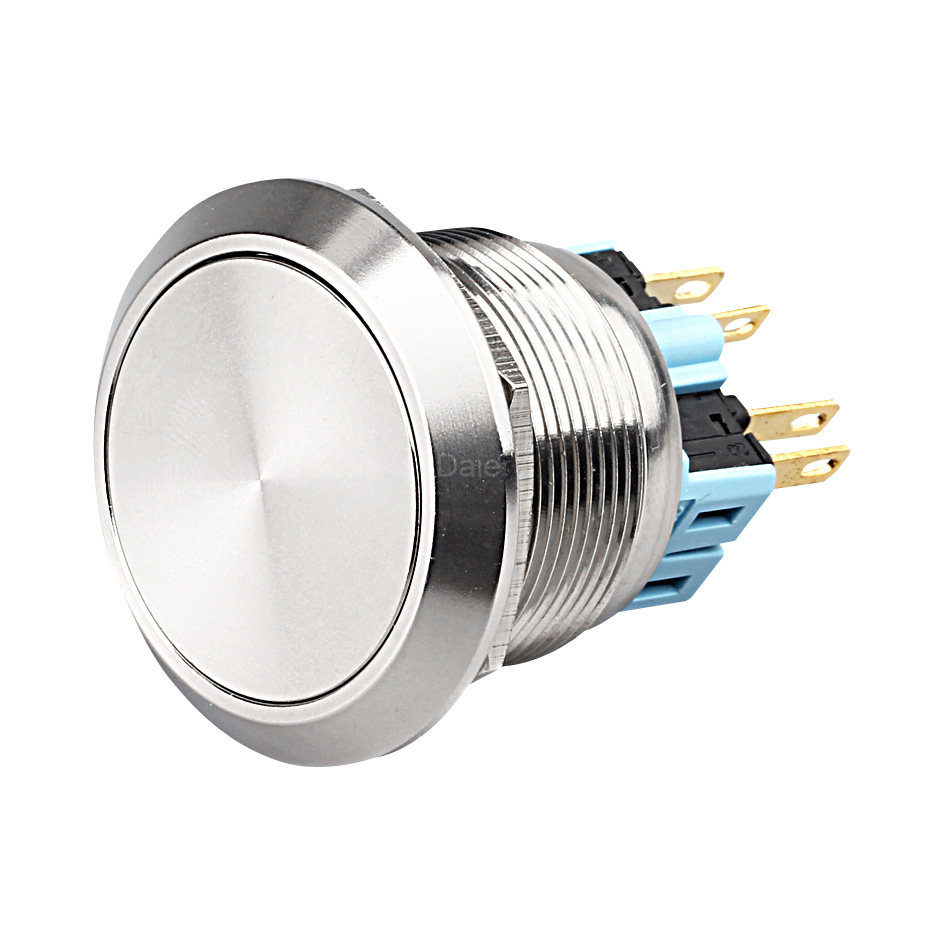

GQ30-11M 30MM Metal Push Button Without Light
Part#GQ30-11M
The 30mm metal push button without light, function: SPDT, 6 Pins, 1NO+1NC, momentary/latching; contact rating: 3A 250V AC. RoHS certification.
Category :
30MM Anti-Vandal
GQ30-11M 30MM Metal Push Button Without Light Details
- Easy Installation
Anti-vandal switches with screw clamp type terminal make the installation of switch simple and convenient.
- Strong Durability
Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.
- Sturdy Construction
Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.
- Wide Application
It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.
GQ30-11M/GQ30-11L Datasheet
| Function | SPDT, 6 Pins, ON/OFF, Momentary/Latching, Without light |
| Crust Material | Stainless steel |
| Contact Rating | 3A 250VAC |
| Contact Resistance | ≤ 50mΩ |
| Insulation Resistance | ≥ 1000mΩ |
| Dielectric Strength | 2,000V AC 1Min |
| Operating Temperature | -25℃~+55℃ |
| Mechanical Life | ≥1,000,000 Cycles |
| Electrical Life | ≥50,000 Cycles |
| IP Class | IP65, IK10 |
| Operating Force | 3.5±1N |
GQ30-11M/GQ30-11L Related Product
| GQ30-11M | SPDT, 6 Pins, ON-(ON), Momentary, Without light |
| GQ30-11L | SPDT, 6 Pins, ON-ON, Latching, Without light |
| GQ30-11EM | SPDT, 6 Pins, ON-(ON), Momentary, Ring illuminated |
| GQ30-11EL | SPDT, 6 Pins, ON-ON, Latching, Ring illuminated |
| GQ30-11DM | SPDT, 6 Pins, ON-(ON), Momentary, Dot illuminated |
| GQ30-11DL | SPDT, 6 Pins, ON-(ON), Latching, Dot illuminated |
Our company’s GQ series push button switches have passed the RoHS certification!
Still, have a question about the GQ30-11M/GQ30-11L that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or live chat!
