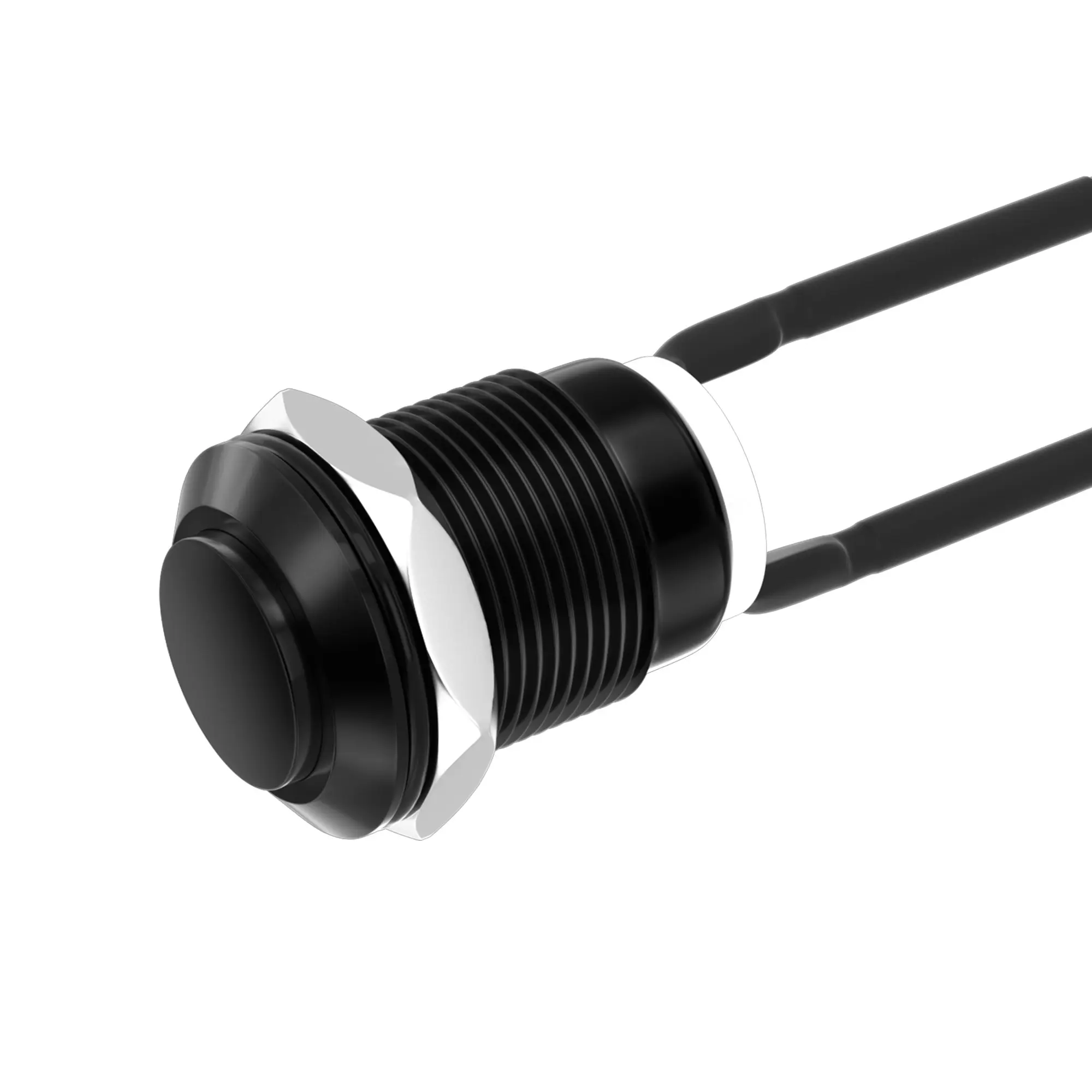

GQ12H-10M-A IP65 12MM High Round Black Momentary Push Button Switch
Part#GQ12H-10M-A
The IP65 12mm high round black momentary push button switch has a rating of 5A 12V DC and 3A 250V AC, and offers a momentary ON/OFF SPST function.
This push button switch requires 12mm (1/2”) panel mounting hole size and the 1.5mm raised high button for easy operating.
Category :
12MM Anti-Vandal
GQ12H-10M-A IP65 12MM High Round Black Momentary Push Button Switch Details
- Operational Versatility
Designed for convenience, this 12V momentary push button switch offers SPST functionality with a momentary ON OFF action. Press and hold for ON, release for OFF.
- Reliable Rating
With a robust rating of 5A 12V DC and 3A 250V AC, this compact momentary push button switch boasts an impressive electrical life of over 50,000 cycles, ensuring lasting performance.
- Easy Installation
The pre-wired design of this momentary push button switch simplifies installation. Featuring pre-soldered wires, it’s a hassle-free choice. The 12mm (1/2″) mounting hole size adds to its user-friendly design.
- Weatherproof Build
Crafted from high-quality metal material, the black shell of this 12 volt pushbutton switch ensures durability. Its IP65 waterproof rating makes it suitable for use in humid and outdoor conditions.
- Versatile Application
From automotive and cars to boats, ships, vehicles, trucks, and industrial equipment, this marine push button switch finds extensive application across various domains, providing reliable control.
GQ12H-10M Datasheet
| Function | Normal Open 2Pin Momentary |
| Contact Rating | 3A, 250V AC; 5A, 12V DC |
| Contact Resistance | 50mΩ Max |
| Insulation Resistance | 500V DC, 1000MΩ min |
| Dielectric Strength | 2,000V RMS 50~60Hz |
| Operating Temperature | -40℃~+85℃ |
| Electrical Life | 50,000 Cycles |
| IP Class | IP65 |
| Torque | 5~14Nm.max. applied to nut |
| Operating Force | 5N max |
GQ12H-10M Housing Color Types
| GQ12H-10M-A | Black |
| GQ12H-10M-N | Silver |
