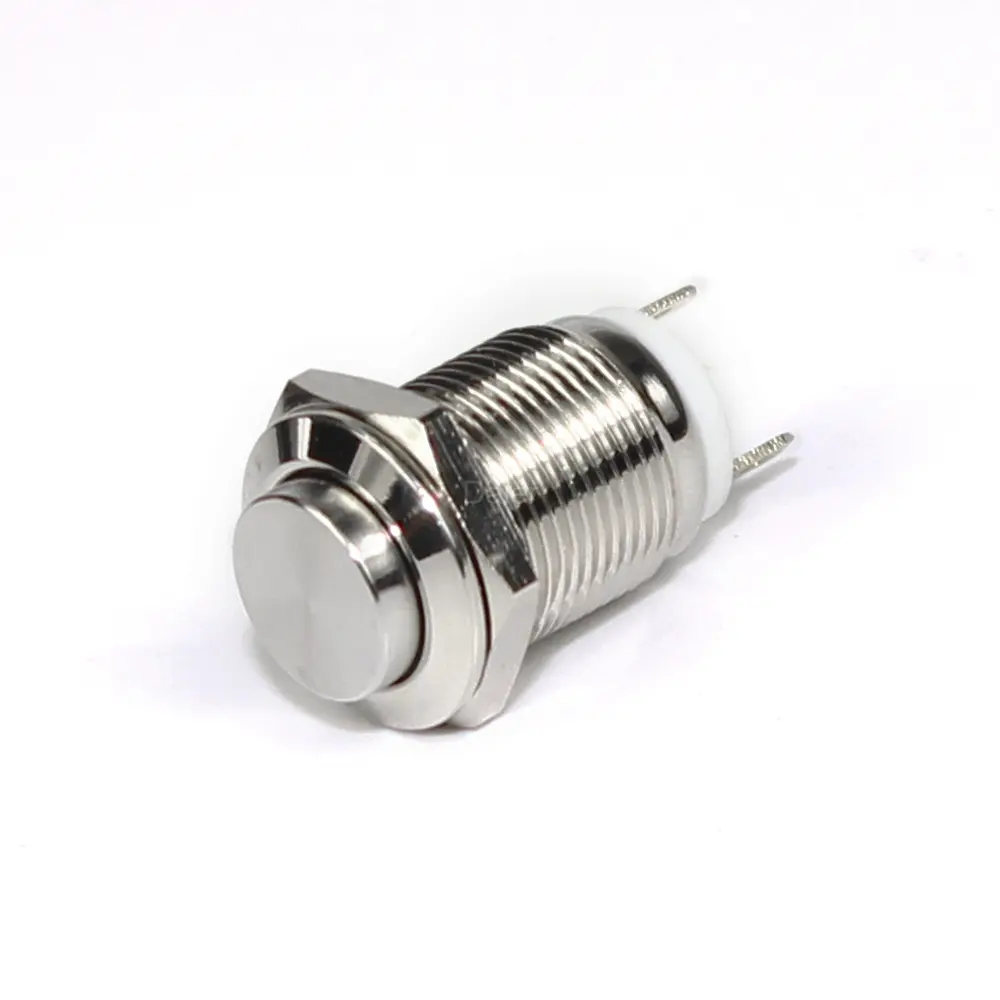

GQ12H-10M High Round Momentary Push Button Switch


The high round momentary push button switch with stainless steel/brass nickel-plated, function: Normal Open 2Pin; contact rating: 3A 250VAC.

This push button switch requires 12mm (1/2”) panel mounting hole size and the 1.5mm Raised Button for easy operating.

Category :

12MM Anti-Vandal

GQ12H-10M Momentary Push Button Switch Details

  • Easy Installation

Anti-vandal switches with screw clamp type terminal make the switch installation simpler and more convenient.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

GQ12H-10M Datasheet

Function Normal Open 2Pin Momentary
Contact Rating 3A, 250V AC; 5A, 12V DC
Contact Resistance 50mΩ Max
Insulation Resistance 500V DC, 1000MΩ min
Dielectric Strength 2,000V RMS 50~60Hz
Operating Temperature -40℃~+85℃
Electrical Life 50,000 Cycles
IP Class IP65
Torque 5~14Nm.max. applied to nut
Operating Force 5N max

GQ12H-10M Housing Color Types

GQ12H-10M-A Black
GQ12H-10M-N Silver
