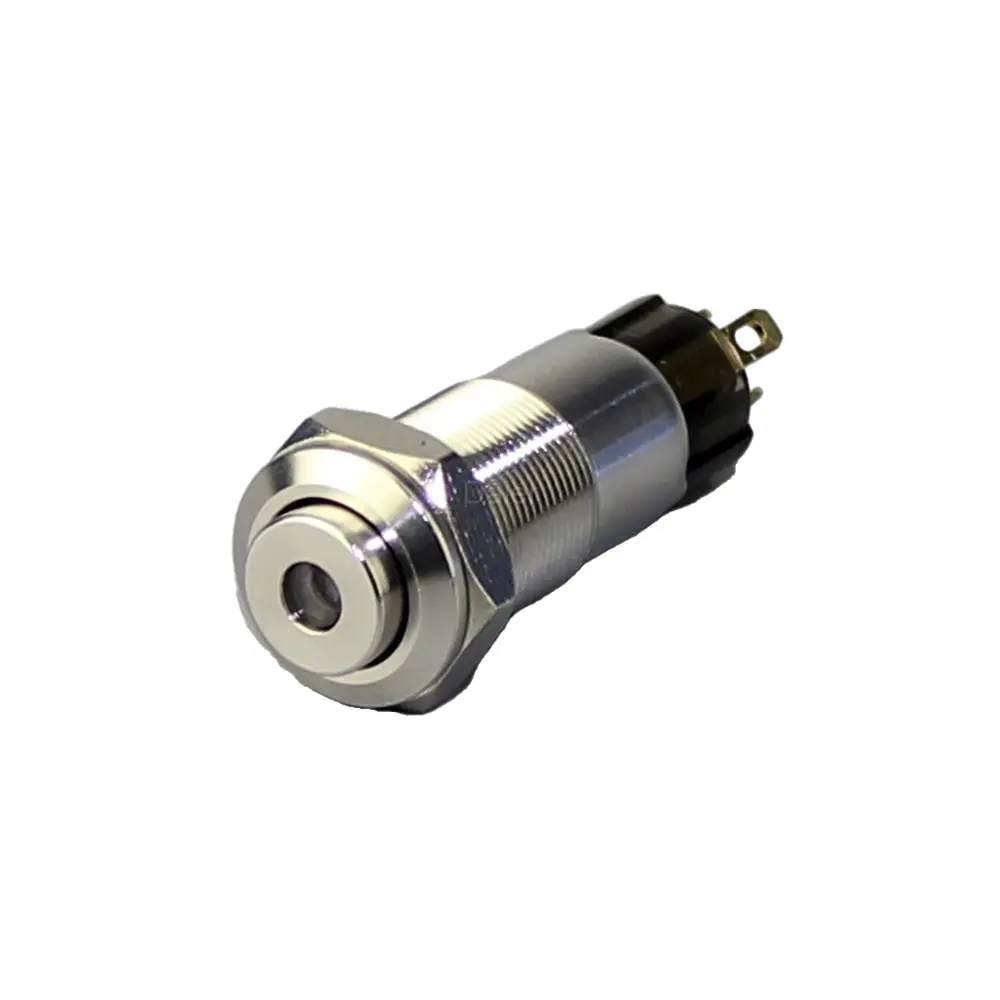

GQ-10H-10D Dot LED Push Button Switch


The dot LED push button switch, function: IP67, latching/momentary; contact rating: 3A 250VAC; material: stainless steel with RoHS standard.

The dot LED push button switch is popular for use in kiosk applications, ticket dispensers, industrial-type applications, etc.

Category :

10MM Anti-Vandal

GQ-10H-10D Dot LED Push Button Switch Details

  • Easy Installation

Anti-vandal switches with screw clamp-type terminals make the installation of switch simple and convenient.

  • Visual Feedback

The illuminated metal switch works when the circuit is turned on and illuminates to provide visual feedback of circuit operation.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

Daier announces the anti-vandal switch series, which is the most popular item in our push button switch series.

They are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67 rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).

It offers multiple color ring illumination options, and multiple voltage options. For LED, it offers one color, bi-color, tri-color options.

It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. panel cutout size and SPDT or DPDT function.

For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel and stainless steel.

These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers and industrial-type applications etc.

GQ-10H-10D Series Datasheet

Function Momentary/Latching
Contact Rating 3A/250V AC
Contact Resistance 3V DC, 50mΩ Max
Insulation Resistance 500V DC, 100MΩ min
Dielectric Strength 2,000V RMS 50~60Hz
Operating Temperature -20℃~+85℃
Electrical Life 10,000 Cycles
Mechanical Life 100,000 Cycles
IP Class IP67, IK10
Torque 5~14Nm.Max. applied to nut
Operating Force 3-6N max

GQ-10H-10D Series Information

GQ-10H-10DL latching, high button, dot LED
GQ-10H-10DM momentary, high button, dot LED

Still, have a question about the GQ-10H-10D series that wasn’t answered on this page? Please get in touch with us at sales1@chinadaier.com or submit form!
