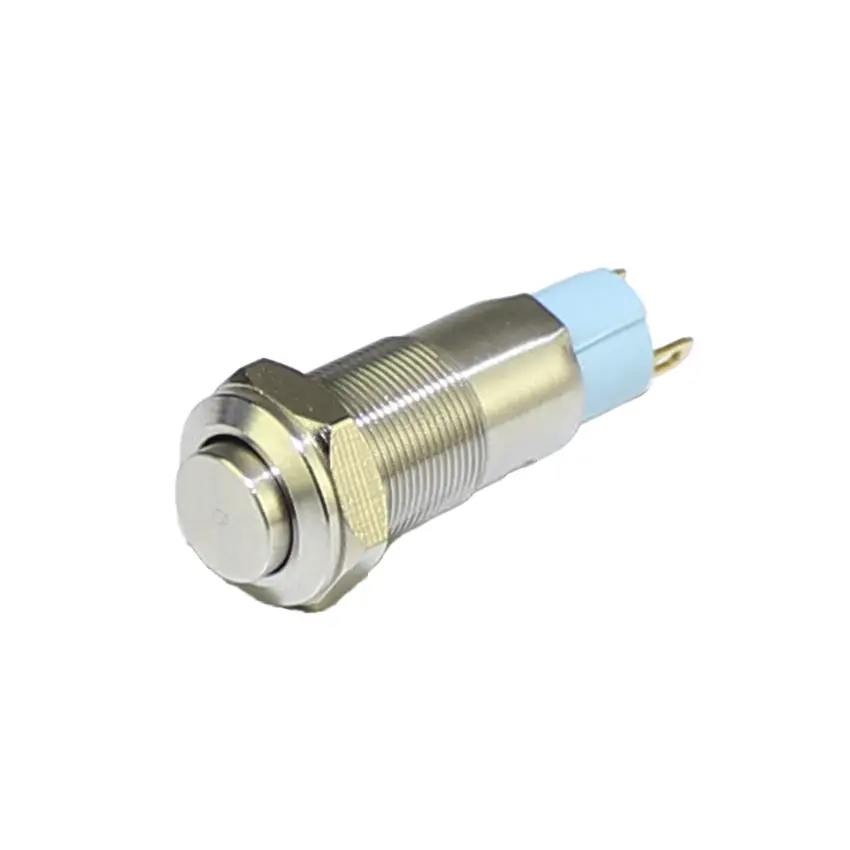

GQ-10H-10 Series Metal 10mm Push Button Switch


The series metal 10mm push button switch is a high button with no LED, function: 2 Pin, 1NO, latching/momentary; contact rating: 3A 250VAC.

The 10mm push button switch is widely used in the model construction or automotive sector, it can be applied in electrical components such as relays and electromagnetic starters.

Category :

10MM Anti-Vandal

GQ-10H-10 Series Metal 10mm Push Button Switch

Daier announces the anti-vandal switch series, which is the most popular item in our push button switch series.

They are RoHs certified, offering a rating of 3A 250VAC. The switch has even more features: it is IP67-rated and has a long operating life of up to 1,000,000 life cycles (momentary) and 500,000 (latching).

It offers multiple color ring illumination options and multiple voltage options. For LED, it offers one-color, bi-color, and tri-color options.

It comes with 10, 12, 16, 19, 22, 25, 28, 30, 40mm etc. Panel cutout size and SPDT or DPDT function.

For the switch body shell, plastic and metal are available, it offers multiple color options including black, white, yellow, blue, green, red, nickel, and stainless steel.

These anti-vandal pushbutton switches are popular for use in kiosk applications, ticket dispensers, industrial-type applications, etc.

  • Easy Installation

Anti-vandal switches with screw clamp-type terminals make the installation of switch simple and convenient.

  • Strong Durability

Anti-vandal switches located on devices that are outdoors must be able to withstand extreme temperatures, dust, rain, snow, and ice.

  • Sturdy Construction

Vandal-resistant switches are usually protected by the use of robust materials, such as thick stainless steel and heavy-duty plastics.

  • Wide Application

It is suitable for electric equipment such as cars, trucks, boats, home appliances, industrial equipment, medical equipment, etc.

GQ-10H-10 Series Datasheet

Function Normal Open, 2 Pin, 1NO, Momentary
Contact Rating 3A/250V AC
Contact Resistance 3V DC, 50mΩ Max
Insulation Resistance 500V DC, 100MΩ min
Dielectric Strength 2,000V RMS 50~60Hz
Operating Temperature -20℃~+85℃
Electrical Life 10,000 Cycles
Mechanical Life 100,000 Cycles
IP Class IP65, IK10
Torque 5~14Nm.Max. applied to nut
Operating Force 3-6N max

GQ-10H-10 Series Information

GQ-10H-10M Momentary, ON-(ON)
GQ-10H-10L Latching, ON-ON
